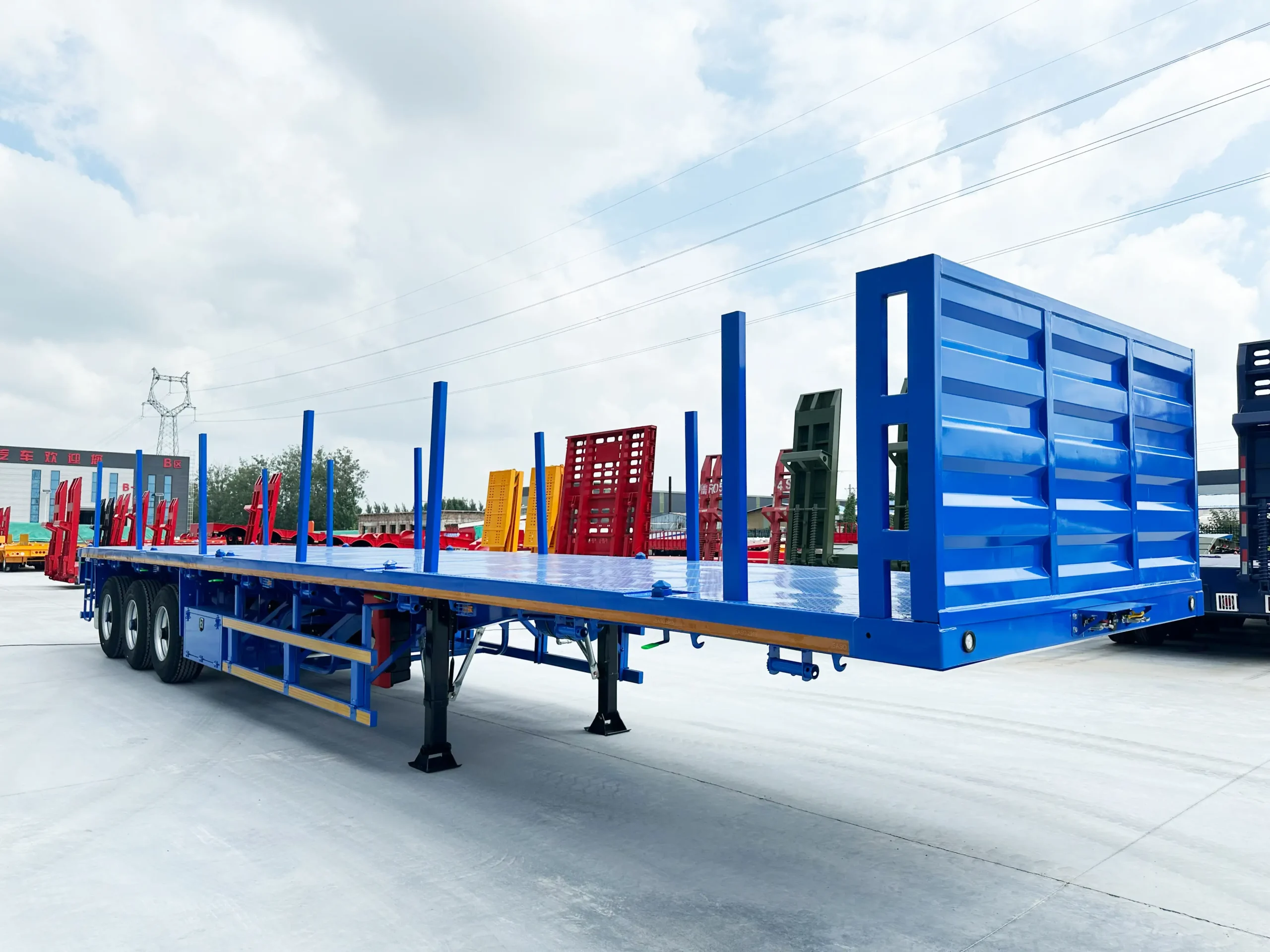

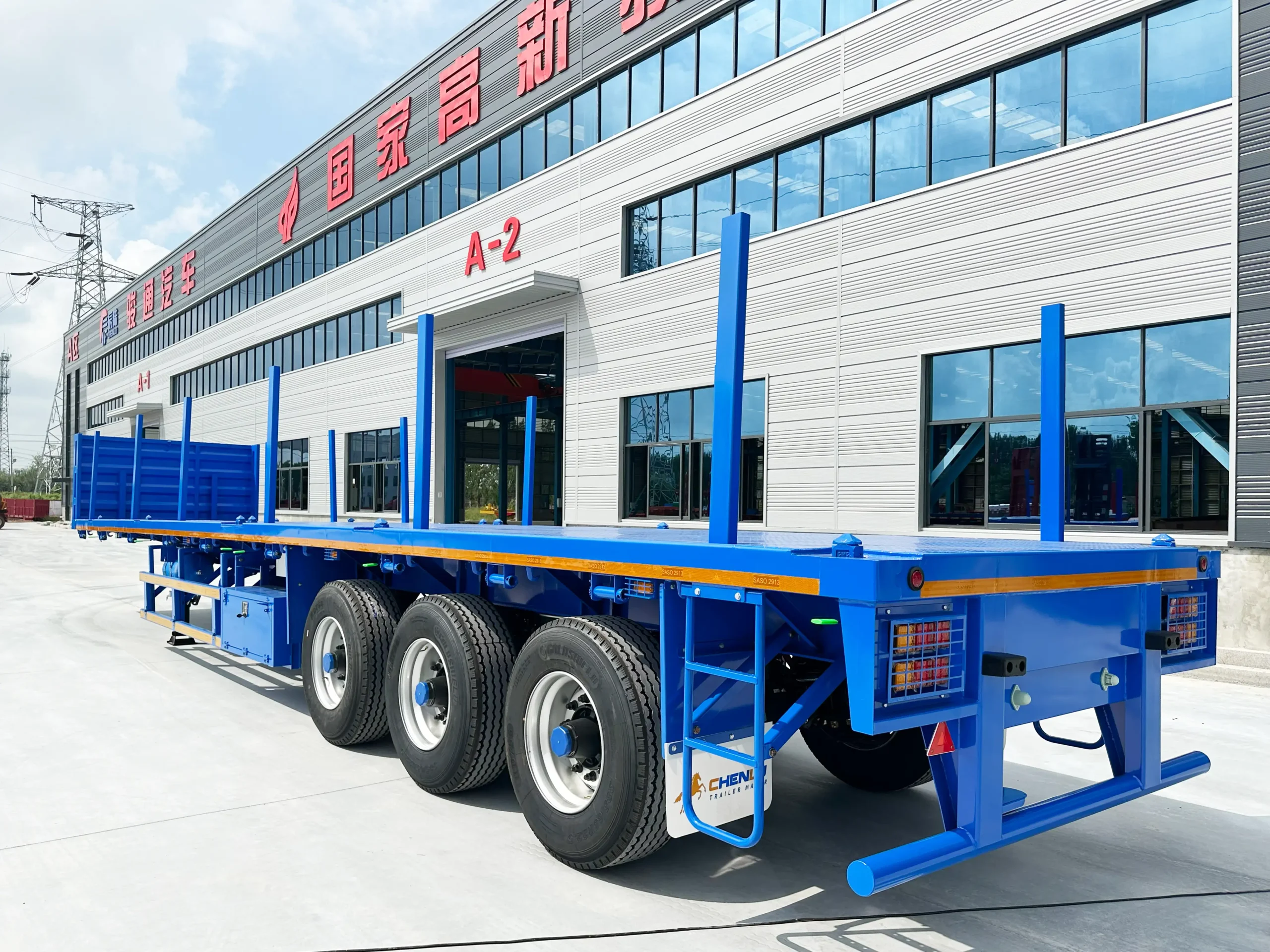

3 Axle Flatbed Semi Trailer for Saudi Arabia
This CHENLU 3 axle flatbed semi trailer is presented for a Saudi-bound inquiry involving container transport and other cargo. The supplied photos show a blue open deck, side stakes, a large front headboard, three visible axle positions, landing gear, side protection, reflective markings and visible container-lock positions that require final confirmation.
Before ordering: The photos document the product appearance and visible components only. Confirm the container footprint, lock type and layout, body dimensions, payload basis, deck construction, axle ratings, suspension, tires, braking system, cargo-securing equipment and Saudi destination requirements.

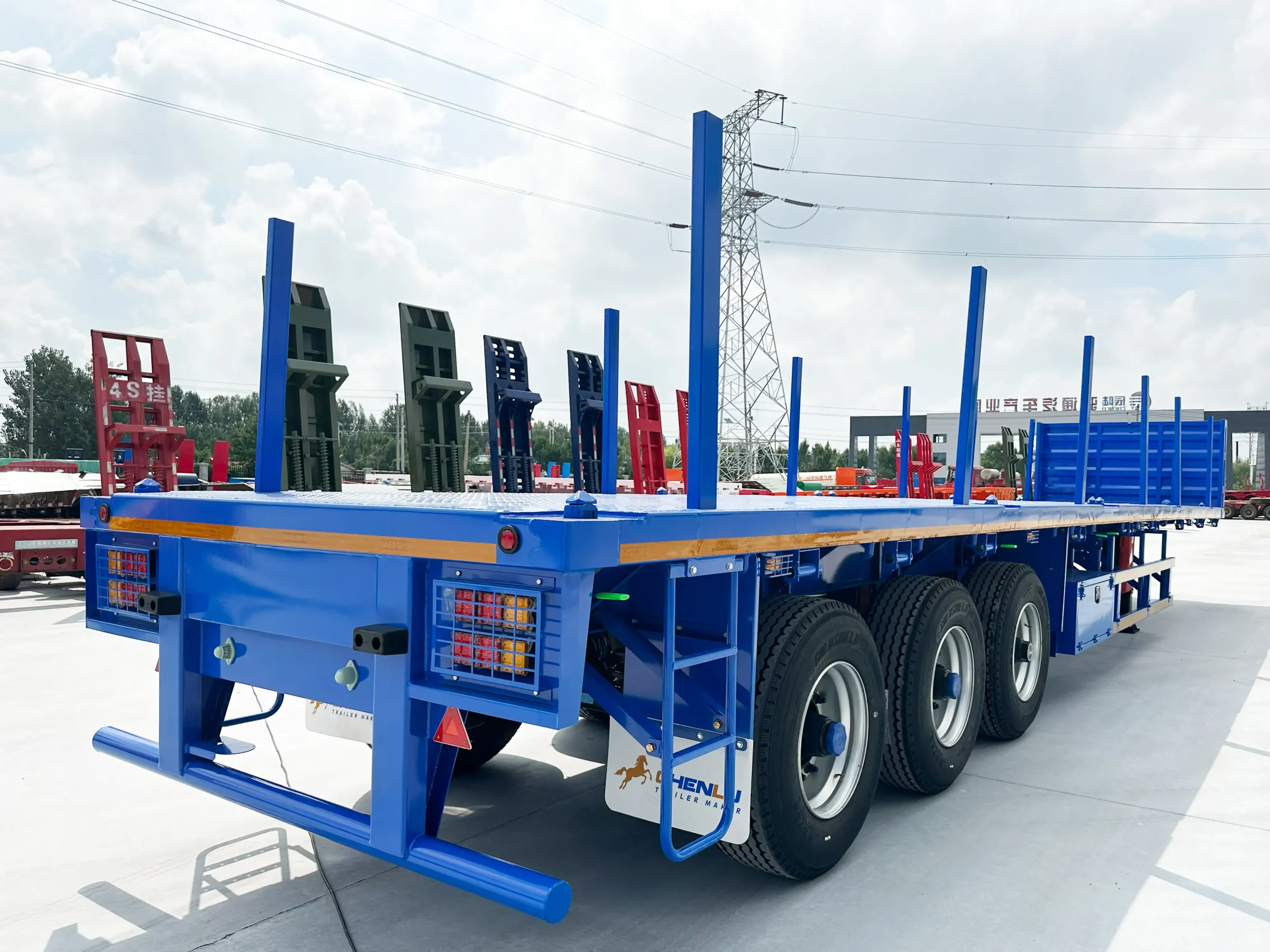

Three visible axle positions
Side stakes and headboard shown
Confirm route requirements
How Does This Flatbed Carry Containers and General Cargo?
This 3 axle flatbed semi trailer gives Saudi operators an open deck for steel, pallets and packaged goods, plus twist locks for container transport. Side stakes and a front headboard surround the loading area without enclosing it.

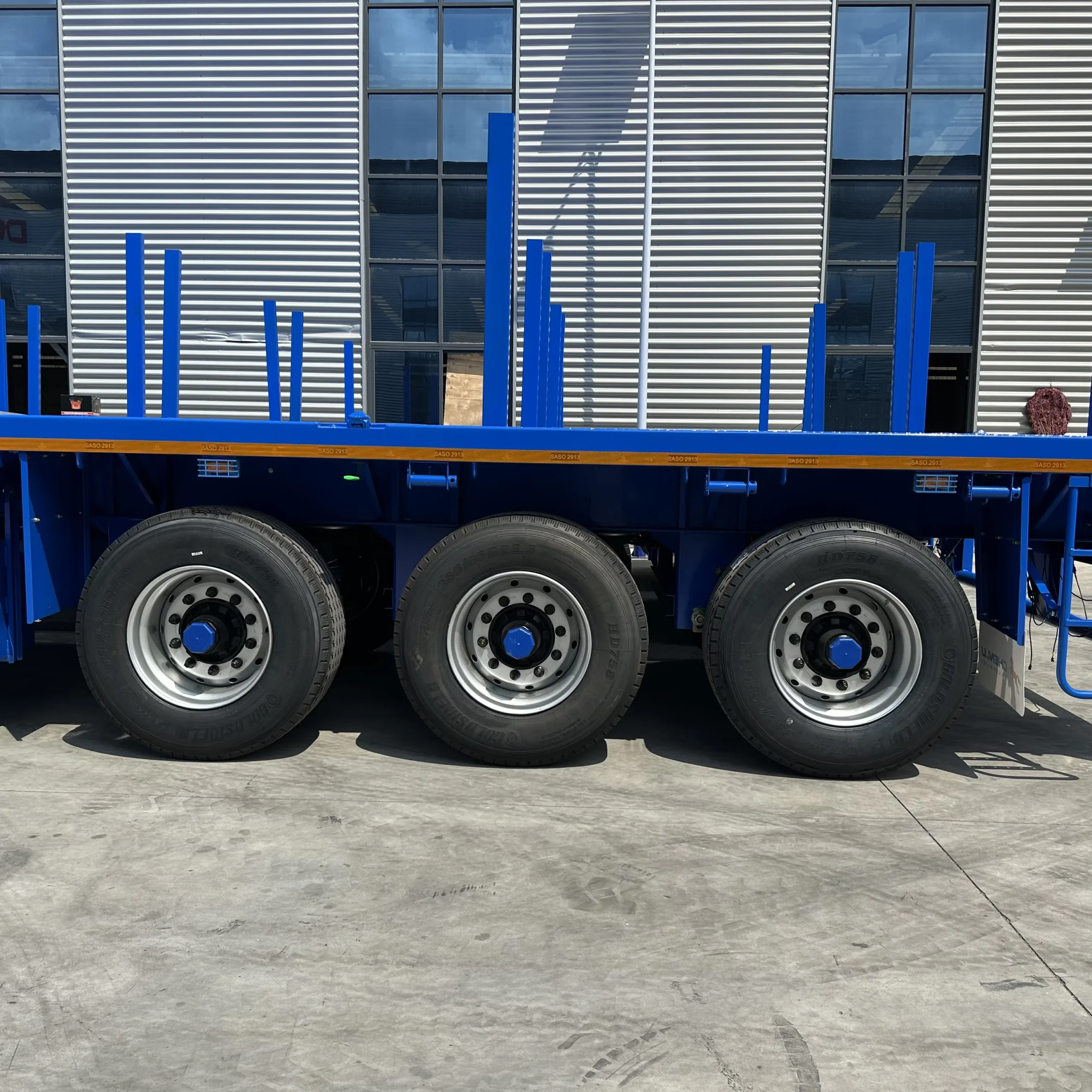

Flat Deck Above the Axles
The three axles sit below the deck, so wheel arches do not interrupt the loading surface. Long bundles and rows of pallets can be arranged along the trailer.
Open Access for Loading
The open top allows a crane to lower steel and other bundled materials directly onto the deck. A forklift can load from the side where the cargo and forks fit between the stakes.

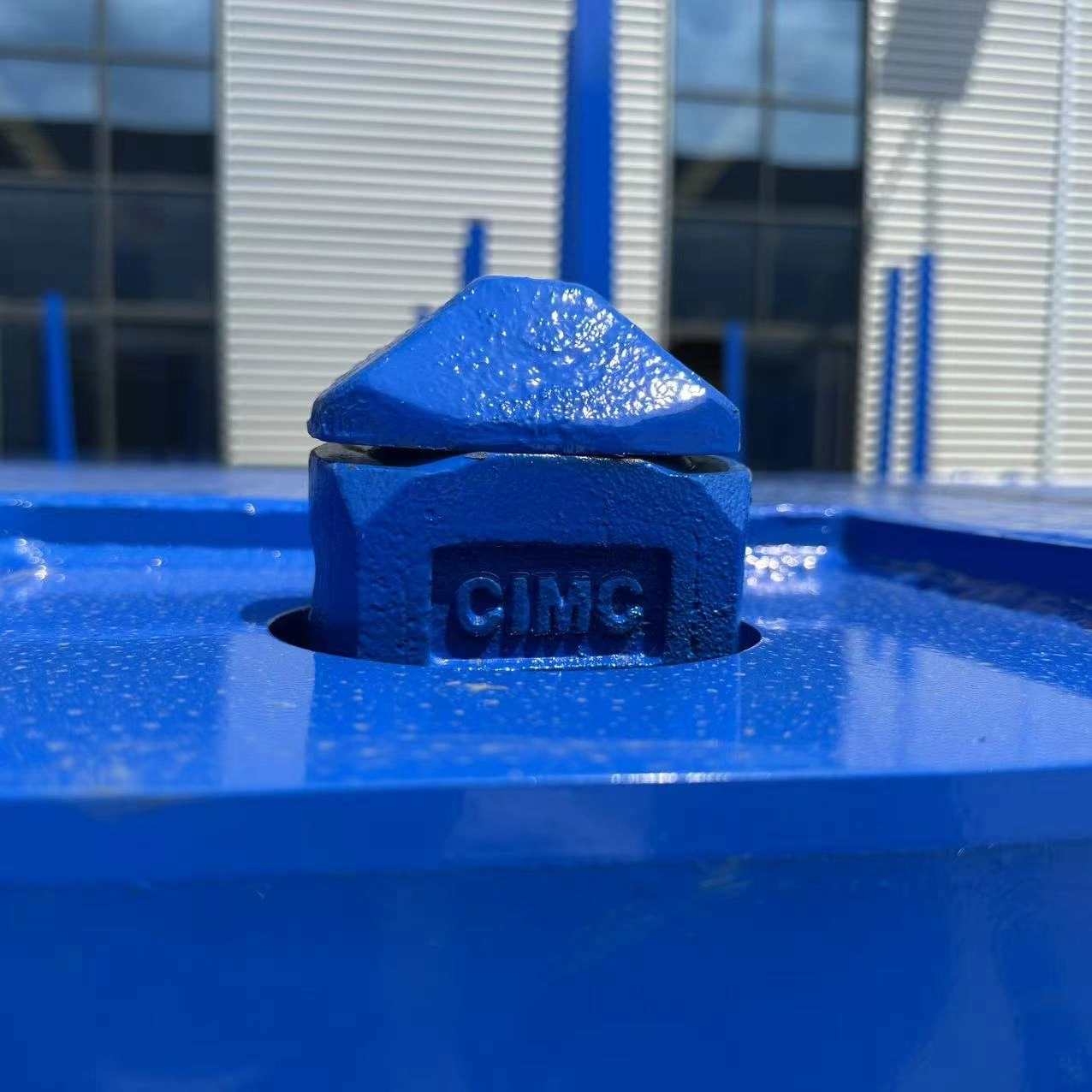

Built-In Container Twist Locks
Deck-mounted twist locks engage the lower corner fittings of a container. They provide dedicated attachment points for container loads on the same trailer used for general freight.
How Can You Use the Deck for Different Loads?
A container uses fixed locking positions. Pallets, steel bundles and crates need space to suit their size and loading method. This 3 axle flatbed semi trailer combines container twist locks with an open deck for general freight.
What does your fleet carry most often? Tell us the cargo size and weight, and whether you load by crane or forklift.
| Cargo type | Use of the deck | Loading access and fittings |
|---|---|---|
| Shipping containers | The container sits over the deck-mounted locks. Its corner fittings need to line up with the installed lock positions. | Twist locks connect the container's lower corner fittings to the trailer. The lock layout determines which container sizes fit. |
| Palletized building materials | Pallets can be arranged along the flat loading surface without working around wheel arches. | A forklift can approach from the side where the pallet and forks fit between the stakes. |
| Steel sections and bundled pipes | Long bundles lie lengthways on the deck, with supports positioned beneath the load. | The open top gives a crane access along the trailer, so long bundles do not have to pass through a rear doorway. |
| Crates and packaged freight | The undivided deck accommodates packages with different footprints, rather than fixed cargo compartments. | Forklift access depends on the crate base and clearance between the stakes. Crates with suitable lifting points can be loaded from above. |

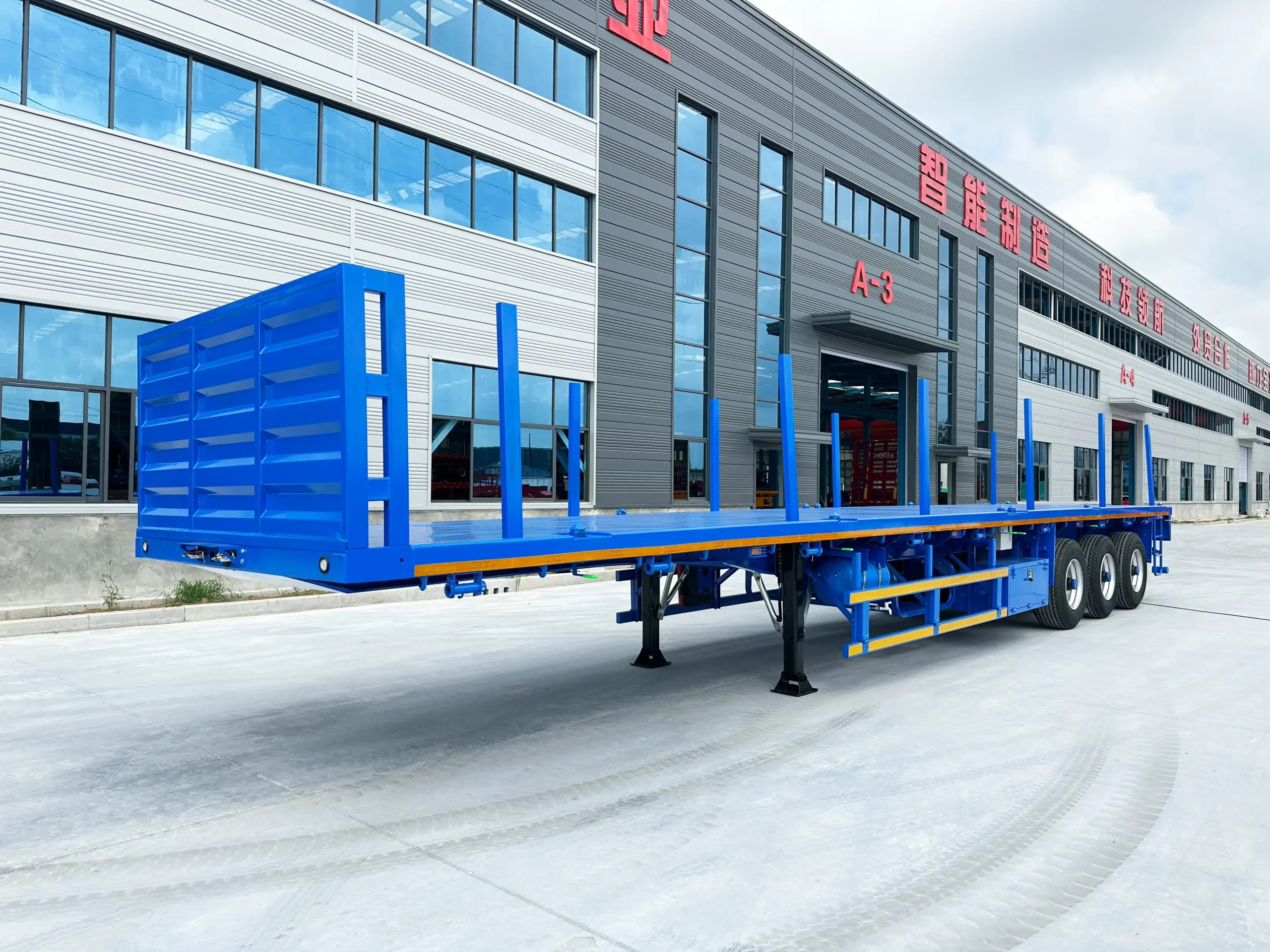

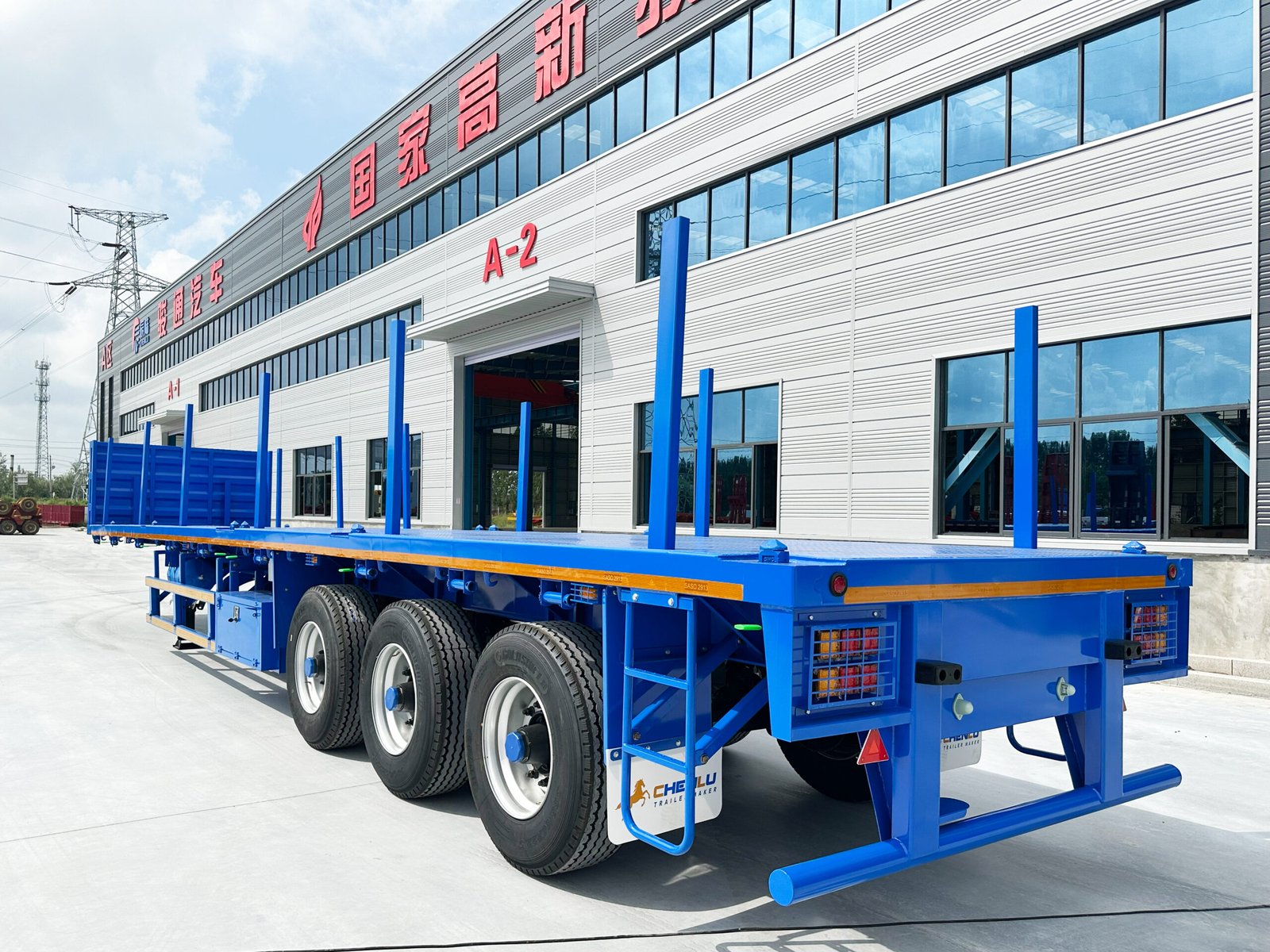

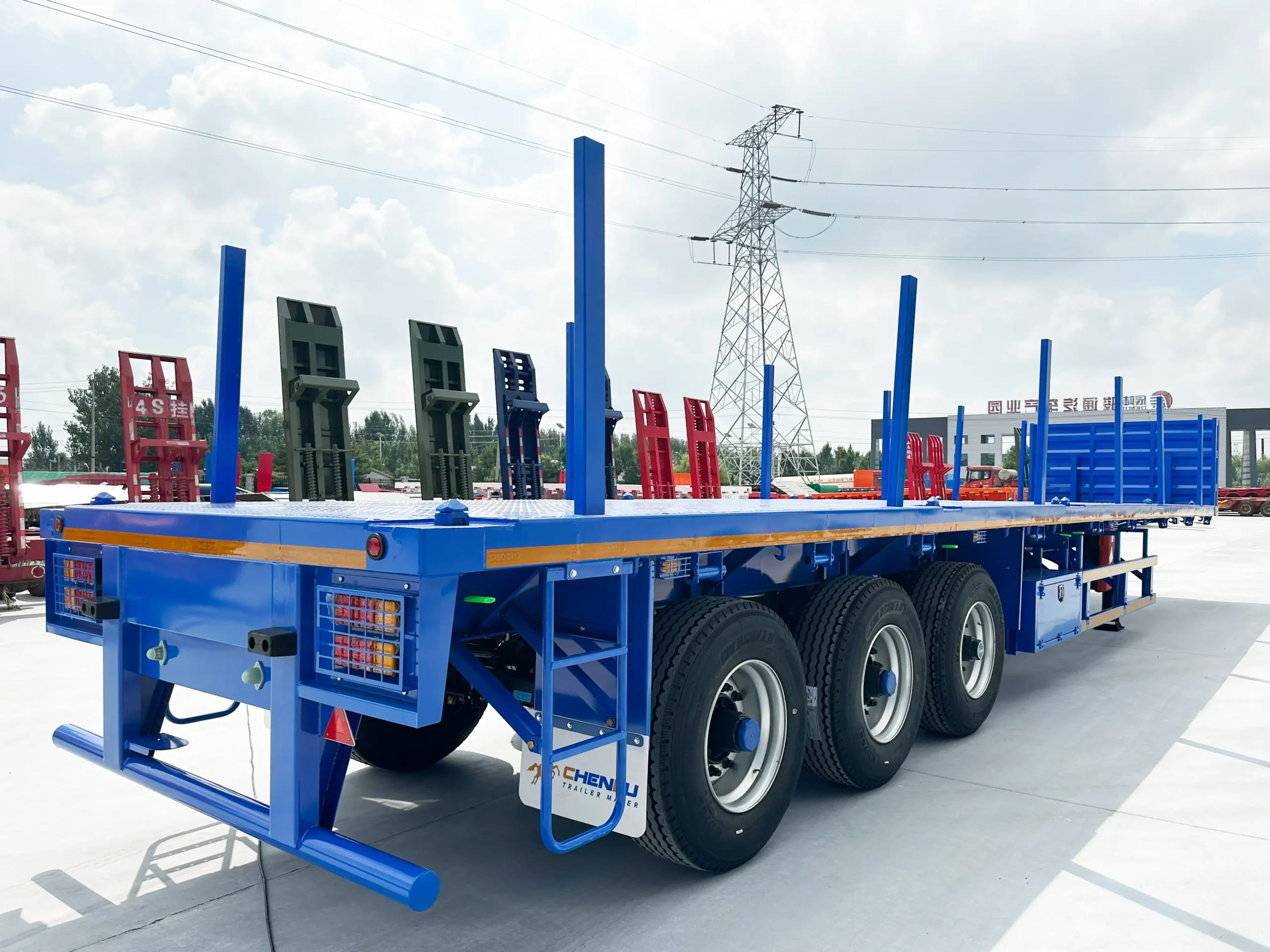

Open Deck, Side Stakes and Front Headboard
3 Axle Flatbed Semi Trailer Specifications
This model combines a flat cargo deck with side stakes, a front headboard and container twist locks. Its main dimensions and equipment are listed below.
| Item | Specification | Details |
|---|---|---|
| Nominal size | 13,600 × 2,500 mm | Length × width. |
| Axles | 3 | Grouped beneath the rear of the deck. |
| Axle spacing | 1,310 + 1,310 mm | Centre-to-centre distance between adjacent axles. |
| Loading deck | Flat, open platform | Uninterrupted floor space for bundles, pallets and crates. |
| Side stakes | Upright posts along both sides | Gaps between the posts leave access from the side. |
| Front headboard height | 1,200 mm | Measured above the deck. |
| Container fittings | Deck-mounted twist locks | Connect to the container’s lower corner fittings. |
How Should a Three-Axle Flatbed Trailer Be Loaded?
The loading process should be planned around the container or other cargo, the flatbed deck, container-lock arrangement, side stakes, headboard, tractor combination and Saudi route. Follow the approved loading and cargo-securing procedure for the supplied configuration.
Reference video for this section. Follow the approved loading and cargo-securing procedure for the supplied trailer configuration.
Define the Load
Record whether the load is a container or other cargo, including its footprint, weight, dimensions, centre of gravity and loading method.
Confirm the Deck and Locks
Check the approved deck dimensions, container-lock type and positions, side-stake arrangement and headboard clearance.
Load with Approved Equipment
Use the approved crane, spreader, forklift, loader or other equipment. Keep the load aligned with the deck and load-distribution plan.
Secure the Cargo
Confirm container-lock engagement where applicable. Secure other cargo with the specified chains, straps, chocks, blocks, posts or restraints.
Inspect Before Departure
Check locks, stakes, restraints, landing gear, tires, lamps, markings, air and electrical connections, clearance, overhang and route conditions.

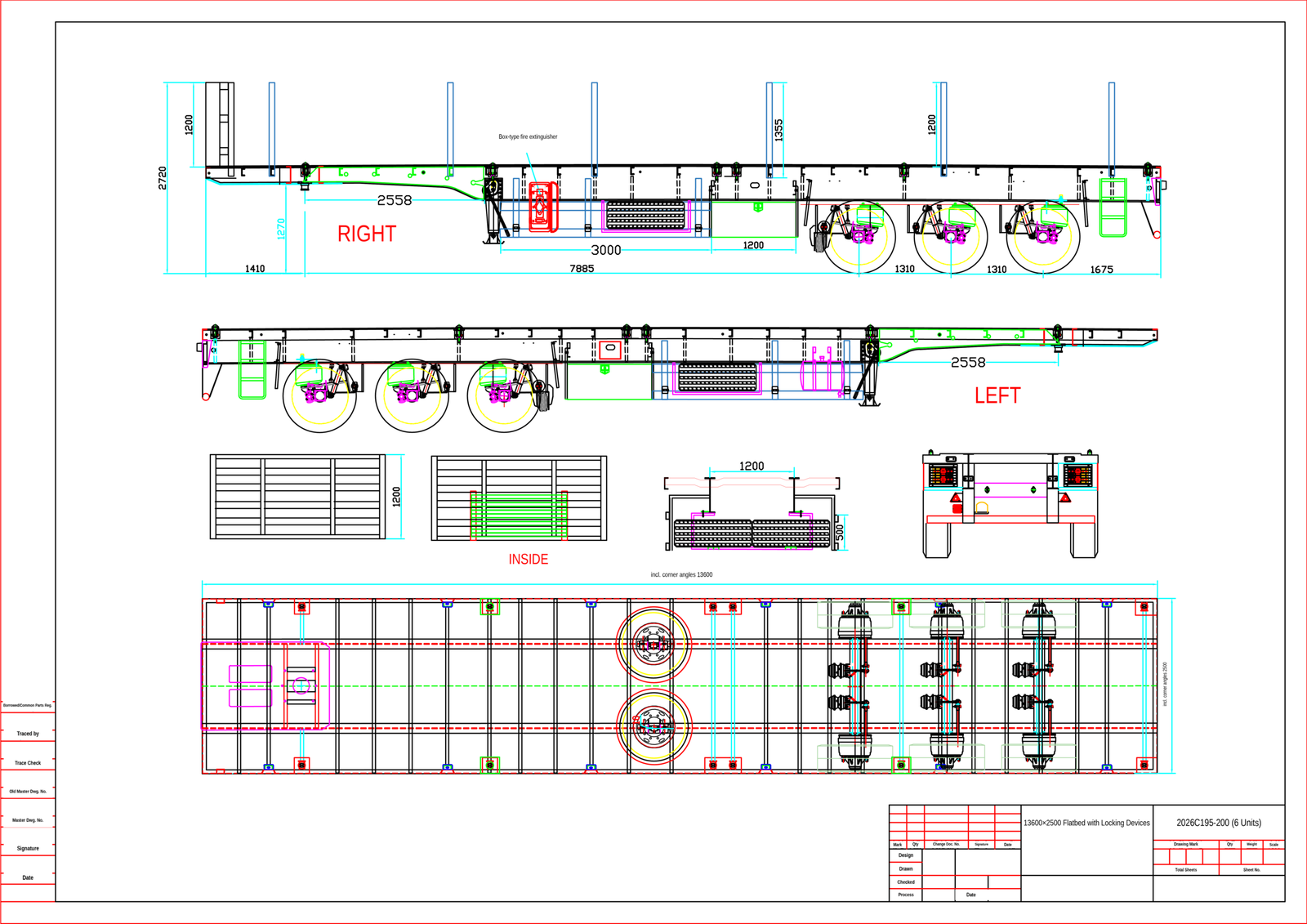

Three-Axle Flatbed Drawing: Check Fit Before Production
The drawing should show the deck length, deck width, front headboard, side-stake arrangement, container-lock positions, axle group, kingpin position, overall height and clearance for the intended cargo and route.
