CURTAIN SIDE CARGO TRAILER
3 Axle Curtain Side Semi Trailer

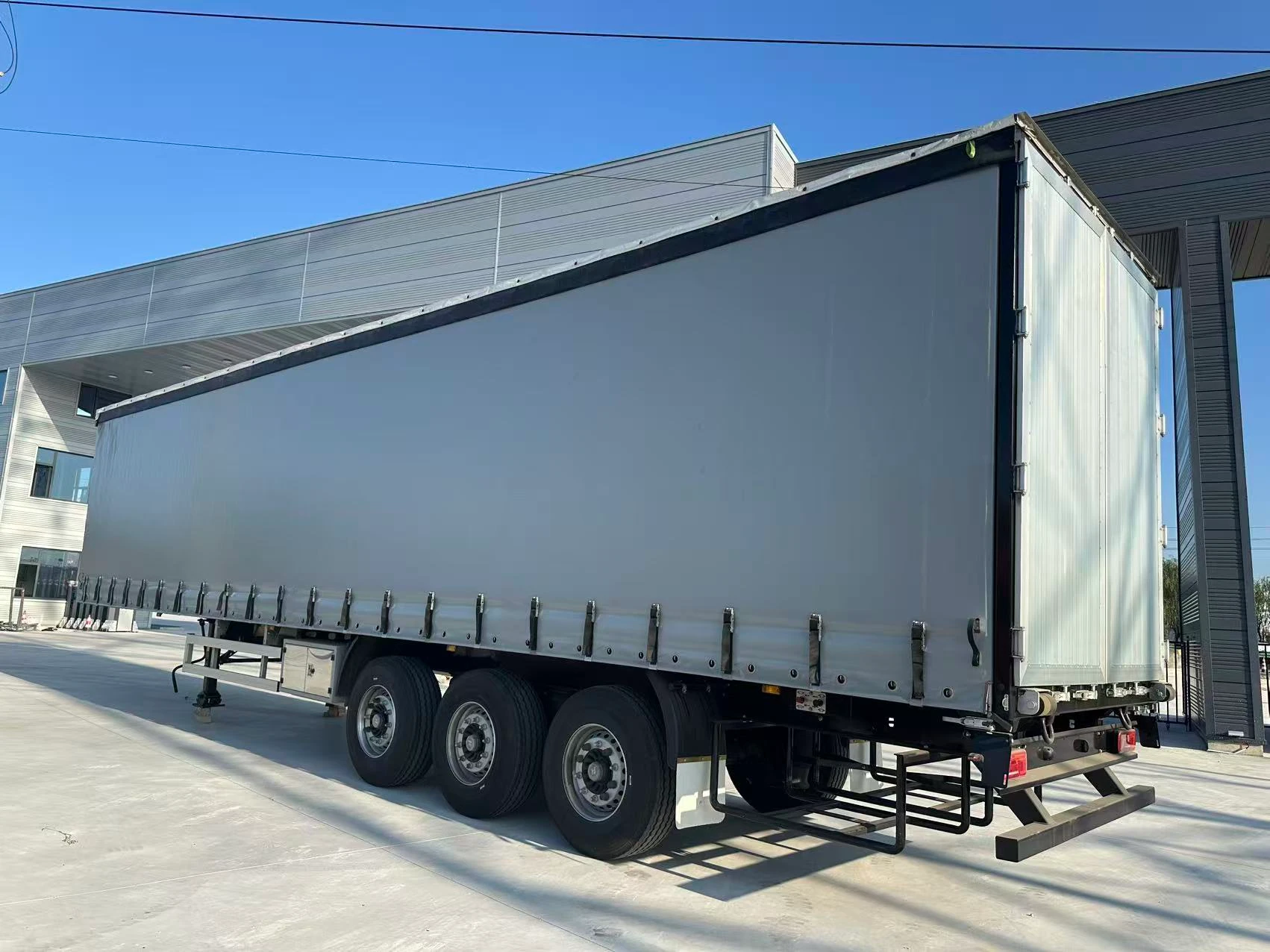

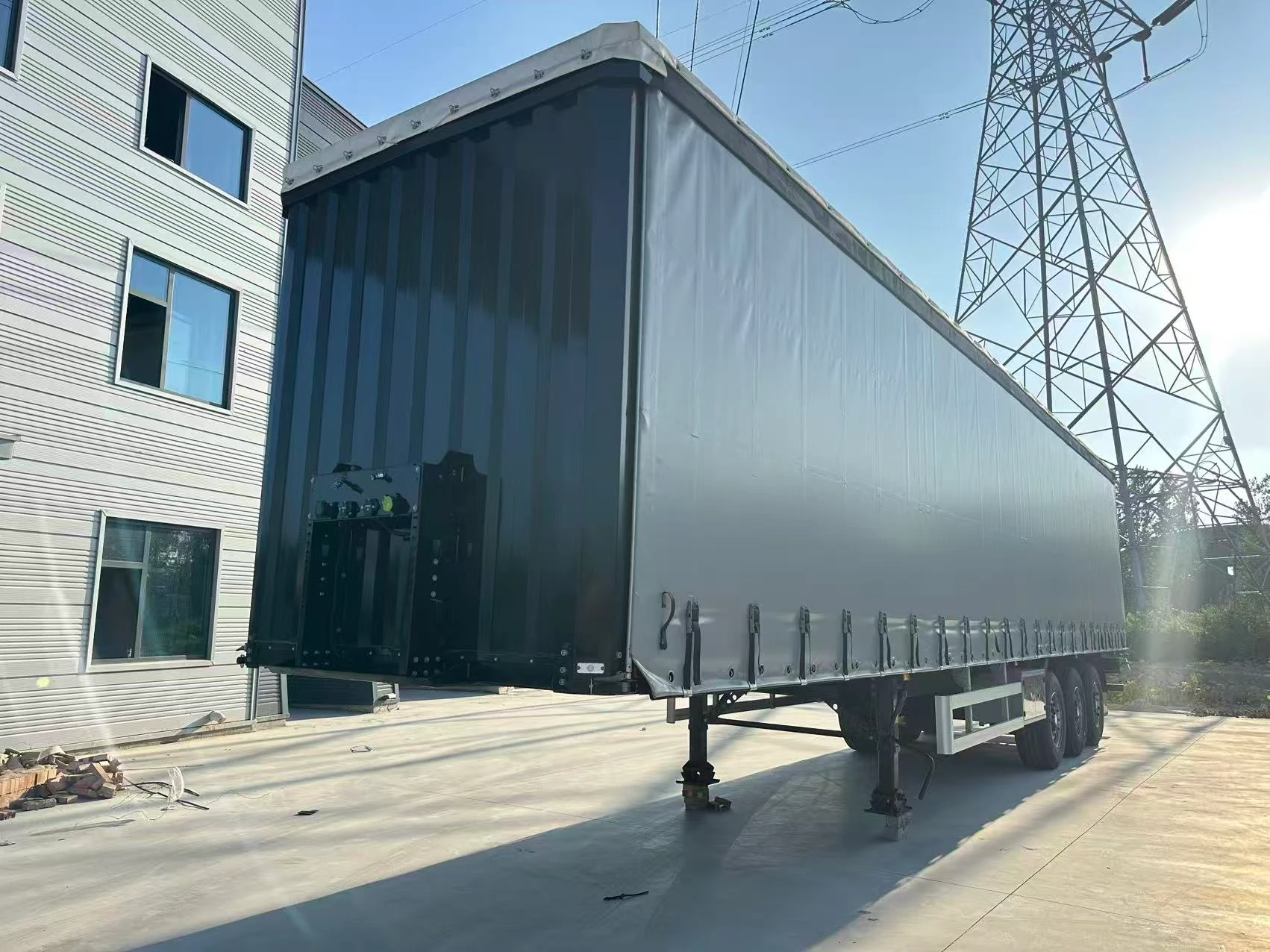

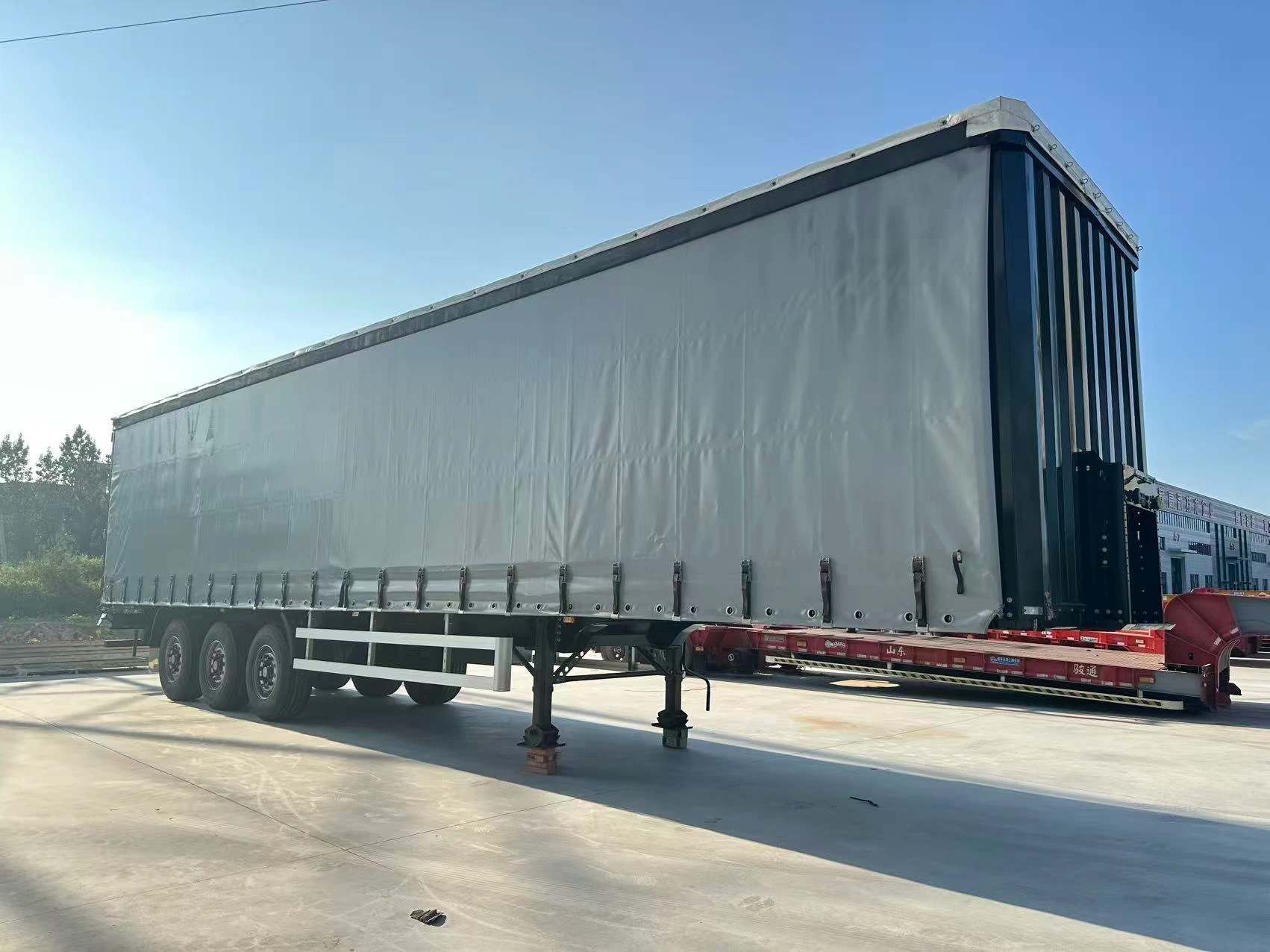

This three-axle curtain side semi trailer carries palletized and packaged freight. A forklift can reach the load from the side after the curtain is drawn back, while the double rear doors serve a loading bay.

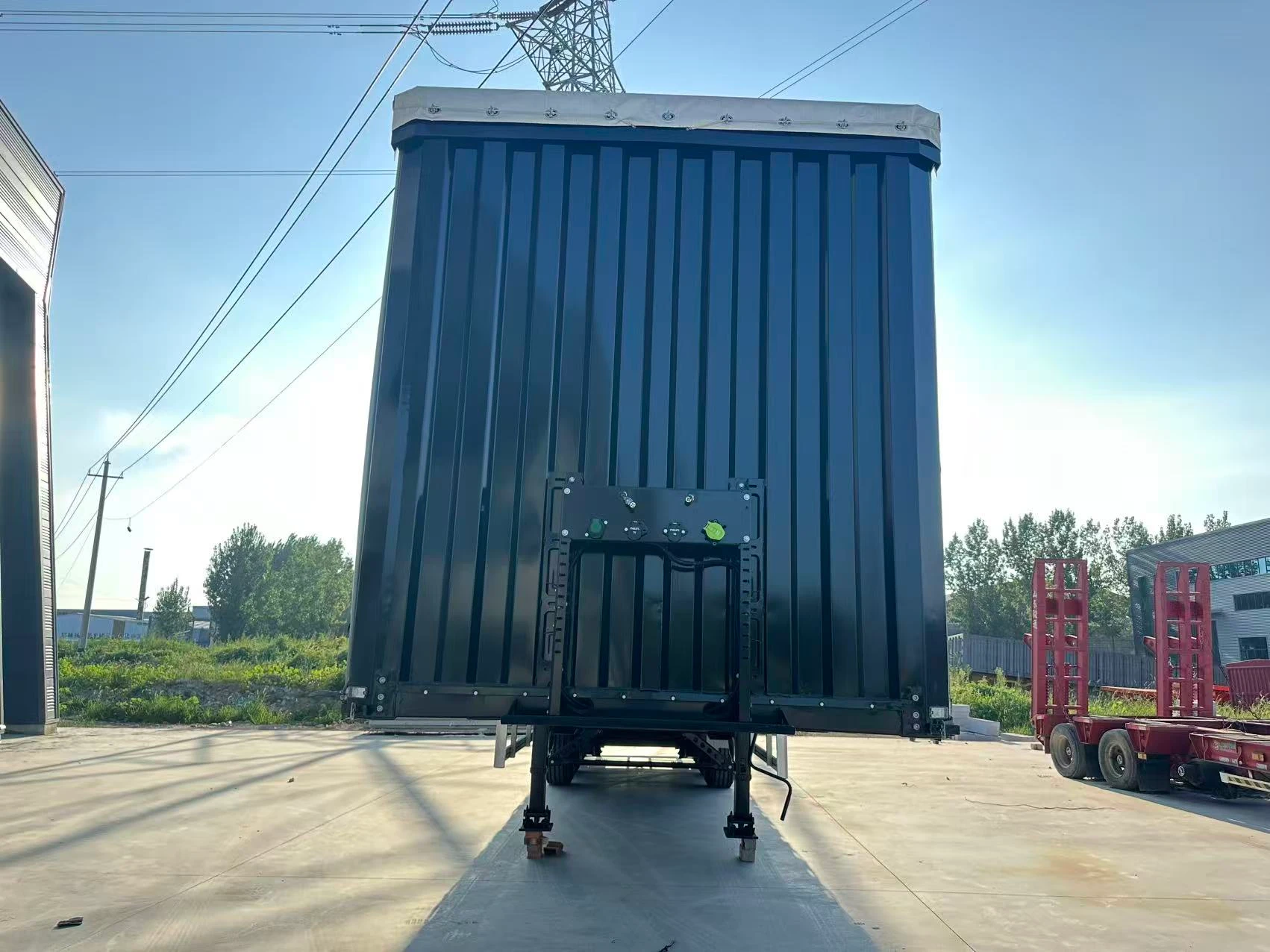

A rigid front bulkhead and roof frame form the cargo body. Buckles along the lower rail pull the curtains tight when the sides are closed. The curtains cover the freight, but the load still needs its own securing arrangement.
The three axles sit beneath the rear of the floor. Landing legs support the front when the trailer is uncoupled; a side guard and toolbox are mounted under the loading area.
Can You Load This Curtain Side Trailer from the Side and Rear?
The side curtain and rear doors close independently on this three-axle curtain side semi trailer. The fittings below are part of the trailer body; cargo inside still needs its own restraints.
SIDE CURTAIN
Fastened along the lower rail

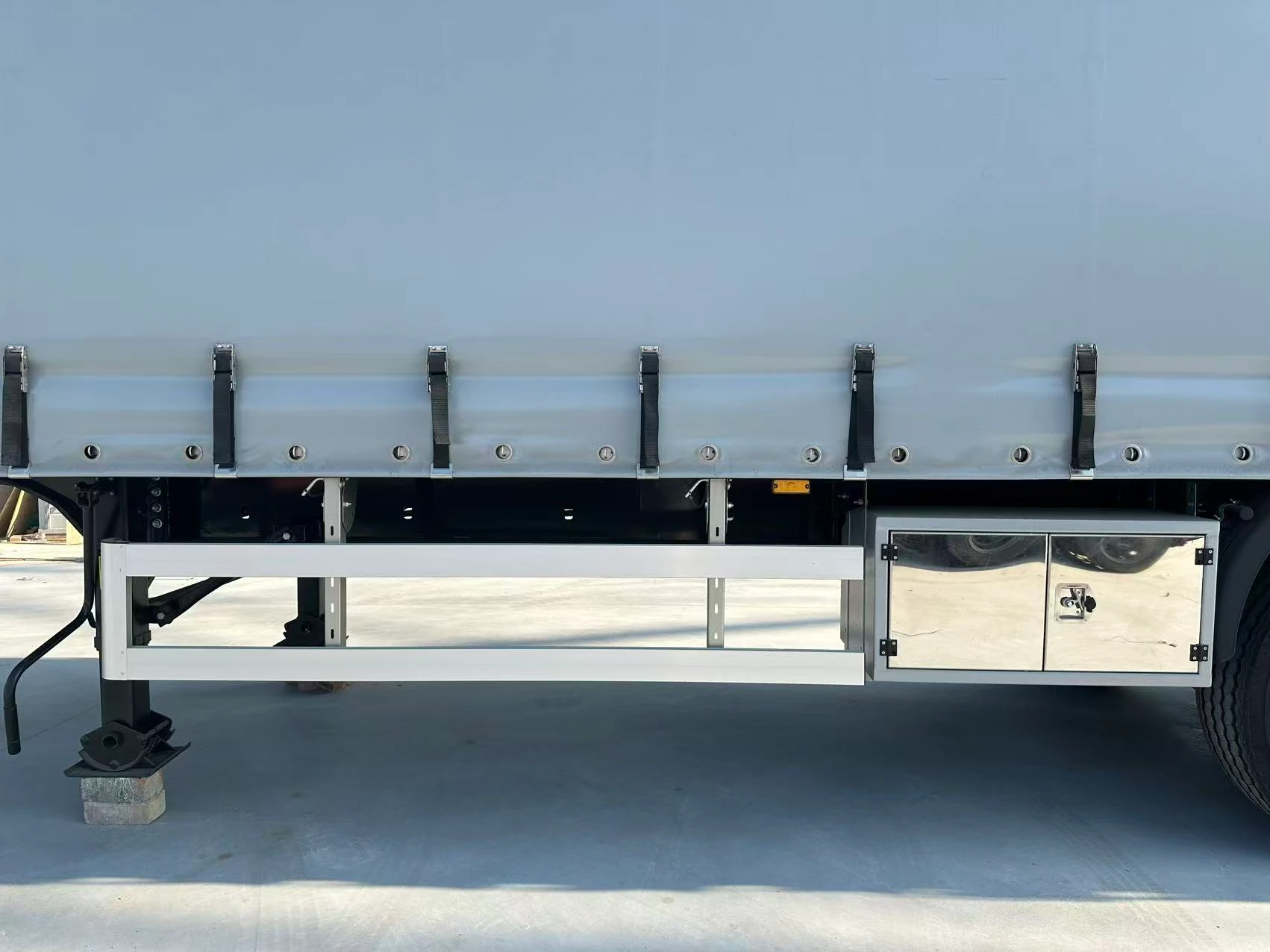

Black straps run down the grey curtain to the buckles at the lower side rail. This row holds the curtain's bottom edge in place when the body is closed; the straps are released before the curtain is moved aside for loading.
The landing leg, side guard and toolbox are mounted below the curtain line, separate from the buckles used to close the side.
REAR OPENING
Two doors at the back

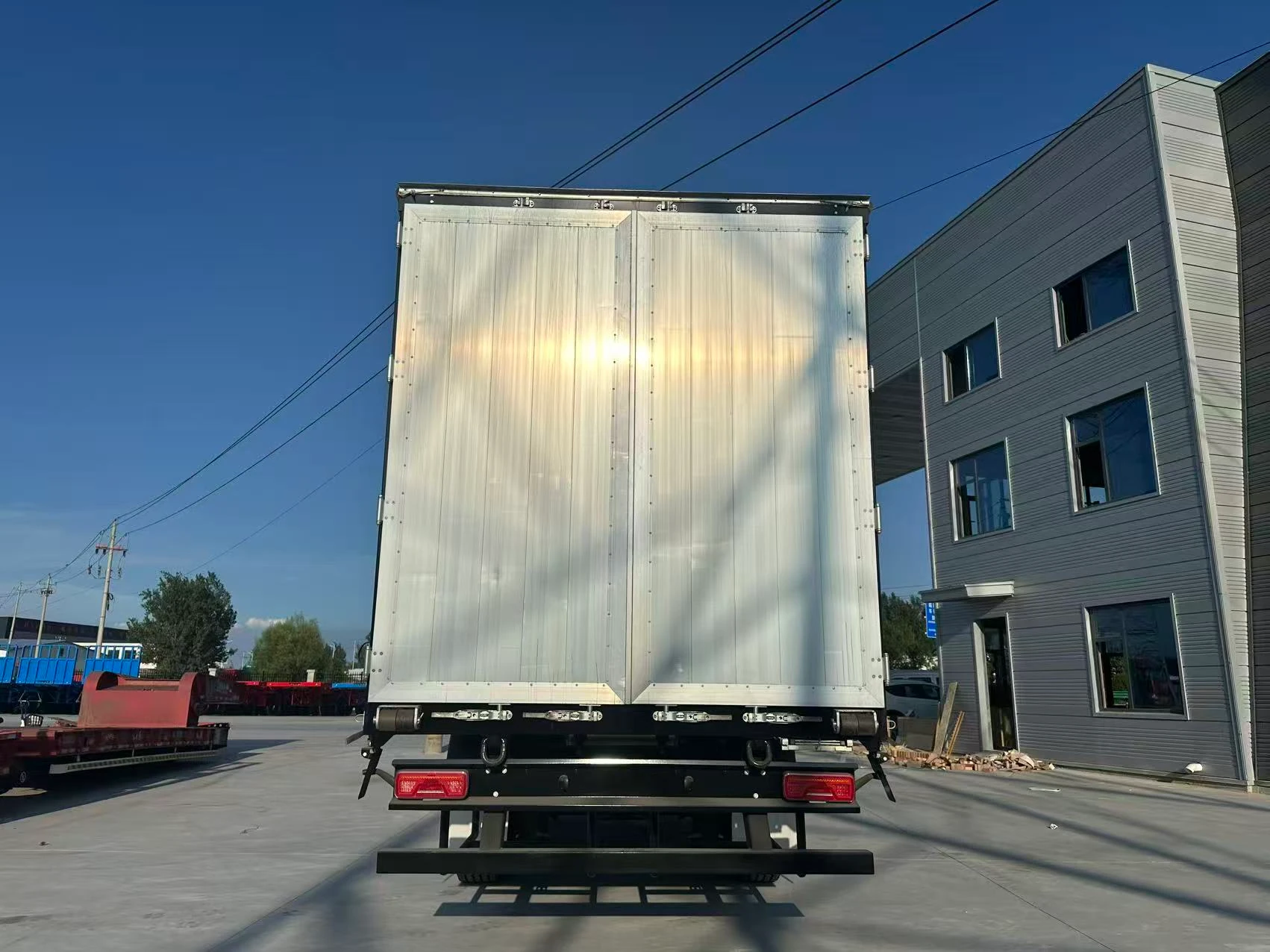

The metal door leaves meet at the centre of the rear opening. They provide a separate route for loading from behind, so the side curtain can stay closed when rear access is preferred.
Hinges are fitted at the outside edges of the doors, with the rear bumper and lamps below. This rear opening and the side curtain give the operator two distinct ways to reach the cargo body.
CARGO APPLICATION
What Is a Curtain Side Trailer Used For?
This body is intended for palletized and packaged dry freight that needs a covered cargo space with side or rear access.
Match the body to the freight and loading method
The curtain opens along the side for forklift access, while the rear doors serve a loading bay. The curtains close the cargo body during transport but do not replace the load's own restraints.
- Palletized freight
- Side access lets a forklift reach pallet positions along the cargo floor.
- Packaged dry goods
- The roof, front bulkhead, rear doors and closed curtains form the covered cargo body.
- Confirm before production
- Check cargo dimensions, transport weight, loading method and securing points against the final drawing.
CHASSIS DETAILS
3 Axle Curtain Side Trailer Chassis Details
The curtain-side cargo body is mounted on a full-length chassis. This build has three rear axles and an open storage rack below the side rail.
01 / MAIN CHASSIS
Frame below the cargo floor

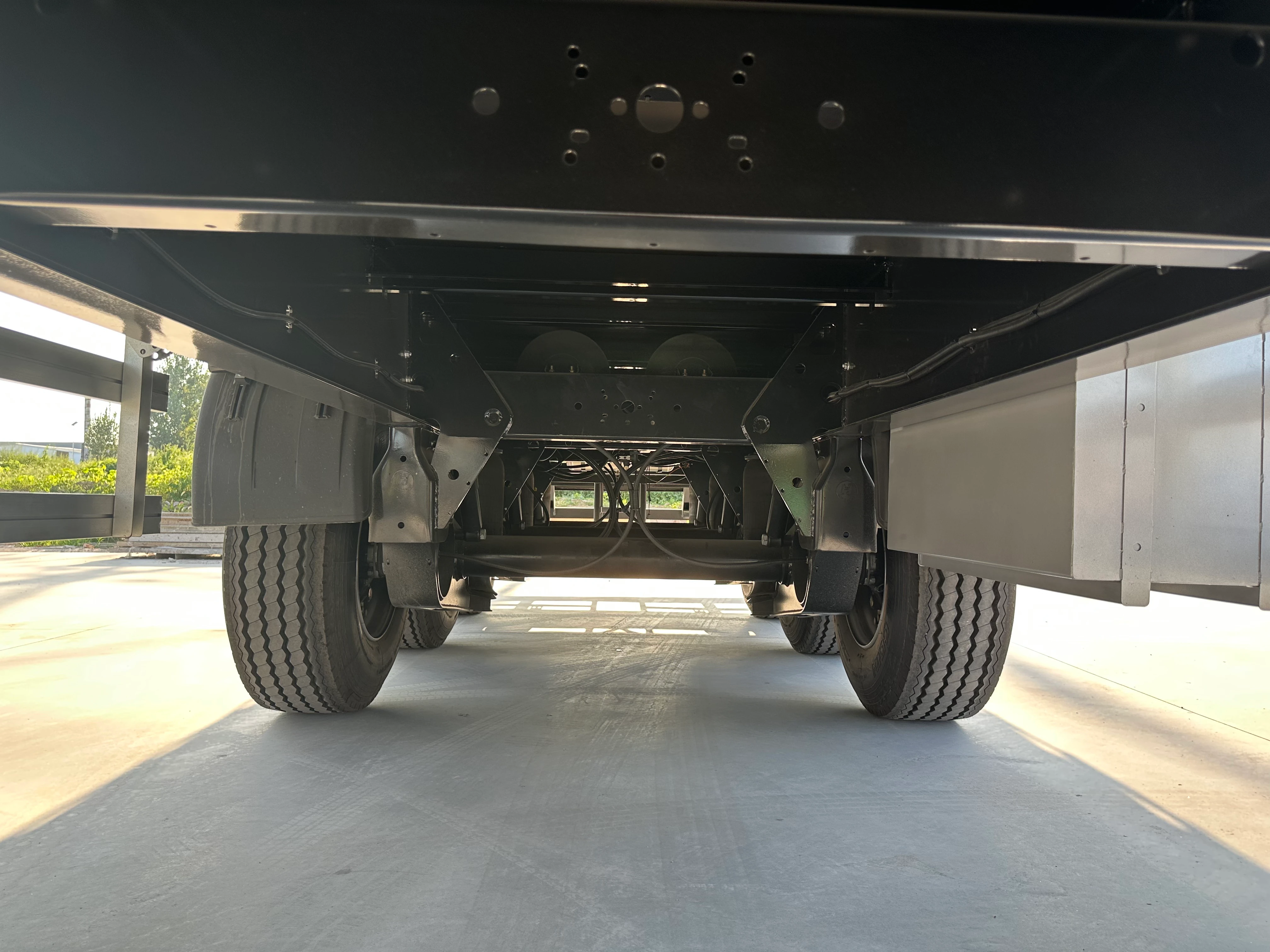

Two longitudinal beams run from the front coupling section toward the rear. Crossmembers join the frame across the trailer beneath the loading floor.
02 / REAR AXLE GROUP
Three axles at the rear

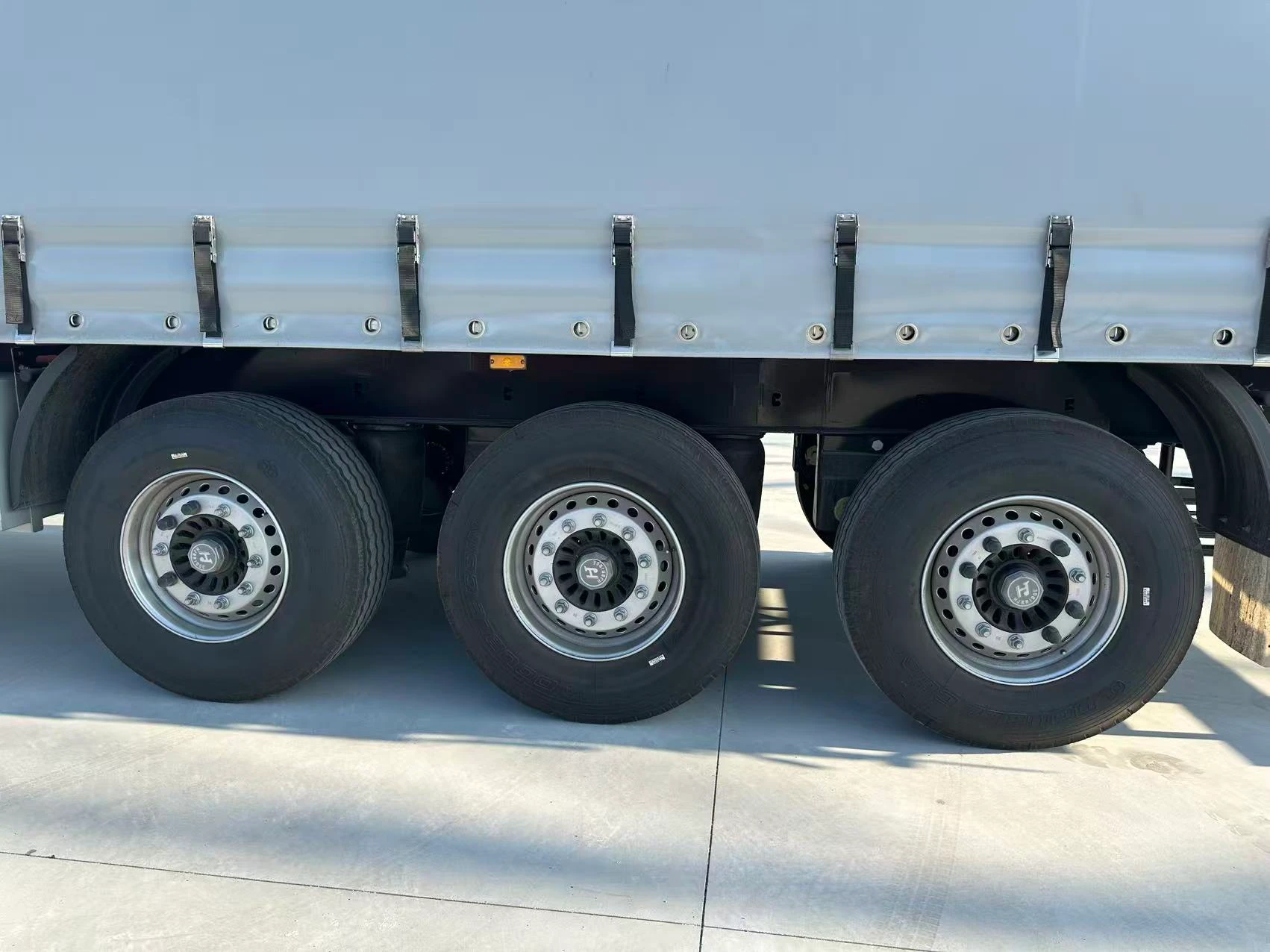

All three axles are grouped beneath the rear section of the cargo body. The wheels sit below the lower curtain rail and its fastening straps.
03 / STORAGE RACK
Storage outside the curtain

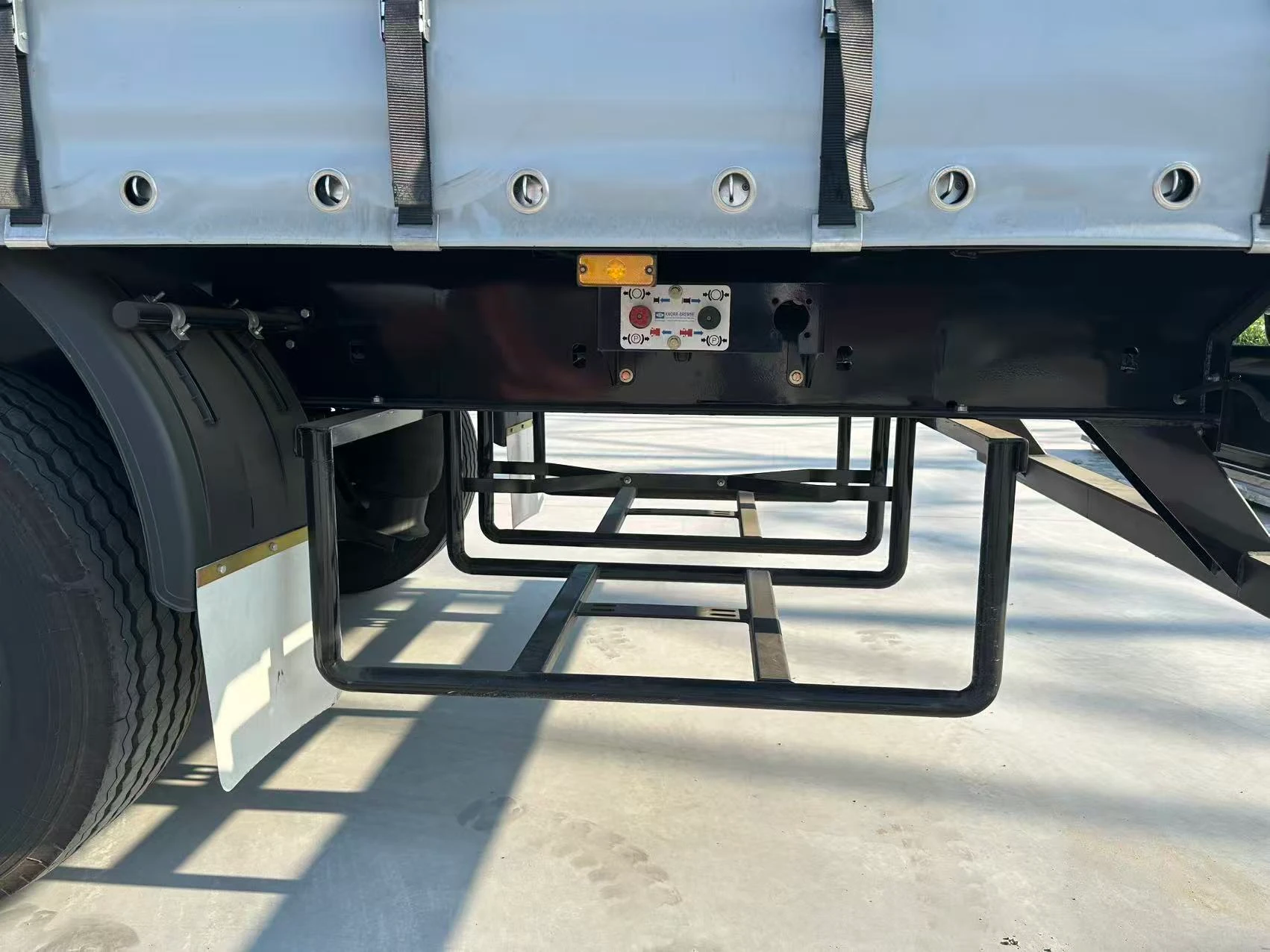

The open rack is mounted below the side rail near the rear wheels. It keeps stored items outside the curtained compartment and off the loading floor.
CURTAIN SIDE TRAILER DIMENSIONS
What Are the Dimensions of This Curtain Side Trailer?
The reference drawing separates the trailer's overall size from the clear space inside the curtain body. Use the internal dimensions to check the cargo arrangement, then confirm the overall height and width for the intended route.
01 / EXTERNAL DIMENSIONS
Overall trailer size
- Length
- 12,750mm
- Width
- 2,600mm
- Height
- 4,400mm max.
These figures describe the outside envelope shown on the communication drawing.
02 / INTERNAL DIMENSIONS
Usable cargo-body reference
- Length
- 12,440mm
- Width
- 2,510mm
- Height
- 2,680mm
Check these dimensions against the packed cargo, pallet layout and the clearance needed for loading.

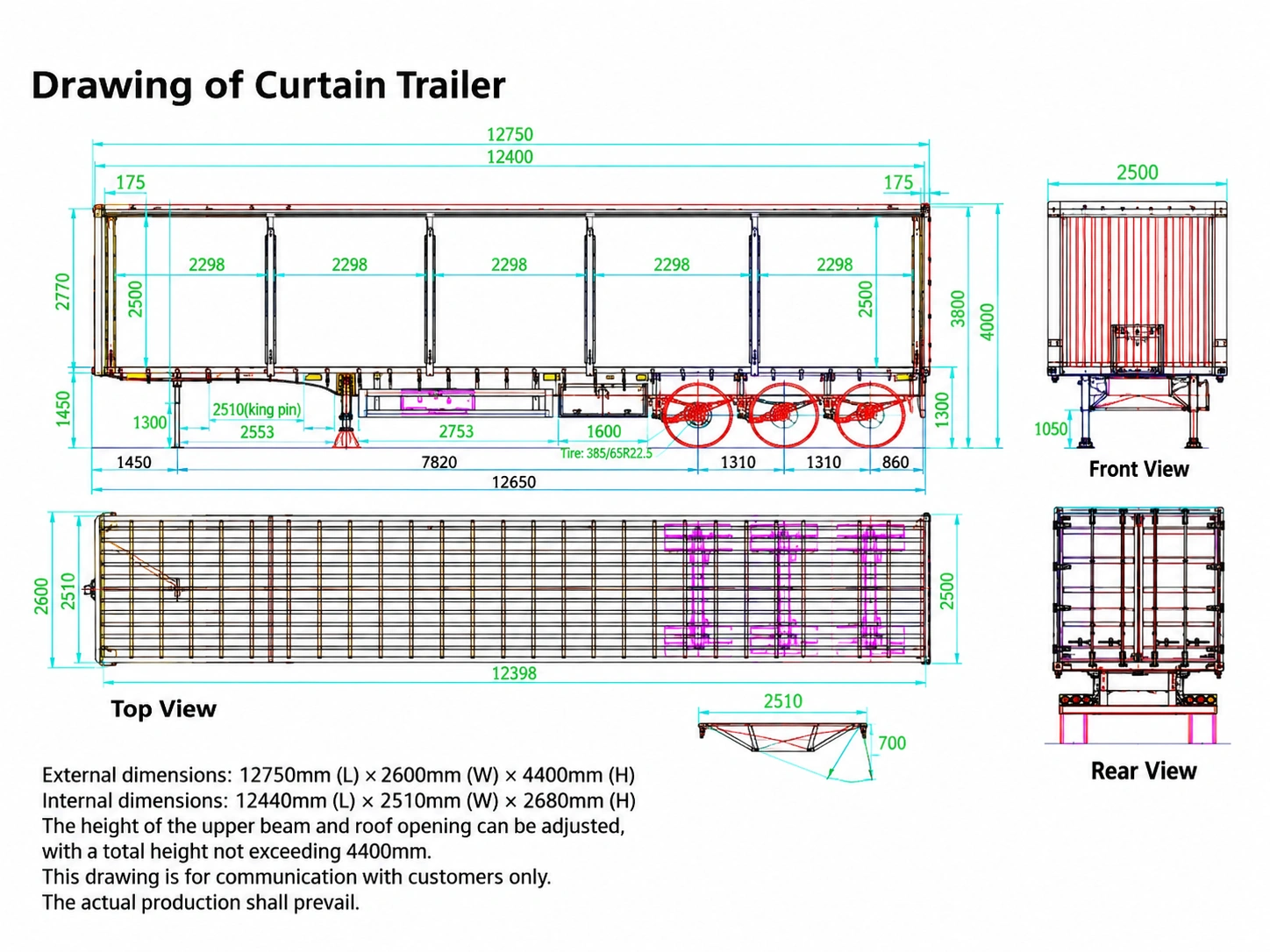

GENERAL ARRANGEMENT DRAWING
What Does the 3 Axle Curtain Side Trailer Drawing Confirm?
The side, top, front and rear views bring the cargo body and running gear into one reference. Review the drawing against the packed cargo, loading equipment and route limits before the production layout is approved.
Open full drawing ↗
Check the cargo space
Compare the internal length, width and height with the packed cargo and planned pallet arrangement.
Check the outside envelope
Use the overall length, width and height to review route, yard and loading-site clearance.
Confirm the openings
State the required side-loading clearance and rear-door access so the adjustable upper structure can be reviewed before manufacture.
FACTORY WALKAROUND VIDEO
What Does This 3 Axle Curtain Side Trailer Look Like Up Close?
This short CHENLU walkaround follows the trailer from the front bulkhead to the rear. It provides a closer view of the curtain hardware and the equipment mounted below the body.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
