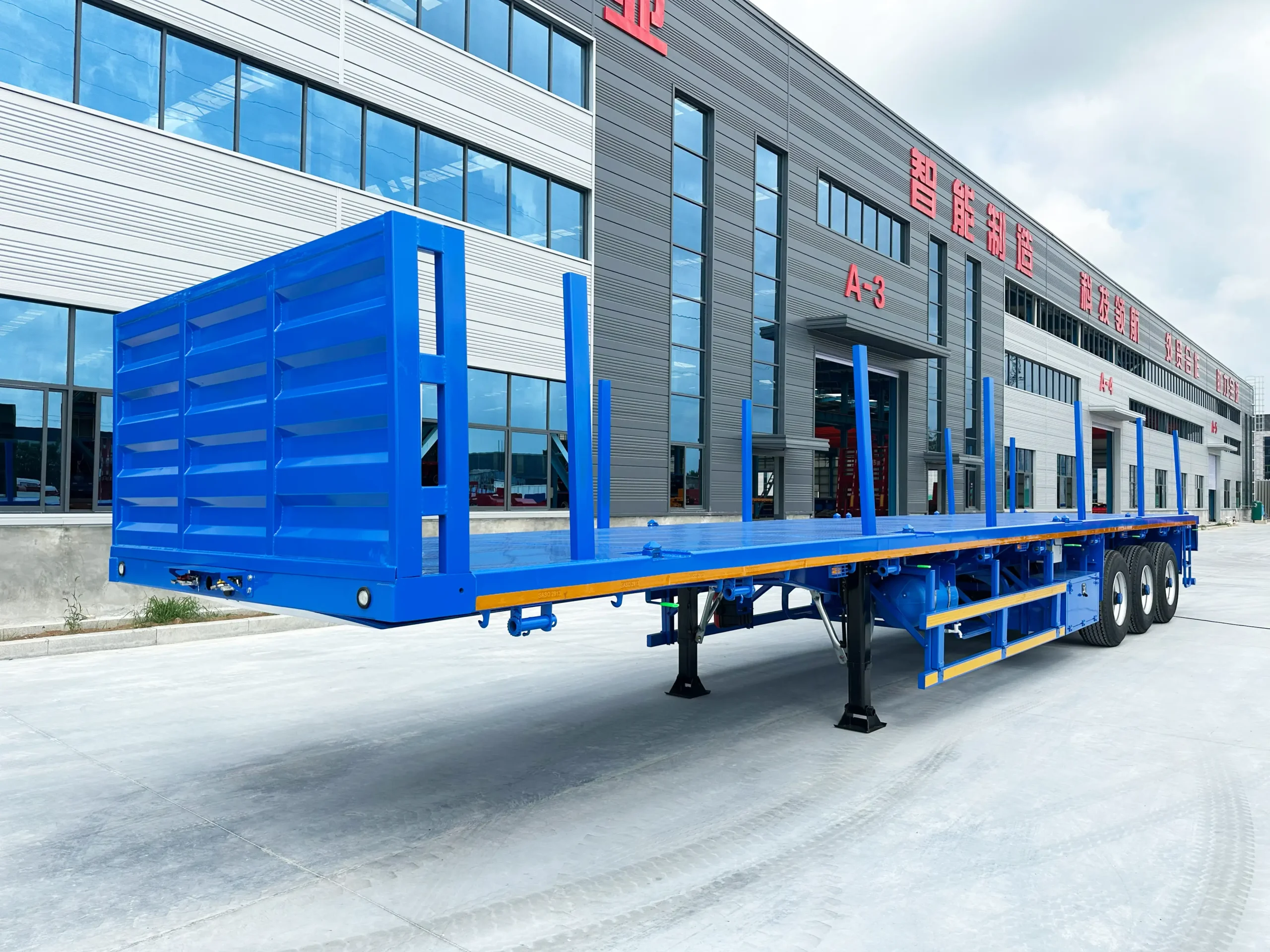

Factory-built 13.6m three-axle stake flatbed semi-trailer shown for Saudi-market configuration review. Final stake layout, cargo-restraint equipment, axle ratings, suspension, brakes and destination equipment must follow the approved technical proposal.

SAUDI-MARKET STAKE FLATBED

13.6m 3 Axle Flatbed Semi Trailer with Stakes for Saudi Arabia

This 13.6m three-axle flatbed semi-trailer combines an open loading platform, a front headboard and upright side stakes. It provides a practical configuration basis for bundled pipe, timber, structural sections and other long cargo requiring overhead loading and planned lateral boundaries.

The stake height, spacing, socket positions and cargo-restraint equipment are configured around the cargo profile, loading method and intended Saudi operating route.

Configuration basis: 12,500 mm overall length, an 11,985 mm platform-length reference, a 2,500 mm overall width and a three-axle layout with 1,310 + 1,310 mm adjacent spacing.

The stakes are an additional cargo-specific structure. Their final height, quantity, fixed or removable arrangement and rated function must be defined in the approved quotation and drawing.

13.6 m Base Platform
11,985 mm platform-length reference

3 Axles Running-Gear Layout
1,310 + 1,310 mm adjacent spacing

Stakes Long-Cargo Boundary
Configure height, spacing and access openings

WhatsApp Email

✓ Base dimensions follow the supplied three-axle drawing ✓ Final stakes, restraints and market equipment follow the approved order

PRACTICAL CONFIGURATION ADVANTAGES

A Stake Flatbed Layout Built Around Cargo, Access and Service

This Saudi-market configuration retains the 13.6m three-axle platform while adding a front headboard and upright side stakes. Its practical value comes from coordinating cargo position, loading openings and underdeck service equipment—not simply adding posts around a standard flatbed.

Three-axle running gear on a 12.5m stake flatbed trailer

Three-Axle Load Positioning

Cargo position should be planned from the centre of gravity, support footprint, kingpin reaction and complete three-axle group. The supplied drawing provides a 1,310 + 1,310 mm axle-spacing reference, while final payload and axle reactions depend on the approved load calculation.

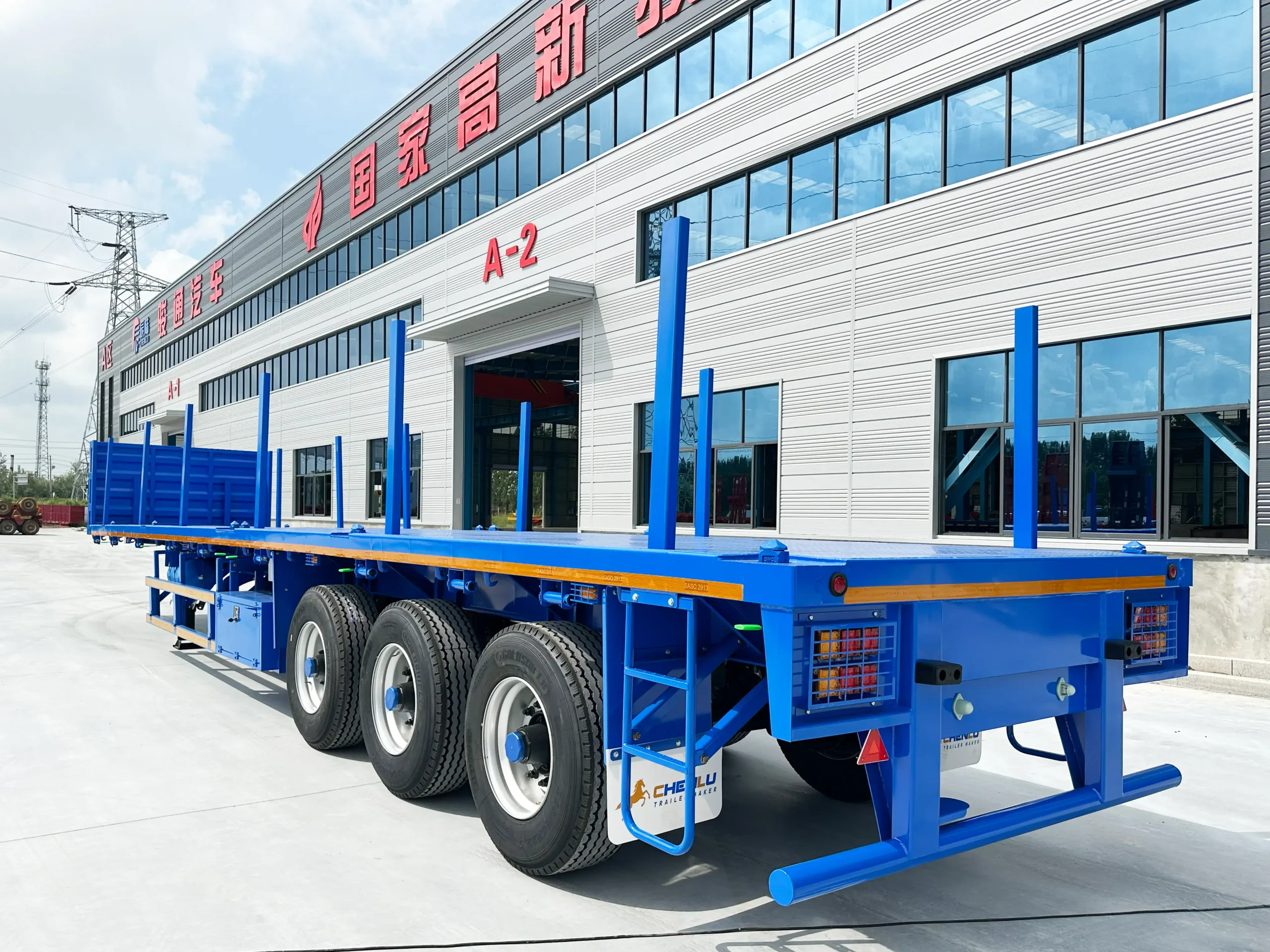

Side view of a three-axle stake flatbed semi-trailer

Stake Openings Planned Around Loading

Stake height, spacing and open sections should follow the cargo length, bundle cross-section and loading sequence. Selected openings can be positioned for crane or forklift access, subject to the final fixed or removable stake design.

The stakes provide a lateral boundary but do not replace rated tie-down equipment.

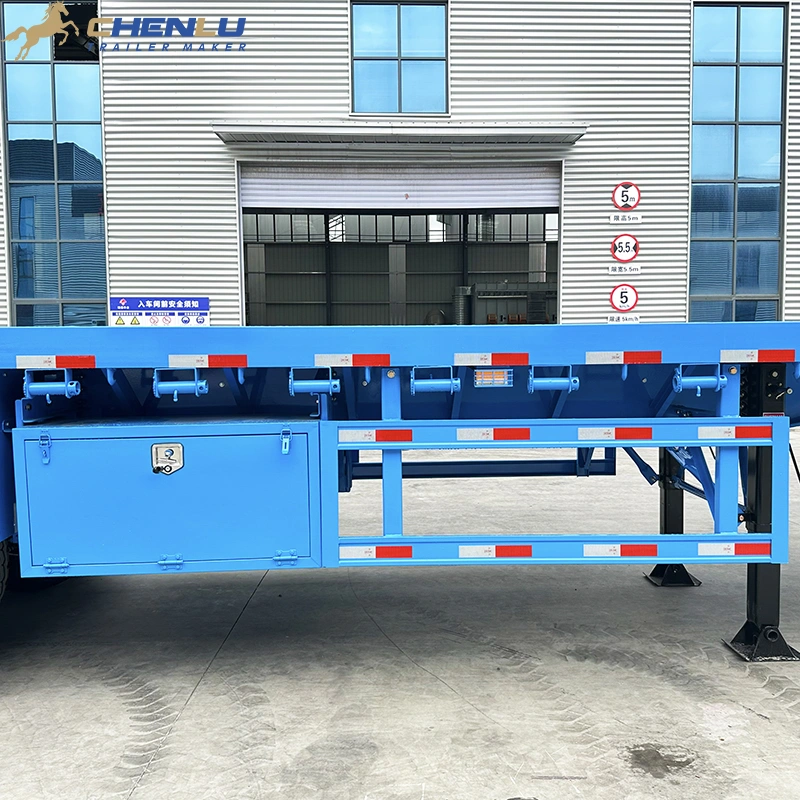

Underdeck toolbox and side equipment on a stake flatbed trailer

Underdeck Equipment Positioned for Service

The toolbox, side protection and other underdeck components should remain accessible without interfering with the landing gear, running gear or cargo-loading area. Their final size and location are coordinated in the approved drawing and equipment schedule.

DRAWING-BASED SPECIFICATIONS

13.6m 3 Axle Flatbed Semi Trailer Specifications

chenlu provides the key dimensions for one 13.6 m three-axle flatbed configuration. The table below gives buyers a clear reference for cargo fit, platform size and axle position before the final order specification is prepared.

Specification	Drawing No. 3-140-141 Reference
Platform and Overall Dimensions
Product configuration	12.5 m three-axle flatbed semi-trailer
Drawing number	3-140-141
Overall length	12,500 mm
Platform-length reference	11,985 mm
Overall width	2,500 mm
Platform/headboard width reference	2,490 mm
Front headboard	Shown on this reference drawing
Front headboard height	1,130 mm
Front overall-height reference	2,700 mm
Front deck-height reference	1,300 mm
Rear height reference	1,570 mm
Three-Axle Running-Gear Layout
Axle arrangement	Three axles positioned beneath the rear section of the platform
Adjacent axle spacing	1,310 + 1,310 mm, centre to centre
Front datum to first axle	6,380 mm
Rear overhang reference	2,300 mm from the third axle centre to the rear datum
Tyre notation	385/65R22.5
Landing support	Dual landing legs located ahead of the axle group
Underdeck equipment area	Side equipment positions are shown between the landing gear and axle group

FINAL ORDER SPECIFICATION

Configuration Items Defined for the Cargo and Route

The general-arrangement drawing establishes the trailer geometry. The following items must be selected for the actual cargo, tractor, operating conditions and destination market.

Payload, GVW and Tare Weight

Calculate the rated values from the cargo, load map, complete trailer structure and permitted operating limits.

Deck and Frame Construction

Define the deck plate, main beams, crossmember spacing, support zones and any reinforcement required for concentrated loads.

Axles and Suspension

Specify the axle make, individual rating, suspension system and complete three-axle group arrangement.

Braking and Electrical System

Define the brake layout, air connections, lighting, electrical interface and required ABS or EBS scope.

Kingpin and Tractor Interface

Match the kingpin position, fifth-wheel height, turning clearance and service connections to the selected tractor.

Tyres and Wheels

Confirm the final tyre brand, load index, speed rating, wheel specification and quantity for the approved running gear.

Cargo-Restraint Equipment

Define rated tie-down points, restraint directions, dunnage and cargo-specific securing equipment from the approved load plan.

Destination-Market Equipment

Specify guards, lighting, markings, accessories and documents for the intended country and operating route.

About the front headboard: Drawing includes a front headboard in this reference layout. Its dimensions and structural role must be stated in the final order. Do not treat it as a rated cargo-restraint device unless approved design loads are documented.

PROJECT-SPECIFIC QUOTATION

Configure the 3 Axle Flatbed Around Your Cargo

Send the cargo dimensions, unit and total weight, support points, loading method, tractor model and destination route for a complete flatbed trailer specification.

BUILT FOR OPEN-DECK CARGO

Why Choose This Flatbed Trailer for Saudi Arabia?

For Saudi hauliers moving steel, bundled pipes and packaged building materials, loading access matters. This 3 axle flatbed semi trailer combines an open deck, side stakes and a front headboard for deliveries between material yards, warehouses and construction sites.

Transport task	Trailer feature	How it helps
Steel and pipe deliveries	A continuous flat deck for long bundles.	Steel sections and bundled pipes can be laid lengthways, with room to position supports beneath the load.
Crane loading at material yards	An open top with no roof over the load.	A crane can lower bundles directly onto the deck, without feeding long cargo through a rear doorway.
Palletized building materials	Side access between the upright stakes.	A forklift can approach from the side where the load and forks fit between the stakes. This is useful at sites without a loading dock.
Mixed warehouse freight	An undivided deck with a front headboard.	Crates, pallets and packaged goods can be arranged to suit their footprint, rather than fixed compartments.
