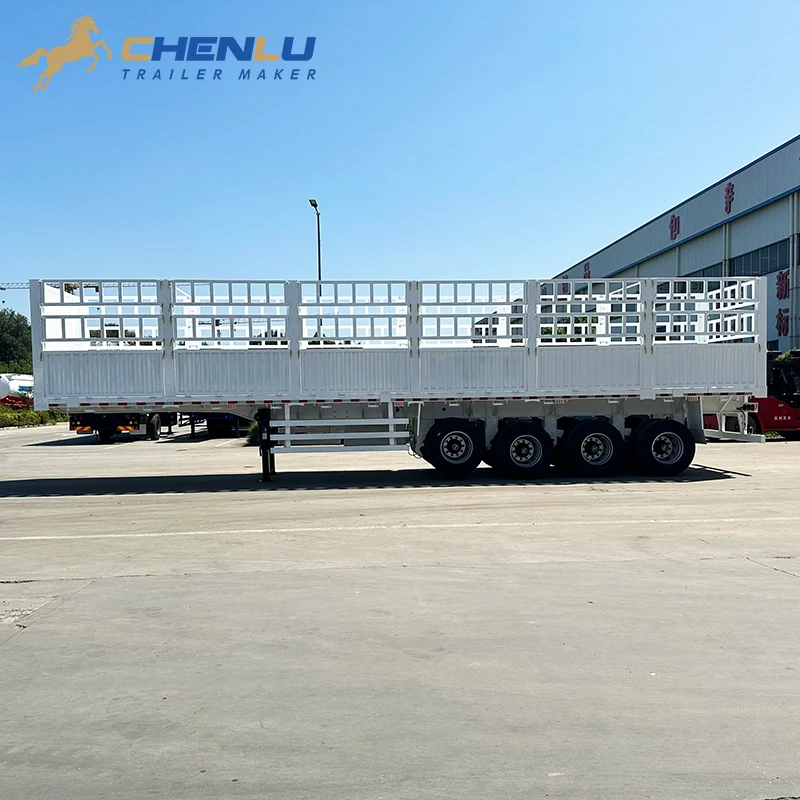

White 12.5 m four-axle fence cargo semi-trailer at the CHENLU factory — White four-axle fence trailer photographed after assembly at the CHENLU factory.

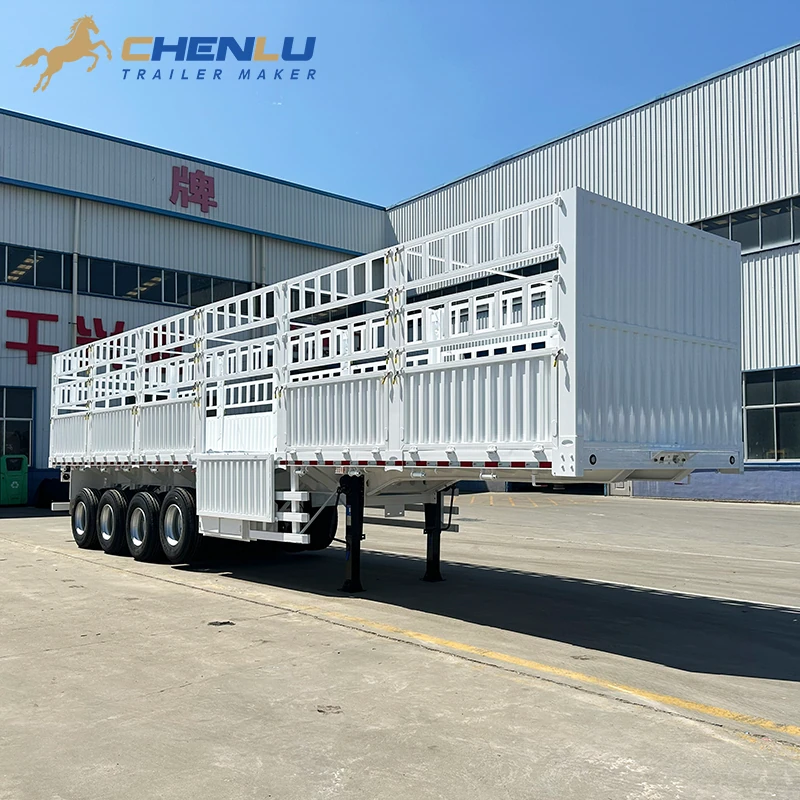

Front three-quarter view of the white four-axle fence trailer — White four-axle fence trailer photographed after assembly at the CHENLU factory.

TANZANIA · 12.5 M FOUR-AXLE CONFIGURATION

12.5 m 4 Axle Fence Cargo Semi Trailer for Tanzania

CHENLU built this white four-axle fence cargo semi-trailer with segmented side gates, a full-height front bulkhead and mechanical suspension. Each side section opens separately for side loading.

This fence trailer is used for bagged goods, agricultural products and other general cargo. The 2,000 mm fence body provides side containment for tall or bulky loads.

Overall length: 12.5 m
Running gear: 4 Axles
Fence body: 2,000 mm
Overall width: 2,600 mm

WhatsApp Email

For pricing, send the cargo, total weight, loading method, destination port and quantity.

FENCE CARGO BODY

What Is a 4 Axle Fence Cargo Semi Trailer Used For?

This 12.5 m fence trailer carries bagged agricultural products, packaged goods and mixed general freight. Its 2,000 mm fence body adds side containment without closing the upper cargo area.

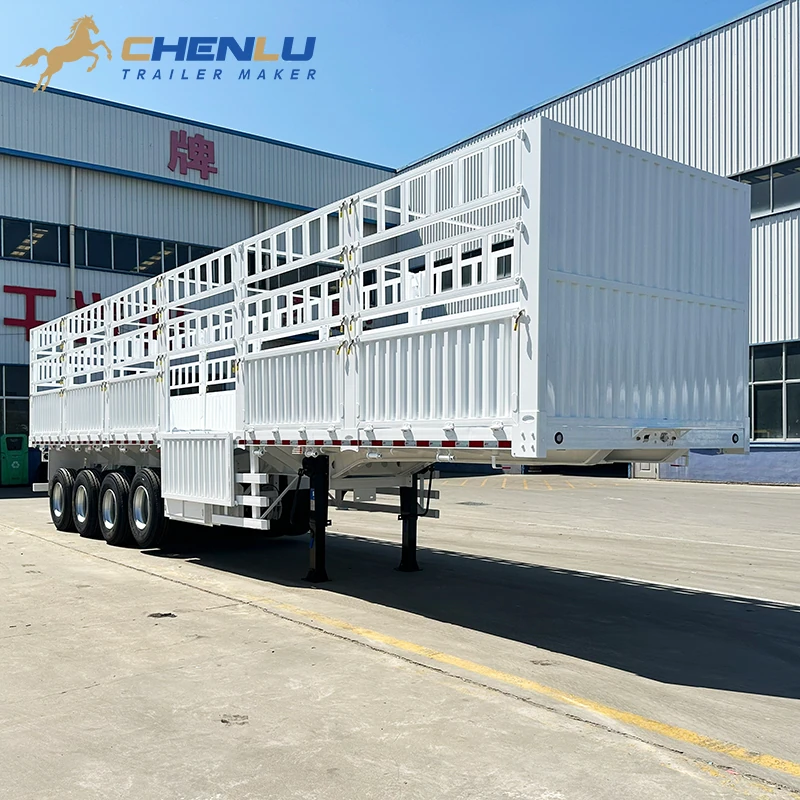

White four-axle fence cargo semi-trailer with a 2,000 mm fence body

01 / CARGO USE

For Bagged and General Cargo

The body is used for bagged grain, fertilizer, packaged agricultural products and other dry general cargo. Solid lower panels support the load at deck level, while the open upper rails allow air through the cargo area.

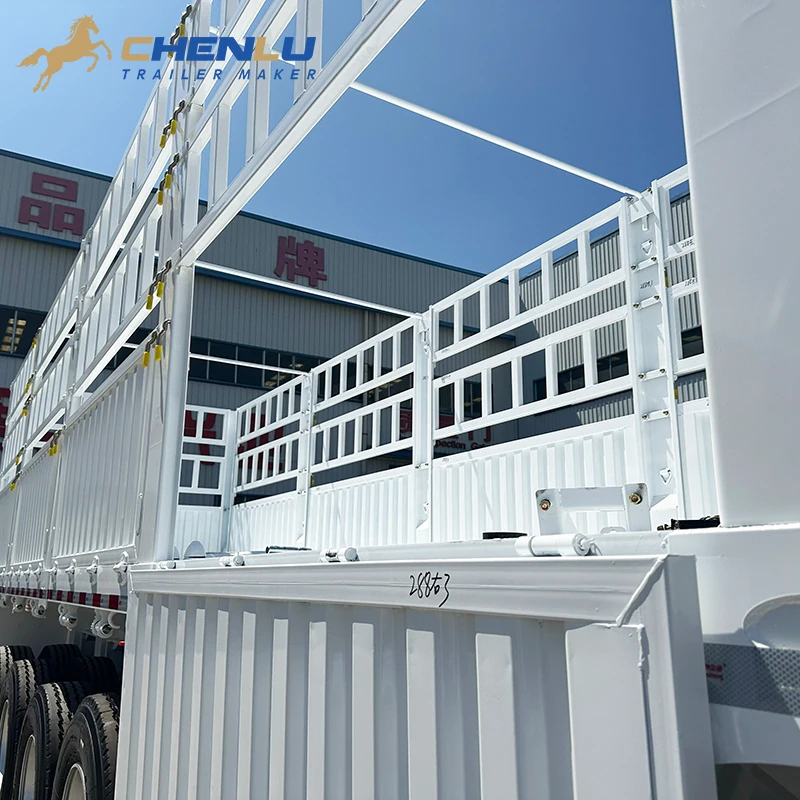

Segmented side gate opened on the four-axle fence cargo semi-trailer

02 / SIDE ACCESS

Open the Gate Beside the Load

The long side is divided into separate gate sections. Open the section beside the loading point for forklift or manual handling while the other gates remain closed.

Cargo securing: Use straps, blocking or other restraints that match the cargo weight, shape and route.

RUNNING GEAR AND REAR BODY

Four Axles with Air Suspension

The four axles sit below the rear half of the cargo deck. Air springs support the axle group, and the rear gate closes the cargo body above the rear guard.

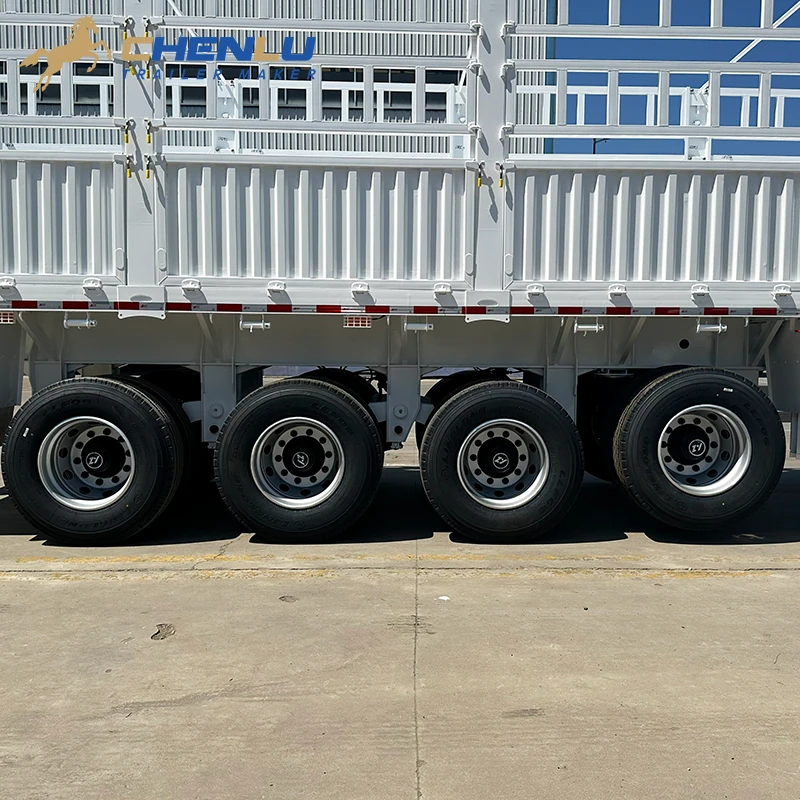

Four-axle group below the white fence cargo semi-trailer

01 / AXLE GROUP

Four Axles Under the Rear Deck

The axles are grouped at the back of the trailer with 1,310 mm between adjacent axle centres.

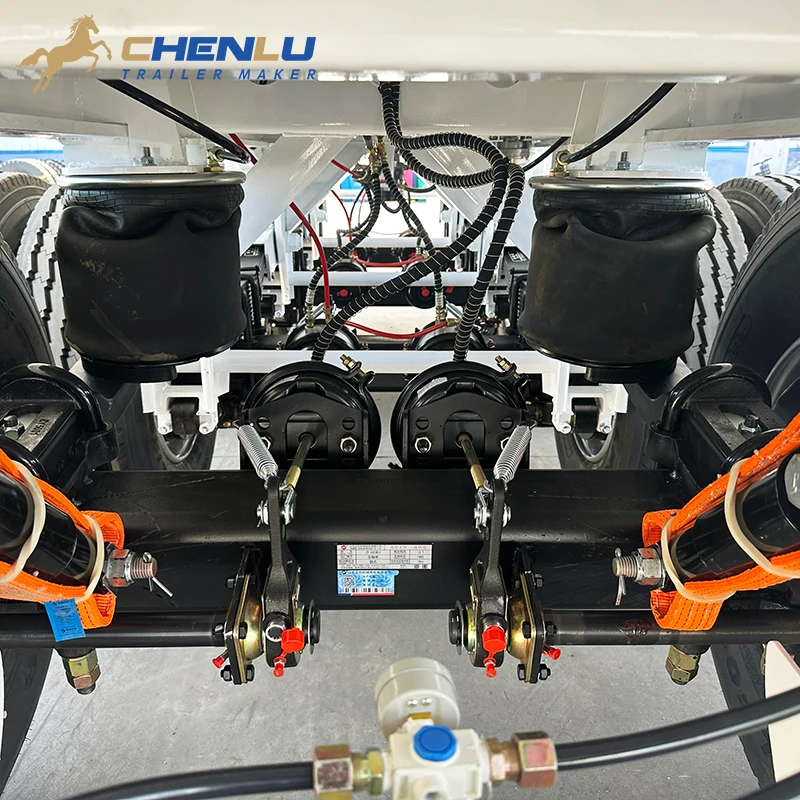

Air springs and brake chambers on the fence trailer axle assembly

02 / SUSPENSION

Air Springs Above the Axles

Air bags are mounted between the axle assembly and trailer frame. Air lines run to the suspension and braking components below the deck.

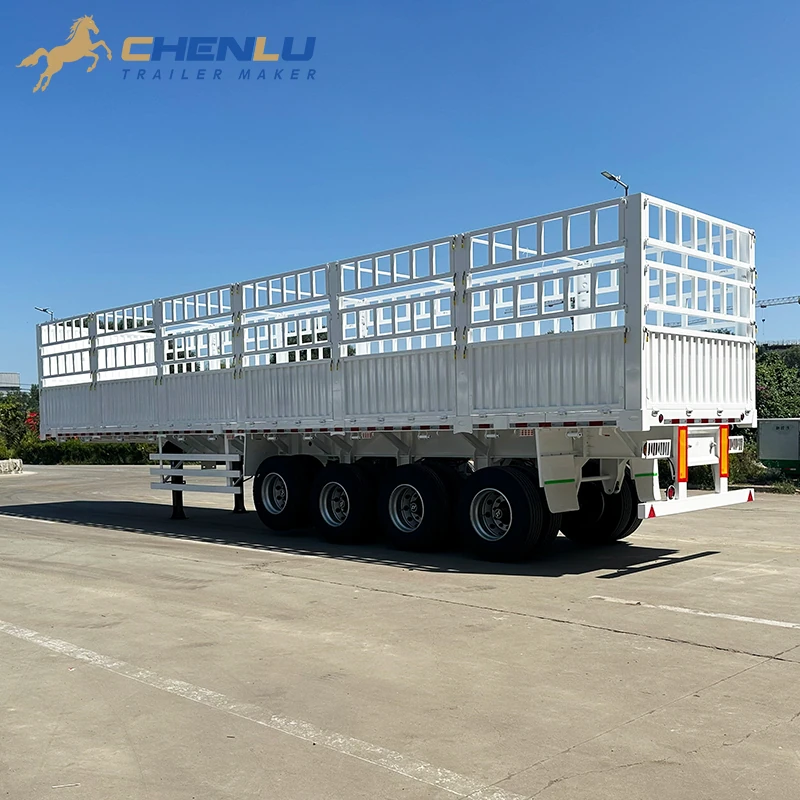

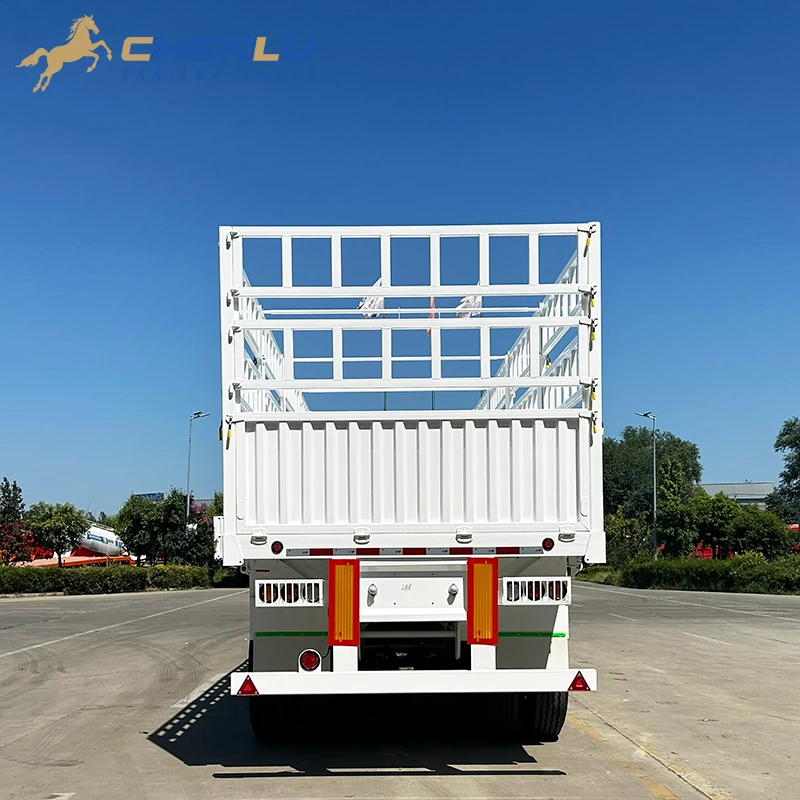

Rear gate, lamps and rear guard on the four-axle fence trailer

03 / REAR BODY

Rear Gate and Rear Guard

The rear gate opens for access to the deck. Lamps, reflective markings and the rear guard are mounted below it.

DIMENSIONS AND EQUIPMENT

12.5 m 4 Axle Fence Cargo Semi Trailer Specifications

The trailer is 12,500 mm long, 2,600 mm wide and 3,800 mm high. Its 2,000 mm fence body sits above a four-axle air-suspension group.

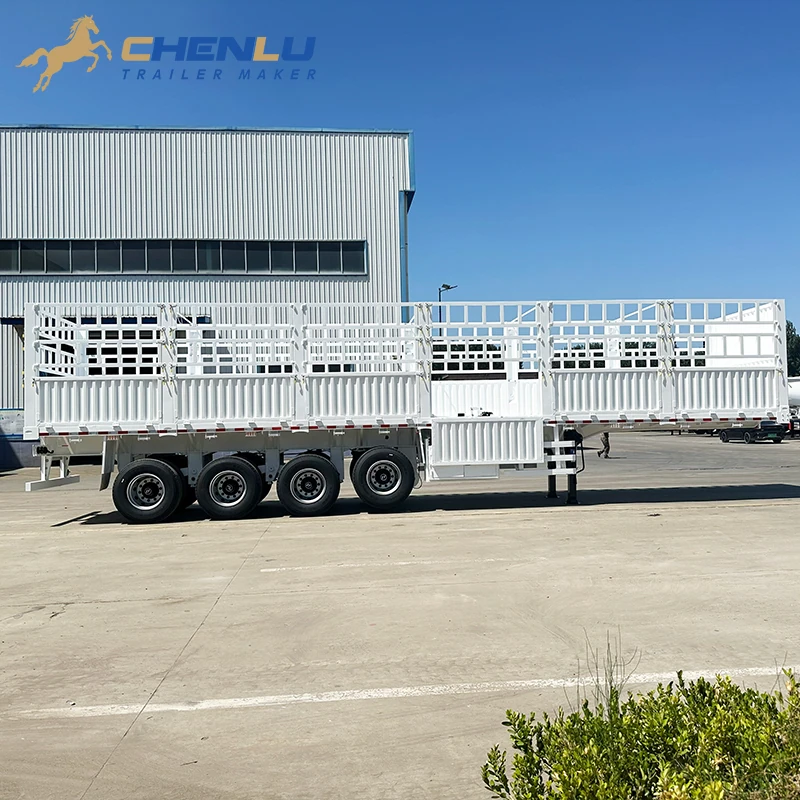

Side view of the 12.5 m four-axle fence cargo semi-trailer — White 12.5 m fence cargo semi-trailer with four rear axles and segmented side gates.

Product type	Fence cargo semi-trailer
Overall dimensions	12,500 × 2,600 × 3,800 mm
Fence body height	2,000 mm
Axles	4 axles
Axle spacing	1,310 + 1,310 + 1,310 mm
Suspension	Air suspension
Side access	Segmented opening side gates
Front body	Full-height steel bulkhead
Rear access	Opening rear gate
Finished color	White
Typical cargo	Bagged agricultural products, packaged goods and general cargo

For pricing: send the cargo name, total weight, loading method, destination port and quantity.

CHENLU FACTORY WALKAROUND

4 Axle Fence Cargo Semi Trailer Factory Video

The video follows the white 12.5 m fence trailer from the segmented side gates to the four-axle running gear. Close-up footage covers the air springs, brake chambers and gate latches.

WHITE FOUR-AXLE FENCE CARGO TRAILER Watch on YouTube ↗

Fence BodySolid lower panels, open upper rails and a full-height front bulkhead.

Side GatesSeparate gate sections, hinges and latches along the cargo body.

Running GearFour axles, air springs, brake chambers and air lines below the deck.

TRAILER SIZE AND LAYOUT

12.5 m 4 Axle Fence Cargo Semi Trailer Dimensions

At 12,500 mm long and 2,600 mm wide, this fence cargo semi trailer carries bagged agricultural products, packaged goods and dry general freight. The 2,000 mm fence body keeps tall or bulky loads enclosed during transport.

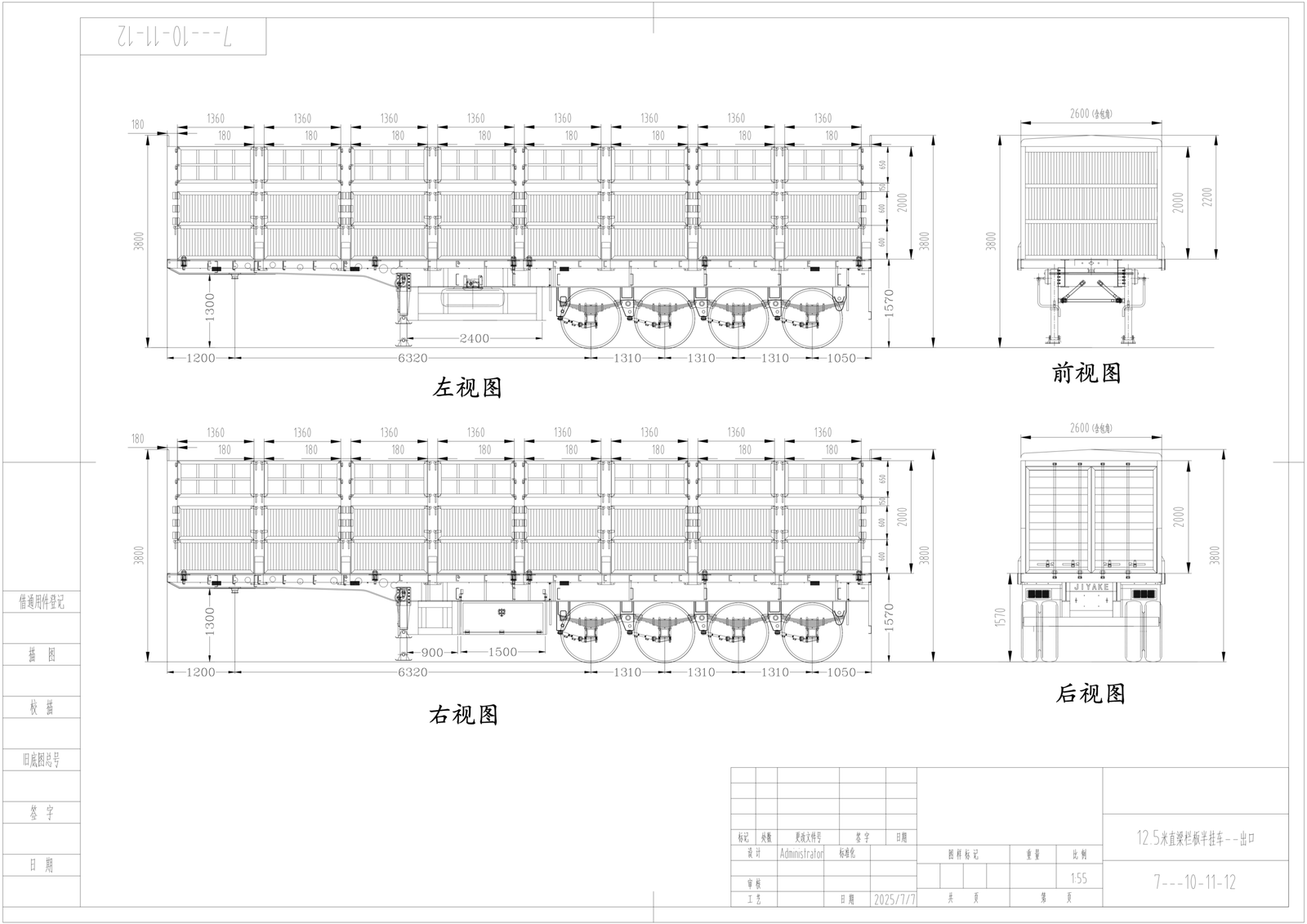

12.5 m four-axle fence cargo semi-trailer drawing with overall dimensions and axle spacing — 12.5 m · 4 Axles · 2,000 mm Fence Body Open full-size drawing ↗

12,500 mmOverall length

2,600 mmOverall width

3,800 mmOverall height

2,000 mmFence body height

The side fence is divided into separate opening sections, making it easier to load or unload from different positions along the trailer. Four rear axles support the long cargo body, with 1,310 mm between adjacent axle centres.

TRAILER COMPONENTS

Optional Parts And Accessories

Semi-Trailer Axle Support Plate

American-Style Axle

Trailer Suspension Parts

Trailer Suspension Support Leg

WABCO Brake Valve

FUHUA (TUWA) Trailer Axle

German-style semi-trailer suspension assembly

German-Style Trailer Suspension

BPW Trailer Axle

Why Trust Chenlu?

Factory-direct semi-trailer manufacturing

Factory-Direct Manufacturing

CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.

OEM and ODM trailer configuration review

OEM/ODM Configuration Review

The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.

Process-Based Quality Control

The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.

B2B Export and Project Support

CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.

CUSTOMER VISITS

Meet Chenlu and Review the Manufacturing Process

Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.

Customer visit at the Chenlu manufacturing facility

Brazilian business partner visiting Chenlu

Business partner reviewing trailer production

DELIVERY AND CUSTOMER FEEDBACK

Follow the Project from Delivery to Customer Feedback

Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.

APPROVED CUSTOMER FEEDBACK

Publish the Original Customer Message with Permission

Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.

Delivery Record

Approved delivery photo or project record.

Customer Comment

Original customer message with permission.

Project Follow-Up

Approved feedback about communication and support.

COMMON QUESTIONS

4 Axle Fence Cargo Semi Trailer FAQs

Answers about cargo use, side loading, trailer size, suspension and price.

What cargo can this fence semi trailer carry?

This trailer is used for bagged agricultural products, packaged goods and dry general freight. The 2,000 mm fence body keeps tall or bulky loads within the cargo area.

What are the overall dimensions of the trailer?

The overall size is 12,500 × 2,600 × 3,800 mm. The fence body is 2,000 mm high.

How do the segmented side gates help with loading?

The side fence opens in separate sections. Workers can open the section beside the cargo instead of opening the full side of the trailer.

Does this four-axle fence trailer use air suspension?

Yes. This finished trailer has air springs across the four-axle running gear.

Why does this fence cargo trailer have four axles?

The four axles support the rear of the 12.5 m cargo body. Legal payload still depends on the axle ratings, tyres, tractor combination and limits on the intended route.

Do the fence panels replace cargo tie-downs?

No. The fence body contains the cargo, but the load must still be secured with suitable restraints for the cargo and route.

What affects the price of a 4 axle fence semi trailer?

Price changes with axle and tyre specifications, suspension, brake system, steel specification, fence height, optional equipment and shipping destination.
