CHENLU 4 axle rear dump semi trailer with air suspension, a high-sided cargo body and front-mounted hydraulic lifting system.
100 Ton 4 Axle Rear Dump Semi Trailer with Air Suspension
The CHENLU 4 axle rear dump semi trailer carries sand, gravel, coal and other loose bulk materials for construction, quarry and stockyard transport. Its high-sided cargo body tips to the rear for unloading, while the air suspension supports load equalization across the four-axle group and absorbs road shock during transport. This configuration is intended for buyers who prefer air-suspension running gear on a four-axle tipper. Body size and payload are matched to the cargo density, tractor setup, transport route and destination-country requirements.
Before production: Send your cargo type, required payload, destination country and tractor model. We will match the cargo body, four-axle running gear, air suspension and hydraulic system to the transport task.
Why choose CHENLU 4-axle rear-discharge semi-trailer?
This configuration combines four-axle running gear, air suspension and a high-sided rear-tipping body. Each system has a clear role: the axle group supports the loaded chassis, the air suspension manages changing axle loads, and the hydraulic tipping system unloads loose cargo through the rear gate.
Four-Axle Load Distribution
The four-axle group provides additional support points beneath the long cargo body. With 1,310 mm between adjacent axle centres, the layout spreads the trailer load across four axle positions and provides a practical basis for matching the chassis to the required payload and transport route.
Air Suspension for Changing Loads
Air springs respond to changes between loaded and empty operation and help equalize load across the axle group. They also reduce the transfer of road shock from the running gear to the chassis. Ride height, air controls and axle ratings are matched to the tractor and operating route.
High-Sided Body with Rear Discharge
The high-sided cargo body provides loading space for sand, gravel, coal and similar loose materials. A front-mounted hydraulic cylinder raises the body, allowing the cargo to move towards the rear gate and discharge at the delivery site. Body dimensions and plate specifications are selected according to cargo density, particle size and loading method.
What Information Is Needed to Configure a 4-Axle Dump Trailer?
The right body and running gear begin with the material—not a generic tonnage figure. Cargo density sets the volume requirement, while the tractor, loading method and unloading site determine how the trailer should be arranged.
Send the Details That Change the Trailer Configuration
Provide the cargo profile, intended load, tractor model, loading equipment and unloading conditions. CHENLU can then prepare a four-axle rear dump semi trailer proposal around the body, air-suspension running gear and hydraulic tipping requirements.
| Start With | How It Shapes the Trailer | Information to Send |
|---|---|---|
| Cargo profile Sand, gravel, coal, aggregate or another loose bulk material | Bulk density determines how much body volume is needed for the intended cargo weight. Moisture, particle size and abrasion also influence the floor, sidewalls, wear protection and rear-gate arrangement. |
|
| Target load and work cycle Intended cargo weight and expected operating frequency | The intended load affects body proportions, axle and suspension ratings, tyre selection and hydraulic duty. Final payload must also remain within the limits of the complete tractor-trailer combination and transport route. |
|
| Loading method Wheel loader, excavator, hopper or conveyor | Bucket size and drop height determine the required loading clearance and likely impact areas. These conditions guide the body opening, floor protection and local sidewall reinforcement. |
|
| Tractor and air suspension Coupling, ride height and service connections | Fifth-wheel height and coupling geometry must suit the tractor. Air-suspension capacity and ride height must also be matched across the four-axle running gear for the intended operating condition. |
|
| Route and unloading site Road limits, ground conditions and tipping clearance | Route restrictions affect overall dimensions and axle loading. Ground slope, overhead clearance and the space behind the trailer affect the tipping envelope and rear-discharge arrangement. |
|
Review the Complete Trailer Layout
Use this configuration as a starting point. Body dimensions, material thickness, axle and suspension ratings, hydraulic system and rear-gate arrangement can then be specified for the cargo and route.
4 Axle Rear Dump Semi Trailer Specifications
Key dimensions and equipment details for the CHENLU 4 axle rear dump semi trailer with air suspension, based on Drawing No. 3-61.
| Parameter | Specification |
|---|---|
| Product Configuration | |
| Product type | 4 axle rear dump semi trailer |
| Cargo body | High-sided rectangular steel dump body |
| Tipping direction | Hydraulic rear tipping |
| Hydraulic layout | Front-mounted hydraulic lifting cylinder |
| Suspension | Air suspension |
| Dimensions | |
| Overall dimensions | 10,800 × 2,500 × 3,950 mm |
| Internal cargo body dimensions | 9,640 × 2,300 × 1,900 mm |
| Internal body length | 9,640 mm |
| Internal body width | 2,300 mm |
| Internal body height | 1,900 mm |
| Axles and Running Gear | |
| Number of axles | 4 |
| Axle designation | CHENLU 16T × 1840 — 4 axles |
| Axle spacing | 1,310 + 1,310 + 1,310 mm |
| Tyre size | 13R22.5 |
| Hydraulic and Chassis Equipment | |
| Hydraulic cylinder designation | 214 × 7,300 |
| Landing gear | Two-leg landing gear |
| Toolbox | One 600 × 600 mm toolbox |
| Side protection | Left-side guard rail |
| Rear discharge | Hinged rear gate |
Dimensional reference: Drawing No. 3-61. Payload and usable body volume are specified according to the selected cargo, tractor combination and destination requirements.
4 Axle Rear Dump Semi Trailer: Finished Product Walkaround

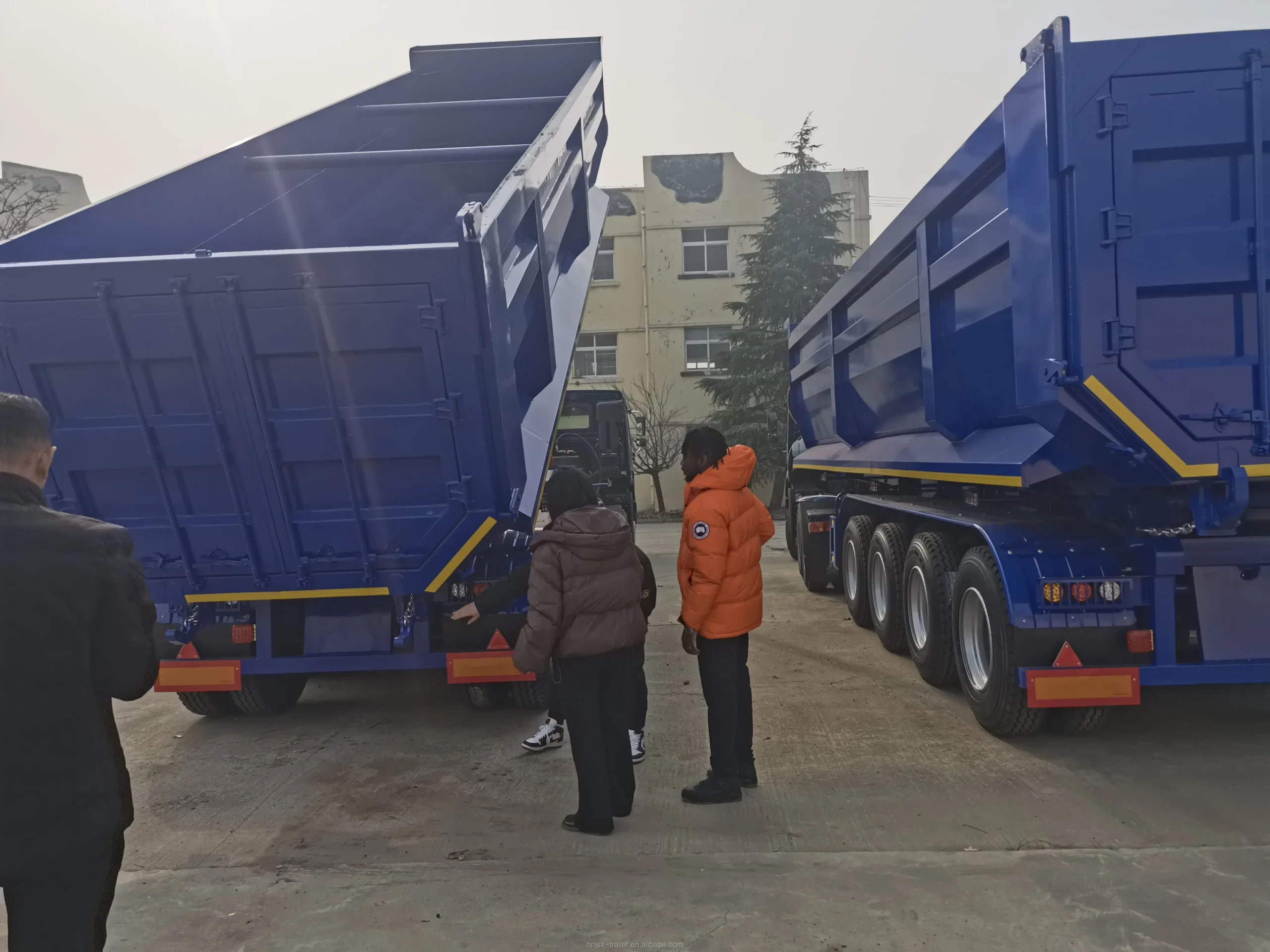

Watch a completed CHENLU 4 axle rear dump semi trailer from multiple exterior angles. The video provides a closer look at the high-sided cargo body, four-axle air suspension, front hydraulic lifting system, landing gear and rear-gate arrangement.
Finished-product walkaround of the four-axle rear dump semi trailer with air suspension featured on this page.
Key Details to Review in the Video
These exterior details provide a practical starting point for comparing the body, running gear and tipping arrangement with your cargo and transport requirements.

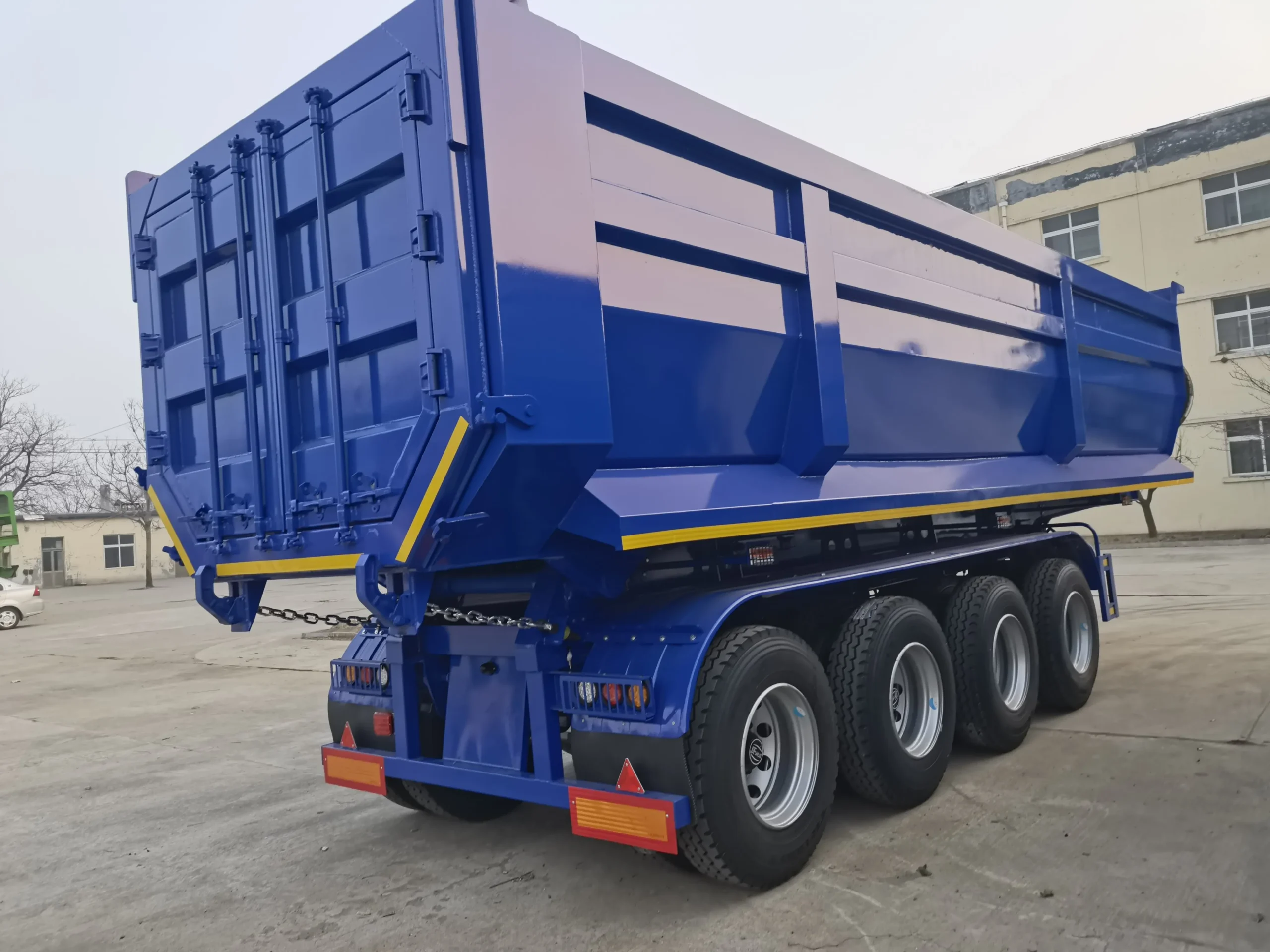

High-Sided Cargo Body
The rectangular steel body provides loading space for sand, gravel, coal, aggregate and other loose bulk materials. External sidewall reinforcement supports the long body structure.

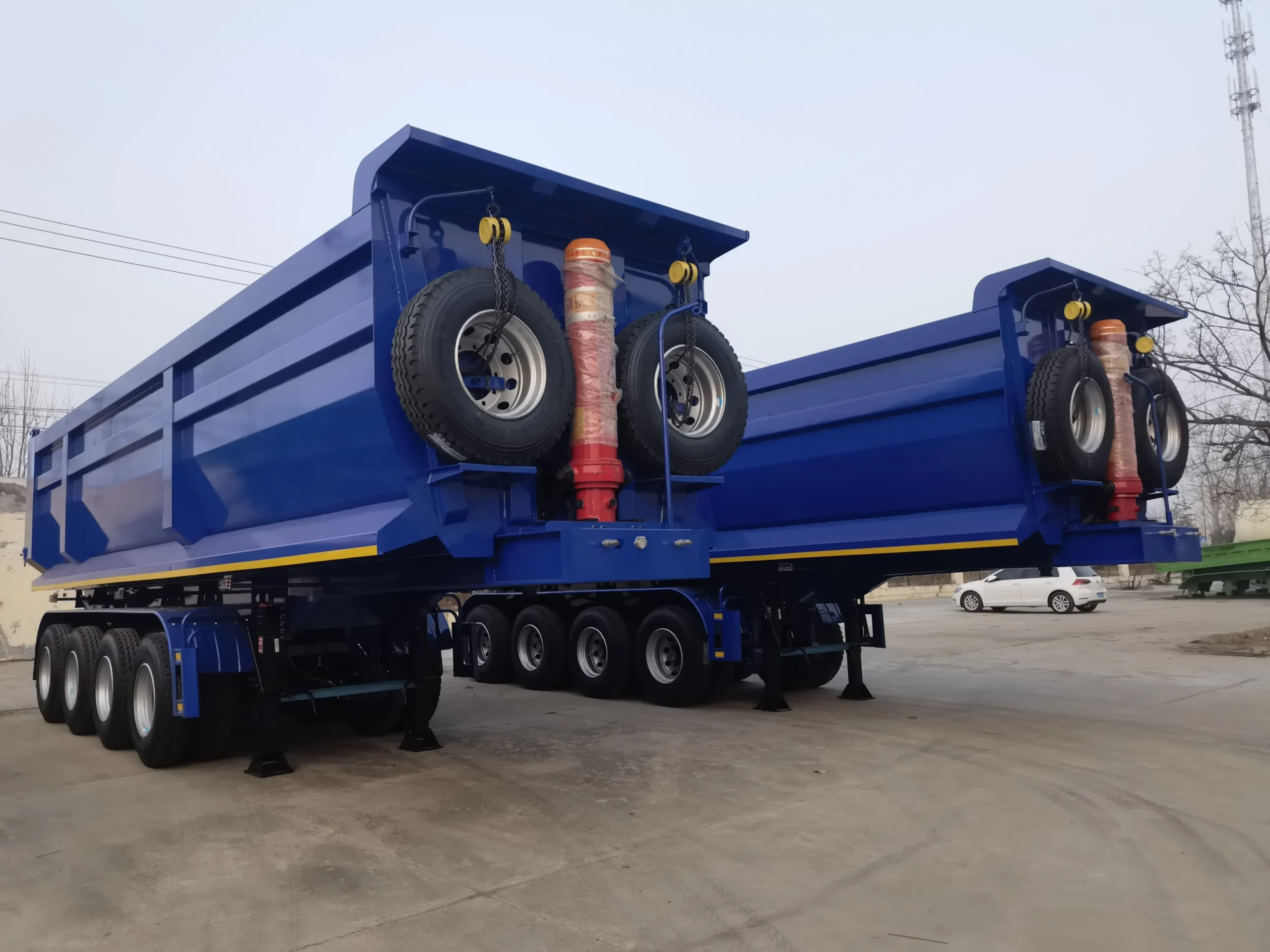

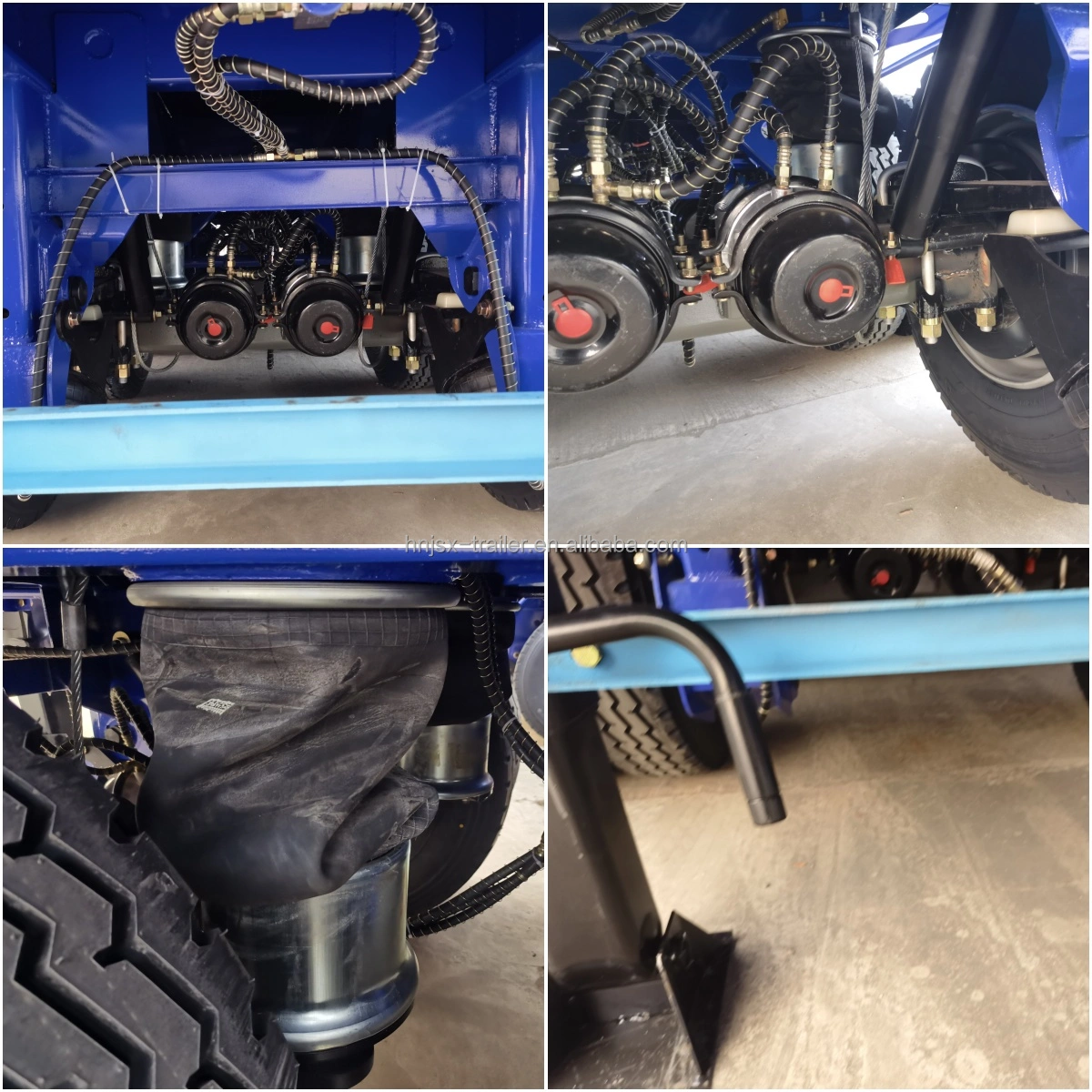

Four-Axle Air Suspension
The four-axle running gear supports the rear section of the cargo body. Air suspension helps manage changing axle loads and absorbs road shock during loaded and empty travel.

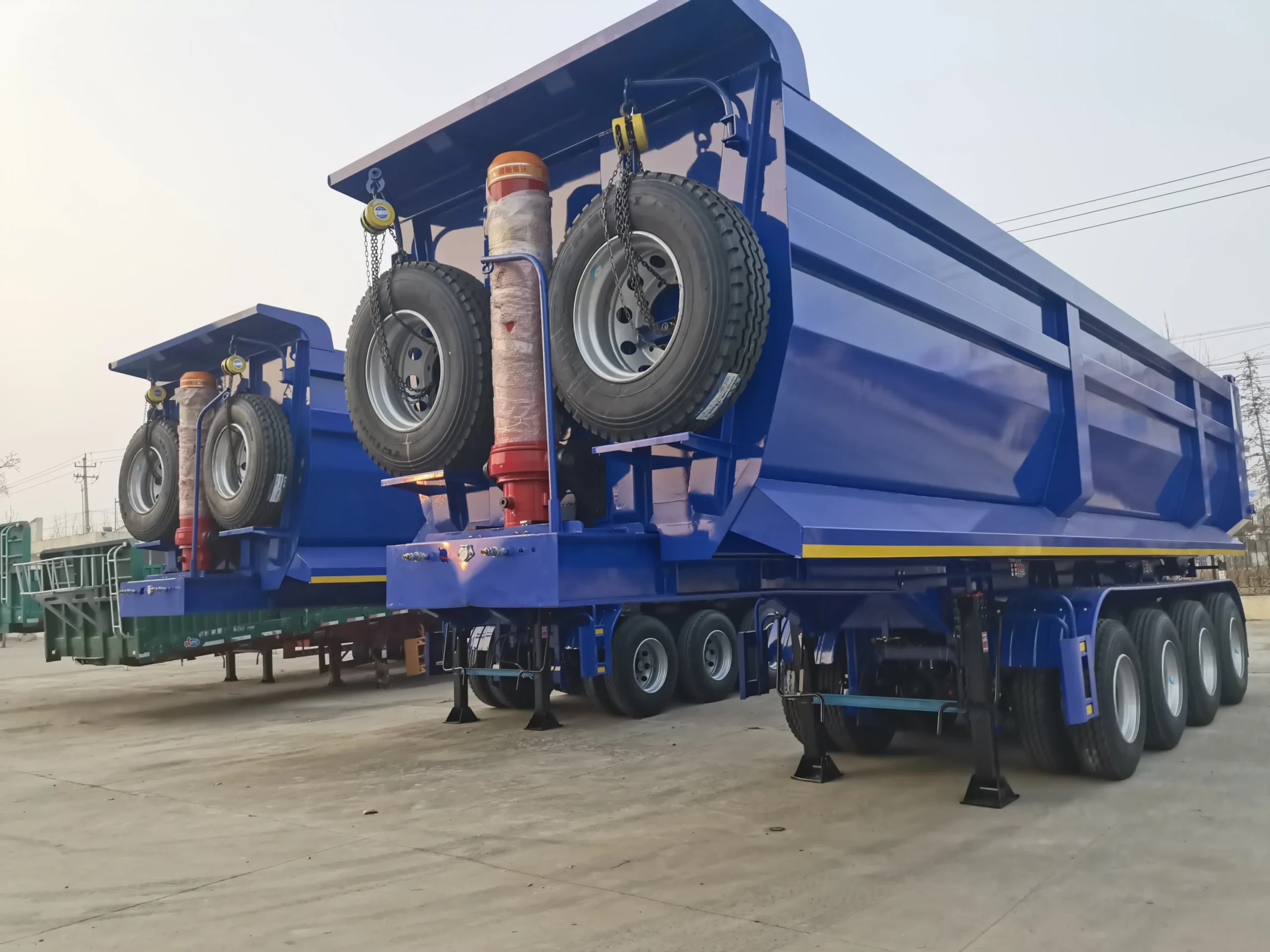

Front Hydraulic Lifting System
A front-mounted hydraulic cylinder raises the cargo body for rear discharge. Its forward position keeps the main lifting equipment accessible around the front of the trailer.

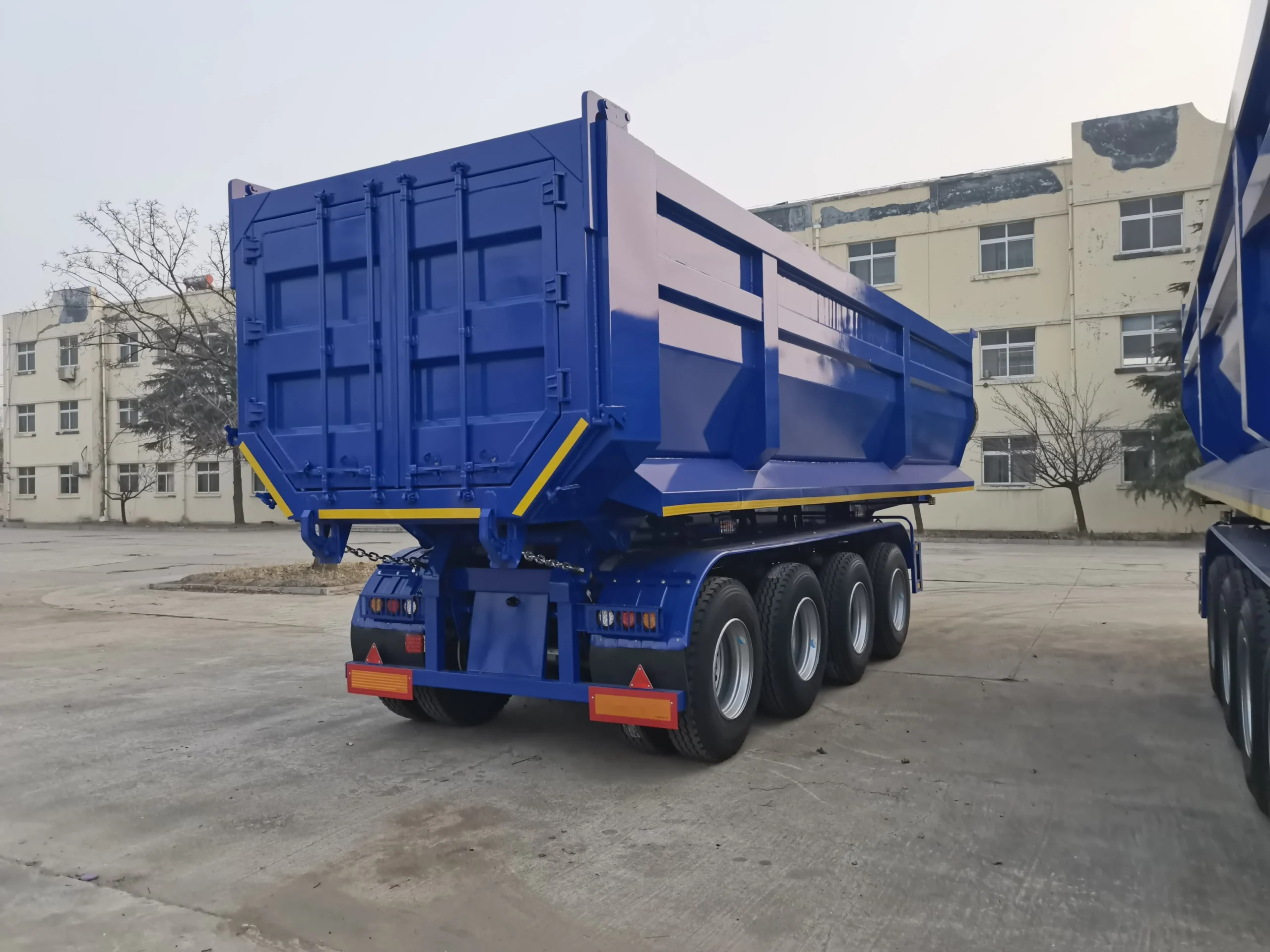

Rear Gate and Chassis Equipment
The finished trailer includes a hinged rear gate, landing gear, lighting, side protection and spare-wheel carriers. These details can be matched to the operating route and destination market.
Need a Four-Axle Dump Trailer for Your Cargo?
Send the cargo type, loose bulk density, target payload, tractor model, destination country and required quantity for a configuration proposal.
4-Axle Dump Drawing No. 3-61: Check Fit Before Production
The drawing should show the 10,800 × 2,500 × 3,950 mm overall references, 9,640 × 2,300 × 1,900 mm internal body references, four-axle group, 1,310 mm axle spacing, front hydraulic cylinder, rear hinge, tractor interface and tipping clearance for the intended cargo and route.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FAQ
Answers to common questions about the four-axle dump semi trailer with air suspension, drawing review and quotation requirements.
What is a four-axle dump semi-trailer with air suspension?
It is a rear-tipping dump semi-trailer with four visible axle positions, a rectangular high-sided body and an air-suspension configuration. The supplied photos also show a front lift cylinder, reinforced rear gate, twin spare wheels and landing gear.
What cargo can it transport?
It may be reviewed for sand, aggregate, ore, coal, construction material and other specified bulk cargo when the material density, target load, body volume, loading method, route and unloading site are suitable.
Is air suspension confirmed for this configuration?
Air suspension is selected for this representative configuration. The final suspension model, air-bag arrangement, valves, ride-height controls, air supply, service requirements and any optional functions must be confirmed in the component schedule.
What dimensions are shown on Drawing No. 3-61?
The preliminary drawing references 10,800 × 2,500 × 3,950 mm overall dimensions and 9,640 × 2,300 × 1,900 mm internal body dimensions. It also references 1,310 mm adjacent axle spacing. Confirm all values on the controlled drawing.
What payload and body volume can it provide?
Payload and usable body volume are not established by the current photos or preliminary drawing. They must be calculated from the cargo density, internal body dimensions, frame, axle loads, air suspension, tractor limits and destination route.
What tractor and hydraulic information is needed?
Provide the tractor model, fifth-wheel height, kingpin requirements, hydraulic power, air supply, ride-height controls, pneumatic connections and electrical interface. These details are required to review the tipping and suspension systems.
How are the final specifications confirmed?
The technical scope should be checked against the complete controlled drawing, approved quotation and component schedule before production. Confirm the body, payload basis, axle arrangement, air suspension, tires, brakes, hydraulics, dimensions and destination requirements in the final project documents.
