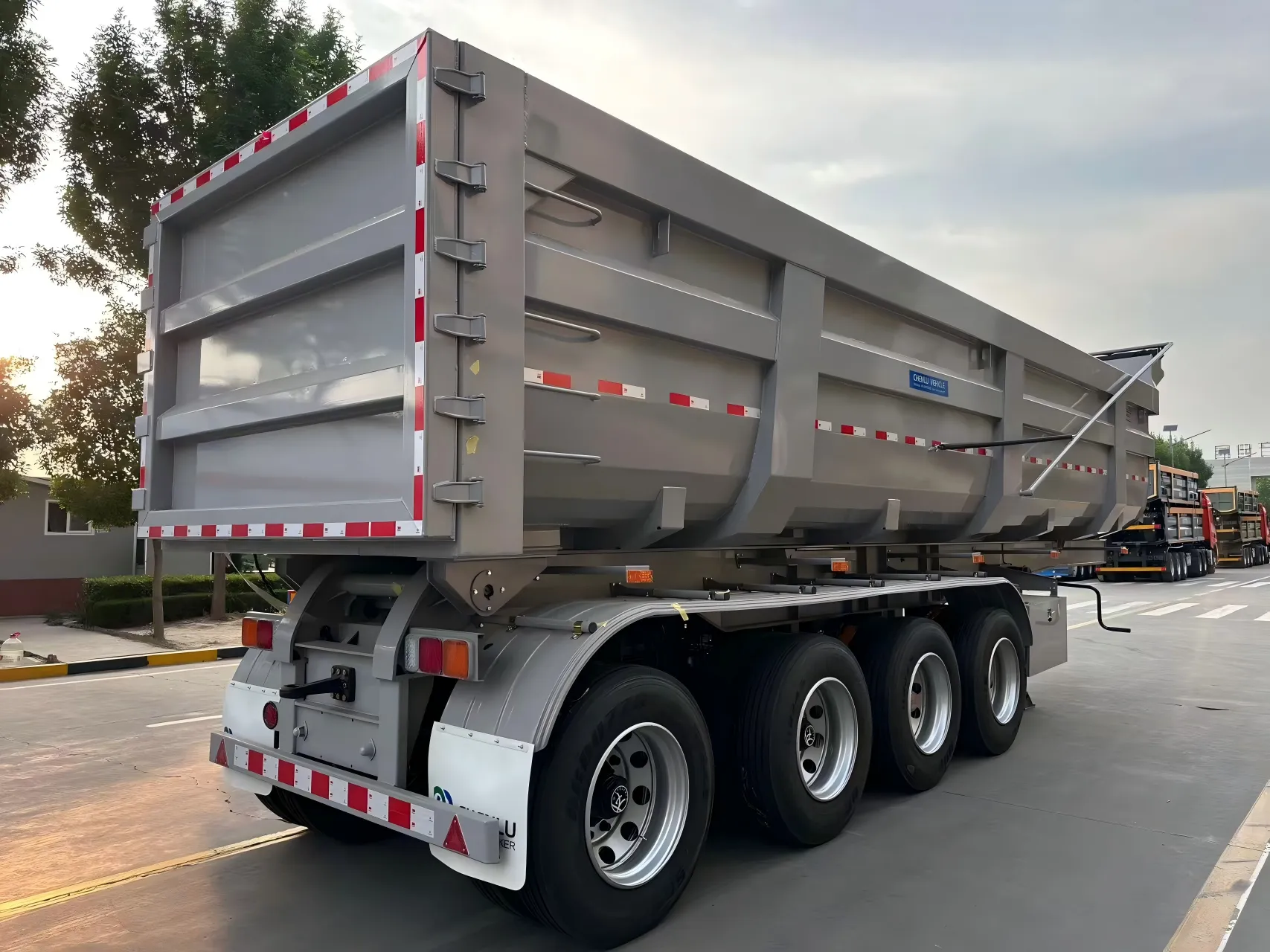

4 Axle Rear Dump Semi Trailer South America

The CHENLU 4 axle rear dump semi trailer carries loose bulk materials such as sand, gravel and coal for construction supply and material-yard deliveries. Its high-sided cargo body contains the load during transport, while hydraulic rear tipping allows material to discharge through the rear gate.

For South American transport projects, body size and payload should match the cargo, tractor and destination-country requirements.

Before production: Get a Trailer Quote: Send your cargo type, required payload, destination country and order quantity. Include your tractor model if available.

4 Axles Four-axle layout

High-Sided Body Loose bulk cargo

Rear Tipping Hydraulic rear unloading

WhatsApp Email

✓ Quote around cargo and route ✓ Final rating from approved drawing

BODY DESIGN & UNLOADING FEATURES

What Are the Key Features of This Rear Dump Trailer?

South American This four-axle tipper combines a high-sided cargo body with hydraulic rear unloading. The axle group supports the loaded chassis, the body contains loose bulk materials, and the front-mounted cylinder raises the body for discharge.

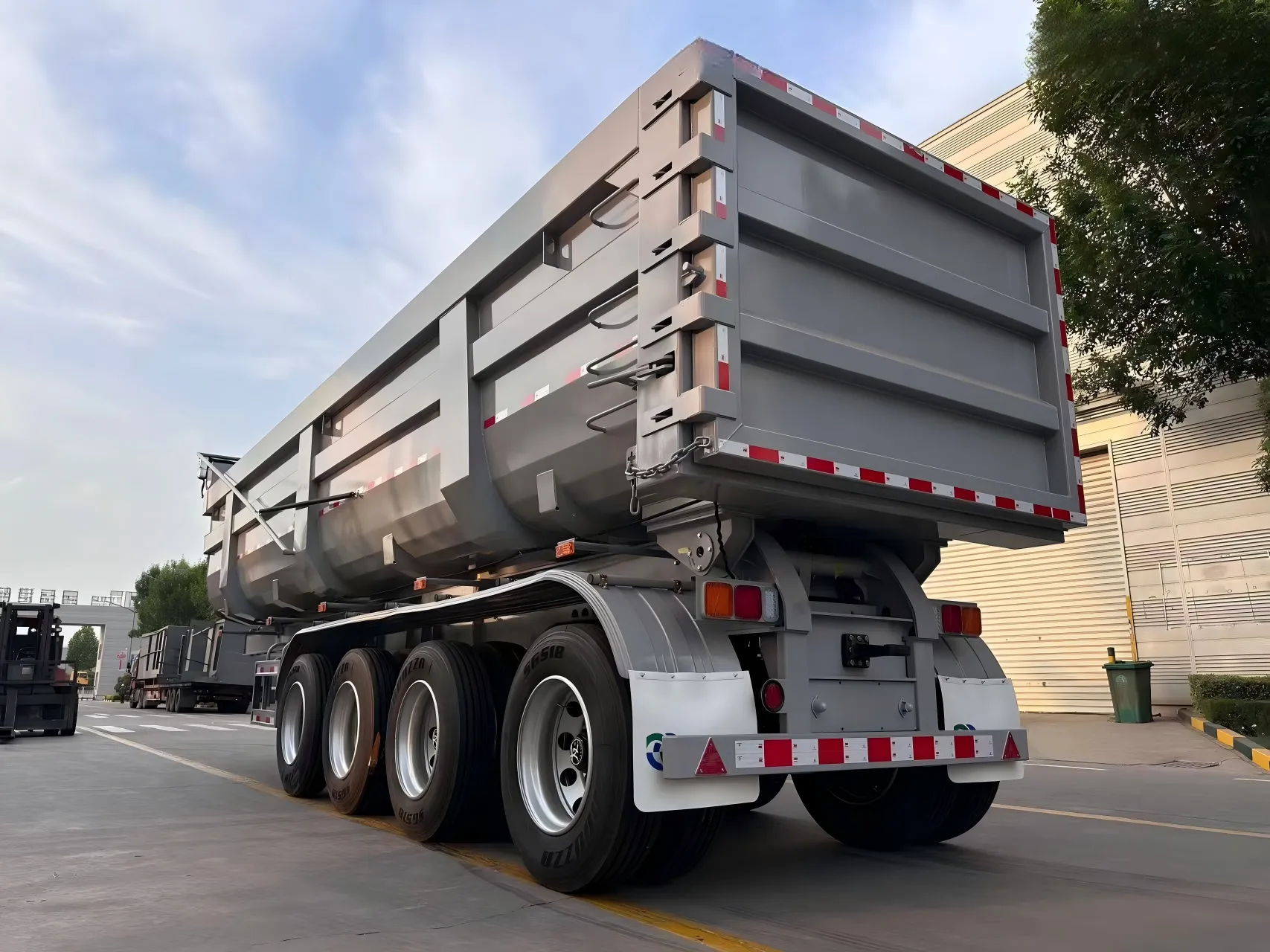

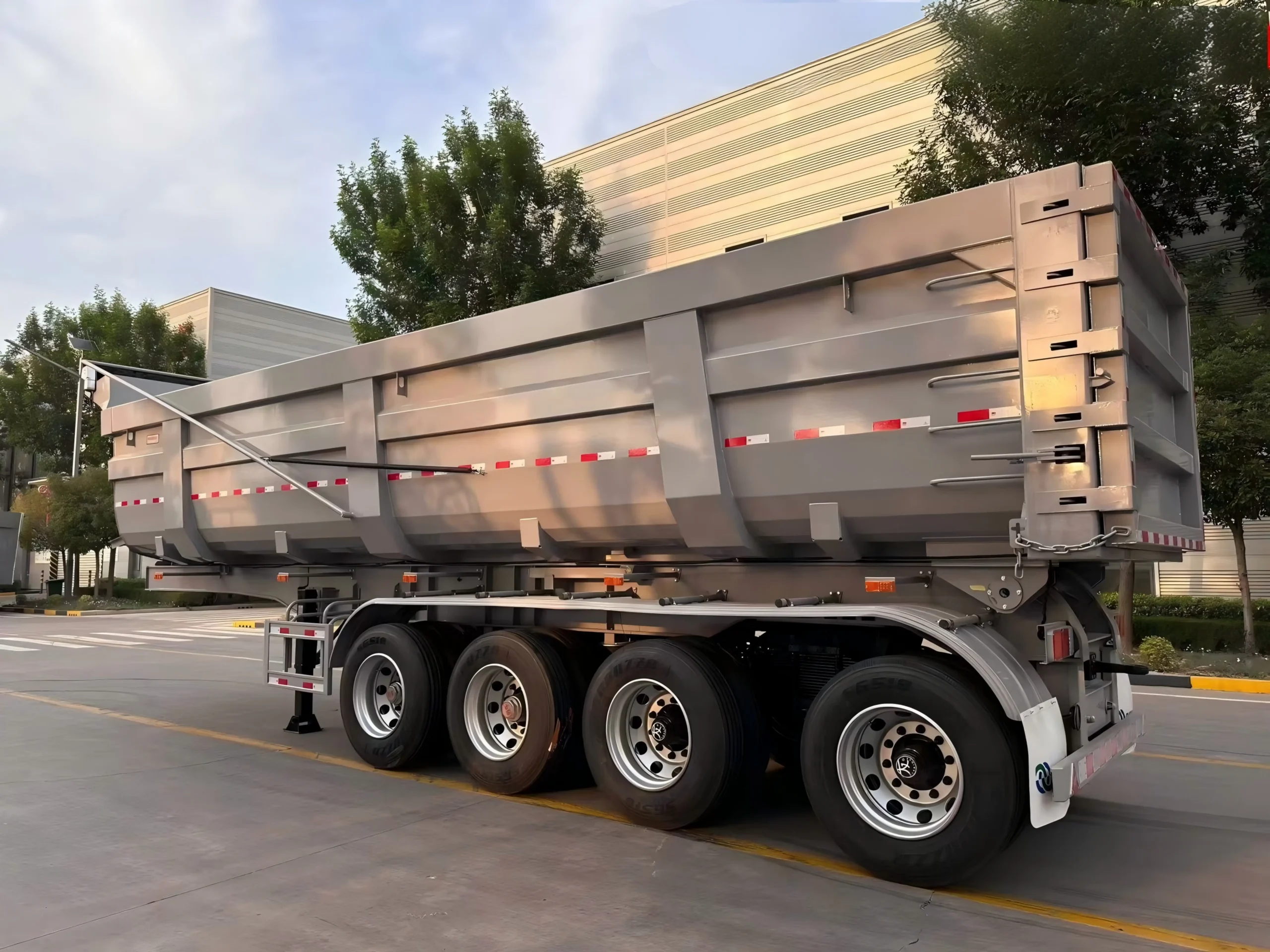

Four-axle layout of a CHENLU end dump semi trailer

Four-Axle Chassis Layout

Four axles support the rear section of the loaded trailer and share the load carried by the axle group. Positioned beneath the cargo body, they work with the chassis and suspension to carry bulk materials during transport.

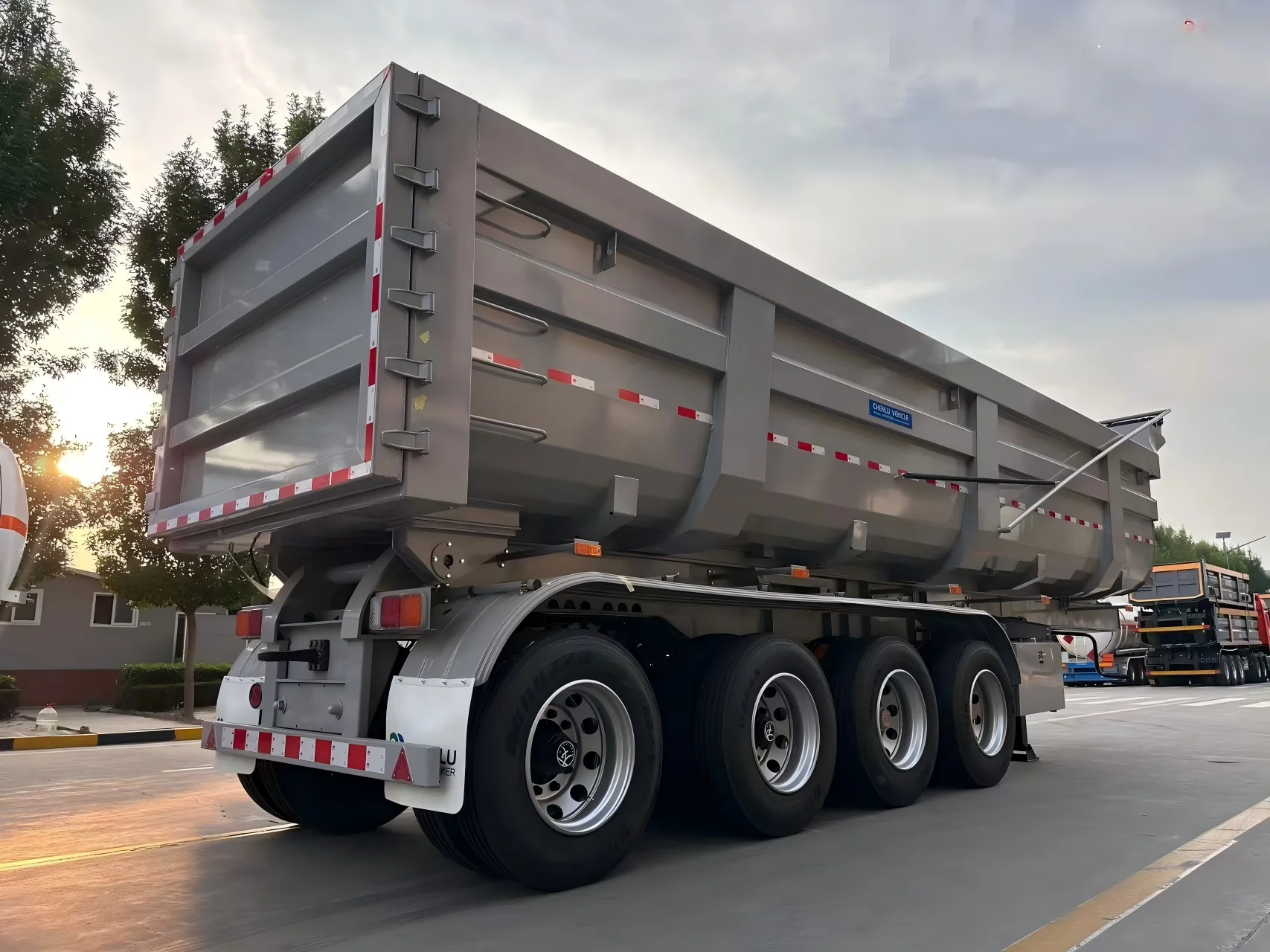

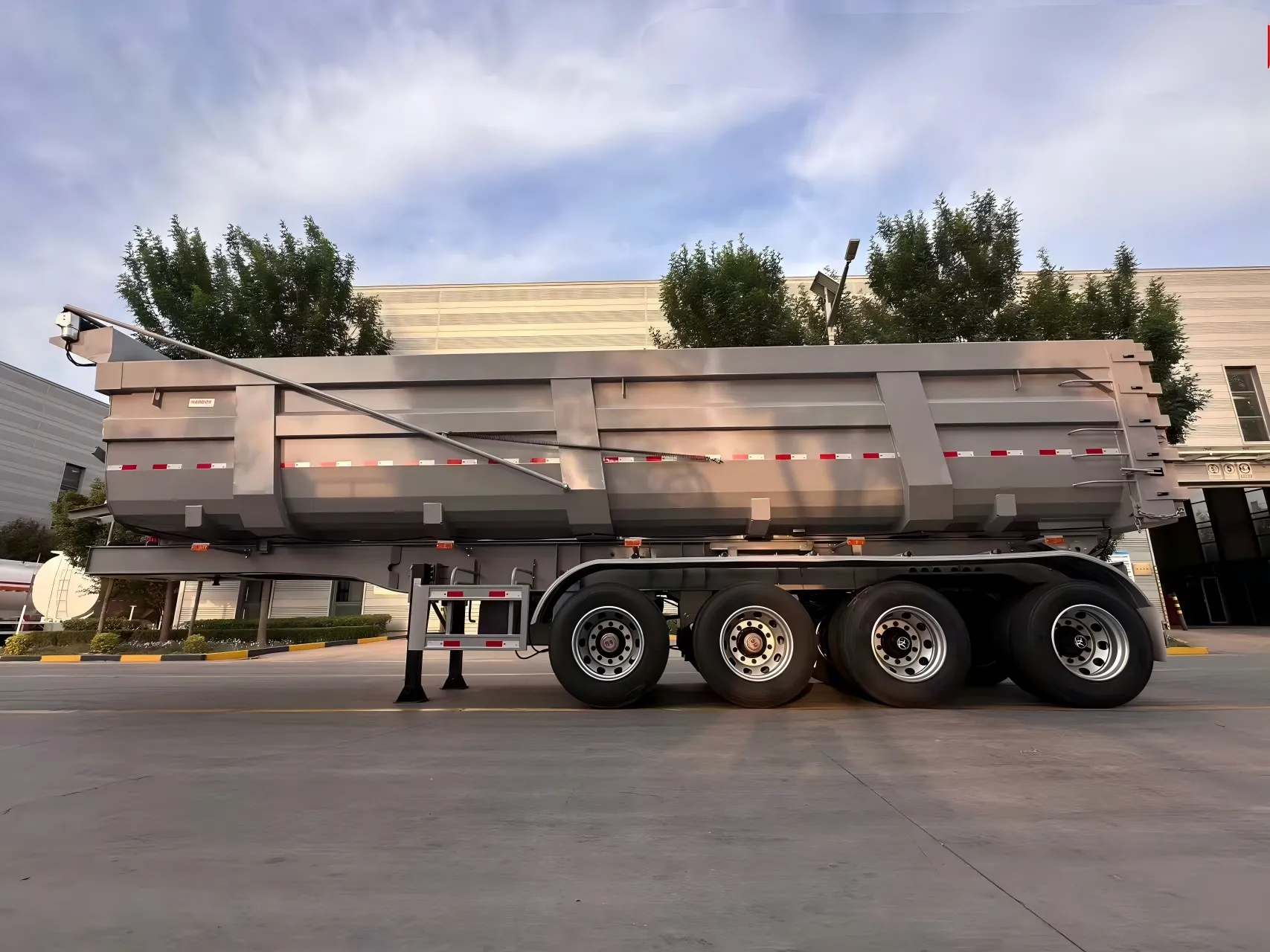

High-sided body and reinforced exterior structure of an end dump trailer

High-Sided Cargo Body

Raised sidewalls contain loose cargo such as sand, gravel and coal. External stiffeners support the body panels, while the open top provides access for loading. The rear gate closes the discharge opening during transport.

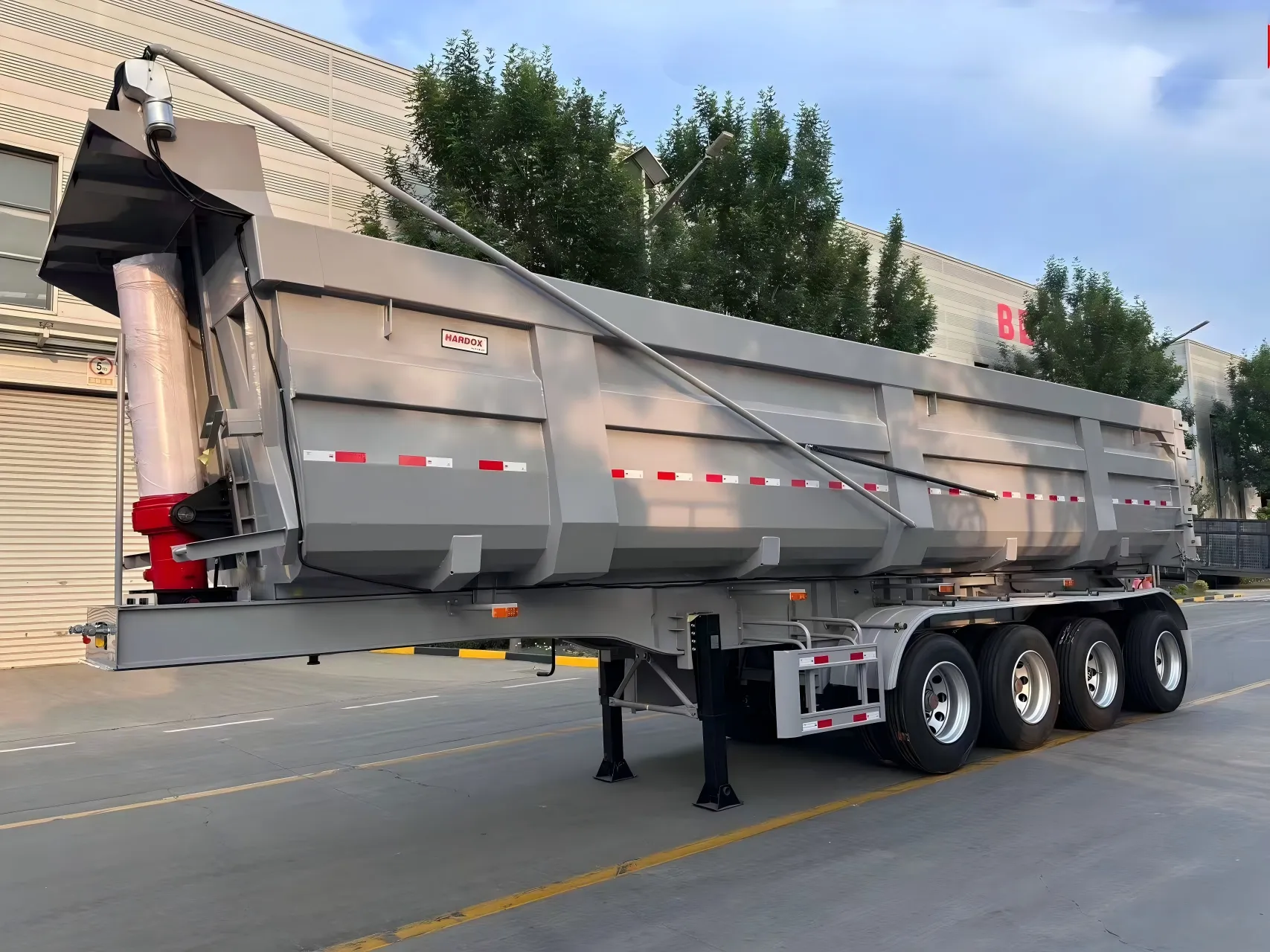

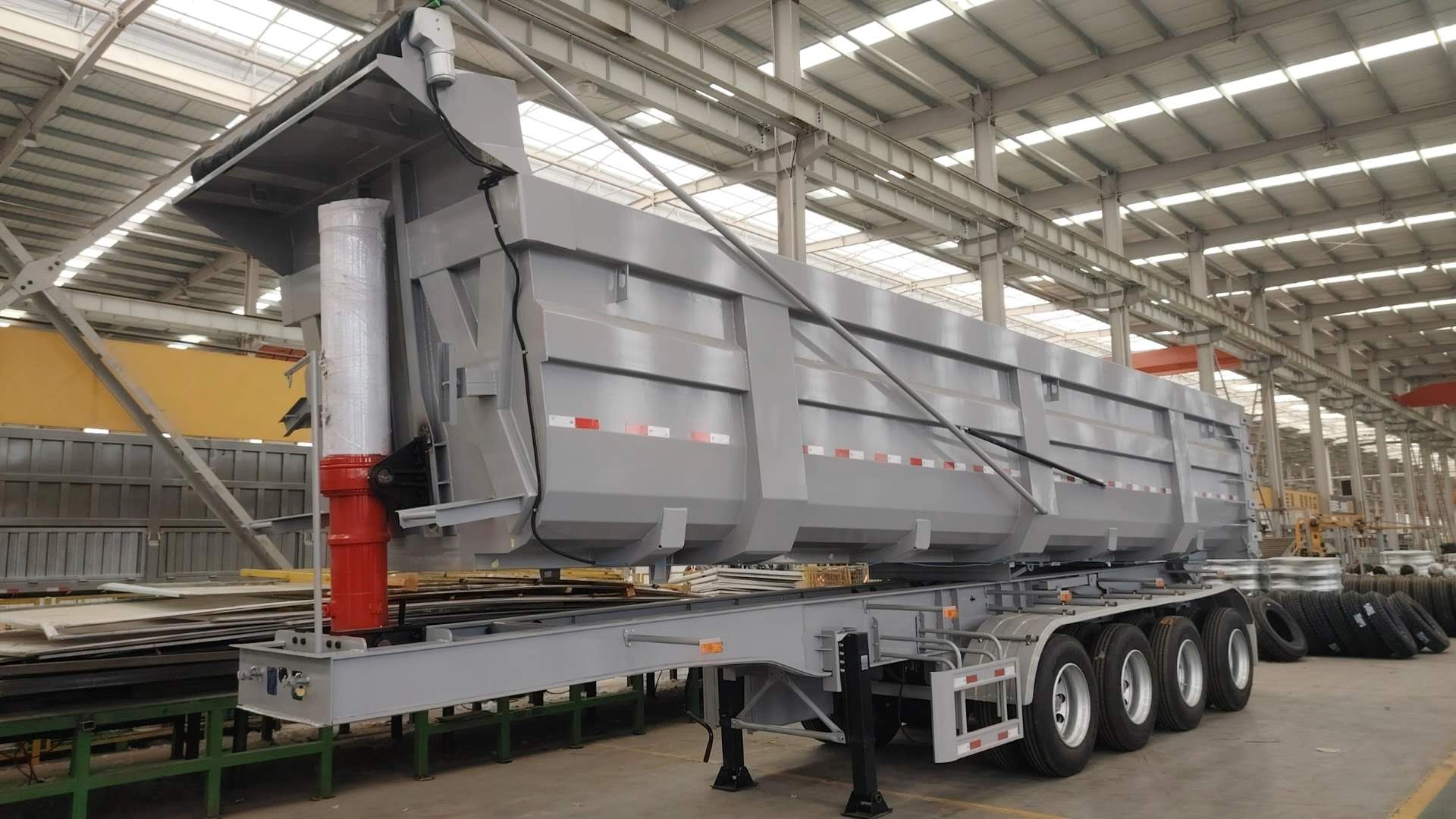

Rear gate and front lift-cylinder area of an end dump semi trailer

Front-Mounted Hydraulic Lift

The hydraulic cylinder sits ahead of the cargo body and raises its front end for rear tipping. As the body tilts, loose material moves towards the rear opening and discharges through the open gate.

Cargo Applications & Body Size

Which Bulk Materials Can This Tipper Carry?

This four-axle rear dump trailer is intended for loose materials such as sand, gravel and coal. Cargo weight and loading space need to be considered together: the same body can hold very different weights of different materials.

Internal Cargo Body Dimensions

The supplied drawing lists the following internal dimensions for the cargo body.

Internal Length: 9,640 mm
Internal Width: 2,300 mm
Internal Height: 1,900 mm

The lower body sides slope towards the floor. These dimensions describe the loading space; they do not state the trailer’s payload or its exact usable volume.

Sand Transport

Carry loose sand for construction supply and concrete production. Moisture changes the weight of a given volume, so a full body should not be treated as a fixed-tonnage load.

Gravel & Aggregates

Transport gravel and crushed aggregate for roadworks and building projects. Stone size and loading impact matter when selecting the cargo floor and body specification.

Coal Transport

Move loose coal between stockyards and receiving sites. Coal grade, particle size and moisture affect bulk density, so the required weight per trip should be checked against the available loading space.

For a trailer quote, send your cargo type, required payload, destination country and order quantity. Include your tractor model and loading method if available.

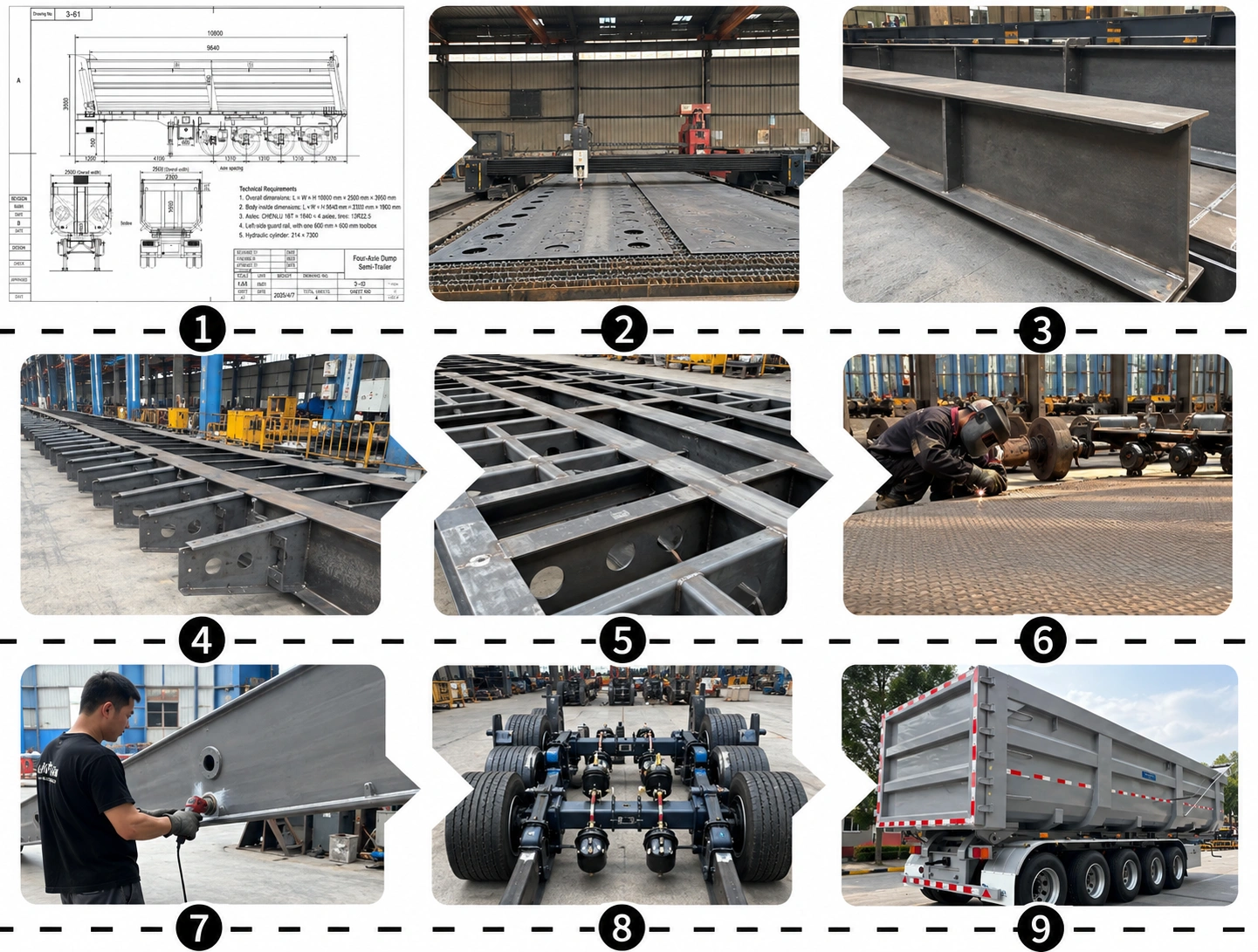

Production Process

Technical Specifications

What Are the Trailer’s Main Specifications?

This CHENLU 4 axle rear dump semi trailer measures 10,800 mm in overall length. Drawing No. 3-61 lists the body dimensions, four 16-tonne axles, tyre size and hydraulic cylinder specification detailed below.

Parameter	Specification
Trailer Type	4 axle rear dump semi trailer
Overall Dimensions (L × W × H)	10,800 × 2,500 × 3,950 mm
Internal Body Dimensions (L × W × H)	9,640 × 2,300 × 1,900 mm
Cargo Body	High-sided body with external stiffeners and sloped lower sides
Axles	4 × CHENLU axles, rated at 16 tonnes each
Axle Spacing	1,310 + 1,310 + 1,310 mm
Tyre Size	13R22.5
Unloading Method	Hydraulic rear tipping
Hydraulic Cylinder	Front-mounted; drawing designation: 214 × 7300
Rear Gate	Hinged rear gate with locking hardware
Toolbox	One toolbox; specified dimensions: 600 × 600 mm
Side Guard	Left-side protective guard rail

Dimensions and component specifications are based on Drawing No. 3-61. Payload, tare weight and usable body volume are not stated in the drawing. Individual axle ratings do not represent the trailer’s payload.

For a quotation, send your cargo type, required payload, destination country and order quantity.

LOADING, CARGO-SECURING AND UNLOADING PROCESS

What Should Be Checked Before the Trailer Enters Service?

The final operating process depends on the specified bulk material, loading system, load distribution, rear-gate sequence, hydraulic package and unloading-site conditions. Follow only the released instructions for the ordered configuration.

Reference video placeholder. Confirm that it shows the ordered four-axle end dump configuration and the approved operating sequence before publication.

Define the Cargo

Provide the cargo name, loose density, moisture condition, particle size and expected loading pattern.

Confirm the Loading Method

State whether the body will be loaded by excavator, wheel loader, conveyor or another system. Include bucket size and drop height.

Distribute and Secure the Load

Keep load distribution within the approved technical release. If a cover is required, specify its material and operating method separately.

Check the Transport Cover Distinction

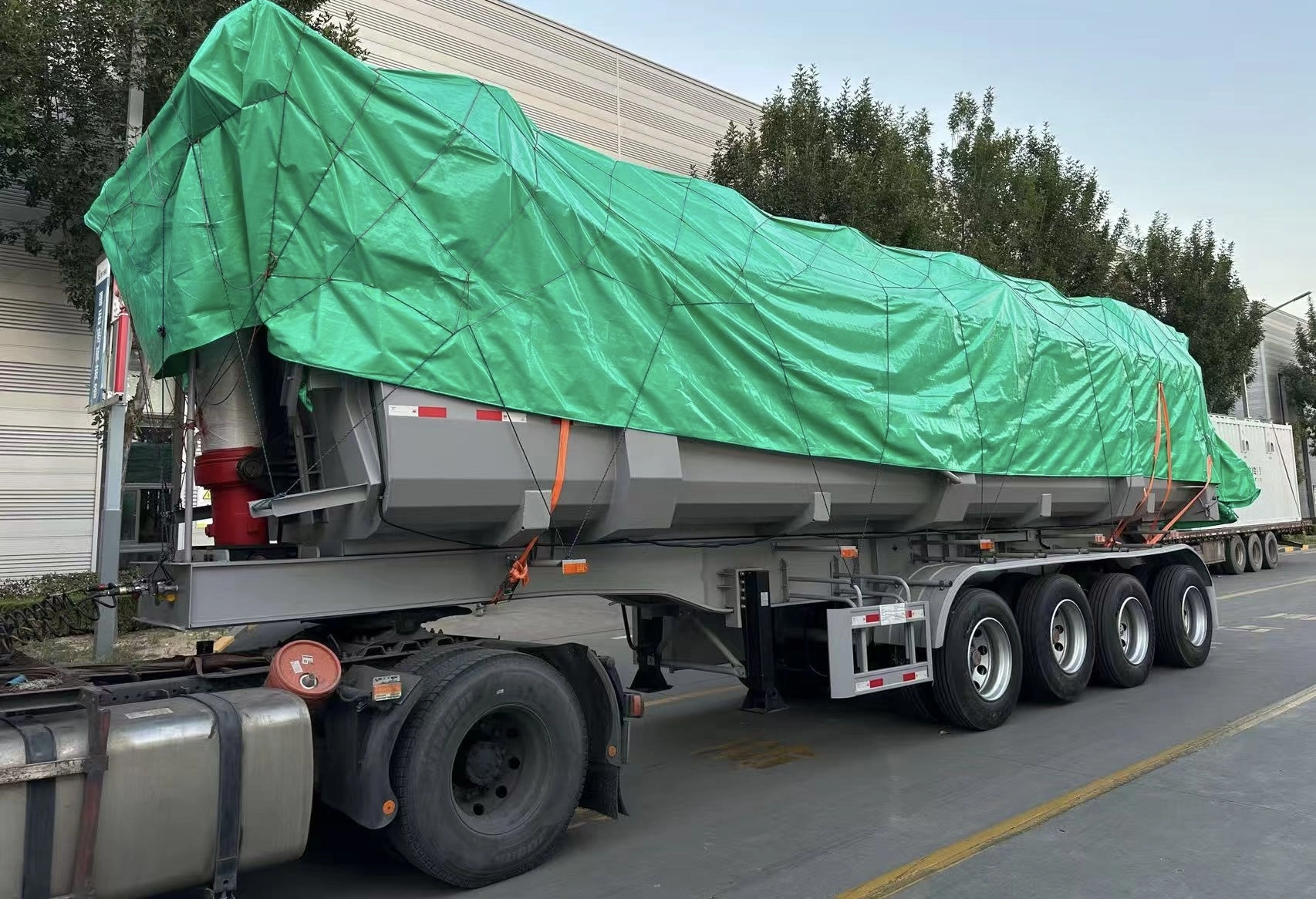

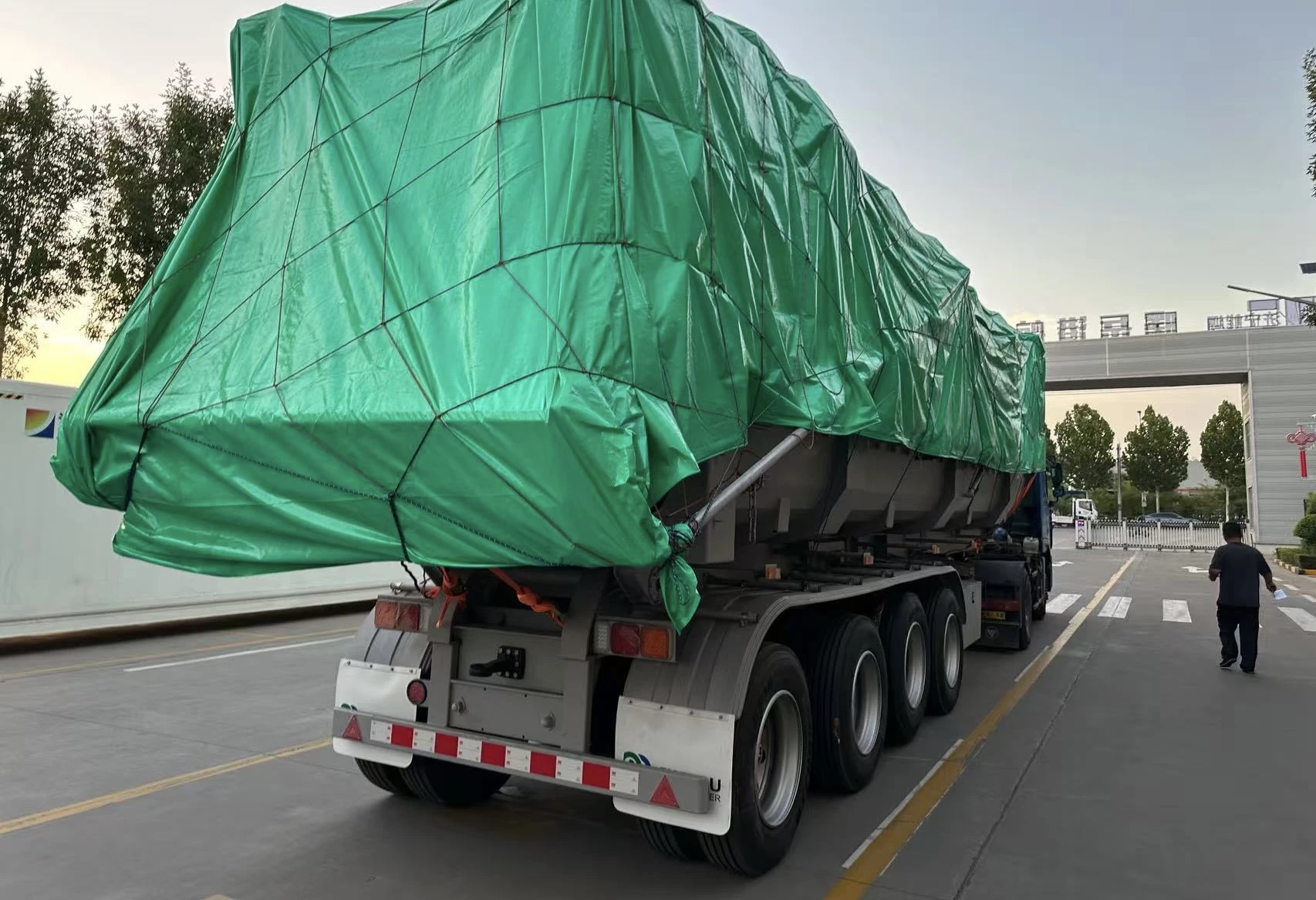

A temporary green sheet shown in one image does not confirm an integrated tarp or fitted cargo-cover system.
