2 Axle Rear Dump Semi Trailer
The CHENLU 2 axle tipper semi trailer carries sand, gravel,
coal and other loose bulk materials for construction projects,
aggregate supply and material-yard deliveries. Its high-sided
cargo body holds the load during transport and tips to discharge
material through the rear gate.
Body volume and payload are selected together to suit the cargo
density and transport route.
Before production: Get a Trailer Quote: Send your cargo type, required payload, destination country and order quantity. Include your tractor model and loading or unloading requirements if available.
BODY DESIGN & REAR UNLOADING
What Makes 2 Axle Rear Dump Semi Trailer Suitable for Bulk Hauling?
This CHENLU 2 axle rear dump semi trailer combines a high-sided cargo body with rear-tipping discharge. It carries loose materials such as sand, gravel and coal for construction supply and material-yard deliveries.
01 / CARGO BODY & AXLES
High-Sided Body for Loose Bulk Materials
The rectangular cargo body holds sand, gravel, coal and similar loose materials during transport. Its raised sides provide loading space above the floor, while the tandem axles support the rear of the trailer.
Body volume and payload are matched to the material being carried; a larger cargo box does not automatically mean a higher permitted load.
02 / REAR DISCHARGE
Rear Tipping for Bulk Unloading
The cargo body tips to let loose material flow through the rear gate. This provides a way to unload bulk deliveries at aggregate yards and construction sites without manually removing the load from the cargo box.
The rear gate closes the discharge opening during transport and opens for unloading.
Bulk Material Transport
What Can 2 Axle Dump Semi Trailer Carry?
The CHENLU 2 axle rear dump semi trailer is intended for loose bulk cargo such as sand, gravel and coal. Typical transport tasks include construction-material deliveries, aggregate supply and transfers between storage yards.
Sand Transport
Move loose sand from supply yards to construction sites and concrete plants. The open-top body allows loading from above, with rear tipping used to discharge the load at the delivery point.
Construction supply & concrete production
Gravel & Aggregate
Transport loose gravel and crushed aggregate for roadworks and building projects. Stone size and loading impact help determine the body and floor specification needed for the job.
Aggregate deliveries & road construction
Coal Transport
Carry loose coal between stockyards and receiving sites. The high-sided body provides space for bulk loads, while rear discharge allows delivery into a designated unloading area.
Coal supply & stockyard transfers
How Much Can It Carry?
The actual payload depends on the trailer specifications and
the applicable weight limits along the transportation route.
The cargo compartment volume refers to the available loading
space, rather than the permitted cargo weight. Materials with
the same volume, such as sand and coal, may vary significantly
in weight due to differences in density.
Based on load tests conducted at the Chenlu factory, the measured
payload capacity is approximately 30–40 metric tons. The final
payload should be confirmed according to the local operating
conditions, road conditions, and relevant regulations of the
destination country.
Technical Specifications
2 Axle Rear Dump Semi Trailer Configuration Table
This 2 axle rear dump semi trailer measures 7,800 mm in overall length. The drawing specifies FUWA axles, 315/80R22.5 tyres, a HYVA hydraulic cylinder and an electrically operated tarpaulin cover.
| Parameter | Specification |
|---|---|
| Trailer Type | 2 axle rear dump semi trailer |
| Overall Dimensions (L × W × H) | 7,800 × 2,500 × 3,750 mm |
| Internal Body Dimensions (L × W × H) | 6,600 × 2,300 × 1,400 mm |

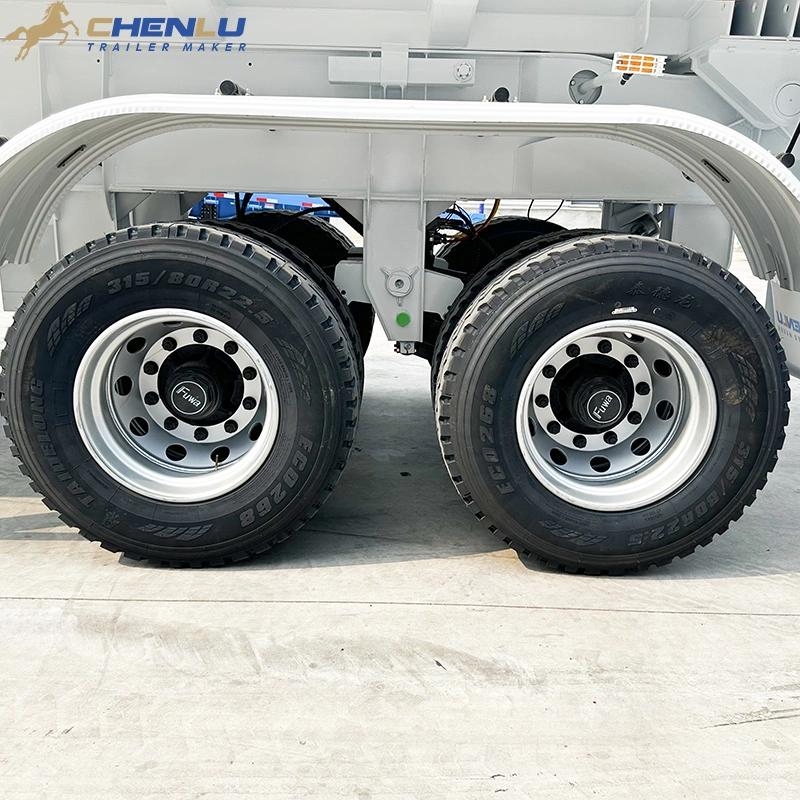

| Axles | 2 × FUWA axles, rated at 13 tonnes each |
| Axle Spacing | 1,310 mm between axle centres |
| Tyre Size | 315/80R22.5 |
| Unloading Method | Hydraulic rear tipping |
| Hydraulic Cylinder | HYVA 191 × 5600, as designated in the drawing |
| Cargo Cover | Electrically operated tarpaulin cover |
| Toolbox | One right-side toolbox; specified dimensions: 600 × 600 mm |
| Side Guard | Left-side protective guard |
Specifications above are based on the supplied drawing. Payload and tare weight are not stated in this drawing; axle ratings are not the trailer’s payload.
Production Process
Rear Tipping & Cargo Cover
2 Axle Rear Dump Semi Trailer Demonstration Video and Workflow
The front-mounted hydraulic cylinder raises the cargo body, allowing loose material to move towards the rear discharge opening. This rear-tipping arrangement is used for bulk deliveries of sand, gravel and coal.
The electrically operated tarpaulin covers the cargo during transport and retracts to provide access from above. Together, the tipping body, rear gate and cover support loading, transport and unloading.

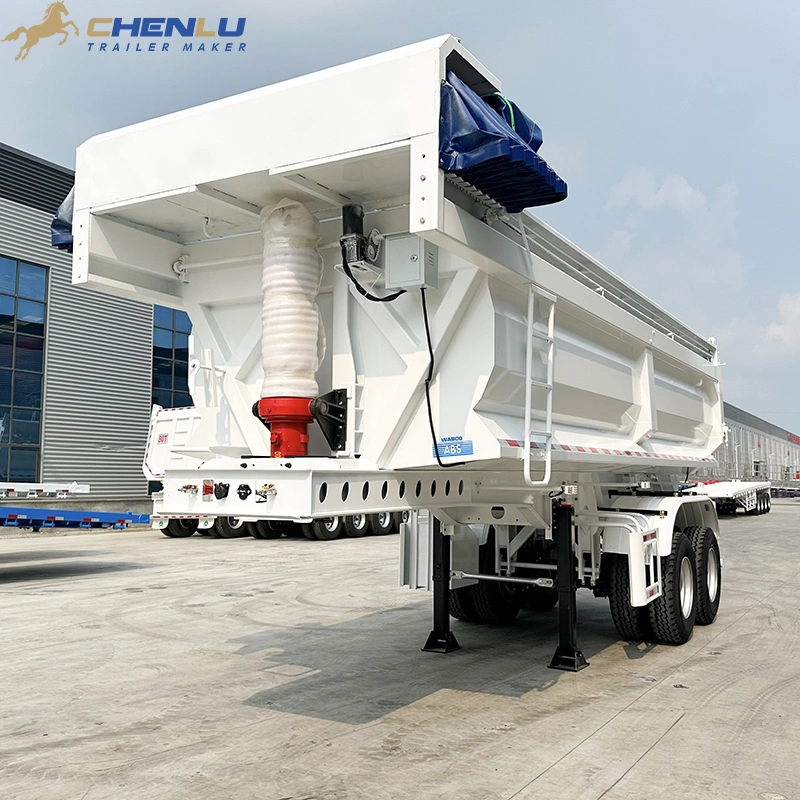

Hydraulic Body Lifting
The HYVA cylinder is mounted at the front of the trailer. It lifts the front of the cargo body for rear tipping and lowers the body after unloading.

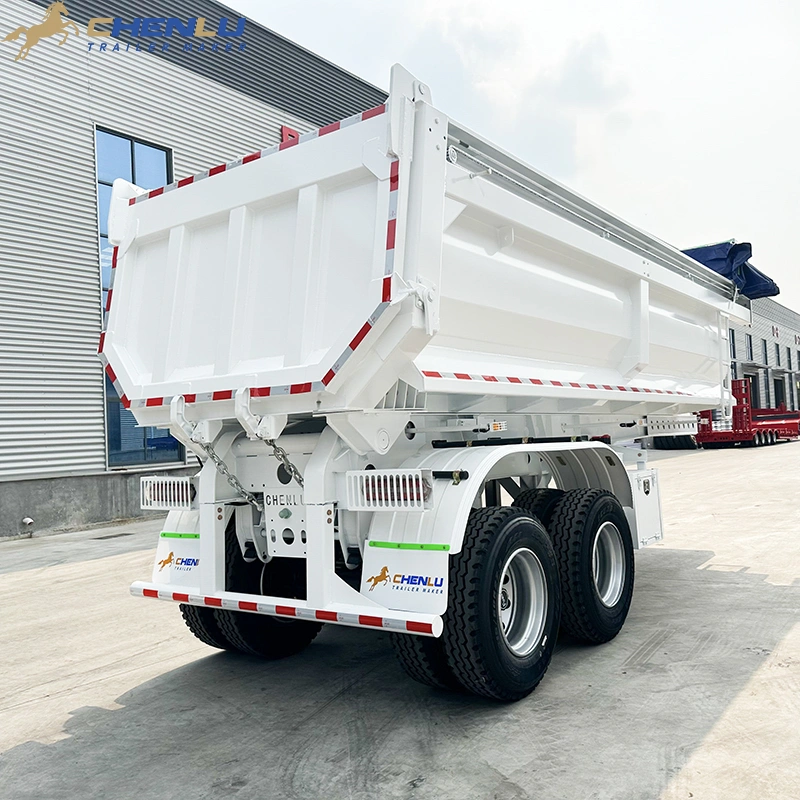

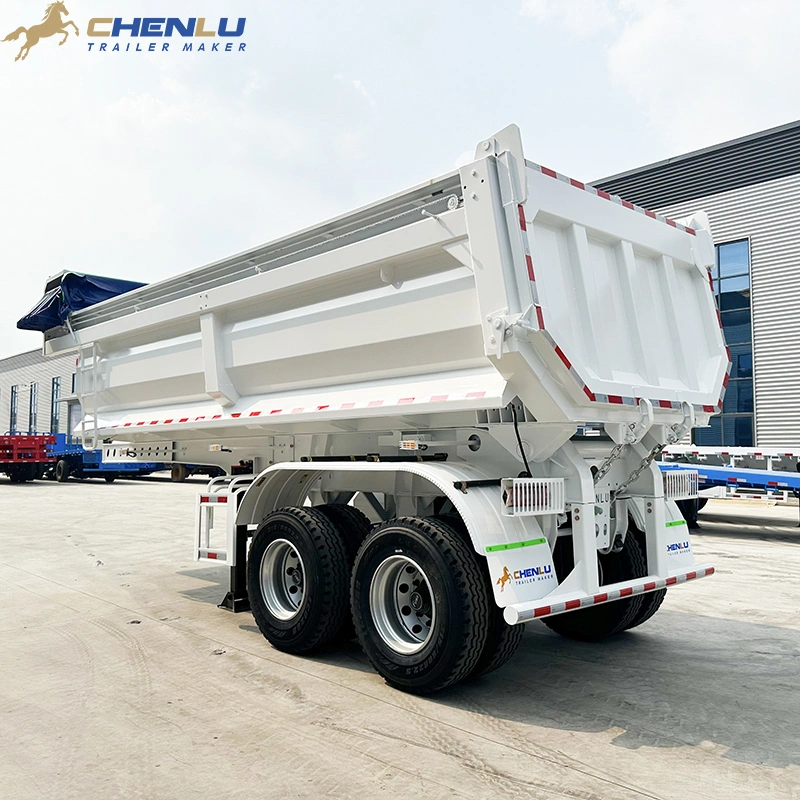

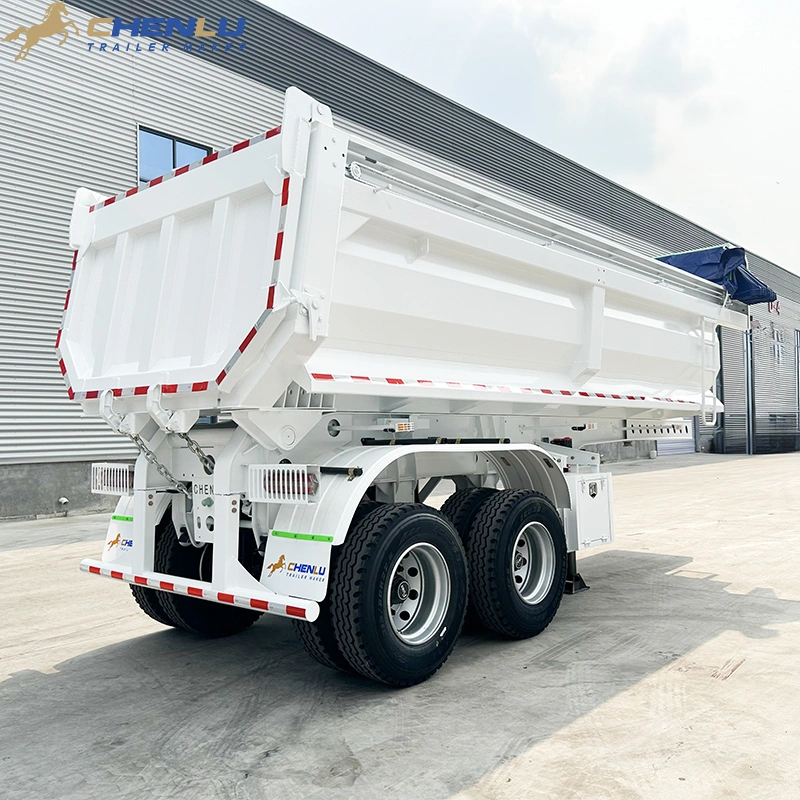

Rear-Gate Discharge
The rear gate retains the load during transport and opens for discharge. With the body raised, loose cargo flows towards the rear opening under gravity. Material moisture and stickiness affect how readily the load flows out.
Electric Tarpaulin Cover
Electric operation extends and retracts the tarpaulin over the cargo body. The cover helps limit wind exposure of the load during transport and opens to allow loading from above.
This overview explains the equipment’s functions. Follow the supplied operating instructions for the tipping sequence, site requirements and operating limits.

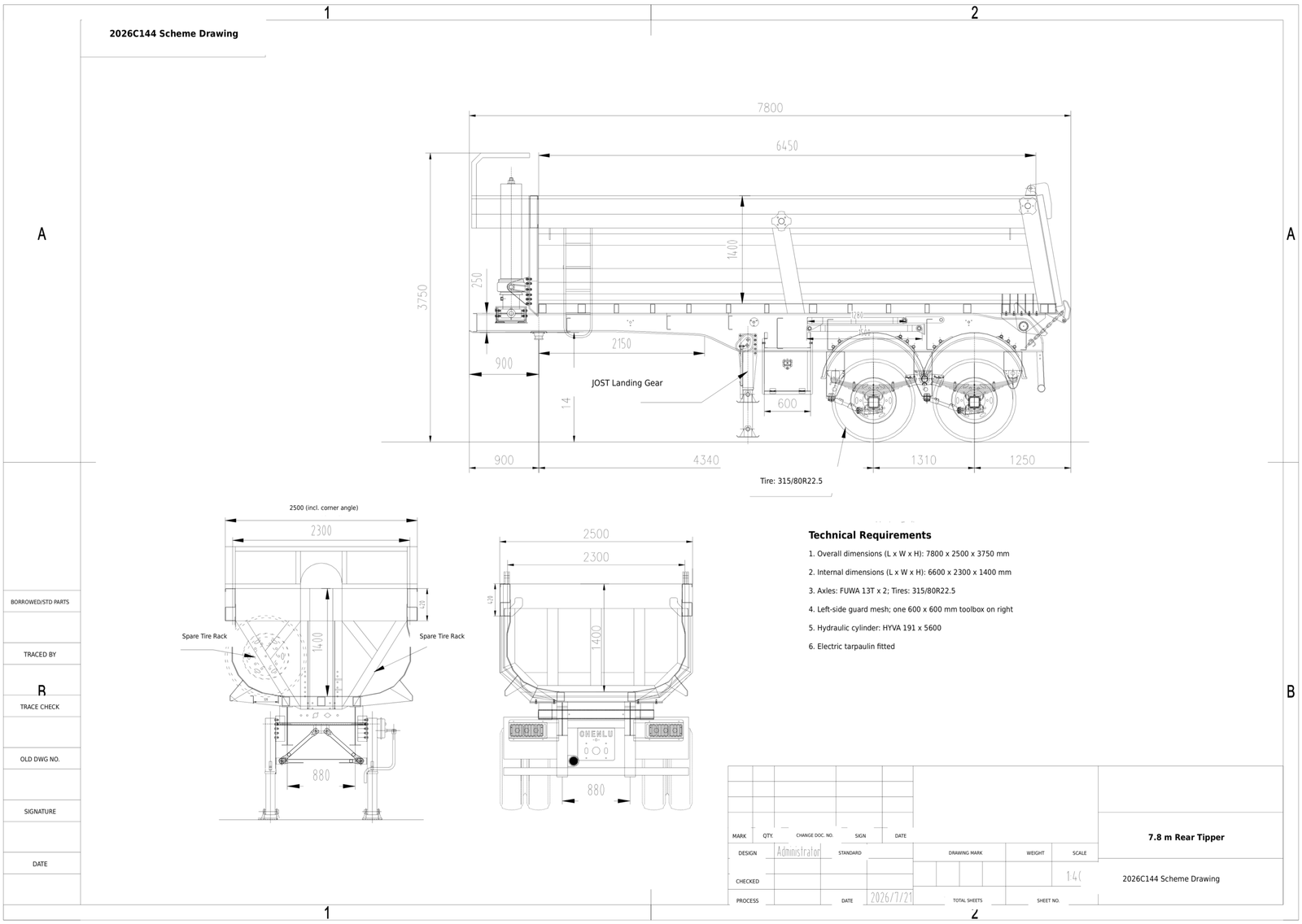

Technical Drawing & Dimensions
How Is the 2 Axle Tipper Laid Out?
The drawing brings together the side, front and rear views of the trailer. Use it to locate the cargo body, tandem axles, hydraulic cylinder and underbody equipment, alongside the dimensions listed in the specification table.
Body & Axle Positions

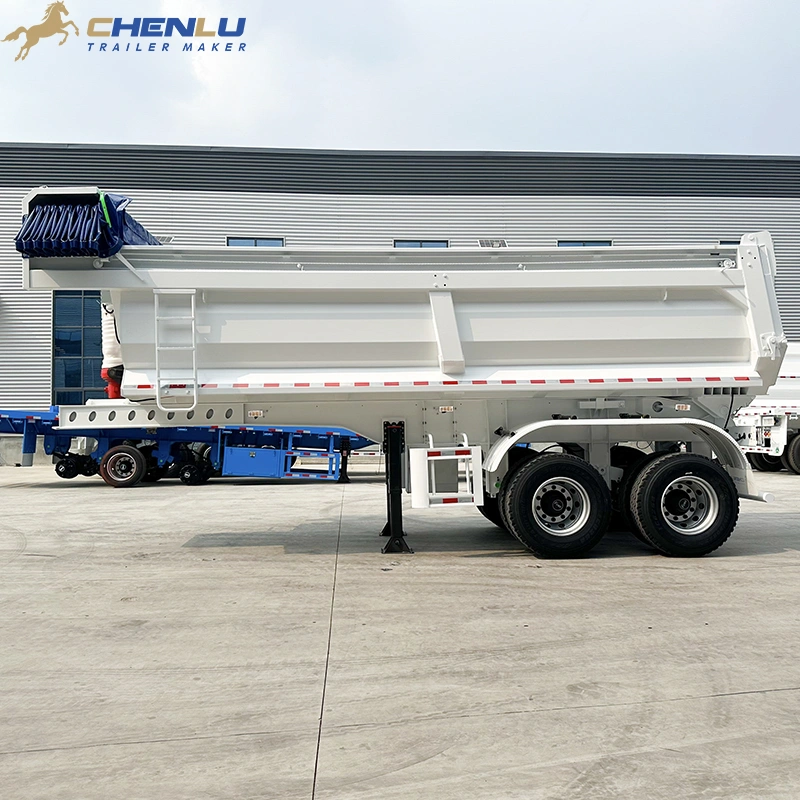

The side view shows the 7,800 mm overall length and the tandem axle group beneath the rear of the body. The axle centres are 1,310 mm apart. The landing gear and toolbox sit ahead of the axle group.
Front Equipment Layout
The hydraulic cylinder sits ahead of the cargo body. The front view also identifies the spare-wheel positions and the supporting structure around the cylinder, making their arrangement easier to see than in a side photograph.
Cargo Body Profile
The rear view shows the 2,500 mm overall width and 2,300 mm internal body width. The lower sides slope towards the floor, defining the cargo body profile beneath the straight upper sidewalls.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control

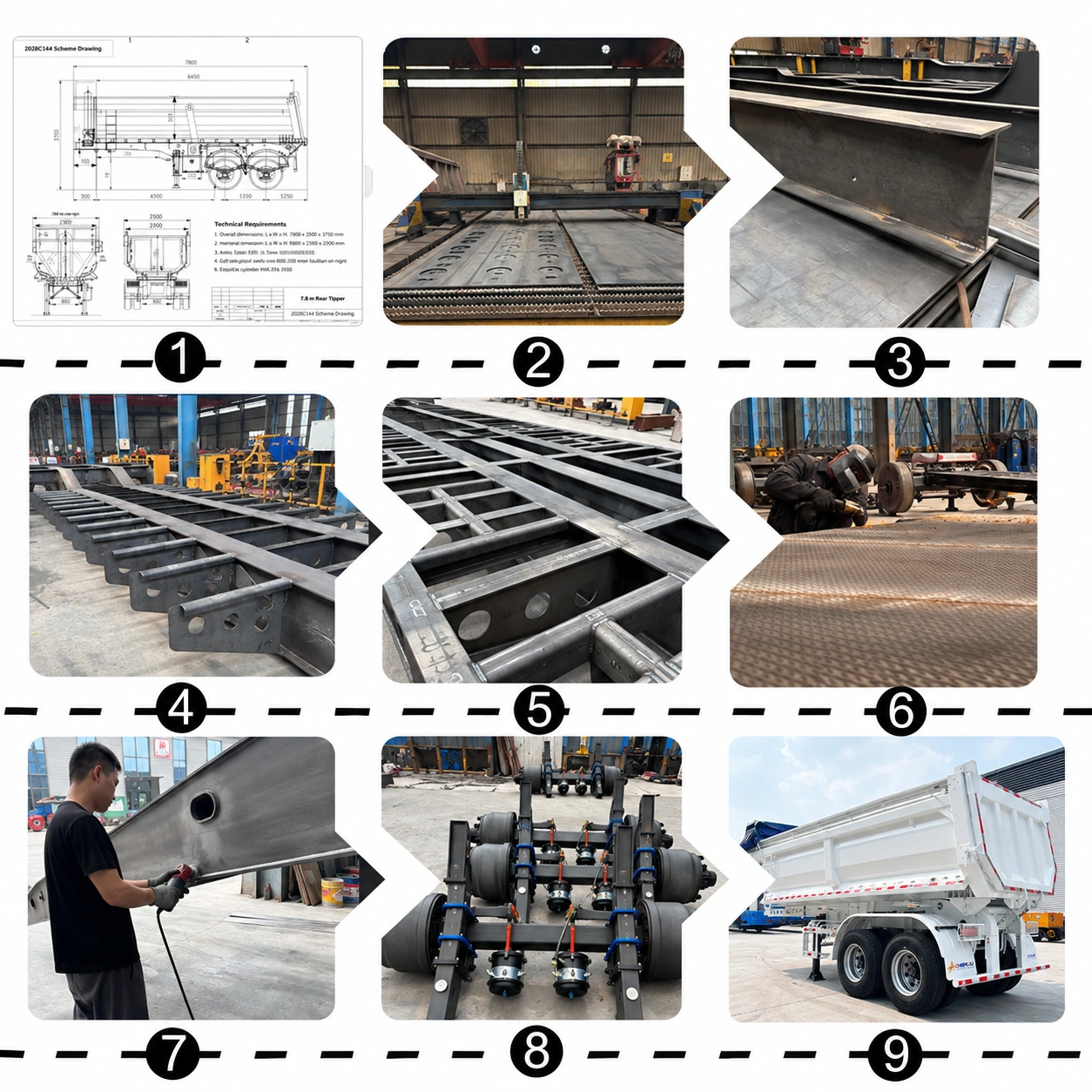

The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FAQ
Answers to common questions about the 2 axle end dump tipper semi trailer, rear-discharge configuration, cover system, payload review and quotation requirements.
How is this trailer different from a two-axle dump drawbar trailer?
This product is shown as a semi-trailer with landing gear and a front coupling area designed for a tractor fifth wheel. A drawbar full trailer uses a different front connection arrangement, so the coupling checks, vehicle combination and operating configuration should not be treated as interchangeable.
Is this a rear tipper or an end dump semi-trailer?
The photographed product is presented as a rear-tipping or end-dump semi-trailer based on its high-sided body, front-mounted lift cylinder and rear-gate arrangement. Final tipping geometry, gate sequence and operating limits must follow the approved engineering data.
Does the trailer include a cover system?

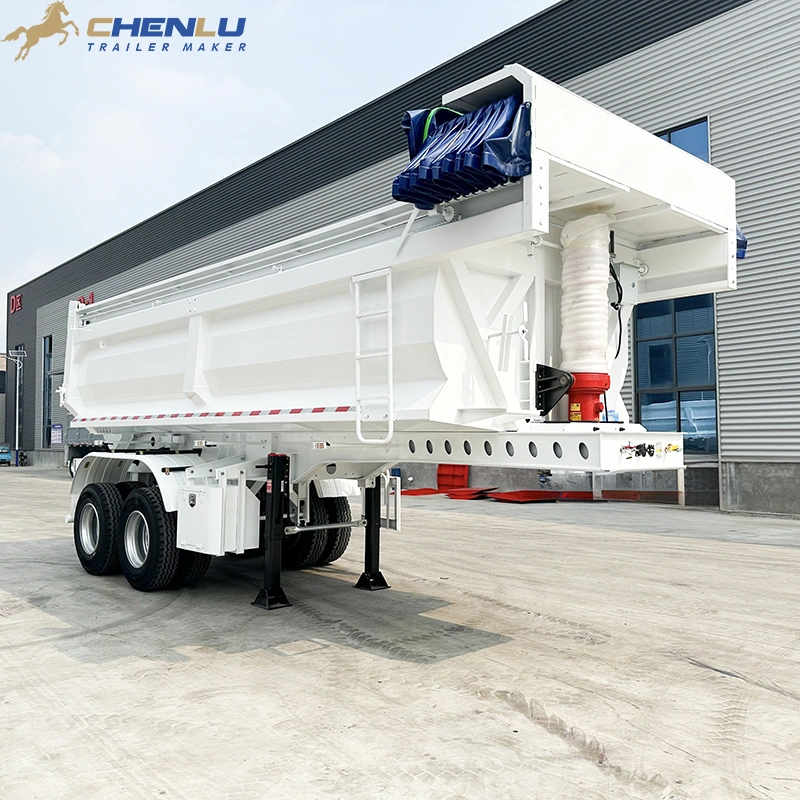

A folded blue cover component and upper rail arrangement are visible on the displayed unit. The cover material, drive method, support layout, sealing arrangement and standard-versus-optional status must still be confirmed in the quotation.
What payload and body volume are available?
No fixed payload or body-volume figure is approved for this page. Both depend on the final internal dimensions, body material, tare mass, tandem axle group, tractor combination, cargo density and destination-market mass limits.
What materials can be reviewed for this trailer?
CHENLU can review quotation briefs for sand, soil, aggregate, ore, construction material and other bulk cargo after receiving density, particle size, moisture, abrasion and unloading-site information. Suitability is not confirmed by cargo name alone.
Are the displayed tyre size and component labels the final specification?
No. Visible markings can help identify the photographed trailer, but the contractual tyre, axle, landing-gear, brake, hydraulic and other component specifications must come from the approved component schedule and signed quotation.
What does CHENLU need before issuing a quotation?
Provide the cargo name and bulk density, target operational load, loading equipment, tractor information, route conditions, unloading-site details, destination country, required standards, quantity, preferred trade term and target purchase date.
