5-Axle Curtain Side Semi-Trailer with Sideboards

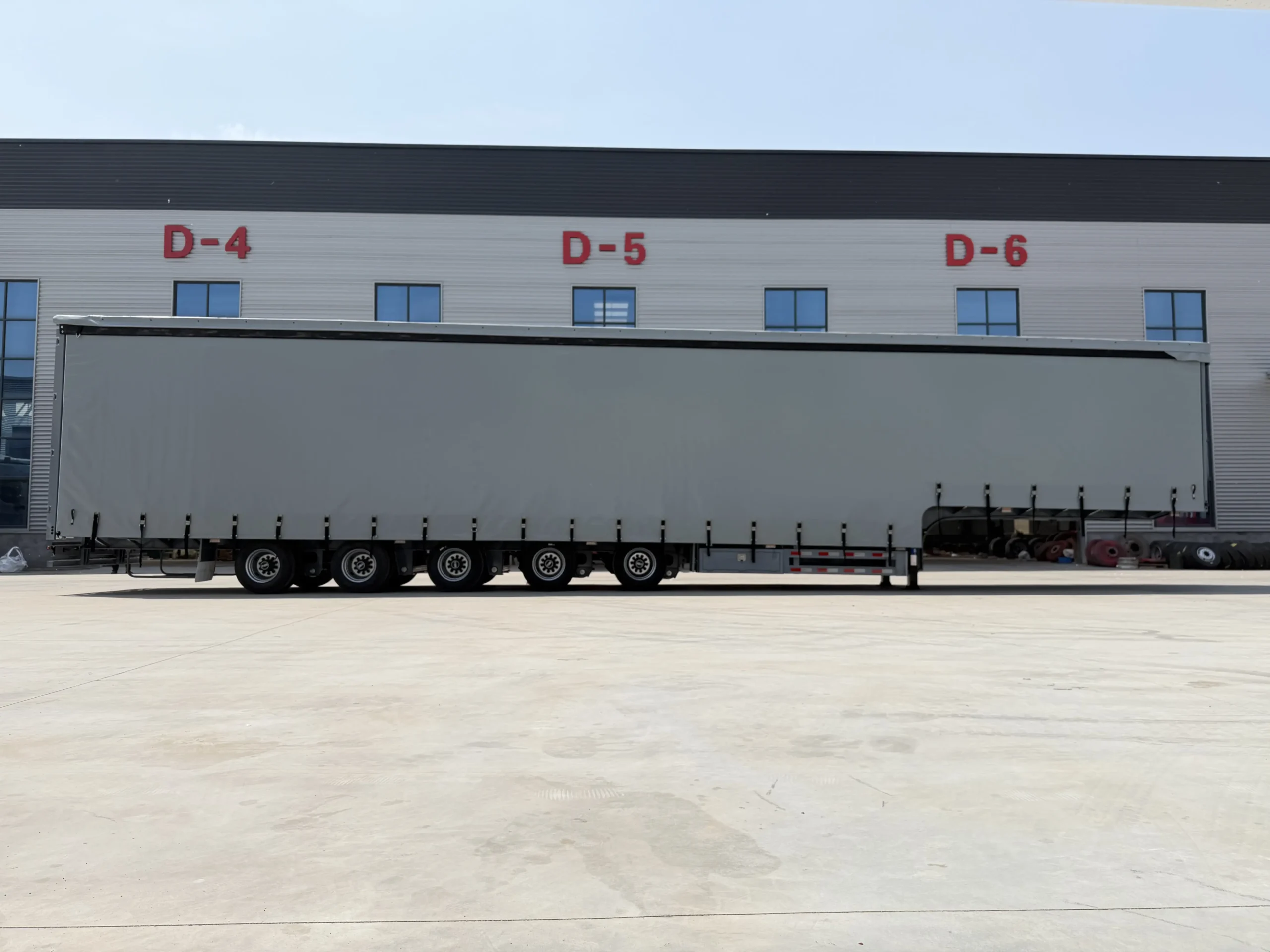

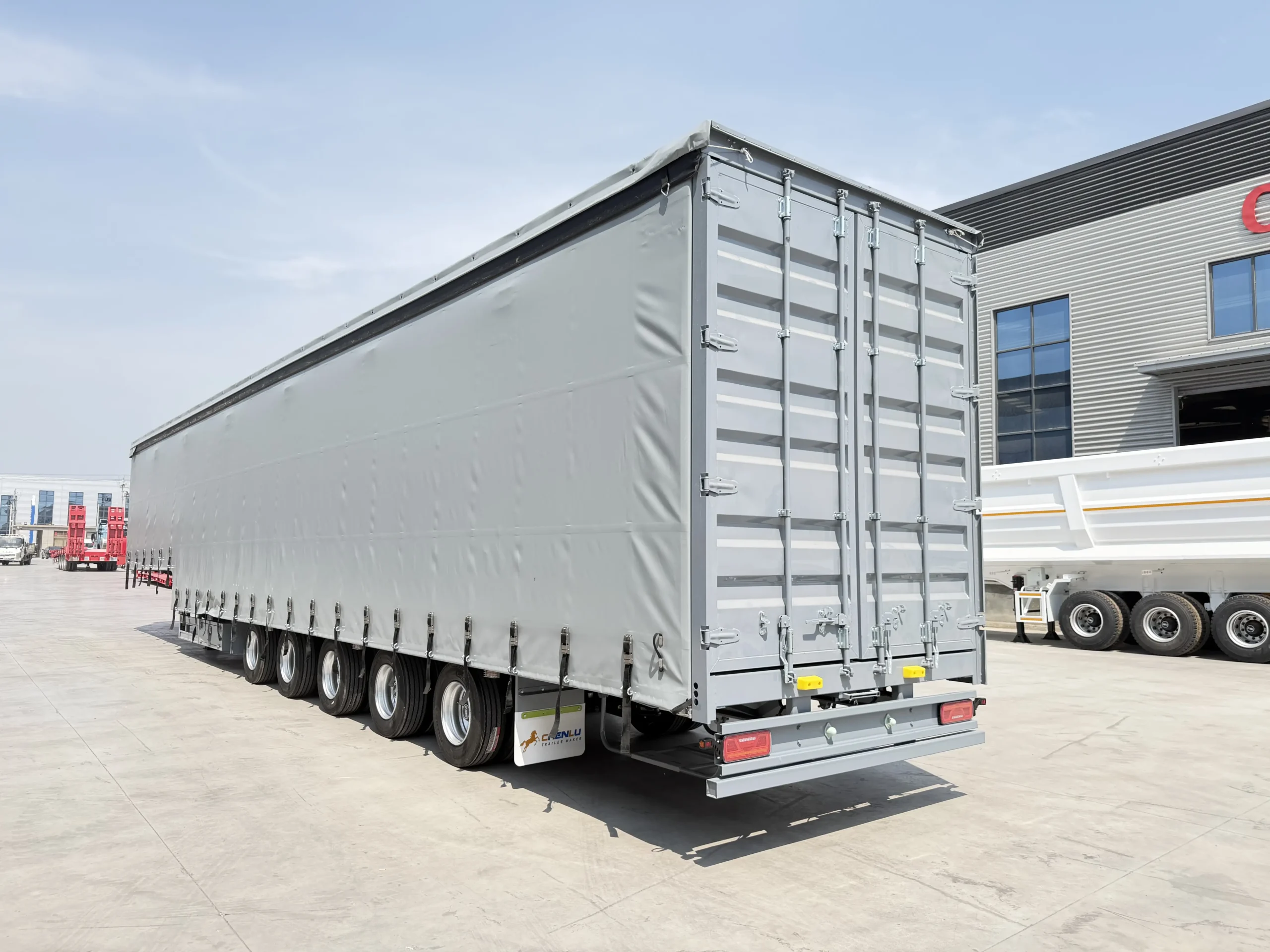

This 16.5 m curtain side semi-trailer combines a five-axle chassis with lower sideboards inside the curtain body. It is designed for palletised goods and packaged freight.
The side curtains provide access along the loading area, while double rear doors allow loading from the back. Sideboards and horizontal rails form the inner sides of the cargo body.
- Overall length
- 16.5 m
- Axle configuration
- 5 Axles
- Body detail
- Sideboards
Send your cargo type, load weight and destination for a quote.
5-Axle Curtain Side Trailer Features
This 16.5 m curtain side semi-trailer combines a five-axle chassis with side curtains, rear double doors and internal sideboards. Here is a closer look at the main parts of the build.

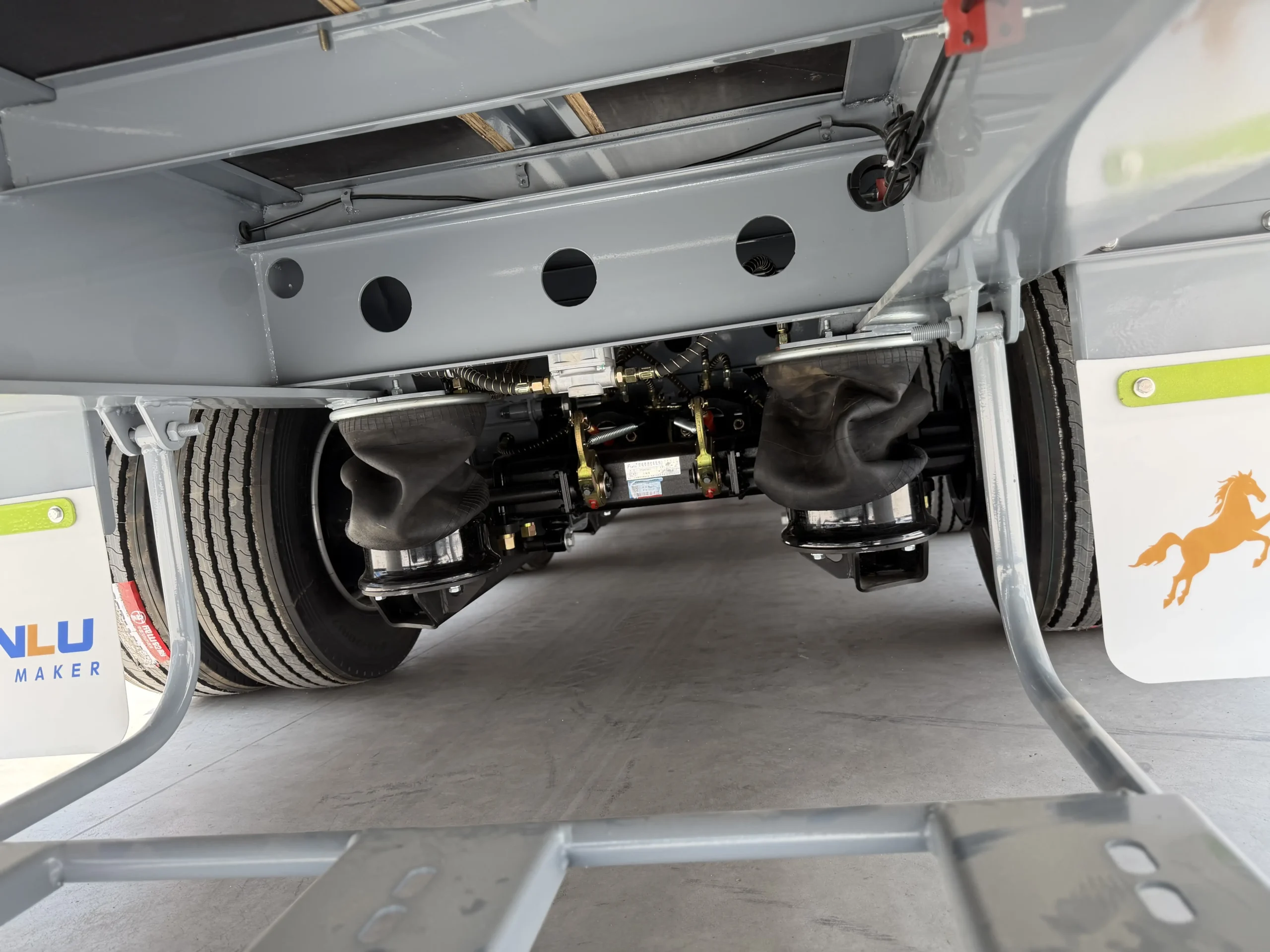

Five-Axle Chassis

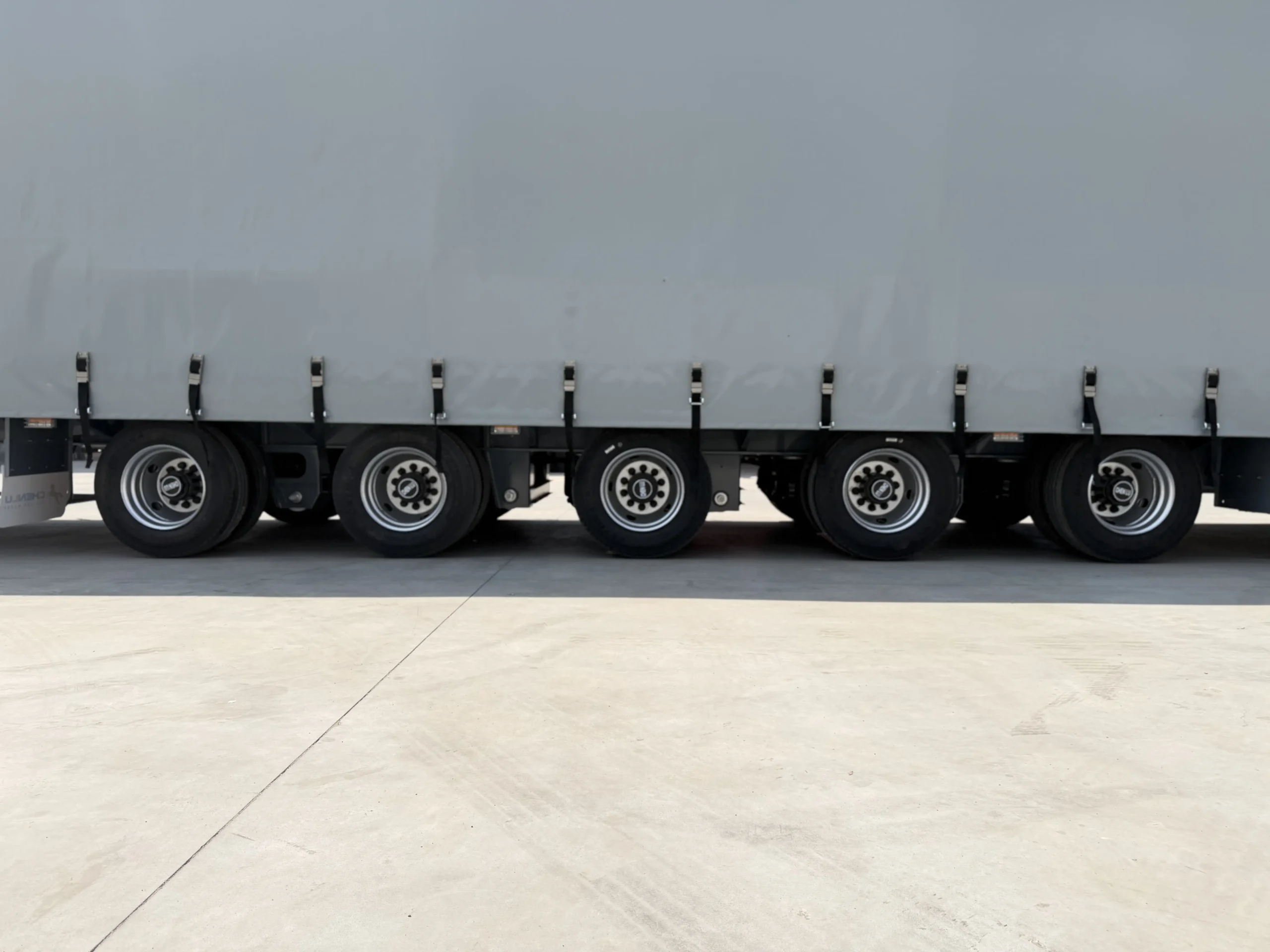

Five axles sit beneath the rear section of the trailer, with 1,310 mm between adjacent axle centres.
Side and Rear Loading
The curtains provide side access to the cargo area. Double rear doors offer a separate loading entrance at the back.

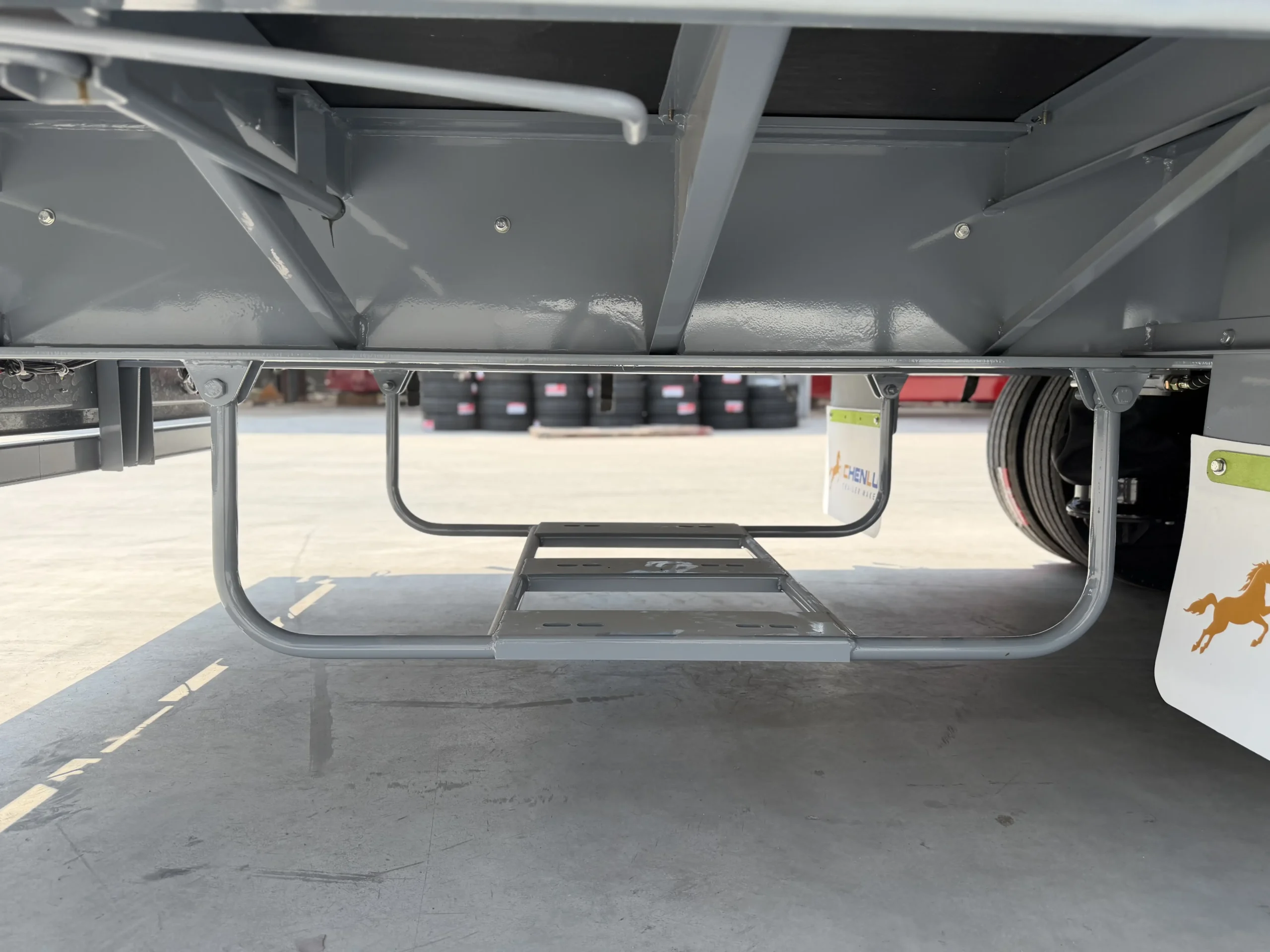

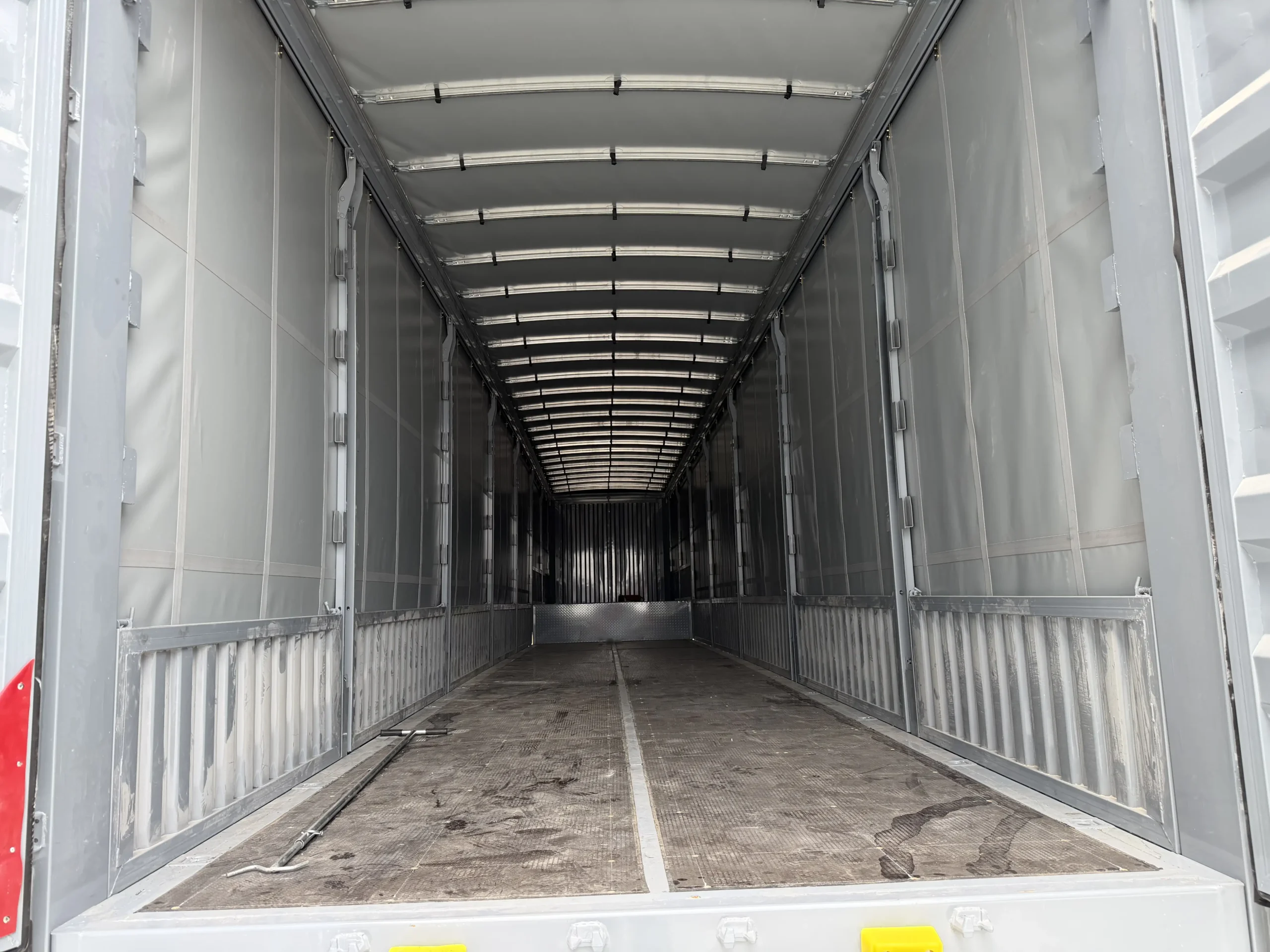

Internal Sideboards and Rails
Lower sideboards and horizontal rails line the inside of the curtain body, forming the inner sides of the loading area.

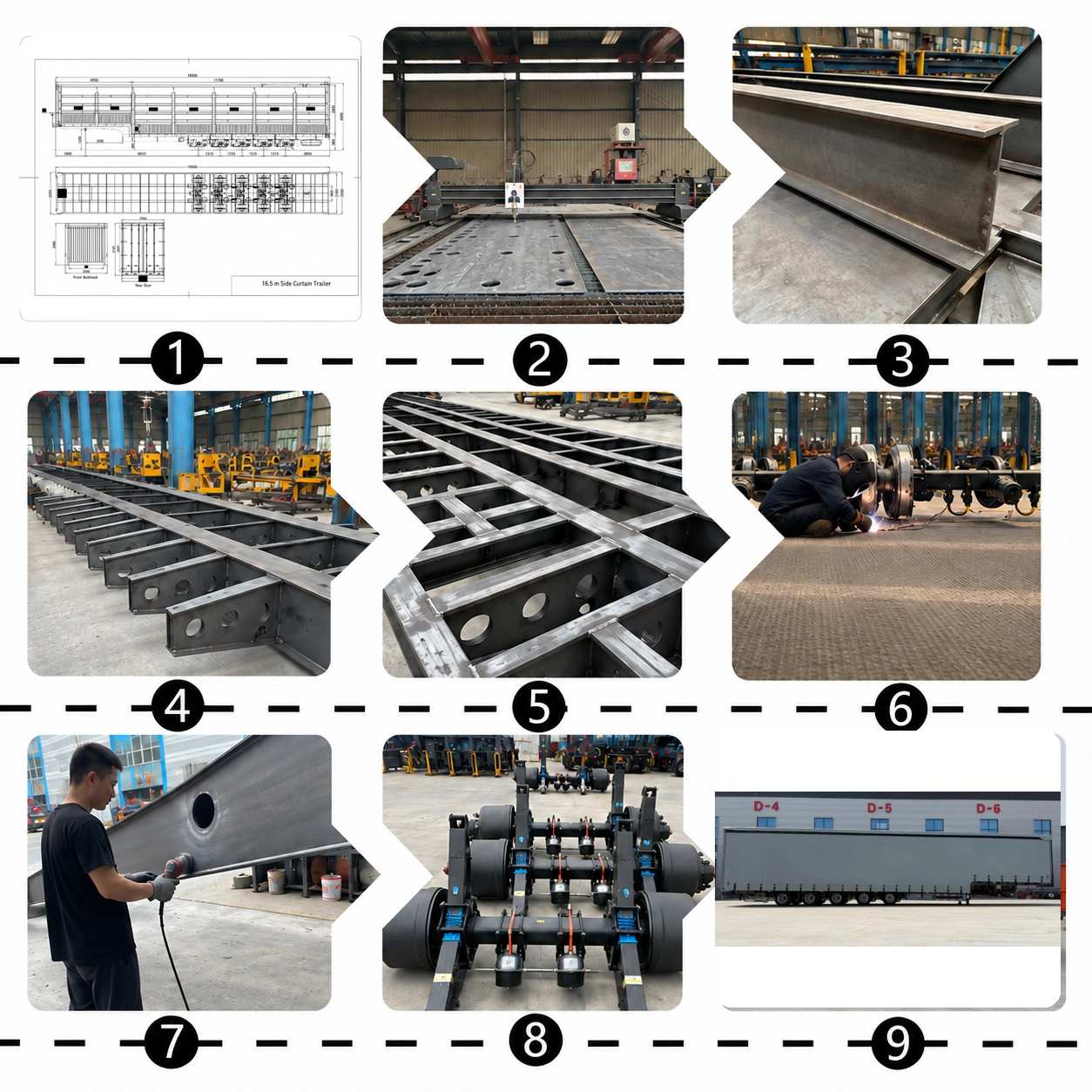

5-Axle Curtain Side Trailer Production Process
The build starts with steel cutting and chassis fabrication. The floor, running gear and curtain body follow, bringing the trailer together in nine main stages.
-
Layout Design
Set out the chassis, five axle positions and curtain body for the 16.5 m trailer.
-
Steel Cutting
Cut the steel plates and sections for the main beams, crossmembers and frame.
-
Main Beam Fabrication
Assemble the cut steel sections into the two main longitudinal beams.
-
Frame Assembly
Position the main beams, crossmembers and side members to form the chassis.
-
Frame Welding
Weld the frame joints to connect the main beams and supporting members.
-
Floor Fabrication
Prepare and fit the floor sections over the supporting frame.
-
Grinding and Surface Preparation
Grind weld areas and remove sharp edges before the surface finish is applied.
-
Axle and Component Installation
Fit the five-axle running gear and install the brake lines and other chassis components.
-
Final Body Assembly
Fit the sideboards, body posts, rear doors and curtains to complete the curtain side semi-trailer.
5-Axle Curtain Side Semi-Trailer Specifications
This 16.5 m trailer has a five-axle chassis, a stepped floor and a curtain body with lower sideboards. Its main dimensions and body details are listed below.
| Parameter | Specification |
|---|---|
| Product type | 5-axle curtain side semi-trailer with sideboards |
| Overall length | 16,500 mm |
| Overall width | 2,550 mm |
| Overall height | 4,000 mm |
| Number of axles | 5 |
| Axle spacing | 1,310 + 1,310 + 1,310 + 1,310 mm |
| Rear overhang | 2,650 mm |
| Floor layout | Raised front section with a lower main loading floor |
| Side body | Side curtains with internal lower sideboards and horizontal rails |
| Rear doors | Double doors |
For a quote, send your cargo type, destination and order quantity.
Finished 5-Axle Curtain Side Semi-Trailer
Take a closer look at the completed trailer before it leaves the factory. This video gives you a view of the assembled vehicle beyond the product photos.
The 16.5 m build combines a five-axle chassis with a side-curtain body, internal sideboards and double rear doors.

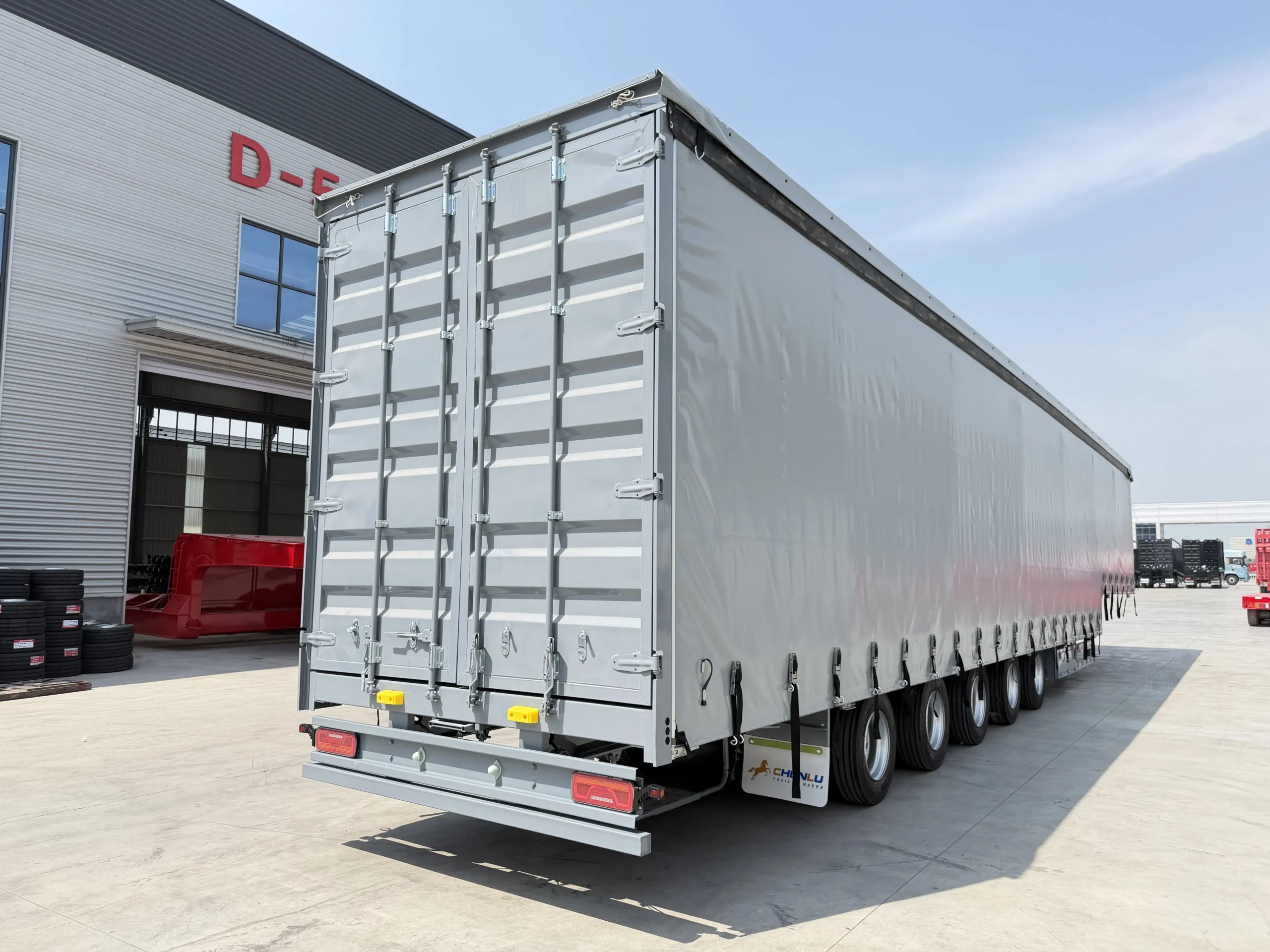

Curtain Body and Rear Doors
Side curtains enclose the cargo area, with double doors at the rear for access from the back.
Five-Axle Chassis
The five-axle group sits beneath the rear section of the 16.5 m trailer.
Sideboards and Interior
Lower sideboards and horizontal rails line the inside of the body, above the stepped loading floor.
5-Axle Curtain Side Trailer Drawing

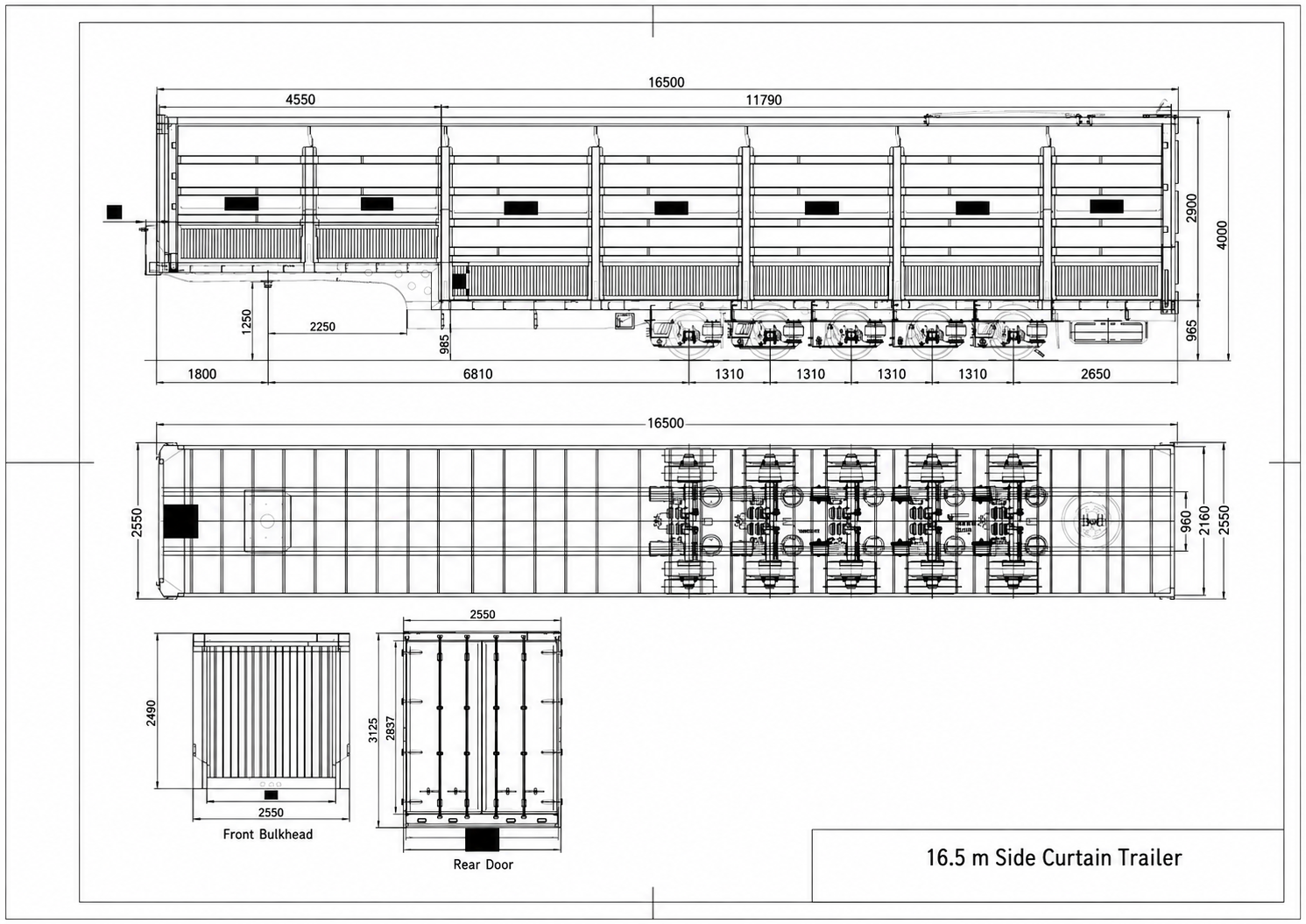

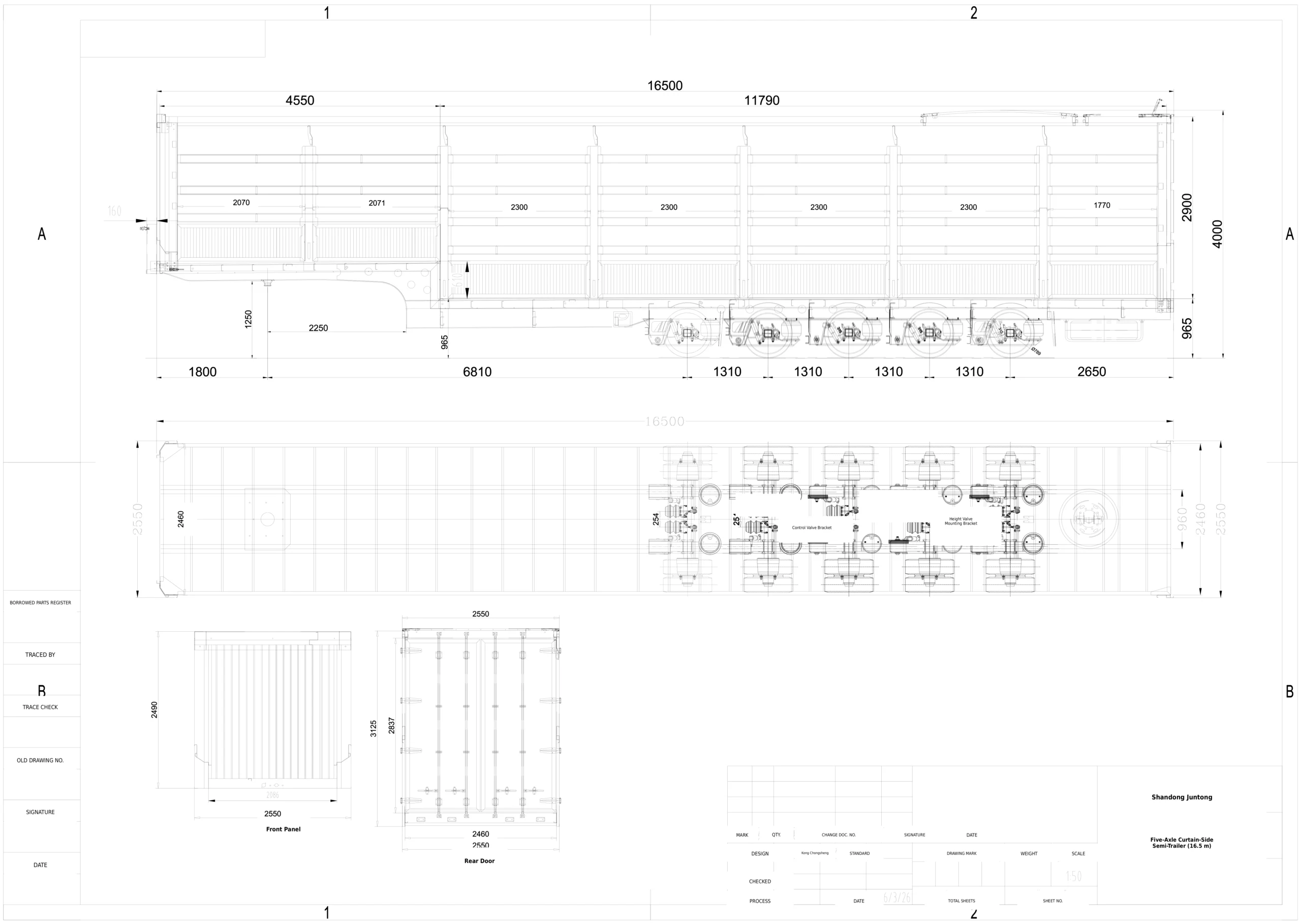

This drawing shows the 16.5 m trailer from the side and above, with separate front and rear views. It sets out the body dimensions, stepped floor and five-axle layout.
