CUSTOM CONTAINER TRANSPORT

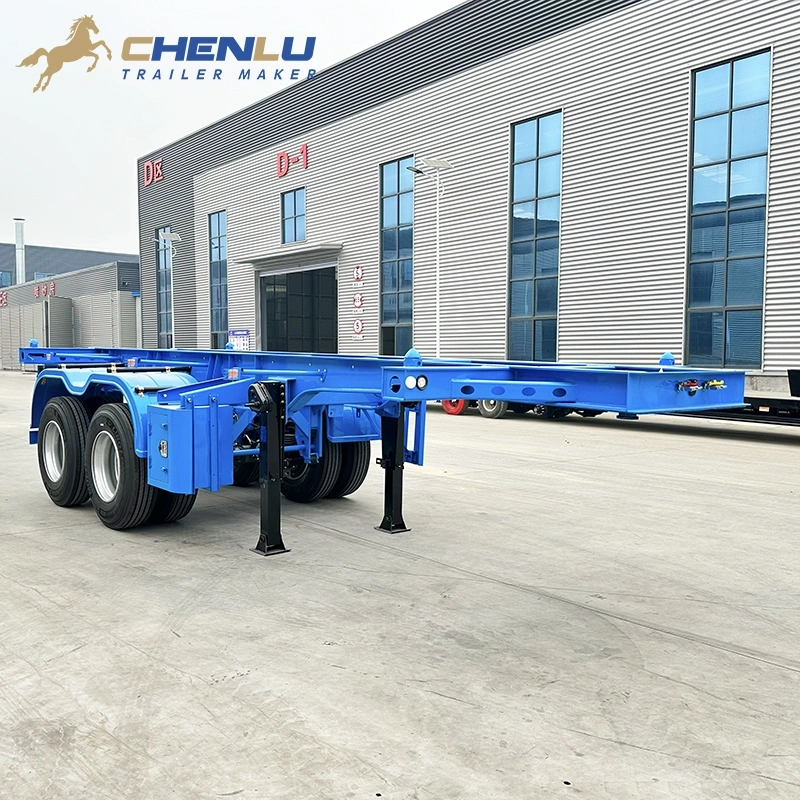

Custom 2 Axle 20ft Skeleton Semi Trailer
Built for one 20ft container, this two-axle skeleton trailer has four corner twist locks, mechanical leaf-spring suspension and landing legs. A side-mounted toolbox keeps tools close at hand.
- 1 × 20ft
- Container
- 2
- Axles
- 4
- Twist locks
Send us the loaded container weight, tractor model and destination country.
FRAME AND RUNNING GEAR
20ft Skeleton Semi Trailer Features
A dedicated layout for one 20ft container, with two rear axles and side access to the landing gear and toolbox.
Four Corner Twist Locks

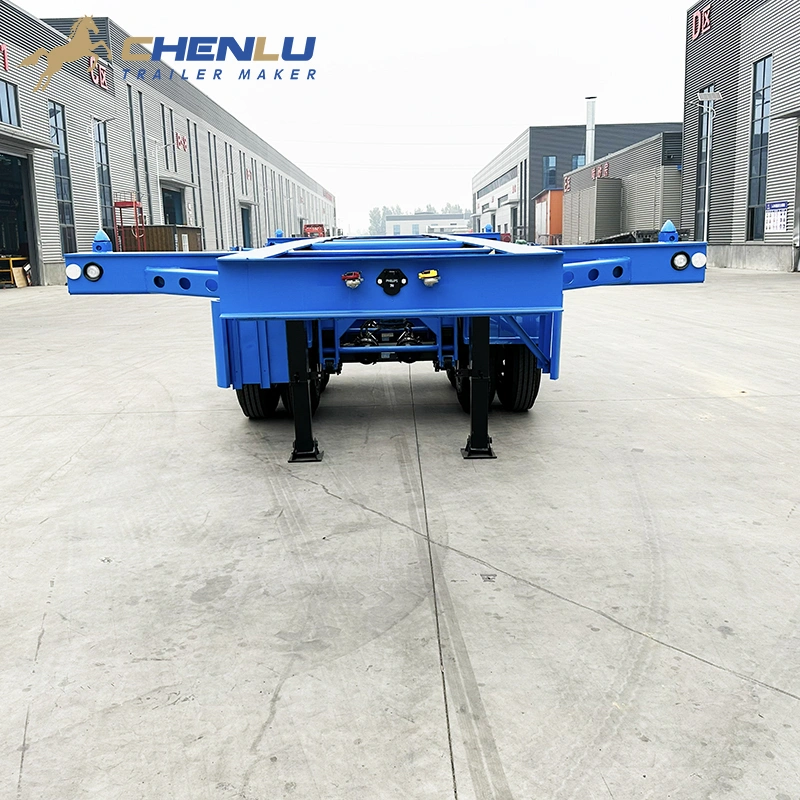

Two locks on the front support beam and two at the rear align with the container's four lower corner castings. The container sits on these supports, above the open frame.

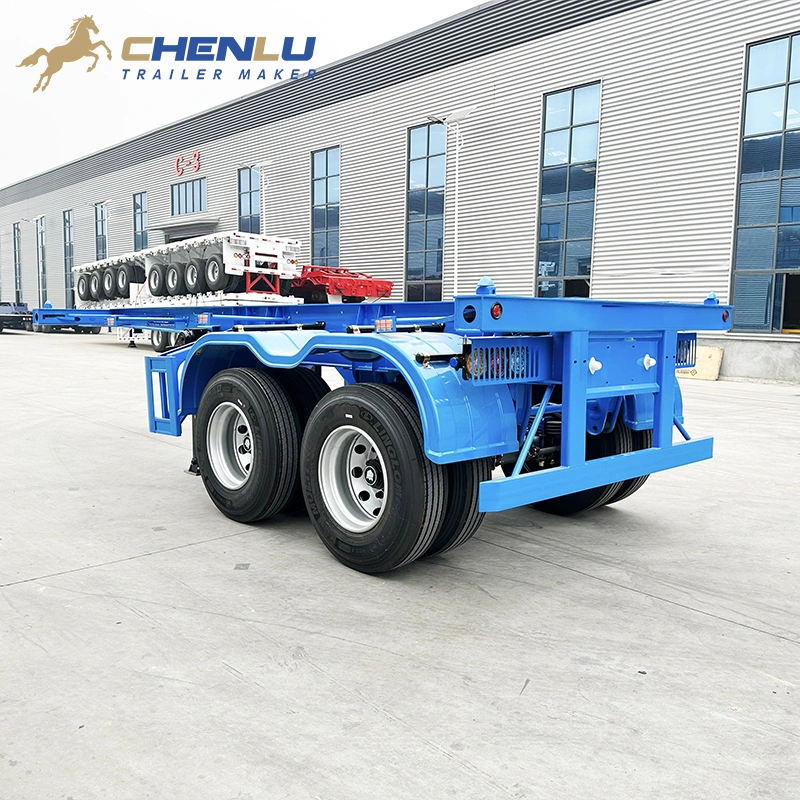

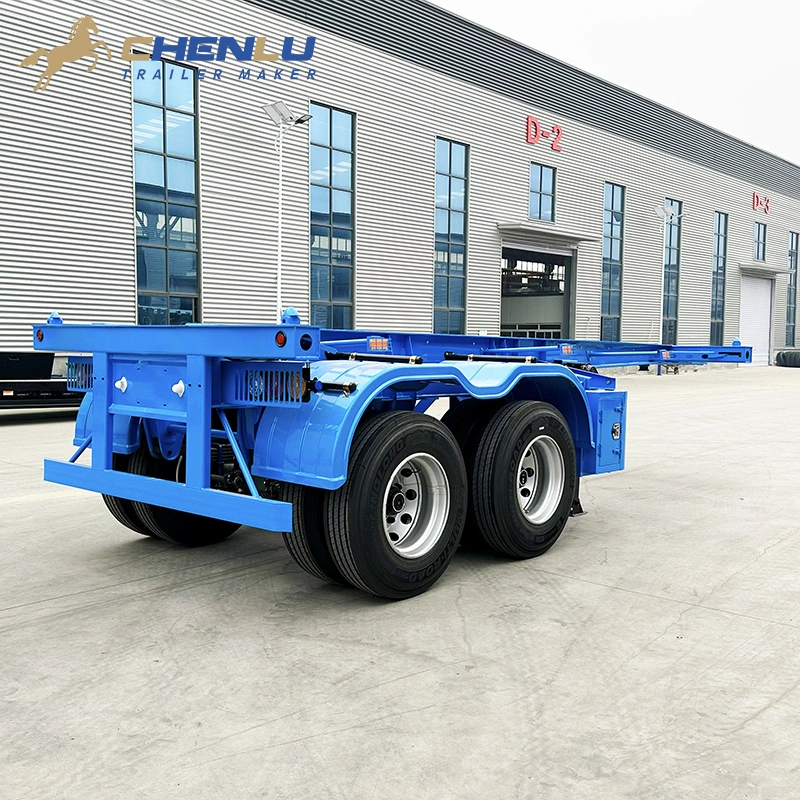

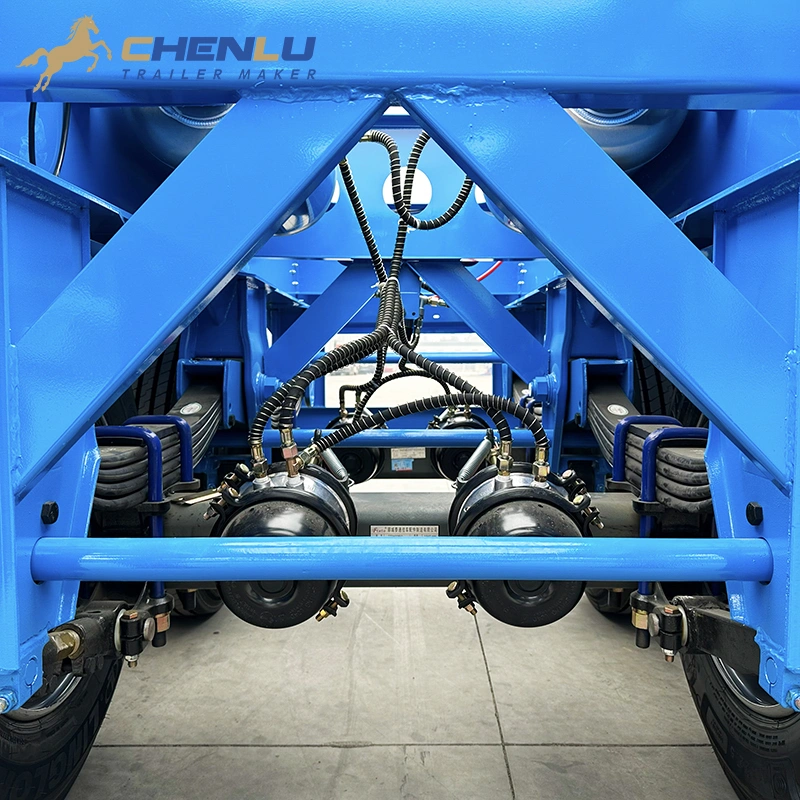

Tandem Axles with Leaf Springs

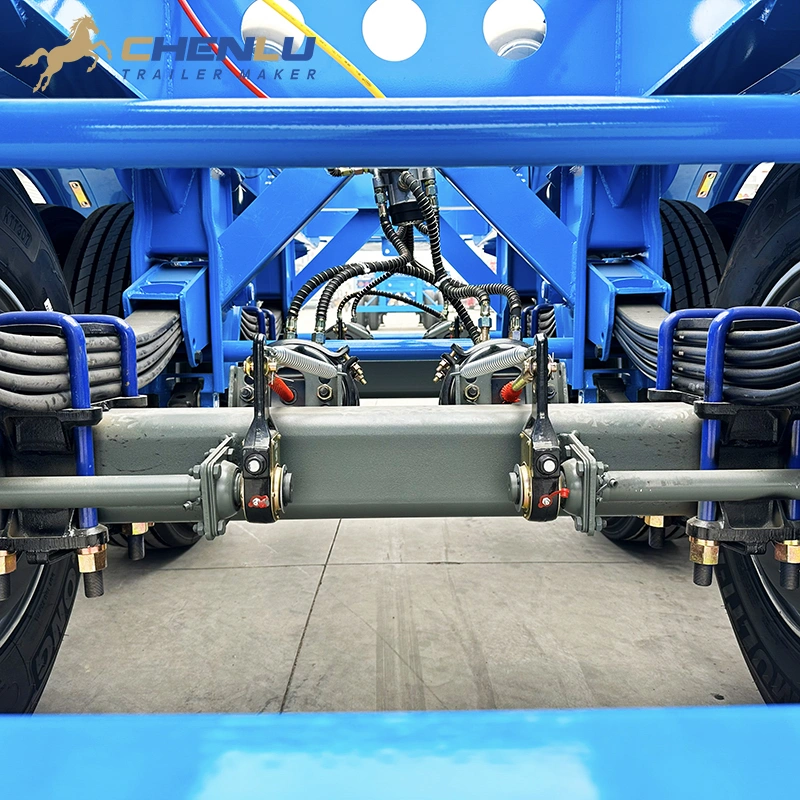

The two rear axles use mechanical leaf-spring suspension and dual wheels. The springs and brake chambers remain visible beneath the open frame.
Side Access to Landing Gear and Toolbox

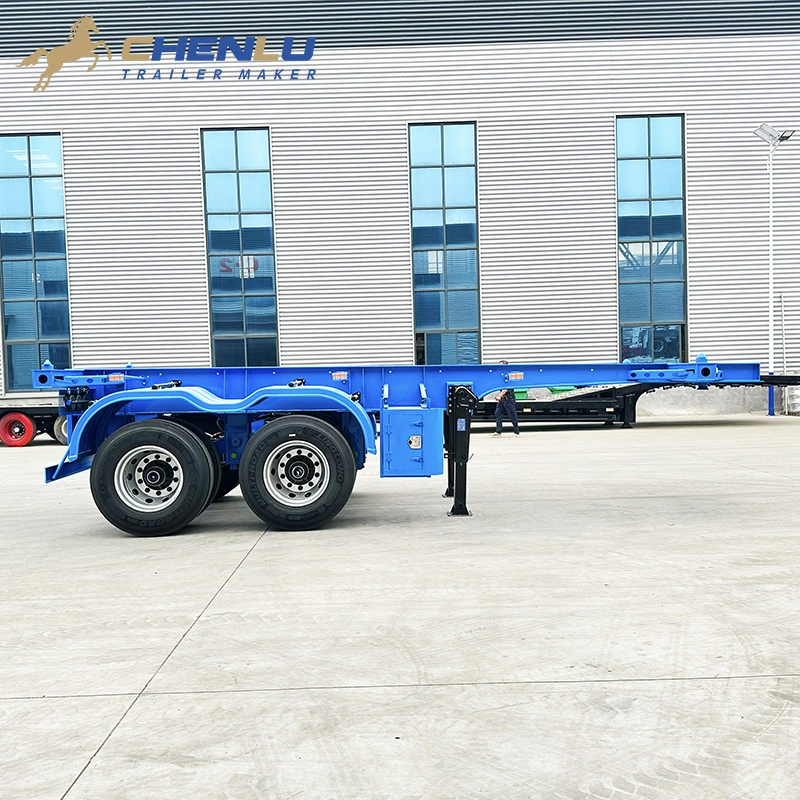

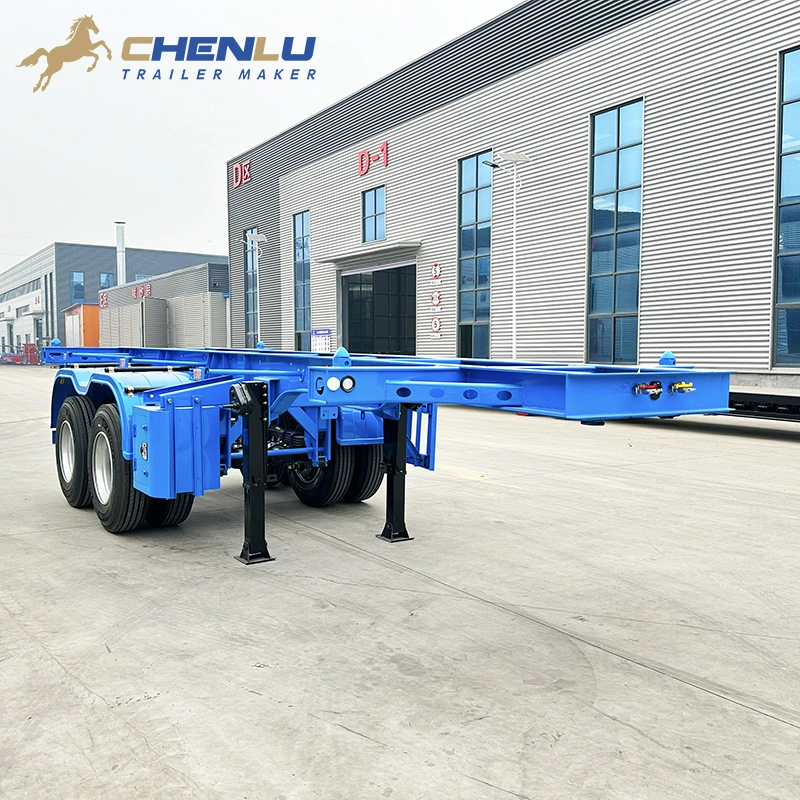

The landing legs sit ahead of the axle group, beside a frame-mounted toolbox. The crank handle and toolbox are accessible from the side.
20FT CONTAINER LAYOUT
Container Position and Lock Spacing

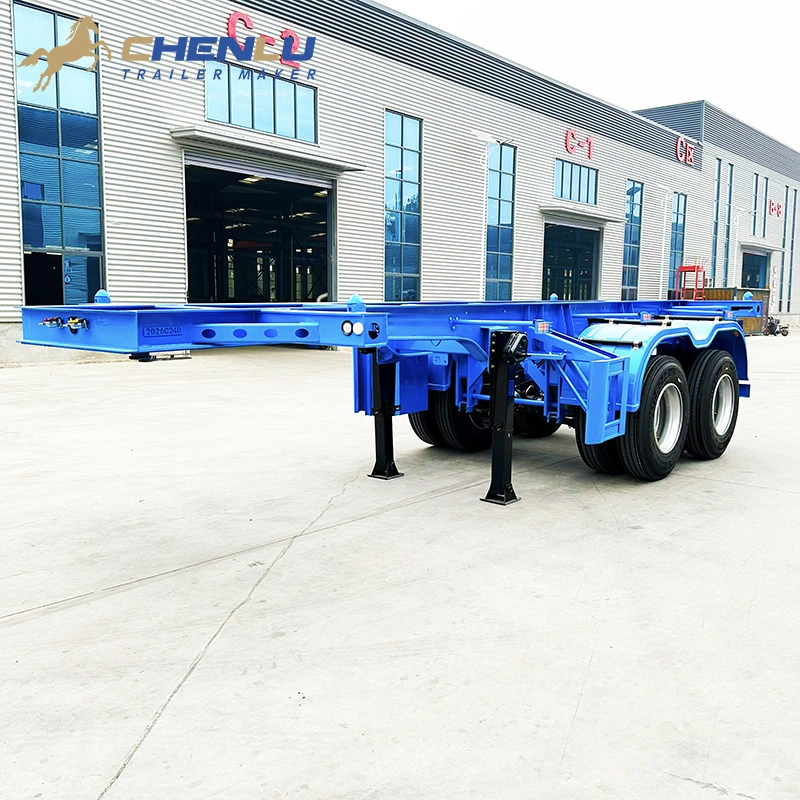

This 2 axle skeleton semi trailer carries one 20ft container on its front and rear support beams. The four twist locks line up with the container's lower corner castings.
Container Fit and Axle Layout
| Container arrangement | One 20ft container |
|---|---|
| Twist-lock positions | 2 front + 2 rear |
| Lock centres, lengthways | 5,853 mm |
| Lock centres, across | 2,260 mm |
| Rear axle spacing | 1,310 mm |
Lock spacing is measured between lock centres. The 20ft designation refers to the container size, not the trailer's overall length.
TECHNICAL SPECIFICATIONS
2 Axle Skeleton Semi Trailer Specifications
Dimensions and fitted equipment for this 20ft skeleton semi trailer.
| Overall width | 2,500 mm |
|---|---|
| Front of frame to kingpin | 500 mm |
| Kingpin to first axle centre | 4,370 mm |
| Last axle centre to rear of frame | 820 mm |
| Suspension | Mechanical leaf springs |
|---|---|
| Brakes | Air brakes |
| Wheel arrangement | Dual tyres at each axle end |
| Landing gear | Two hand-cranked support legs |
| Toolbox | One side-mounted box |
PRODUCT VIDEO

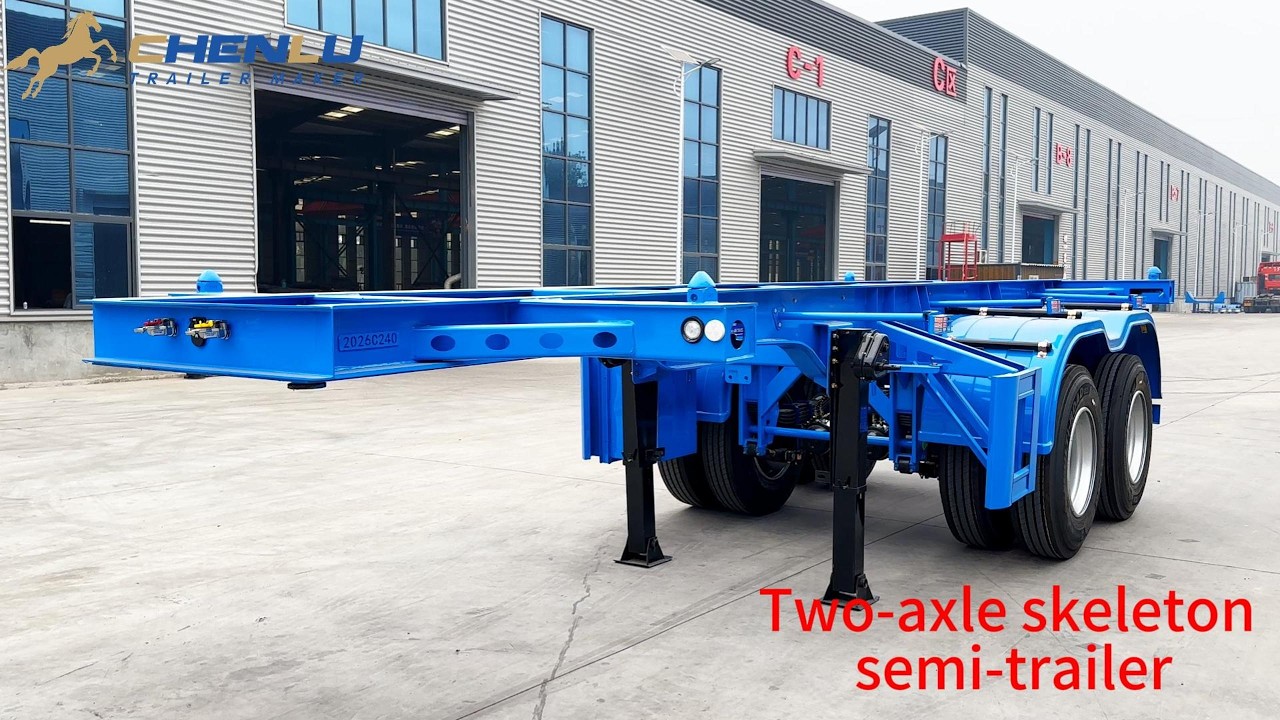

20ft Skeleton Semi Trailer Walkaround
A closer look at the container support beams, leaf-spring suspension, air brake chambers and landing gear on this two-axle trailer.
GENERAL ARRANGEMENT

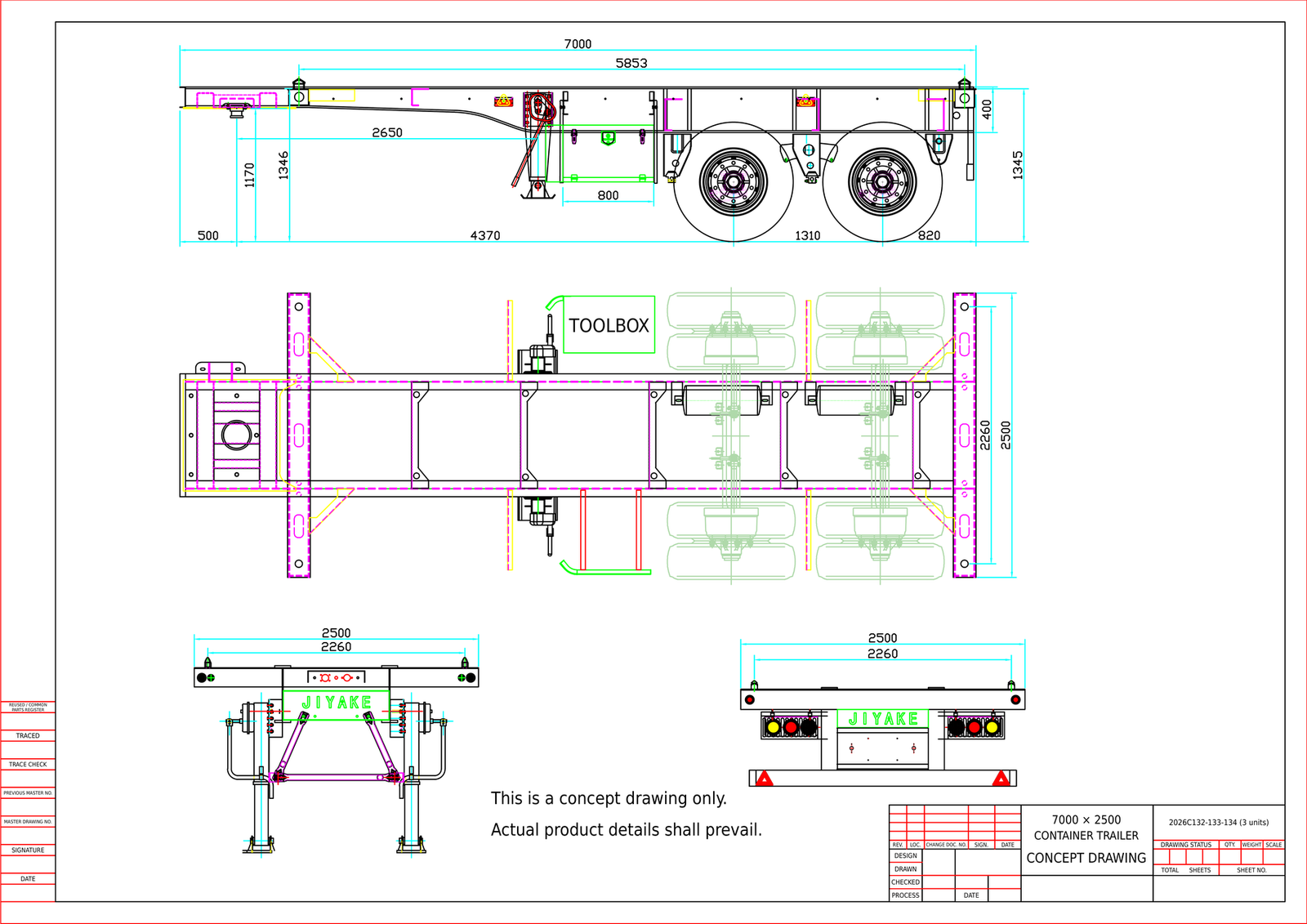

20ft Skeleton Semi Trailer Drawing
Side, top, front and rear views show the container supports, kingpin position and two-axle layout.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
Related Products
Flatbed Semi Trailer
100 Ton 5 Axle Flatbed Semi Trailer with Mechanical Suspension
View Product ↗
Flatbed Semi Trailer
100 Ton 5-Axle Flatbed Semi Trailer for Heavy Cargo Transport
View Product ↗
Flatbed Semi Trailer
12.5 m 3 Axle Flatbed Semi Trailer | CHENLU
View Product ↗
Fence Cargo Trailer
12.5 m 4 Axle Fence Cargo Semi Trailer for Tanzania
View Product ↗
Container Chassis / Skeleton Trailer
12.5m 2 Axle 40ft Skeleton Semi Trailer
View Product ↗
Flatbed Semi Trailer
13.6m 3 Axle Flatbed Semi Trailer with Stakes for Saudi Arabia
View Product ↗COMMON QUESTIONS
20ft Skeleton Semi Trailer FAQ
Answers on container fit, loading and the equipment on this model.
Can this model carry both 20ft and 40ft containers?
No. This model is built for one 20ft container, with four fixed lock positions. For a 40ft container, see our 40ft skeleton semi trailer.
Does 20ft refer to the container or the trailer length?
It refers to the container size. The trailer has its own overall length, which includes the coupling section ahead of the container.
How is the container held in place?
Four twist locks engage the container's lower corner castings. Two are on the front support beam and two are at the rear.
What suspension is fitted to this model?
Mechanical leaf-spring suspension. The spring packs beside the two axles can be seen in the underframe photos and walkaround video.
Can the trailer lift a container onto the ground?
No. It has no onboard container-lifting equipment. A crane, reach stacker or other suitable container handler is needed to move the container on or off the trailer.
What should I send for a quotation?
Send the loaded container's total weight, including the container and cargo, along with the destination country, tractor model and order quantity. Include any required fifth-wheel height or coupling specification.
