Representative OEM configuration shown in the supplied photos and drawing. Confirm final build specifications against the approved quotation and production documents.
3 Axle Stake (Fence) Semi Trailer for General Cargo
This three-axle stake semi-trailer is shown with an 11,985 mm cargo deck, 600 mm side panels and 12R22.5 tires. The open fence structure provides side containment while keeping the cargo area accessible for loading. Confirm the cargo type, dimensions, total weight, tractor interface and destination-country requirements before production.
Before production: This drawing shows a reference configuration. Confirm the final payload, tare weight, panel material, braking system, axle brand and destination-country requirements against the approved quotation and production drawing.
Confirm final axle rating
Confirm usable loading space
Confirm the required wall height
Advantages of three-axle fence semi-trailers

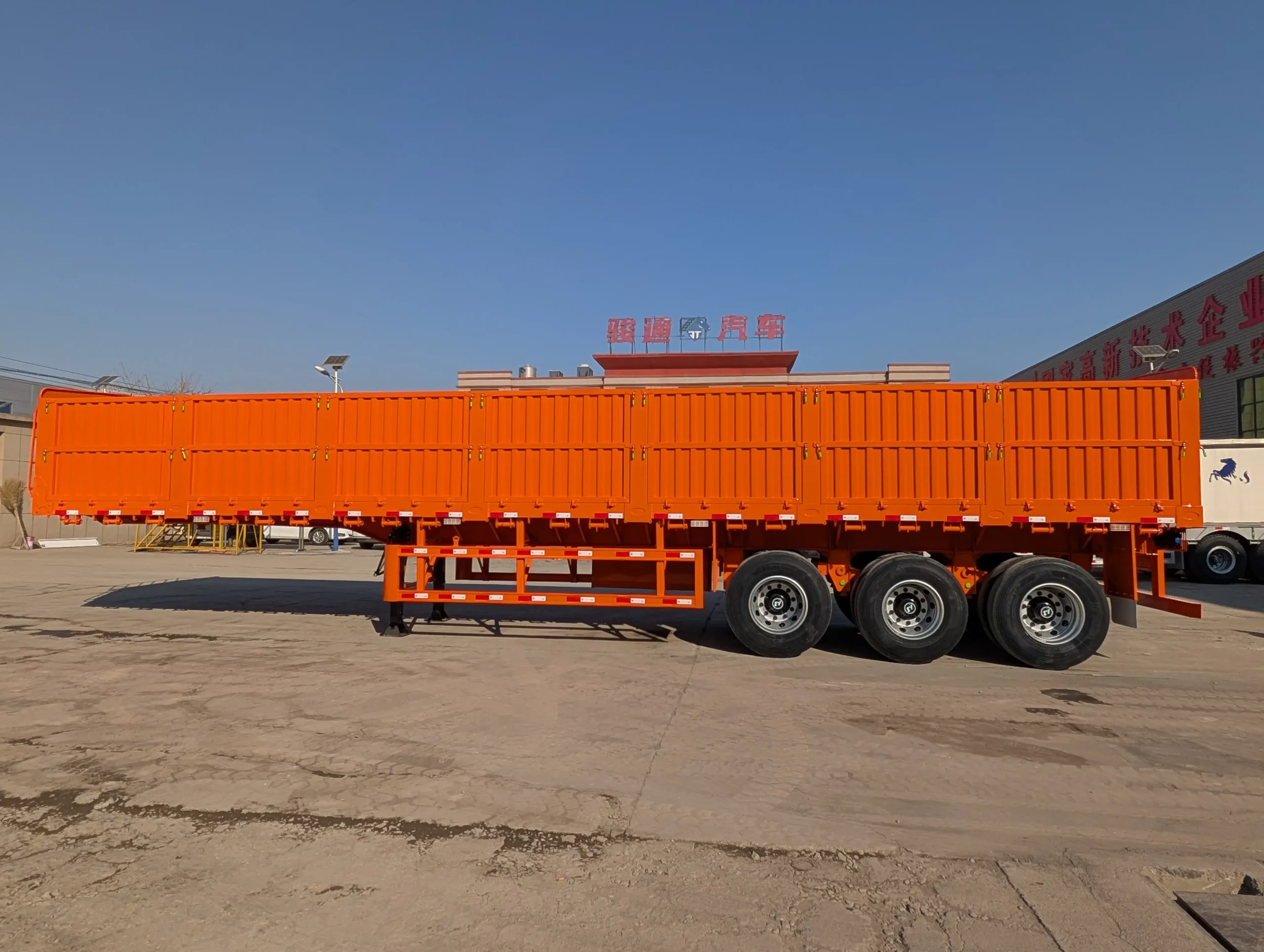

This 3 axle stake semi trailer combines 600 mm side panels with an 11,985 mm cargo deck. For this Africa-oriented configuration, the main body width is 2,500 mm, while an extended side working platform increases the maximum outer width to 2,610 mm. Confirm the permitted width for the destination country and operating route before production.

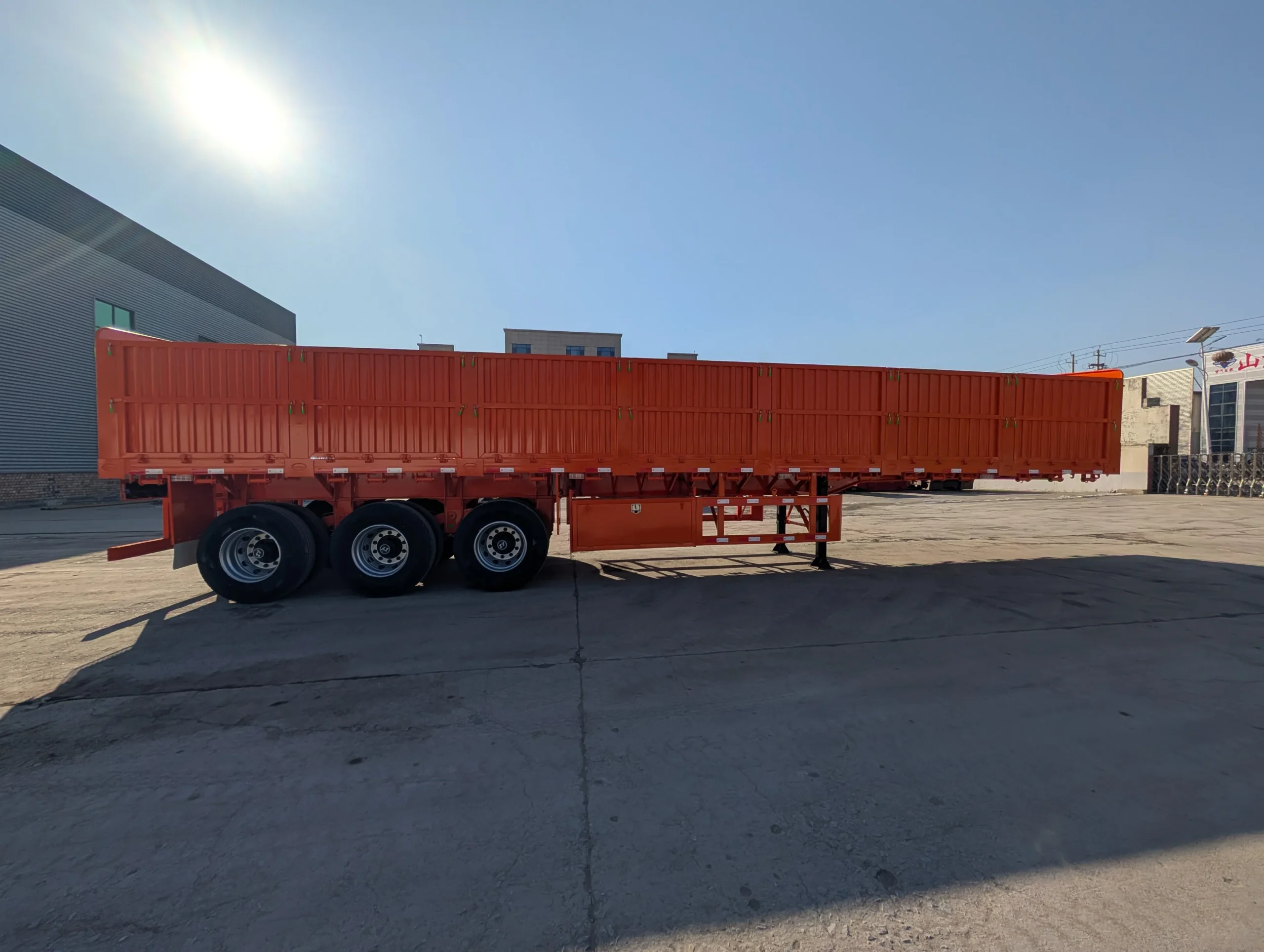

600 mm Stake/Fence Panels
The drawing specifies 600 mm side panels around the cargo deck. Confirm that this height matches the cargo dimensions, containment needs and loading method.
Extended Side Working Platform
The main trailer body is 2,500 mm wide. An extended side working platform increases the maximum outer width to 2,610 mm for this Africa-oriented configuration.

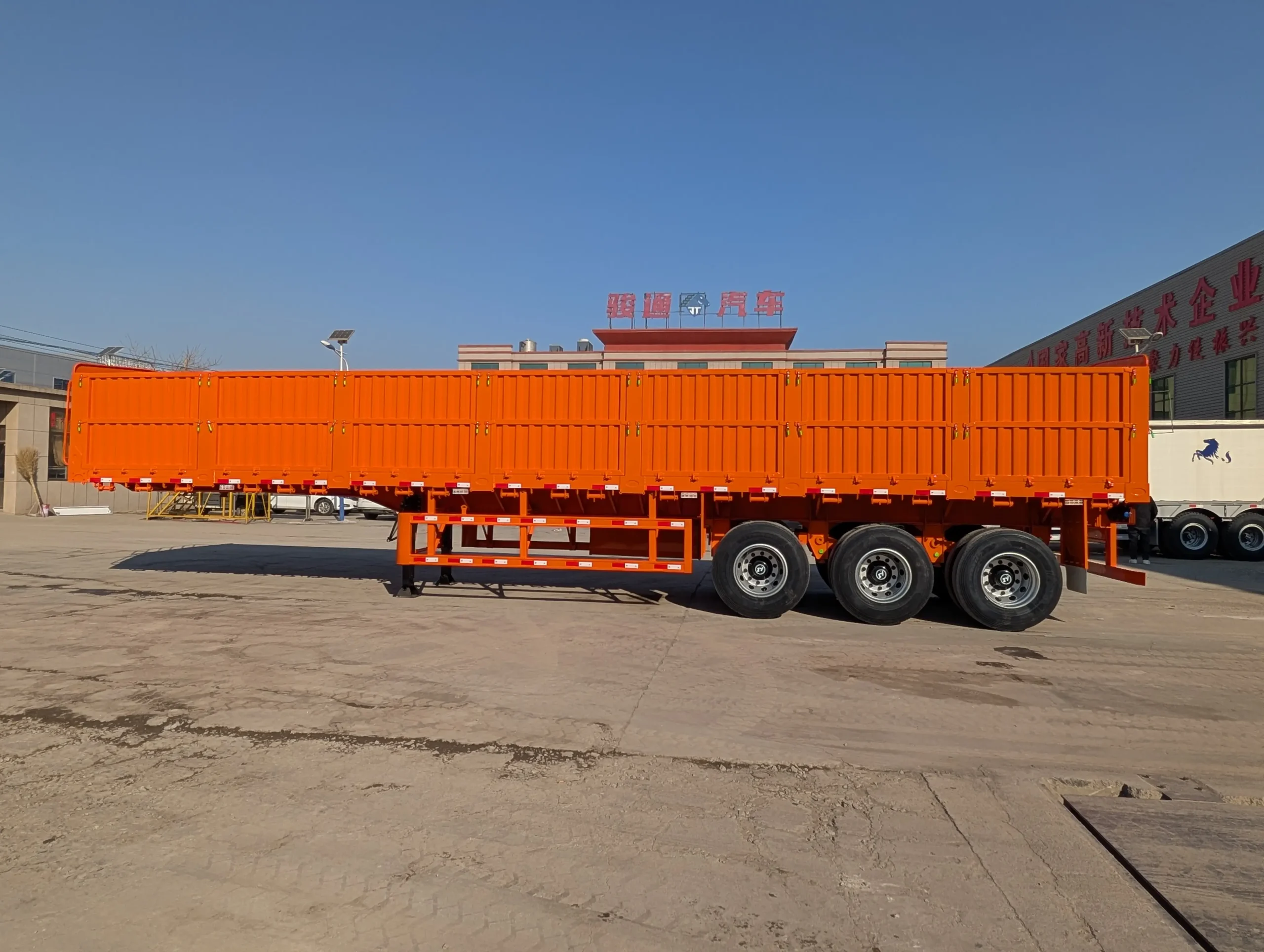

Three-Axle Running Gear

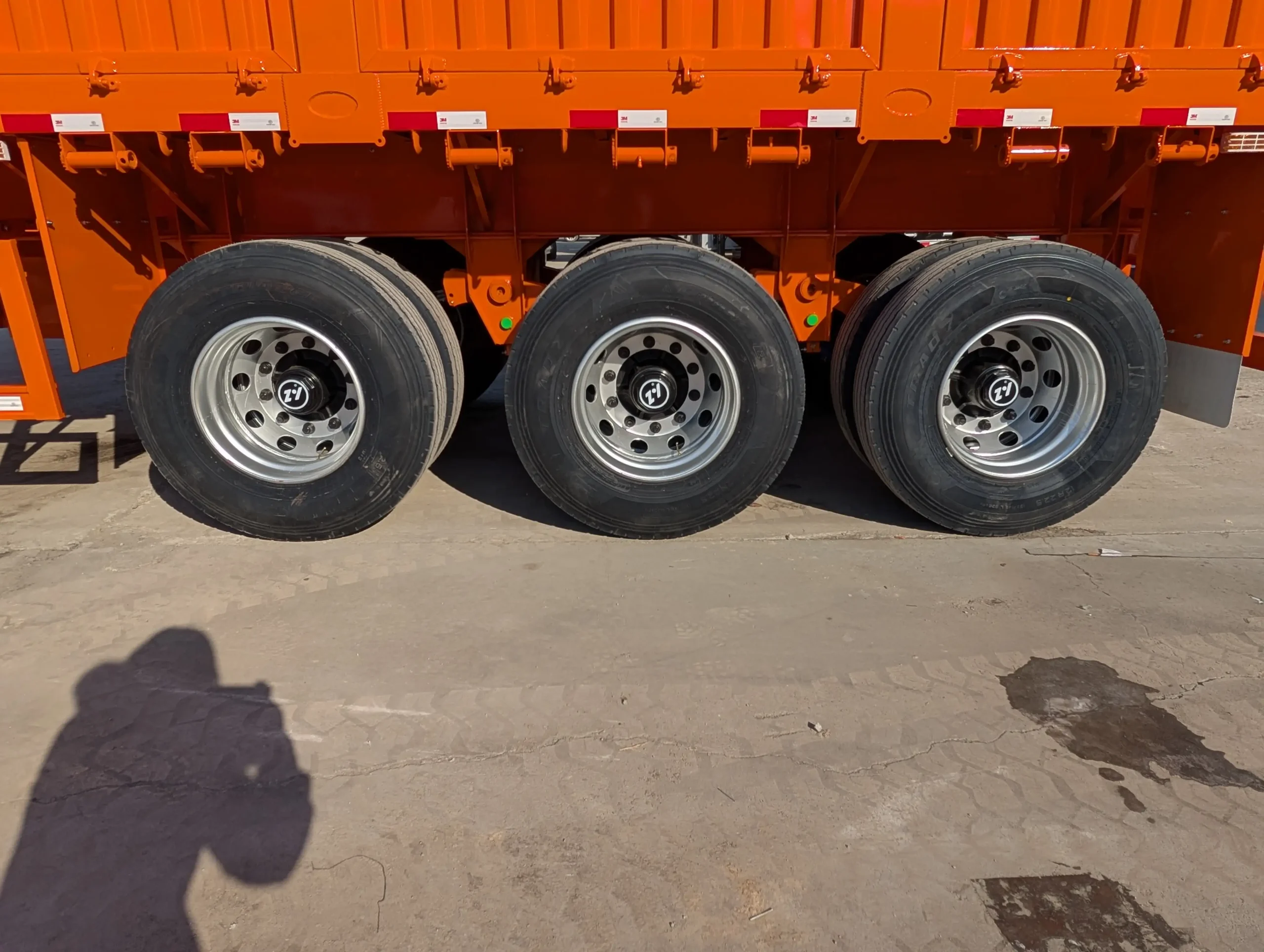

The drawing shows three axles with 1,310 + 1,310 mm spacing and 12R22.5 tires. Confirm axle ratings, suspension, braking equipment and tractor compatibility in the final quotation.
What Must Be Confirmed Before This 3 Axle Fenced Semi-Trailer Is Built?
The supplied drawing provides the reference dimensions. Cargo, loading method, tractor interface and destination-country rules determine the final production specification.
This Africa-oriented reference build uses a 2,500 mm main body and an extended side working platform that increases the maximum outer width to 2,610 mm. Confirm the permitted width for the destination country and operating route before production.
Configuration Details to Confirm
Use these inputs to convert the reference drawing into an approved production specification.
| Review Item | What to Confirm | Required Input |
|---|---|---|
| Cargo profile | Confirm the cargo type, dimensions, total weight and load distribution before selecting the final body and running gear. | Cargo data from the buyer. |
| Loading method and site | Define whether loading is from the top, side or rear and identify the equipment, yard surface and maneuvering space available. | Loading method and site information. |
| Fence body and panel access | Use 600 mm as the drawing reference. Confirm the required panel height, opening sections, hinges, locks and removable parts. | Cargo needs and approved body drawing. |
| Extended working platform | Confirm whether the 2,610 mm maximum working width is permitted on the destination-country roads and intended transport route. | Destination and route width limits. |
| Axles, suspension and tires | The drawing shows three axles and 12R22.5 tires. Confirm axle ratings, suspension capacity, tire load index and wheel details. | Approved running-gear schedule. |
| Brakes, lighting and protection | Define the brake equipment, lighting, reflective marking, side protection and rear protection required for the destination. | Destination-country requirements. |
| Tractor interface | Check the tractor model, coupling arrangement and fifth-wheel height against the trailer interface before drawing approval. | Tractor specification. |
| Order and delivery plan | Confirm quantity, destination port, required documents, spare parts, target delivery date and preferred Incoterm. | Quotation request or purchase order. |
3 Axle Fenced Semi-Trailer Dimensions
The values below come from the supplied general arrangement drawing. Final order details are confirmed in the quotation and production drawing.
| Specification | Drawing Reference |
|---|---|
| Product type | 3-axle stake (fence) semi-trailer |
| Overall length | 12,500 mm |
| Cargo deck length | 11,985 mm |
| Main body width | 2,500 mm |
| Maximum width with working platform | 2,610 mm |
| Overall height | 2,600 mm |
| Side-panel height | 600 mm |
| Fifth-wheel height | 1,300 mm |
| Kingpin to first axle | 6,380 mm |
| Axle spacing | 1,310 + 1,310 mm |
| Rear overhang | 2,300 mm |
| Axle count | 3 axles |
| Tire specification | 12R22.5 |
How Is This 3 Axle Fenced Semi-Trailer Configured?
This video shows the cargo body, 600 mm side panels, extended working platform and three-axle running gear of the reference trailer. Review the visible layout before confirming the cargo, route and final equipment.
Walkaround video of the three-axle stake (fence) semi-trailer shown on this page. Final payload, axle ratings, braking system and destination-market equipment follow the approved quotation.
Review the Cargo Body
Check the 11,985 mm cargo deck, front wall and 600 mm stake/fence side panels.
Check the Panel Layout
Review the segmented side panels, external latches and visible hinge points. Confirm which sections open or can be removed.
View the Working Platform
This Africa-oriented build uses a 2,500 mm main body with an extended working platform that increases the maximum outer width to 2,610 mm.

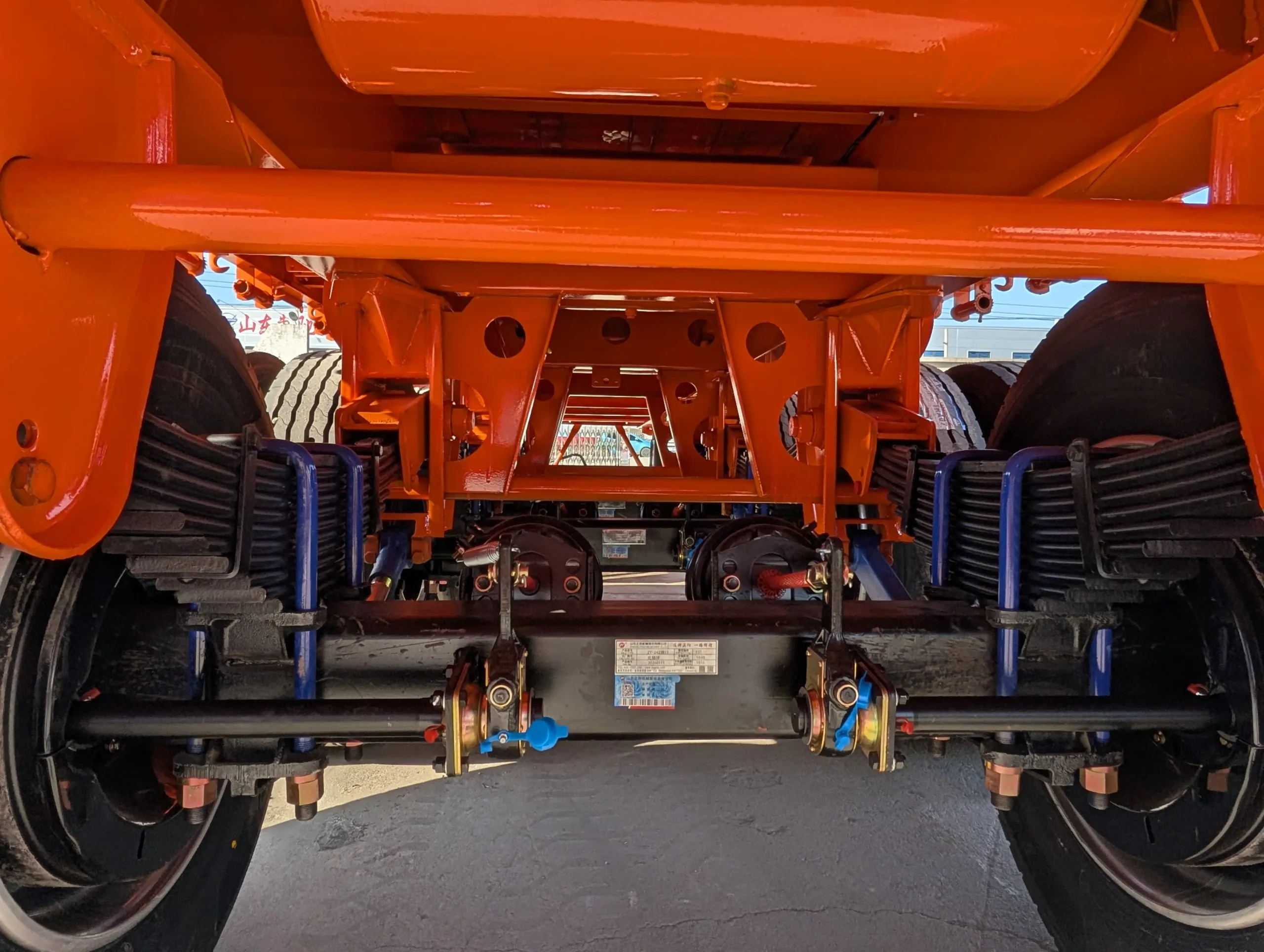

Inspect the Running Gear
The reference drawing shows three axles with 1,310 + 1,310 mm spacing and 12R22.5 tires.
Confirm the Final Build
Send the cargo dimensions, total weight, loading method, tractor details and destination country before production.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FAQ
Answers to common questions about the 3 axle fence cargo semi trailer, cargo-body configuration, side-panel planning and Africa export requirements.
What is a 3 axle fence cargo semi trailer?

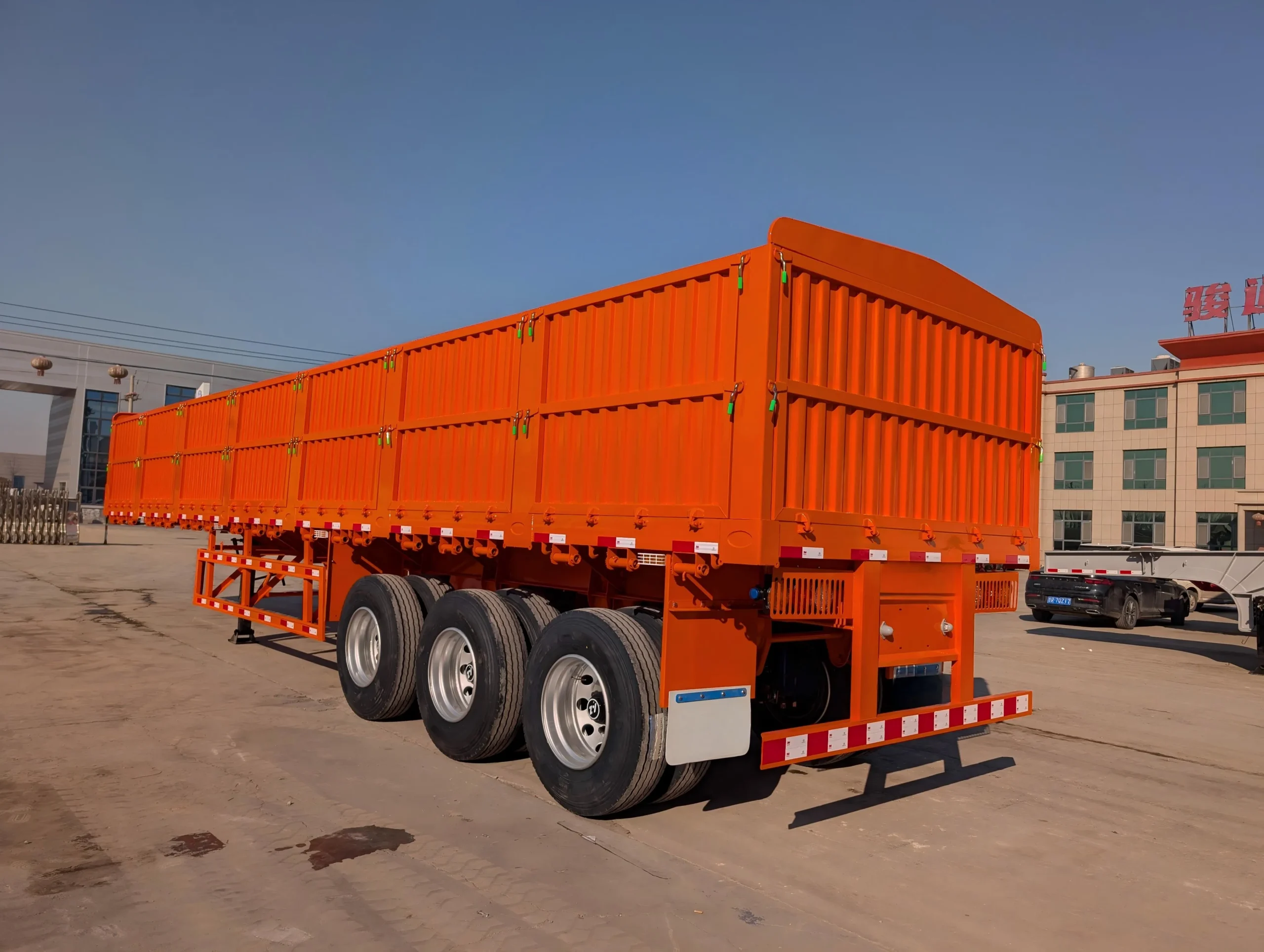

It is a three-axle cargo semi trailer with a high-side fence body. The photographed Africa-bound configuration uses corrugated steel side panels arranged in multiple upper and lower sections for cargo containment and access planning.
What cargo is this fence semi trailer suitable for?
Suitability depends on the actual cargo type, dimensions, density, total trip weight, securing requirements and loading method. Send the cargo information before selecting the body dimensions and running gear.
How should the side-wall height be selected?
Side-wall height should follow the required cargo containment envelope, loading access, center-of-gravity considerations and permitted overall trailer height. No fixed wall height should be assumed without the final drawing.
Can the side panels open or be removed?
Factory photos show segmented corrugated panels, external latches and hinged connections. However, the exact opening, locking and removal arrangement must be confirmed in the production specification before ordering.
What loading methods can be considered?
The configuration can be reviewed around top, side or rear loading, including loading by forklift, crane, conveyor or other equipment. The required loading route determines which panel functions need to be specified.
What payload can the three-axle trailer carry?
A fixed payload or GVW has not been approved for this page. The final rating must be confirmed from the frame, axle, suspension, brake, tire, cargo-distribution and destination requirements in the approved order documents.
What information is needed for an Africa cargo trailer quote?
Send the destination country, cargo description, dimensions, density and trip weight, loading method, required side-wall height, panel access needs, tractor and fifth-wheel height, road or site conditions, axle and brake requirements, trailer quantity, delivery date, Incoterm and destination port.
