3 Axle Flatbed Semi Trailer with Stakes
This three-axle stake flatbed semi-trailer combines an open loading platform
with upright side stakes for cargo such as bundled pipe, timber and long
structural sections. The stake layout provides a defined lateral boundary
while retaining overhead and selected side-loading access.
Stake height, spacing, socket design and structural function are configured
around the cargo cross-section, support points and approved restraint plan.
Before quotation:
Send the cargo length, cross-section, unit weight, total transport weight,
support footprint, loading equipment and required side access. Confirm
whether the stakes should be fixed, removable or arranged in selected
positions.
The stakes must not be treated as the complete cargo-restraint system unless
their rated function is documented in the approved design.
Final axle and suspension ratings follow the approved specification
Review crane clearance and cargo lifting points
Configure stake height, spacing and socket positions
Open Loading Access with Cargo-Specific Stake Positions
A 3 axle flatbed trailer with stakes should be configured around the cargo shape, bundle length, support points and loading sequence. The drawing is used to coordinate the stake positions, deck support zones, loading openings and three-axle layout before production.
Open Access for Crane and Side Loading
The open top keeps the lifting path clear for suitable crane loading. Side access can be retained between selected stake positions, allowing the loading sequence to be planned around the cargo length and lifting equipment.
Container locks
Stake spacing should follow the cargo cross-section, bundle length, dunnage positions and required loading openings. The drawing should identify the stake height, socket position and whether each section is fixed, removable or left open.
Three-Axle Layout Based on Load Position
The three-axle group must be reviewed together with the cargo centre of gravity, kingpin reaction and concentrated deck loads. Final axle ratings, suspension, tyres and braking equipment should follow the approved load calculation and technical specification.
How Is Cargo Loaded and Secured on a Stake Flatbed?
A stake flatbed combines an open platform with upright side posts. The deck supports the cargo, while the stakes, cargo supports and tie-downs each have a separate job.
For long or bundled cargo, the layout needs room for loading equipment, supports beneath the load and access to the tie-down points.
| TRAILER FEATURE | HOW IT WORKS | WHEN LOADING |
|---|---|---|
| 01Deck Space | The flat platform provides room to arrange long items and bundles along the trailer. | Cargo length and the position of each bundle determine how the deck space is used. |
| 02Loading Access | The open top allows crane loading. Side loading depends on the gaps between the stakes. | Forklift access and space for lifting slings need to remain clear around the load. |
| 03Side Stakes | Upright stakes provide side support for cargo arranged between them. | Stake height and spacing need to suit the bundle size and how the load is stacked. |
| 04Cargo Securing | Straps, chains and suitable blocking hold the cargo in position during transport. | Stakes are part of the body layout; they do not replace the load's tie-downs. |
| 05Three-Axle Chassis | The rear of the deck is supported by three axles; the front connects to the tractor through the kingpin. | Cargo position affects the weight carried by the tractor and the trailer axles. |
Open Deck and Three-Axle Chassis

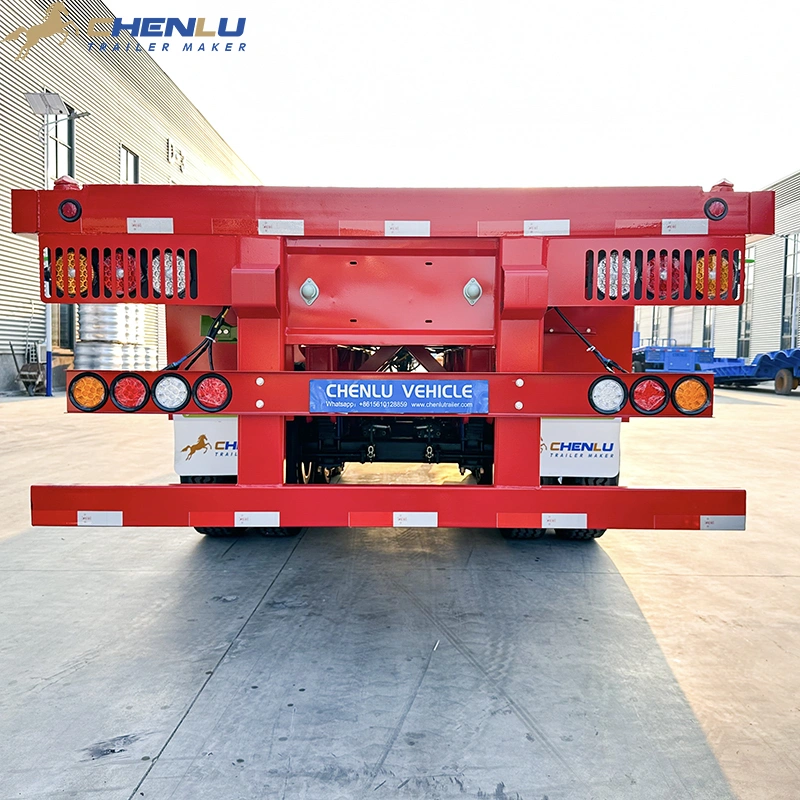

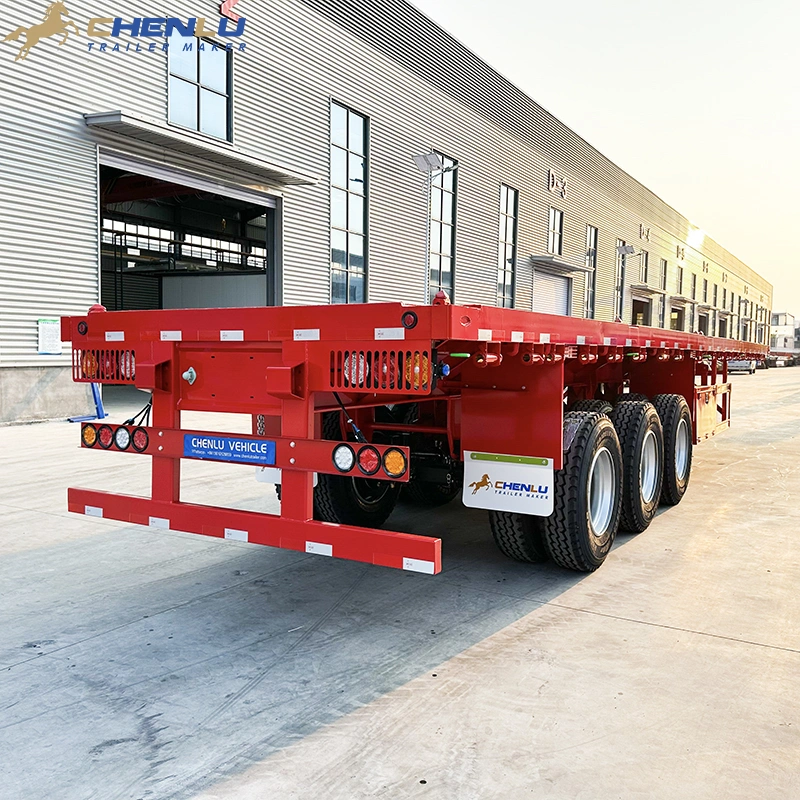

This rear view shows the flat platform, three rear axles, side guards and rear lights. The underdeck structure remains visible along the sides.
12.5m 3 Axle Flatbed Semi Trailer Specifications
CHENLU provides the key dimensions for one 12.5 m three-axle flatbed configuration. The table below gives buyers a clear reference for cargo fit, platform size and axle position before the final order specification is prepared.
| Specification | Drawing No. 3-140-141 Reference |
|---|---|
| Platform and Overall Dimensions | |
| Product configuration | 12.5 m three-axle flatbed semi-trailer |
| Drawing number | 3-140-141 |
| Overall length | 12,500 mm |
| Platform-length reference | 11,985 mm |
| Overall width | 2,500 mm |
| Platform/headboard width reference | 2,490 mm |
| Front headboard | Shown on this reference drawing |
| Front headboard height | 1,130 mm |
| Front overall-height reference | 2,700 mm |
| Front deck-height reference | 1,300 mm |
| Rear height reference | 1,570 mm |
| Three-Axle Running-Gear Layout | |
| Axle arrangement | Three axles positioned beneath the rear section of the platform |
| Adjacent axle spacing | 1,310 + 1,310 mm, centre to centre |
| Front datum to first axle | 6,380 mm |
| Rear overhang reference | 2,300 mm from the third axle centre to the rear datum |
| Tyre notation | 11R22.5 |
| Landing support | Dual landing legs located ahead of the axle group |
| Underdeck equipment area | Side equipment positions are shown between the landing gear and axle group |
Configuration Items Defined for the Cargo and Route
The general-arrangement drawing establishes the trailer geometry. The following items must be selected for the actual cargo, tractor, operating conditions and destination market.
Payload, GVW and Tare Weight
Calculate the rated values from the cargo, load map, complete trailer structure and permitted operating limits.
Deck and Frame Construction
Define the deck plate, main beams, crossmember spacing, support zones and any reinforcement required for concentrated loads.
Axles and Suspension
Specify the axle make, individual rating, suspension system and complete three-axle group arrangement.
Braking and Electrical System
Define the brake layout, air connections, lighting, electrical interface and required ABS or EBS scope.
Kingpin and Tractor Interface
Match the kingpin position, fifth-wheel height, turning clearance and service connections to the selected tractor.
Tyres and Wheels
Confirm the final tyre brand, load index, speed rating, wheel specification and quantity for the approved running gear.
Cargo-Restraint Equipment
Define rated tie-down points, restraint directions, dunnage and cargo-specific securing equipment from the approved load plan.
Destination-Market Equipment
Specify guards, lighting, markings, accessories and documents for the intended country and operating route.
Configure the 3 Axle Flatbed Around Your Cargo
Send the cargo dimensions, unit and total weight, support points, loading method, tractor model and destination route for a complete flatbed trailer specification.
12.5m 3 Axle Flatbed Semi Trailer Walkaround
CHENLU factory walkaround presents a completed 12.5m three-axle flatbed semi-trailer. It allows buyers to review the open platform, chassis proportions, three-axle running gear, landing gear, underdeck equipment and rear arrangement before discussing a similar configuration.
Exterior walkaround of a completed 12.5m three-axle flatbed semi-trailer. The video shows the finished appearance and visible equipment arrangement; it does not establish payload or final component ratings.
Platform and Chassis Proportions
Review the completed platform, chassis depth and available deck area against the intended cargo footprint. Final deck construction and support zones depend on the approved load plan.
Open-Deck Loading Access
The open sides provide access for suitable crane, forklift or overhead loading methods. Loading direction, equipment clearance and cargo support positions should be defined before ordering.
Three-Axle Running Gear

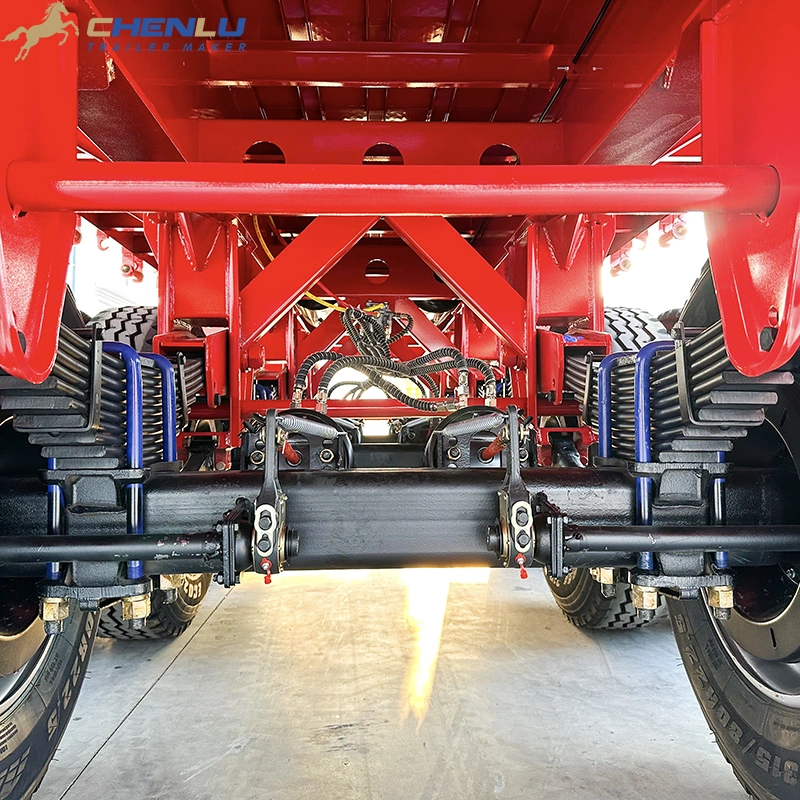

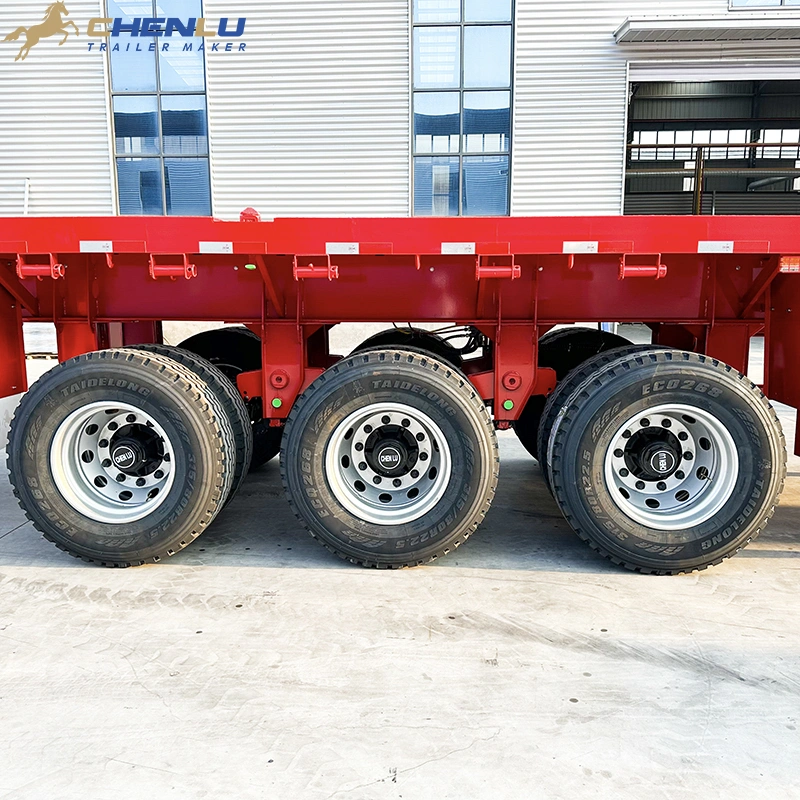

The walkaround shows the position of the three-axle group, wheels and visible undercarriage components. Axle ratings, suspension, brakes and tyre specifications must follow the approved technical schedule.
Landing Gear and Side Equipment

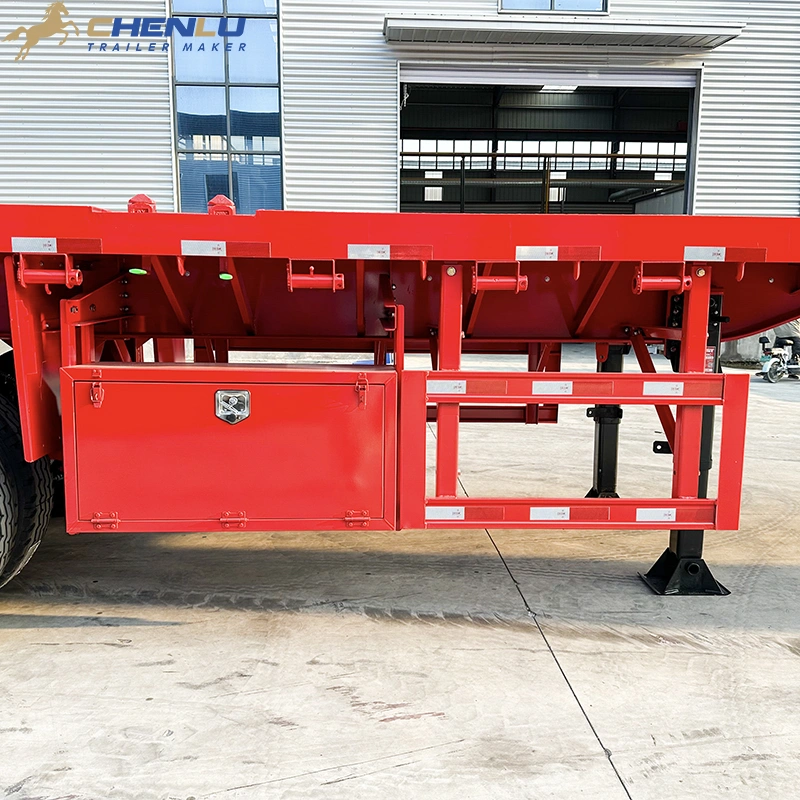

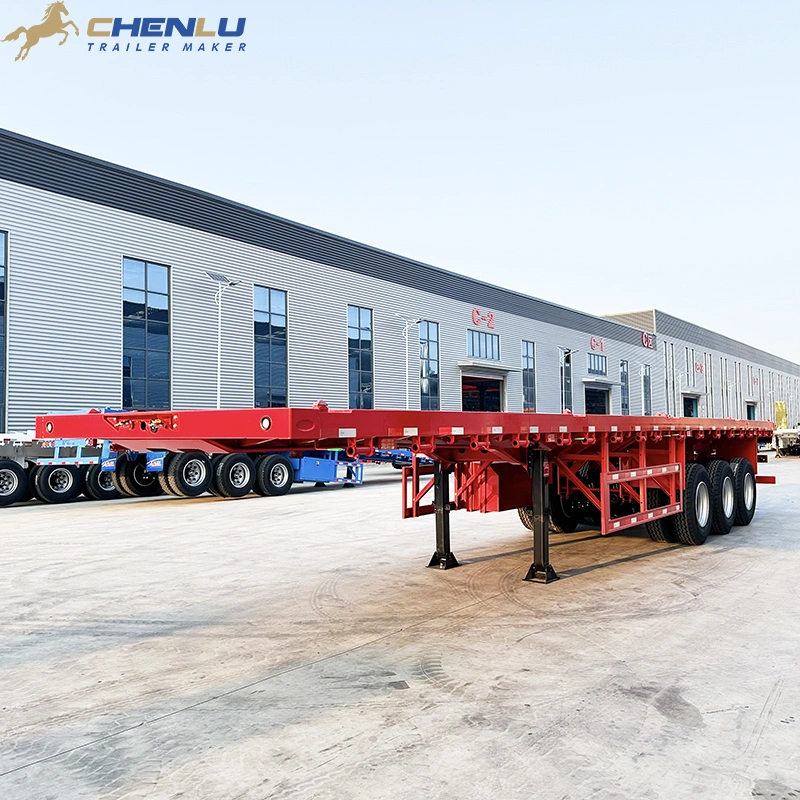

Review the location of the landing gear, side protection and underdeck equipment areas. Component size and position can be adjusted to suit service access and the final trailer configuration.
Rear Equipment and Finish
Rear views allow buyers to check the frame arrangement, underrun protection, lamps and reflective markings. Final lighting and protection requirements depend on the destination market.
Drawing12.5m 3 Axle Flatbed Semi Trailer
This general-arrangement drawing presents the side, top, front and rear views of one 12.5m three-axle flatbed configuration. It provides reference dimensions for the platform, front structure, axle positions and underdeck layout.
