CHENLU 80 ton 4 axle fence semi trailer shown with a 2,000 mm high segmented body, full-height rear doors and four-axle running gear. Final equipment is produced to the approved order specification.
80 Ton 4 Axle Fence Semi Trailer

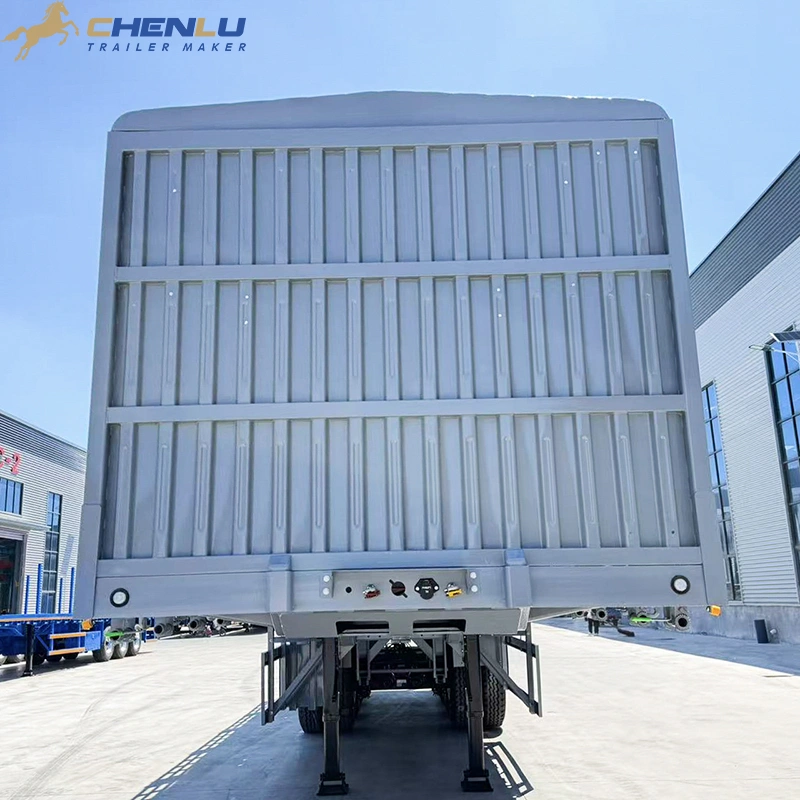

This 80 ton 4 axle fence semi trailer is designed for heavy cargo that requires a high side enclosure. The supplied drawing specifies a 2,000 mm fence body, 2,600 mm overall width and four axles spaced at 1,310 mm. The segmented side panels and full-height rear doors provide access for loading while keeping the cargo area enclosed.
Order specification: The 80-ton rating is based on the required order configuration. Final payload, axle ratings, tyre selection and overall dimensions must match the cargo, tractor and permitted limits on the operating route.
Built around the stated cargo requirement
Dimension shown on the supplied drawing
1,310 mm spacing between adjacent axles
How Are the Axles and Fence Body Arranged?

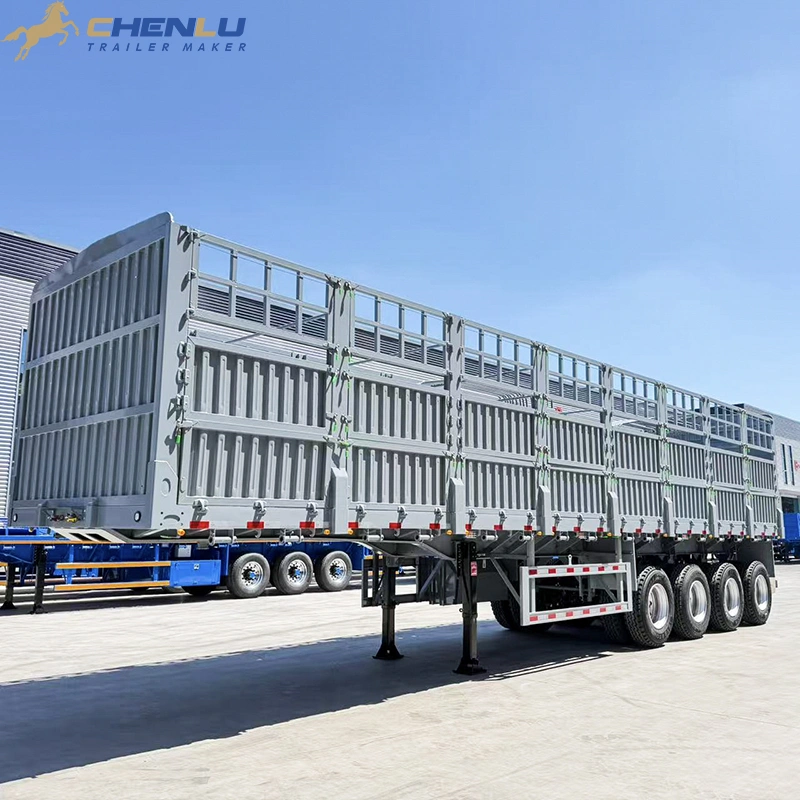

This 80 ton fence semi trailer pairs four equally spaced axles with a 2,000 mm high cargo body. Corrugated lower panels form a solid barrier around the deck, while the upper rails keep the fence structure open. The side body is divided into shorter sections with separate hinges and fasteners.

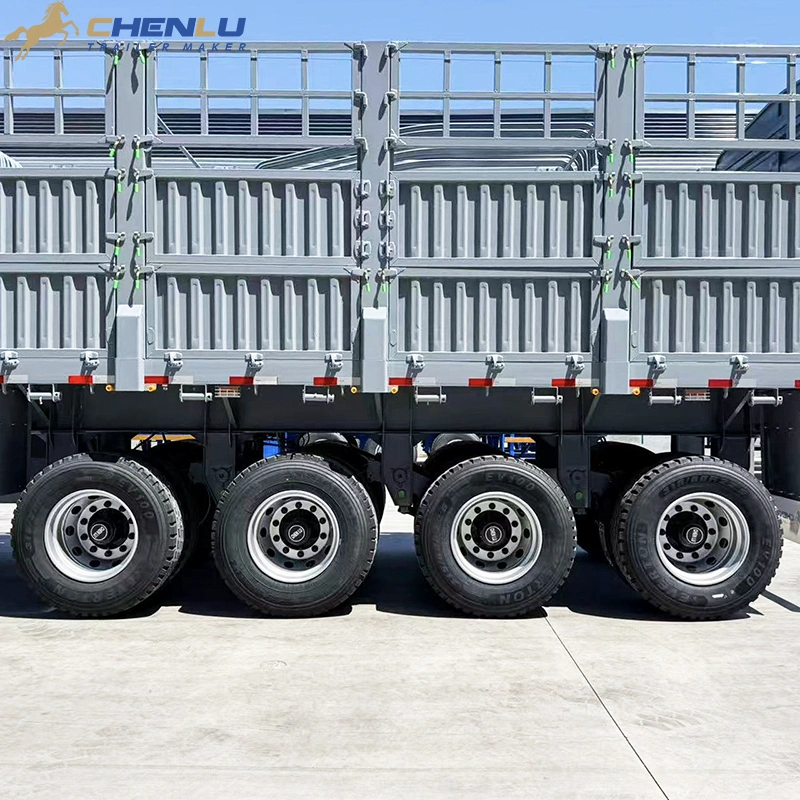

Four-Axle Running Gear
The drawing shows four axles positioned at 1,310 mm intervals. Final axle ratings and load distribution are matched to the approved 80-ton load plan, tractor and operating route.
High Fence Body

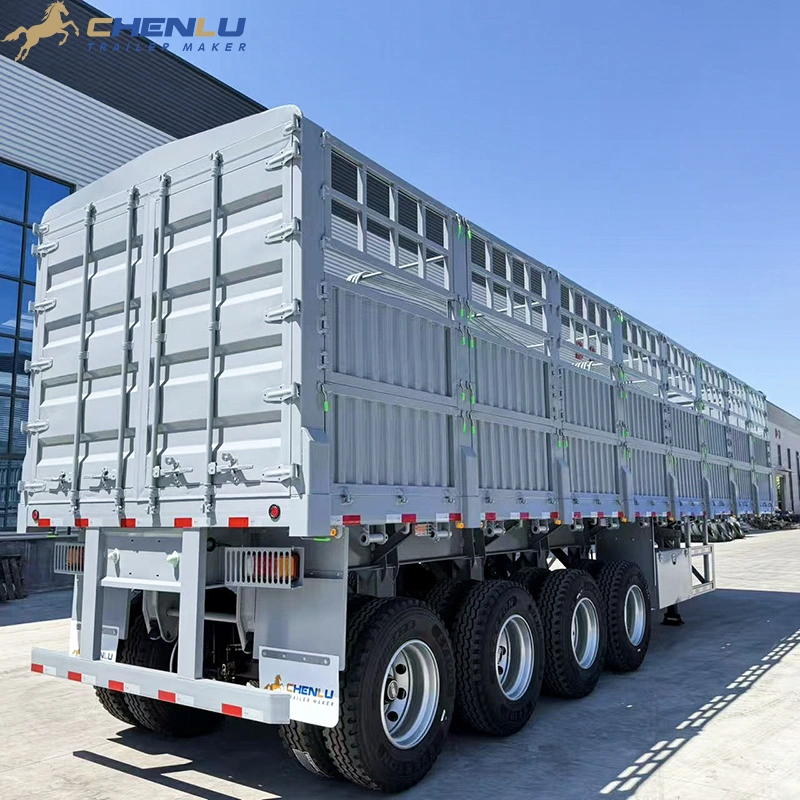

The cargo body combines corrugated lower panels with open upper rails. Each side is divided into 1,360 mm sections, providing several access points along the trailer.

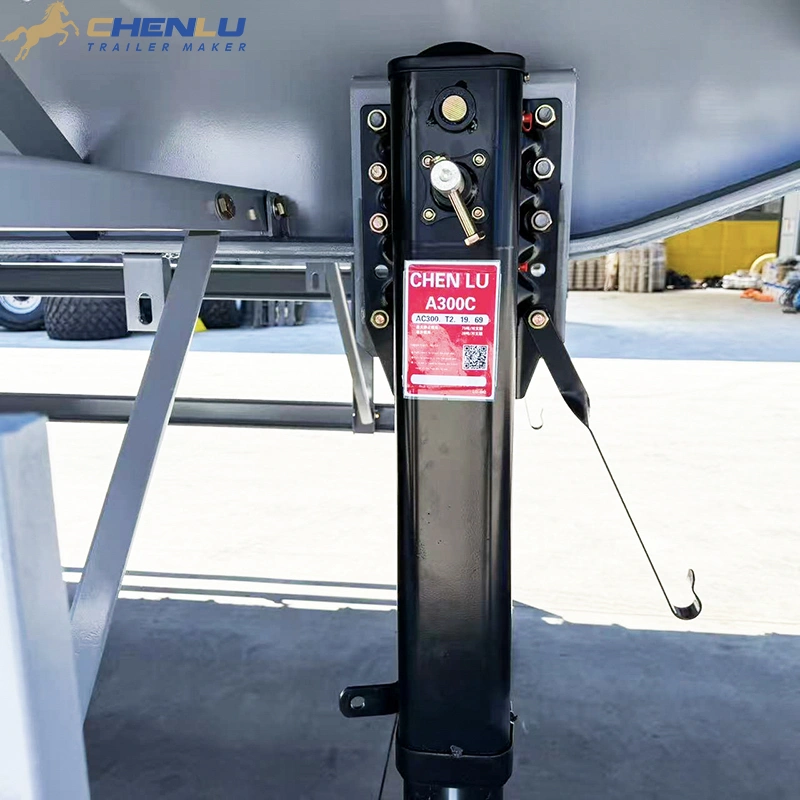

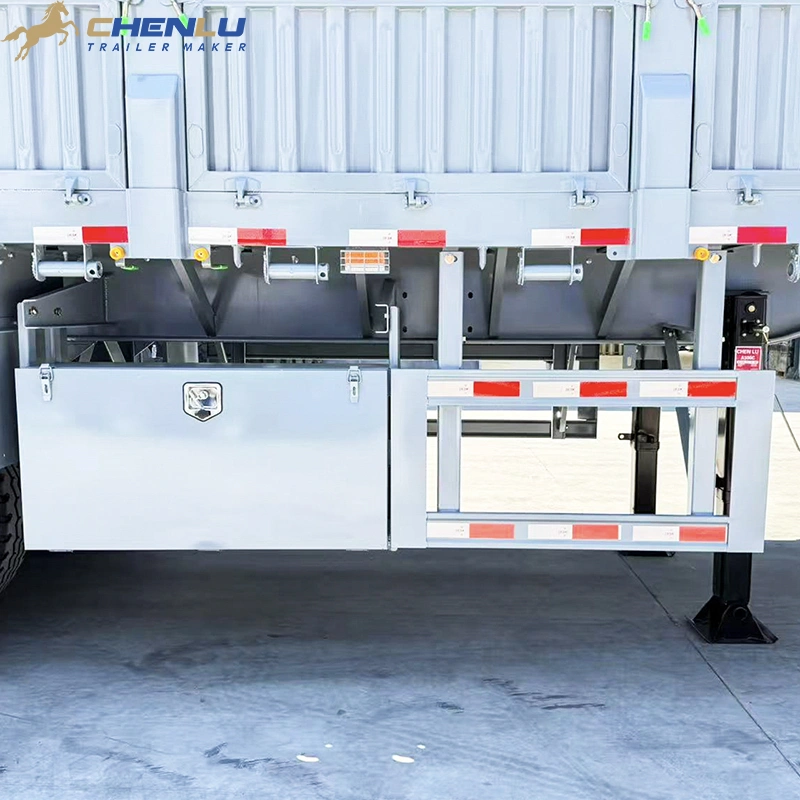

Landing Gear and Underbody Toolbox
The landing legs are mounted ahead of the axle group. An underbody toolbox sits beside the support area, with the side guard and running gear kept clear along the lower frame.
What Do We Need Before Production?
The reference drawing gives us the basic trailer dimensions. Your cargo, tractor and operating route determine the final production specification.
Dimensions already defined
- Axle layout
- 4 axles
- Axle spacing
- 1,310 + 1,310 + 1,310 mm
- Fence body height
- 2,000 mm
- Overall width
- 2,600 mm
- Overall height
- 3,800 mm
- Fifth-wheel height
- 1,300 mm
Five details we still need
-
01
CargoCargo name and total loaded weight.
-
02
Load dimensionsLength, width, height and individual unit weights.
-
03
Loading methodSide, rear or top loading, including forklift or crane use.
-
04
TractorModel, fifth-wheel height and kingpin requirement.
-
05
RouteDestination country, arrival port and main road conditions.
The 80-ton figure is the requested payload for this configuration. The final operating load must match the approved axle, tire and route limits.

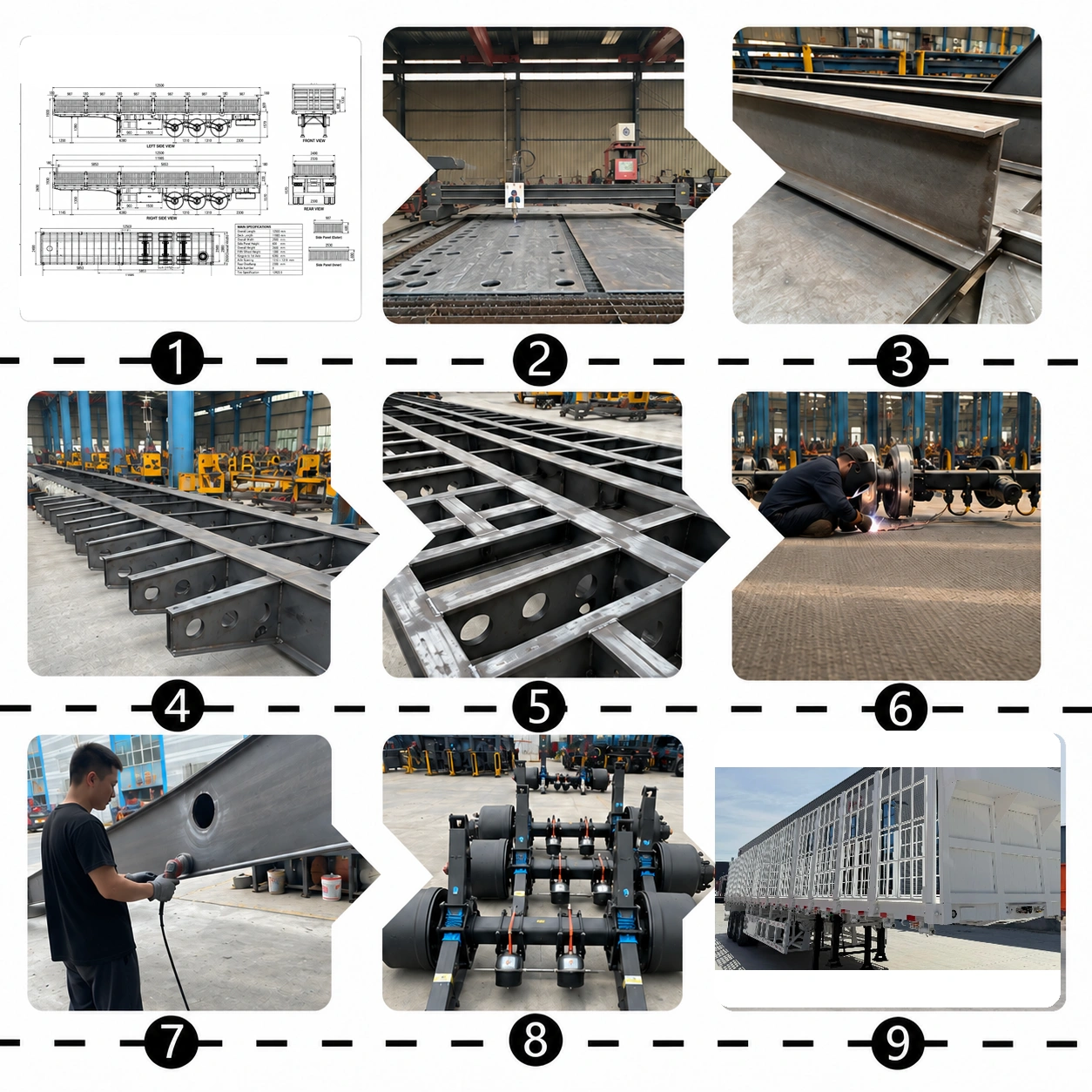

How the Four-Axle Fence Trailer Is Built
Production follows the approved drawing for the order. The frame, fence body, running gear and installed systems are completed in sequence before the finished trailer is checked.
-
01
Frame assembly
The main frame and cross-members are assembled to the drawing.
-
02
Fence body fitting
The side sections and rear-door frame are positioned on the deck.
-
03
Running gear installation
The four-axle group, suspension and landing gear are installed.
-
04
Final checks
Key dimensions, connections and operating parts are checked against the order documents.
Parameters of 80-ton 4-axle fence semi-trailer
The values below come from the supplied drawing for this 80 ton 4 axle fence semi trailer. They define the body envelope and axle layout used as the quotation reference.
| Parameter | Drawing value |
|---|---|
| Trailer type | Four-axle heavy-duty fence semi-trailer |
| Nominal trailer length | 12,500 mm |
| Overall width | 2,600 mm |
| Overall height | 3,800 mm |
| Fence body height | 2,000 mm |
| Side fence section width | 1,360 mm |
| Platform height | 1,570 mm |
| Fifth-wheel height | 1,300 mm |
| Axle count | 4 |
| Axle spacing | 1,310 + 1,310 + 1,310 mm |
| Rear overhang | 1,050 mm |
Axle ratings, suspension, tires, braking and electrical equipment are listed in the approved quotation for the order.
See the Finished 4 Axle Fence Semi Trailer
This factory video shows a completed 4 axle fence semi trailer after assembly. It provides an exterior view of the fence body, chassis, three-axle running gear and finished details.
Factory walkaround of a completed three-axle fence semi-trailer. The video records the visible body and equipment on this build.
Completed Fence Body
View the assembled fence body and full-height front bulkhead.
Side Structure
See the fence sections, upright posts and visible locking points.
Three-Axle Layout
View the three-axle wheel group and chassis arrangement.
Finished Equipment
See the landing gear, side protection, lighting and reflective markings fitted to this build.
Exterior Walkaround
Review the completed trailer from several angles at the factory.

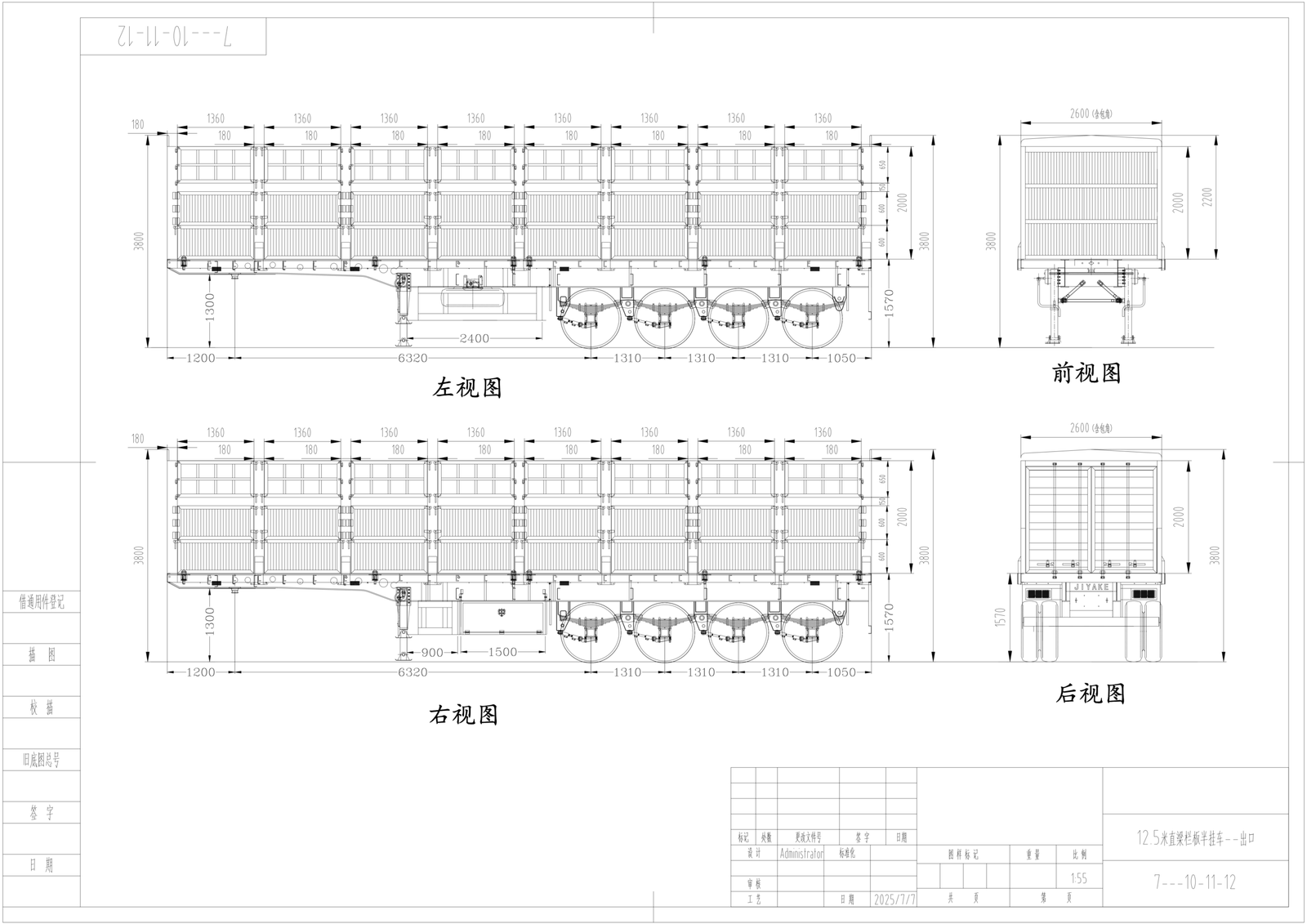

What Does the 4 Axle Fence Trailer Drawing Show?
This drawing shows the trailer size, fence height and four-axle layout. The main dimensions are listed below for quick reference.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FAQ
Answers to common questions about the three-axle detachable gooseneck trailer, configuration review and quotation requirements.
What is a three-axle detachable gooseneck trailer?
It is a lowbed semi-trailer with three axles and a gooseneck designed to detach or separate according to the approved mechanism. The final operating method depends on the supplied hydraulic or mechanical system.
What equipment can it transport?
It may be configured for excavators, construction machinery and other heavy equipment when the cargo dimensions, weight distribution, loading method and route are suitable. Confirm the equipment data before ordering.
What information is needed for a quote?
Send the equipment model, operating weight, length, width, height, track spacing, centre of gravity if available, loading method, tractor details, destination and expected quantity.
What payload can the three-axle trailer carry?
The payload must be confirmed for the actual frame, axle, suspension, braking, cargo distribution and route. Request the approved quotation and engineering drawing instead of relying on a general rating.
Is the gooseneck hydraulic or mechanical?
Confirm the mechanism in the three-axle quotation and drawing. The operating flow, controls, locking points and safety checks must match the actual supplied system.
Can the trailer be customized?
The proposed scope can include the deck, gooseneck, axles, suspension, tyres, braking, electrical system, cargo securing and identification items. Each option remains subject to engineering review and quotation confirmation.
How are the final specifications confirmed?
The technical scope should be checked against the approved quotation and engineering drawing before production. Any change should be recorded in the final project documents.
