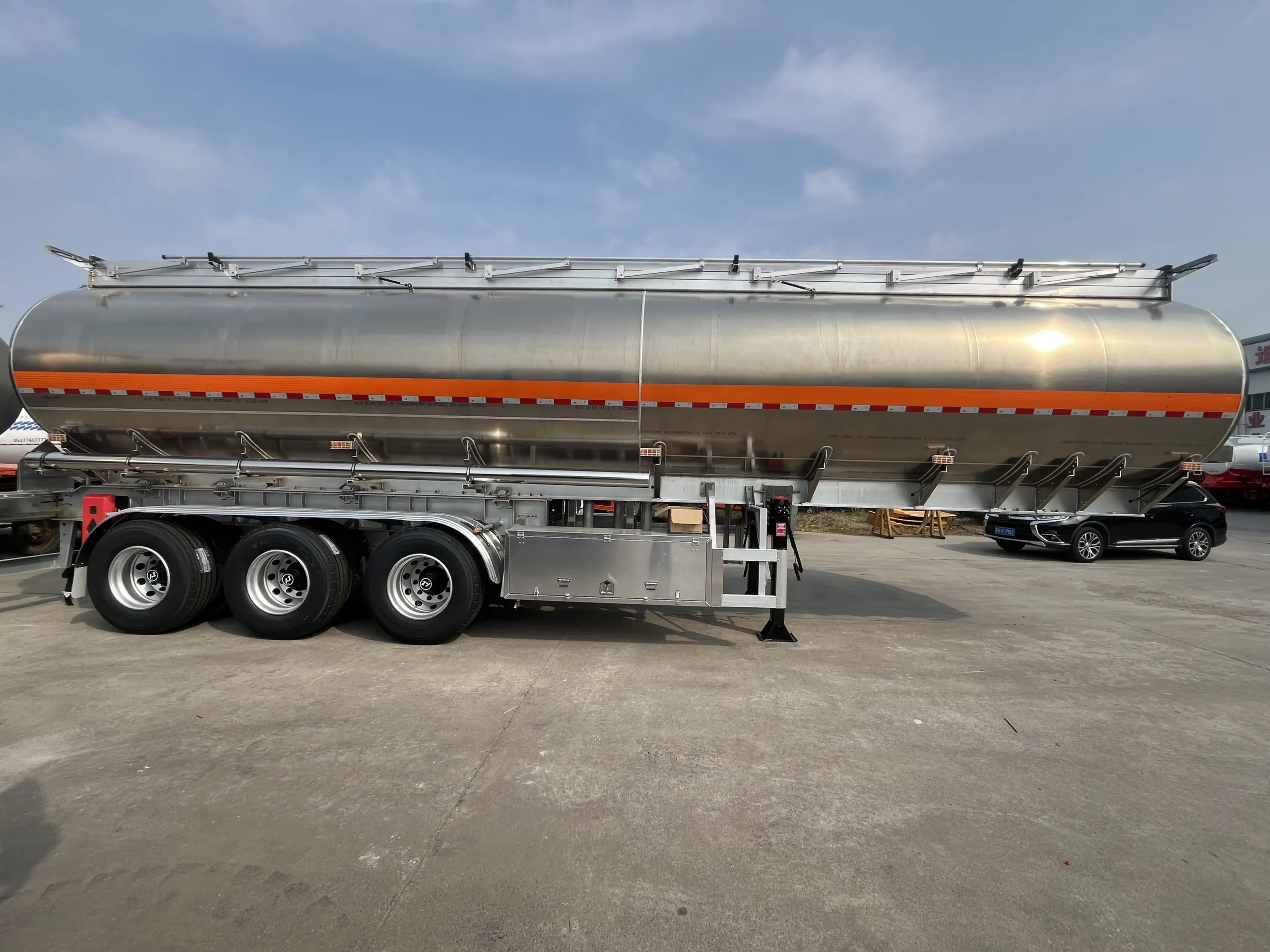

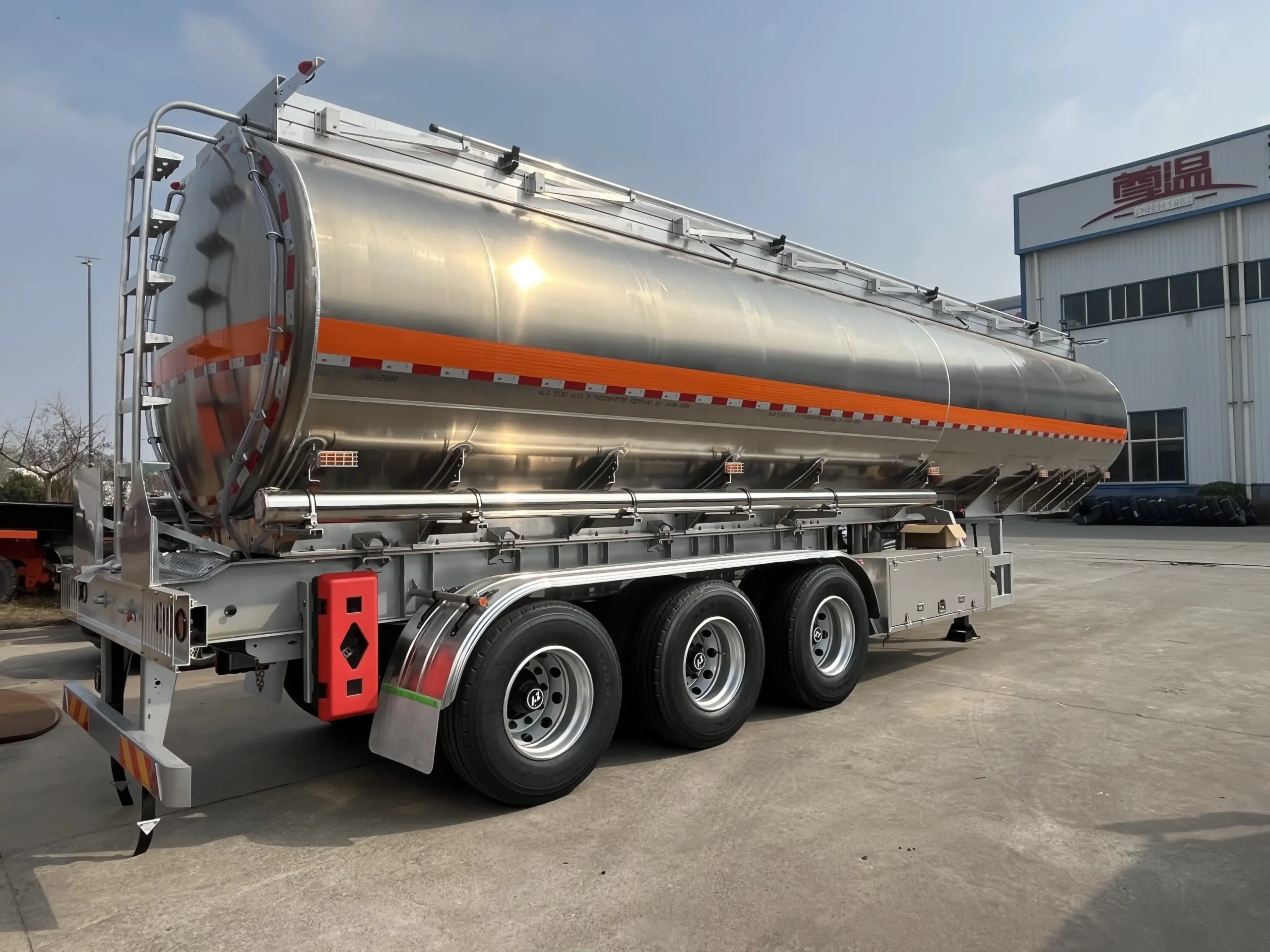

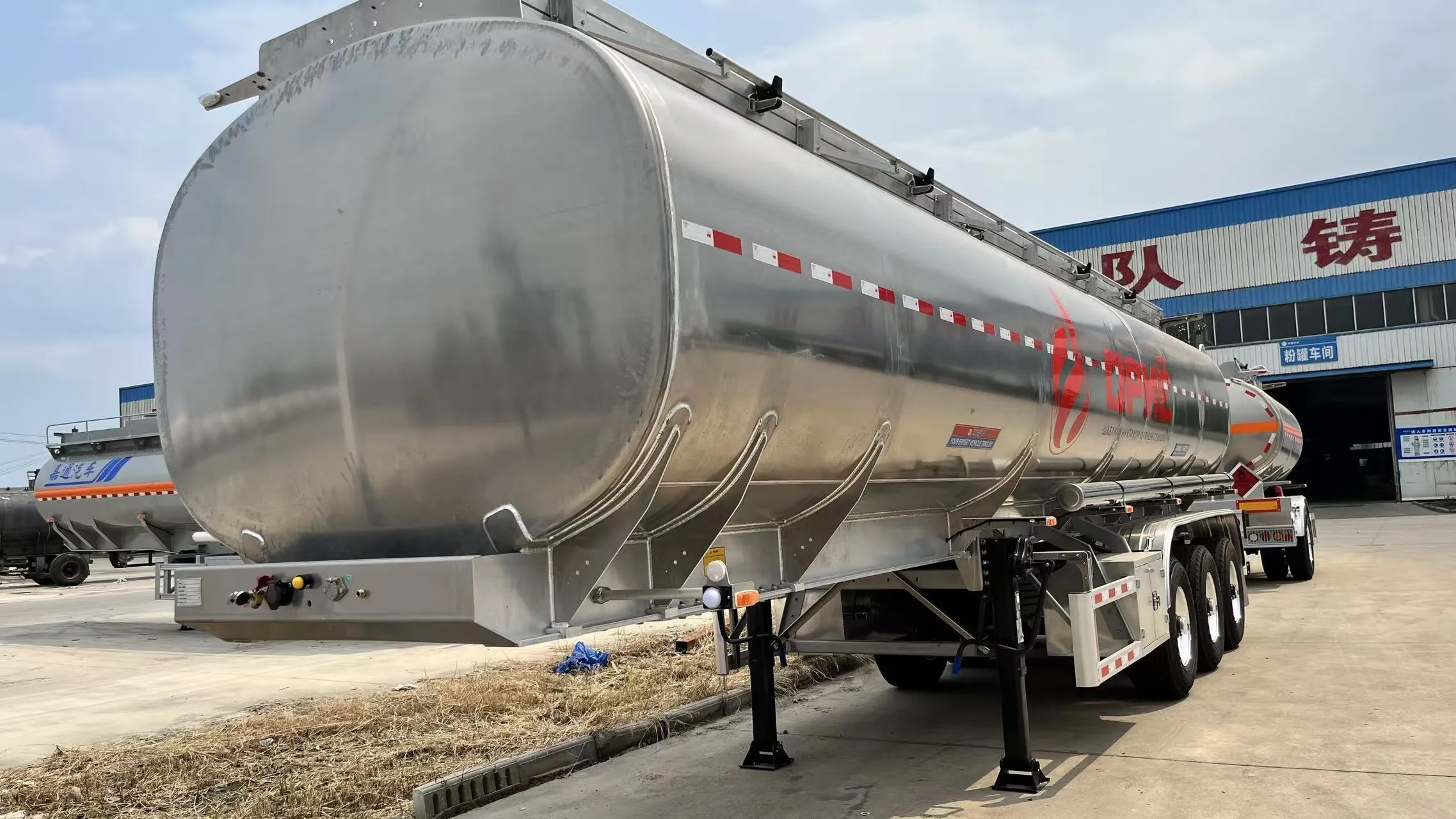

Factory photos show the complete aluminum fuel tanker, rear equipment area, discharge pipework and underbody layout.
45,000 L 3 Axle Aluminum Fuel Tanker Semi Trailer
This aluminum fuel tanker uses a three-axle running group and an aluminum alloy tank body. The 45 m³ configuration has a 12,400 mm overall length. Top access and side discharge equipment are visible in the factory photos.
Compartment layout and fitted equipment are set for each order.
Why Choose Aluminum for a 45,000 L Fuel Tanker?
The aluminum tank body, 45,000 L capacity and three-axle layout work as one configuration. The fuel, delivery route and terminal connections determine the final setup.
Lower Tanker Tare Weight
An aluminum tank body weighs less than a comparable steel tank. This can leave more of the permitted combination weight available for fuel.
45,000 L with Three Axles
The 45,000 L tank is paired with a three-axle rear group. Fuel density, tractor load and route limits determine the usable payload.
Compartment and Discharge Layout
Set the compartment count, loading method and discharge connections around the fuel and delivery plan. The photo shows the discharge pipework fitted below the tank.
How Is the 45,000 L Aluminum Fuel Tanker Trailer Built?

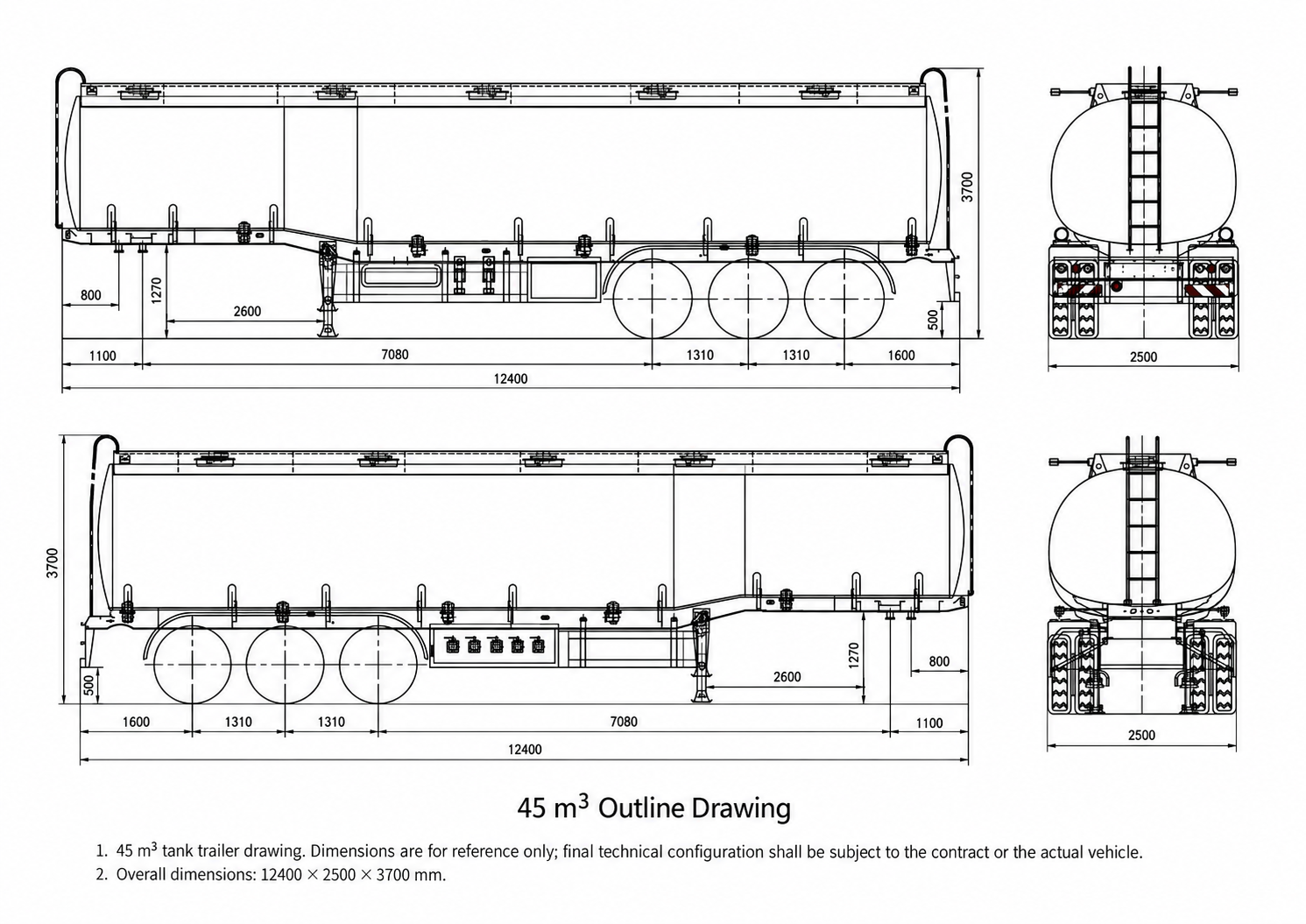

The 45 m³ reference drawing provides the basic trailer layout and 12,400 mm overall length. The aluminum material, compartment plan and ordered fuel-handling equipment are confirmed before production starts.
- Confirm the Tank Layout Set the 45,000 L capacity, 12,400 mm overall length and required compartment arrangement.
- Prepare the Aluminum Parts Cut and form the tank shell, end sections and internal parts for the confirmed design.
- Assemble the Tank Body Join the formed sections and complete the main tank structure before the external equipment is fitted.
- Fit the Trailer Equipment Install the three-axle running group, landing gear, access parts and ordered loading or discharge equipment.
- Complete the Final Check Check the tank body, fittings, pipe connections, lighting and exterior finish before the trailer is released.
What Are the Main Specifications of This 45,000 L Aluminum Fuel Tanker?
This three-axle tanker uses an aluminum tank body with a nominal volume of 45 m³. The 12,400 mm overall length follows the supplied project reference. Compartments and fitted equipment are set for the order.
| Parameter | Specification |
|---|---|
| Product | 45,000 L 3-Axle Aluminum Fuel Tanker Semi Trailer |
| Tank volume | 45 m³ / 45,000 L |
| Tank body material | Aluminum alloy; final grade and thickness are set for the order |
| Axle arrangement | 3 axles |
| Overall length | 12,400 mm |
| Compartments | Configured for the required cargo and delivery plan |
| Loading and discharge | Valves, piping and connections are selected for the operating site |
| Running gear | Axles, suspension, tyres and brakes are specified for the destination |
| Tank access | Manholes, walkway and ladder arrangement are confirmed with the tank layout |
| Payload | Calculated from cargo density, usable fill, tanker tare weight and route limits |
Send the fuel type, required compartments, loading method, discharge equipment and destination before the final tanker specification is issued.
Walk Around the Finished 45,000 L Aluminum Fuel Tanker Trailer
This video shows the completed three-axle tanker after assembly. The walkaround covers the aluminum tank body, trailer side profile, running gear, upper access area and rear structure.
It is a clear view of one finished factory build. Compartment layout, valves, piping and other fitted equipment can change with the fuel type and order specification.
How Is the 45,000 L Aluminum Fuel Tanker Layout Reviewed?
The reference drawing shows the main tank position, overall trailer dimensions and three-axle layout. It provides a clear view of how the tank body, running gear and access areas fit together.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FAQ
Common buyer questions about aluminum fuel tanker compatibility, tank capacity, compartment planning, loading methods, payload review and destination requirements.
What liquids can an aluminum fuel tanker semi-trailer transport?
It may be configured for selected petroleum products such as diesel, gasoline or jet fuel, subject to material compatibility, tank design and the applicable transport requirements. The permitted cargo list should be confirmed before production.
Does an aluminum tank increase the legal payload?
Aluminum can reduce tanker tare weight compared with some steel designs, which may create more payload margin on a weight-limited route. It does not automatically authorize a higher payload. The final result depends on tank equipment, fuel density, axle loads, tractor weight and local operating limits.
What capacity is common for a three-axle aluminum fuel tanker?
Public examples often fall around 40,000–45,000 liters, with other capacities also available. This is a market reference only. The correct capacity should be calculated from delivery demand, cargo density, compartment layout, tanker tare weight and route regulations rather than selected from volume alone.
How many compartments should the tanker have?
One compartment can suit a single compatible product. Multiple compartments can support different products or grades in one trip, but they add bulkheads, valves, pipework, maintenance points and tare weight. The correct number depends on the fleet's delivery pattern and loading terminal.
What is the difference between top loading and bottom loading?
Top loading fills through the tank-top access system. Bottom loading connects through lower loading points and may be paired with vapor recovery and terminal equipment. The correct method depends on the loading station, liquid product, operating procedure and required connections.
Which technical data should be requested before buying?
Request the approved capacity and compartment drawing, aluminum alloy grade, wall thickness, tare weight, payload calculation, axle and suspension ratings, valve and hose schedule, loading and discharge layout, brake and electrical data, inspection records and destination requirements.
Can this trailer be certified for a specific country?
Country-specific certification cannot be assumed from product photos or a general tanker description. Chenlu and the buyer must identify the cargo class, destination standard, required inspection route and supporting documents before making a certified, approved or road-legal claim.
