GHANA · 45,000 L THREE-AXLE CONFIGURATION

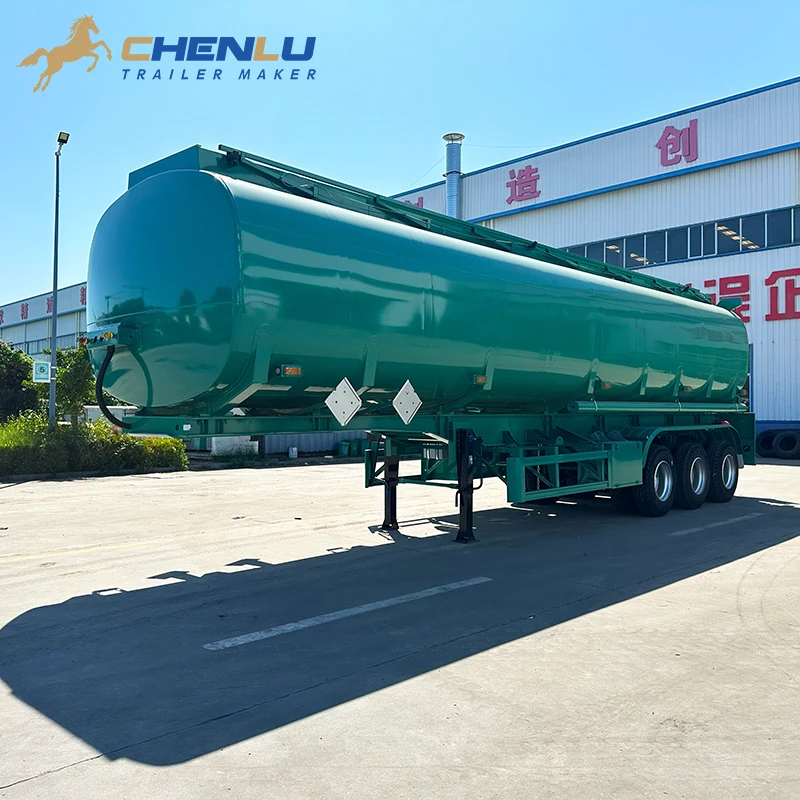

45,000 L 3 Axle Fuel Tanker Trailer for Ghana

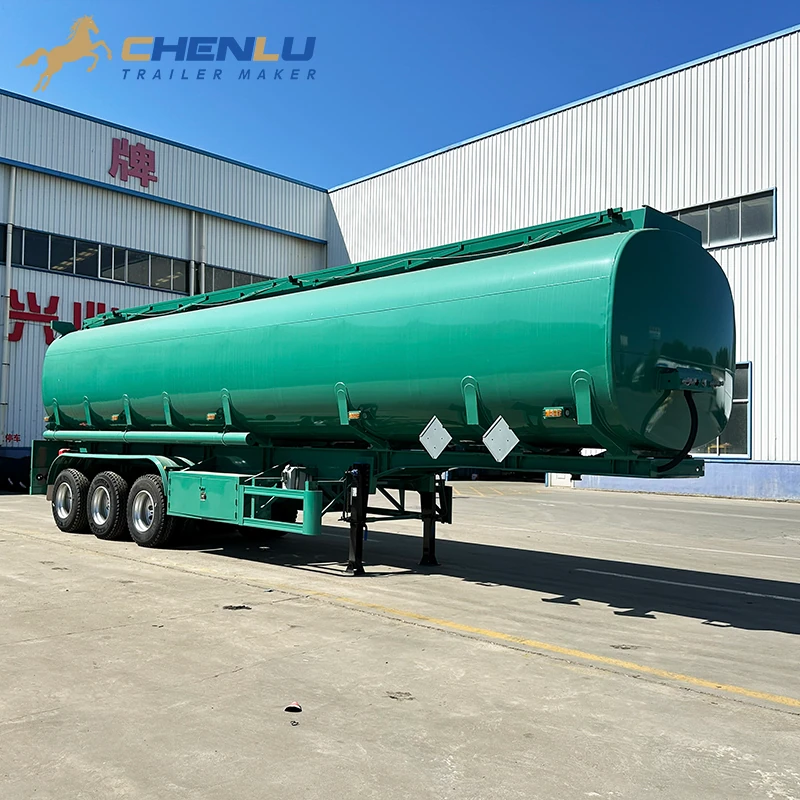

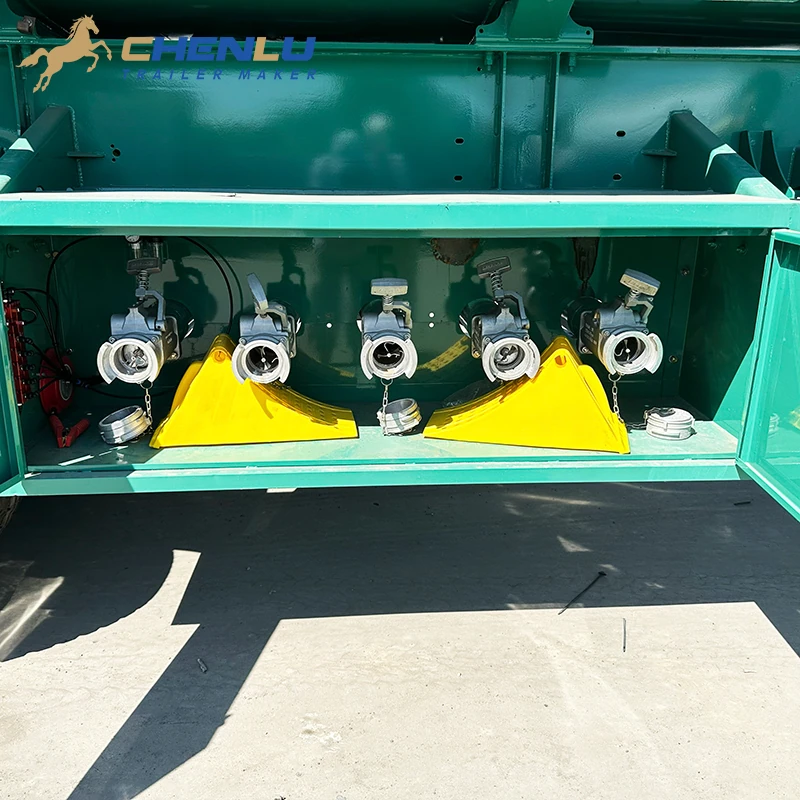

CHENLU completed this green 45,000 L fuel tanker trailer with three rear axles, mechanical suspension and five side discharge outlets. The valves are grouped inside an enclosed cabinet for hose connection during unloading.
This tanker is used for bulk road transport of liquid fuel. Overall dimensions are 12,400 × 2,500 × 3,700 mm.
- Tank volume
- 45,000 L
- Running gear
- 3 Axles
- Overall length
- 12,400 mm
Tank volume is not the same as road-legal payload. Fuel density, trailer tare weight, axle limits and the intended route determine the permitted load.
45,000 L THREE-AXLE FUEL TANKER
Request a Quote
Fuel type, compartment plan, discharge method, destination port and quantity.
TANK ACCESS AND CHASSIS DETAILS
How Is the 45,000 L Fuel Tanker Trailer Arranged?

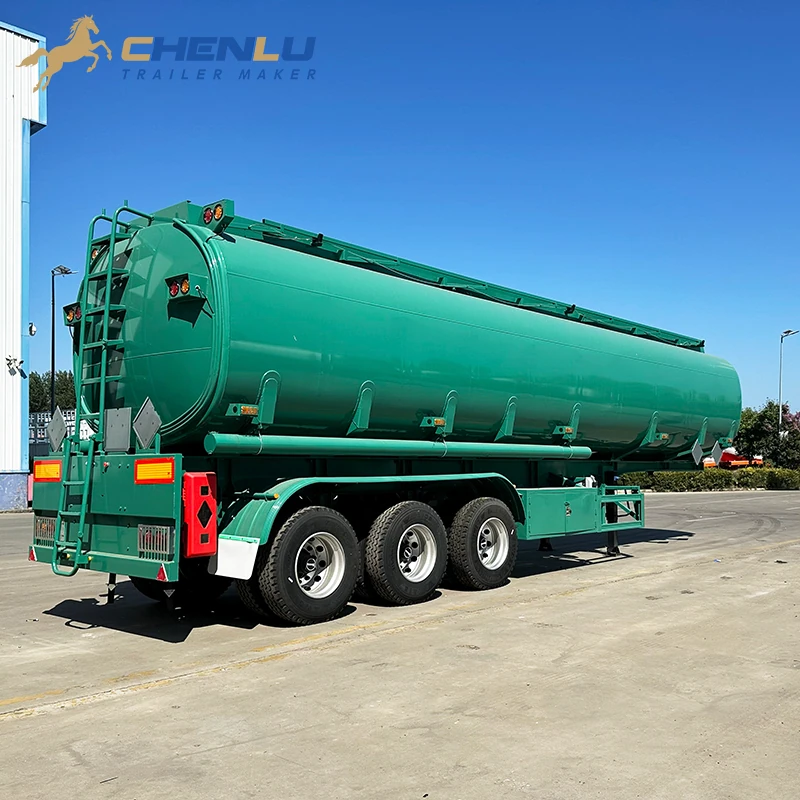

The rear ladder leads to the walkway on top of the tank. Below the tank are the pipework and the three-axle running gear.
01 / UPPER ACCESS

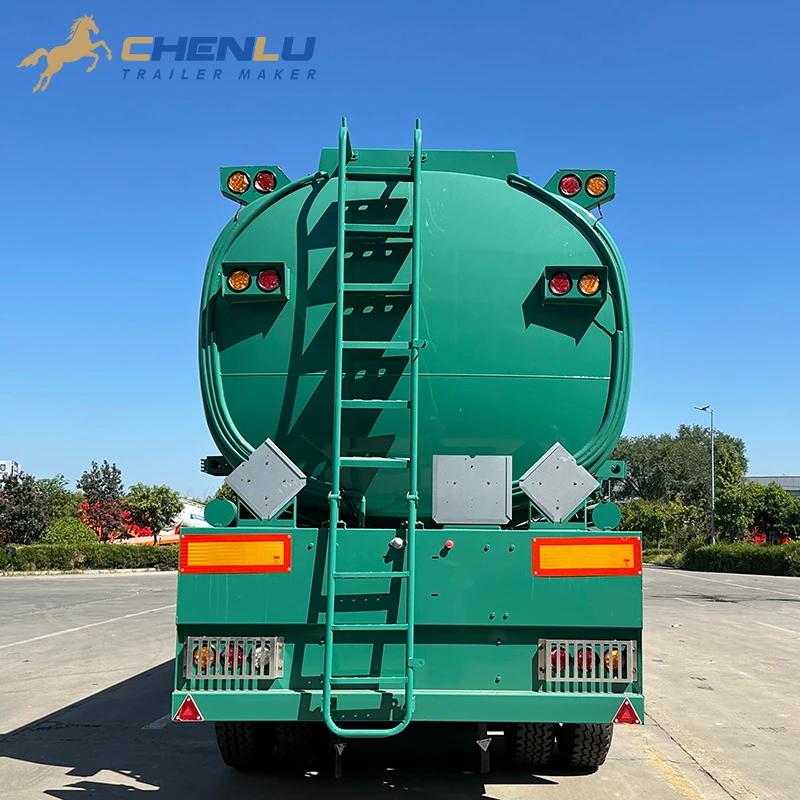

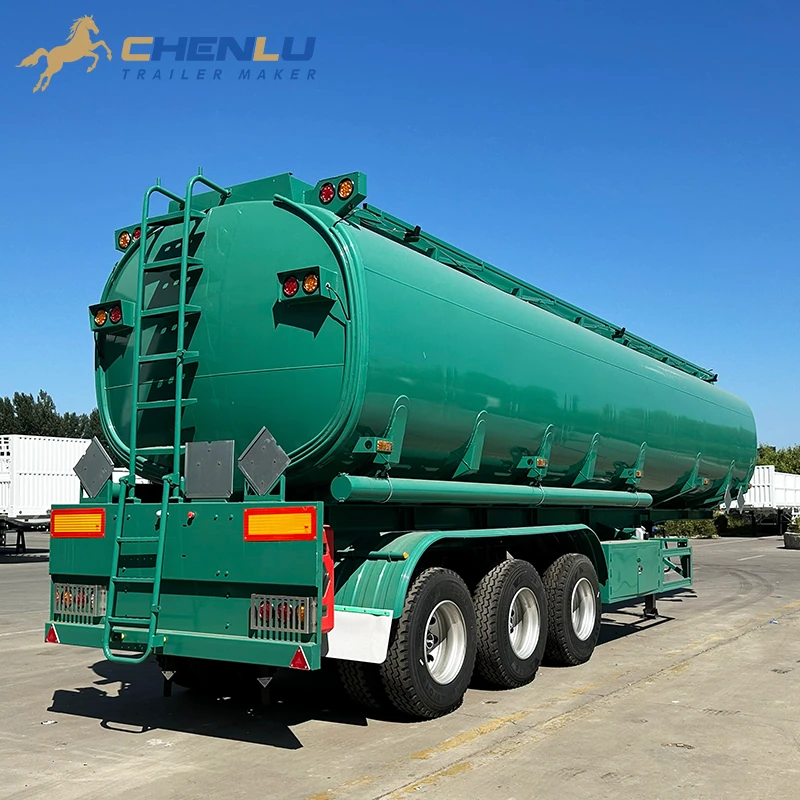

Rear Ladder and Top Walkway
The ladder is fixed at the rear and connects directly to the walkway running along the tank top.
02 / LOWER PIPEWORK

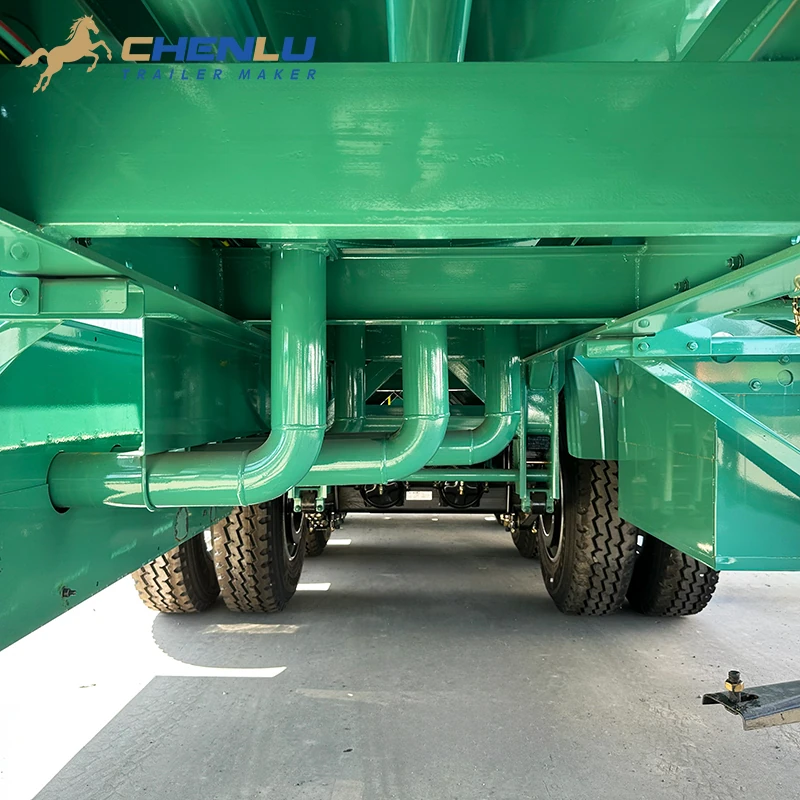

Pipes Below the Tank
Several pipes run below the tank and continue toward the side discharge area, with supports fixed along the trailer frame.
03 / RUNNING GEAR

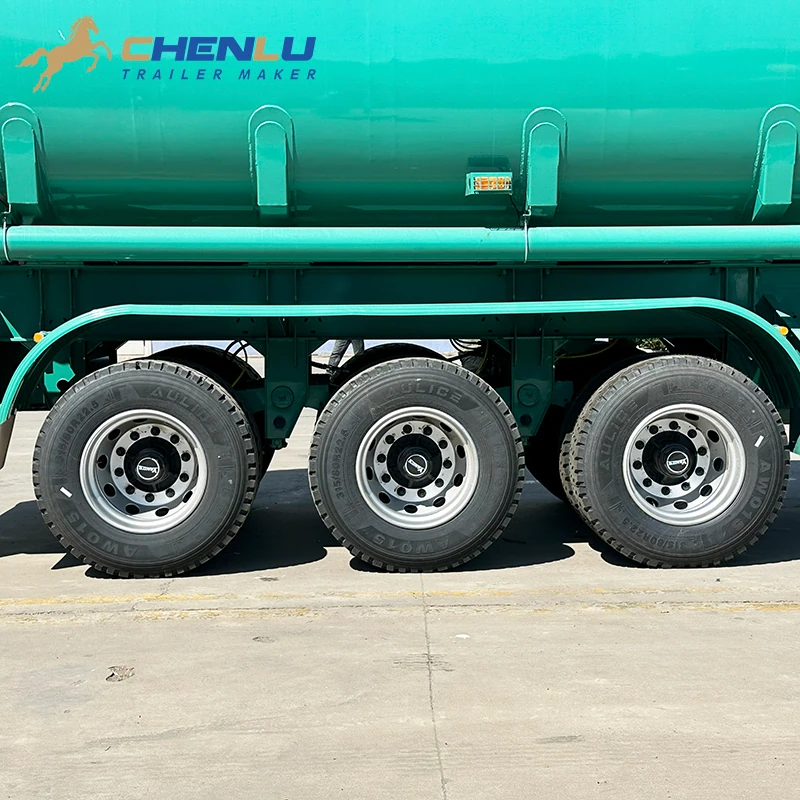

Three-Axle Running Gear
The tanker runs on three rear axles with 1,310 mm spacing between adjacent axles. Full-length mudguards cover the wheel group.
SUSPENSION AND SIDE EQUIPMENT
What Suspension Does the 3 Axle Fuel Tanker Trailer Use?
Mechanical leaf springs support the three rear axles. The running-gear area also contains the brake chambers and air lines, while the toolbox is mounted farther forward beside the side guard.
01 MECHANICAL SUSPENSION

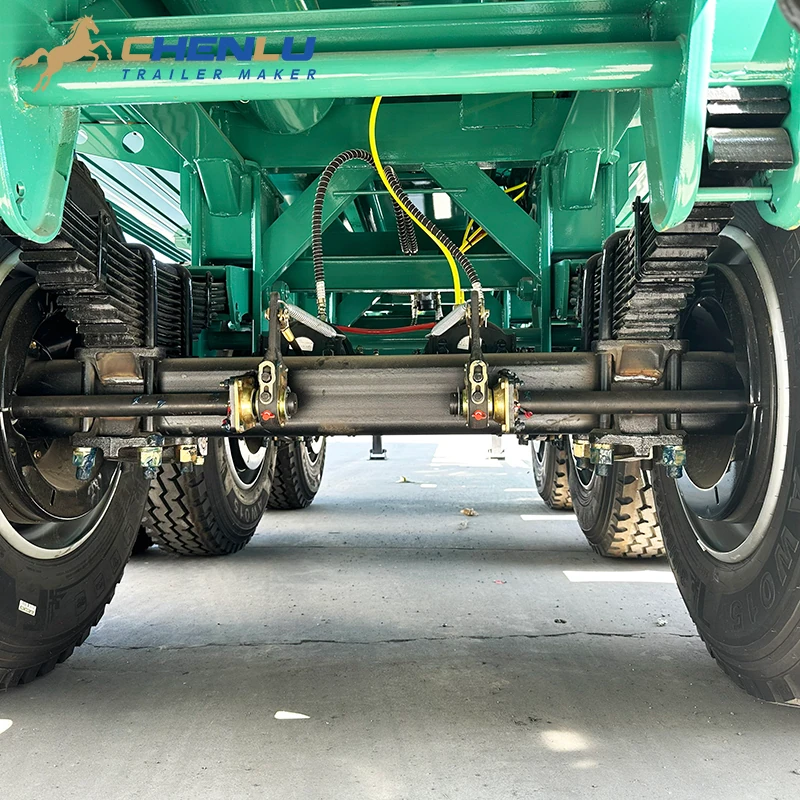

Leaf Springs Above the Axles
Leaf-spring packs sit above the axles and connect the three-axle running gear to the trailer frame.
02 BRAKE COMPONENTS

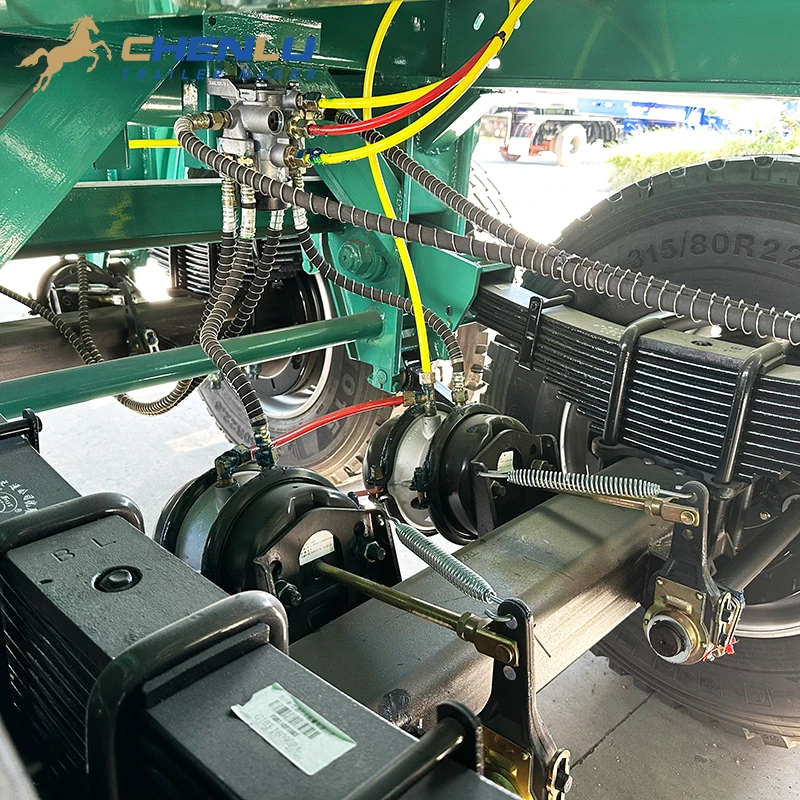

Brake Chambers and Air Lines
The brake chambers are mounted at the axle assembly. Air lines run above them to the valve block.
03 SIDE EQUIPMENT

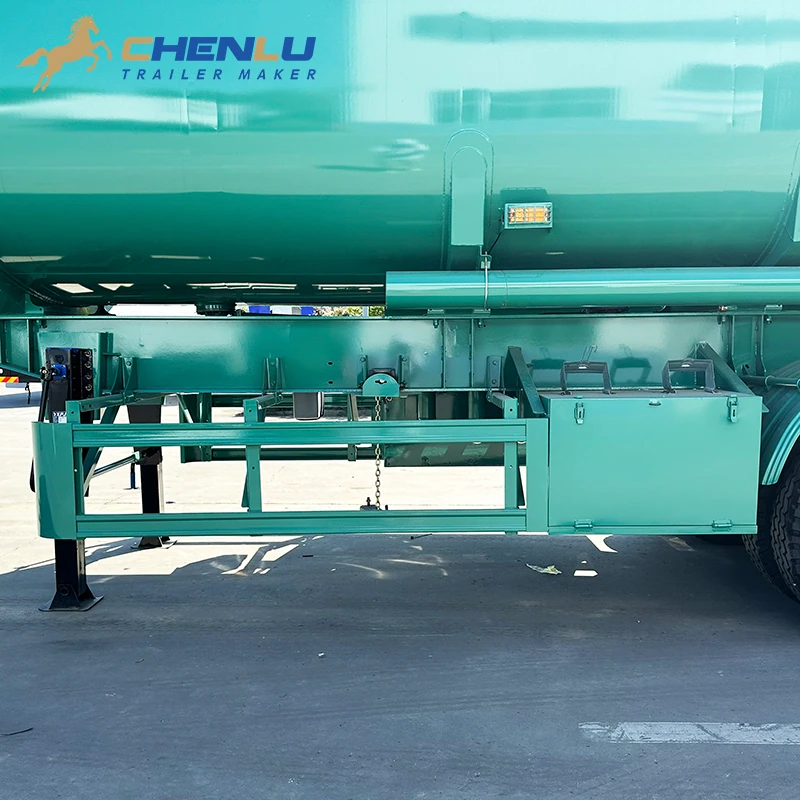

Toolbox Beside the Side Guard
The toolbox sits between the landing legs and axle group, beside the side guard.
DIMENSIONS AND RUNNING GEAR
What Are the 45,000 L Fuel Tanker Trailer Specifications?

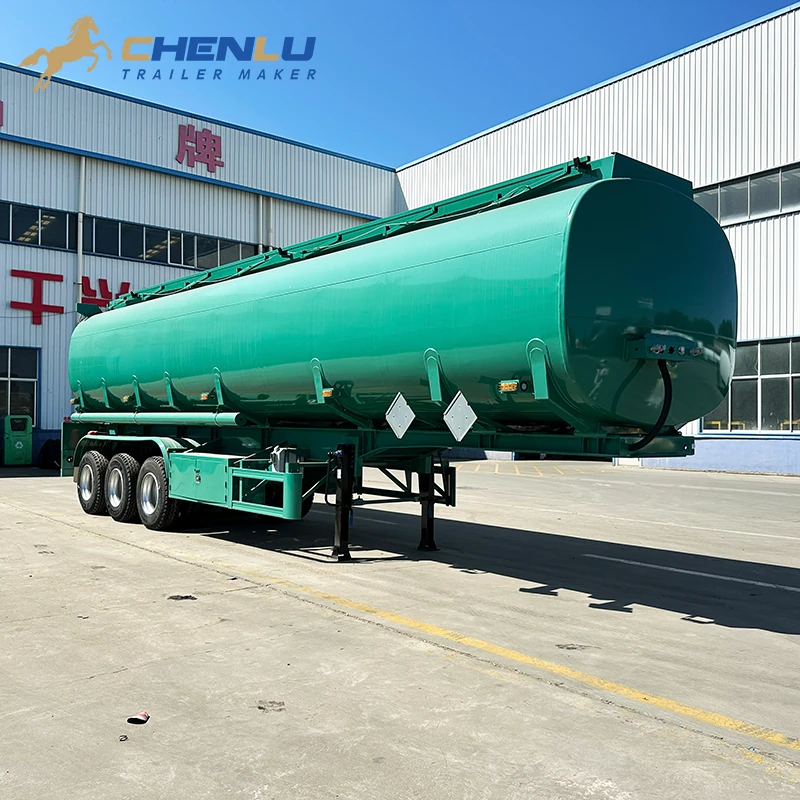

This three-axle fuel tanker measures 12,400 × 2,500 × 3,700 mm. It uses mechanical leaf-spring suspension and has a rear ladder leading to the top walkway.
| Product type | Fuel tanker semi-trailer |
|---|---|
| Tank volume | 45,000 L (45 m³) |
| Overall dimensions | 12,400 × 2,500 × 3,700 mm |
| Axles | 3 axles |
| Axle spacing | 1,310 + 1,310 mm |
| Suspension | Mechanical leaf-spring suspension |
| Upper access | Rear ladder and top walkway |
| Side equipment | Toolbox and side guard |
| Finished color | Green |
| Application | Bulk road transport of liquid fuel |
For pricing: send the fuel type, compartment plan, discharge method, destination port and quantity.
45,000 L THREE-AXLE FUEL TANKER
Request a Quote
Fuel type, compartment plan, discharge method, destination port and quantity.
FACTORY WALKAROUND VIDEO
45,000 L 3 Axle Fuel Tanker Trailer Walkaround
This factory video presents the green three-axle fuel tanker shown on this page. It covers the tank exterior, landing legs, running gear, rear ladder and side equipment.
- 45,000 L tank configuration
- Three rear axles with mechanical suspension
- Rear ladder, top walkway and lower equipment

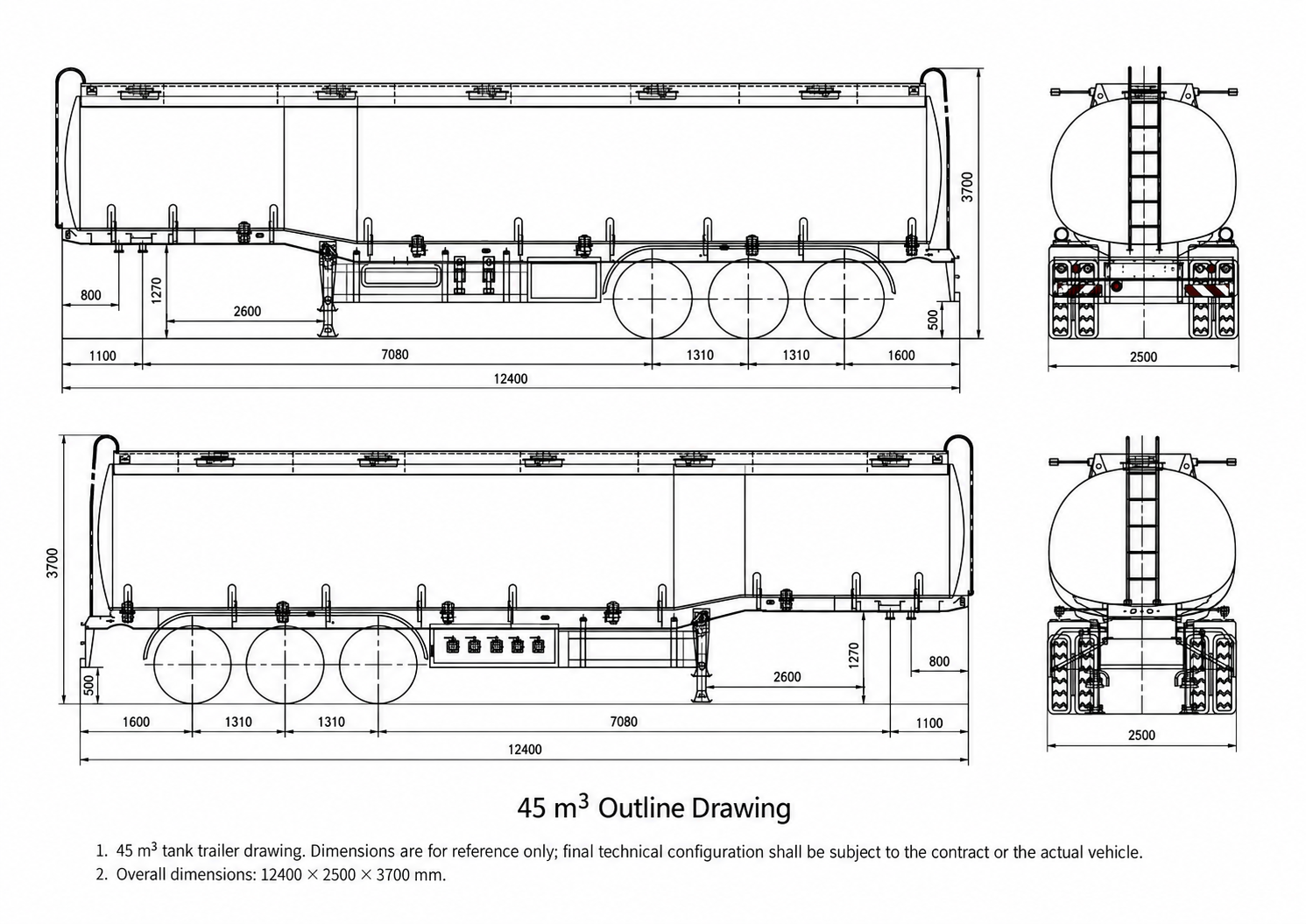

DIMENSION DRAWING
What Are the Overall Dimensions of the 45,000 L Fuel Tanker Trailer?
The trailer is 12,400 mm long, 2,500 mm wide and 3,700 mm high. Its three rear axles have 1,310 mm spacing between adjacent axle centres.
12,400 mmOverall length
2,500 mmOverall width
3,700 mmOverall height
1,310 mmAdjacent axle spacing
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
Related Products
Fuel Tanker Trailer
3 Axle Fuel Tanker Semi Trailer for Sale
View Product ↗
Asphalt Tank Trailers
40 m³ Insulated Bitumen Tanker Semi-Trailer | CHENLU
View Product ↗
Aluminum Fuel Tanker Semi-Trailer
45,000 L 3 Axle Aluminum Fuel Tanker Trailer | CHENLU
View Product ↗
Fuel Tanker Trailer
9000 L 3 Axle Fuel Tanker Trailer for Sale
View Product ↗FUEL TANKER FAQ
45,000 L Fuel Tanker Trailer FAQ
The tank holds 45,000 L. Overall size is 12,400 × 2,500 × 3,700 mm, with three mechanically suspended axles.
What is the tank volume of this fuel tanker trailer?
The tank volume is 45,000 L, equal to 45 m³. This figure describes the space inside the tank, not the permitted cargo weight.
Does 45,000 L equal the legal payload?
No. Legal payload depends on fuel density, trailer tare weight, axle limits and the rules for the operating route.
What are the overall dimensions?
The trailer is 12,400 mm long, 2,500 mm wide and 3,700 mm high.
What running gear does the tanker use?
It has three rear axles with mechanical leaf-spring suspension. Adjacent axle centres are spaced at 1,310 mm.
How is the top of the tank accessed?
A ladder is fixed at the rear of the tanker and leads to the walkway along the tank top.
What information is used to price the trailer?
Pricing is based on the fuel type, compartment plan, discharge method, destination port and order quantity.
