40 M³ · BULK FUEL TRANSPORT
3 Axle Fuel Tanker Semi Trailer for Sale

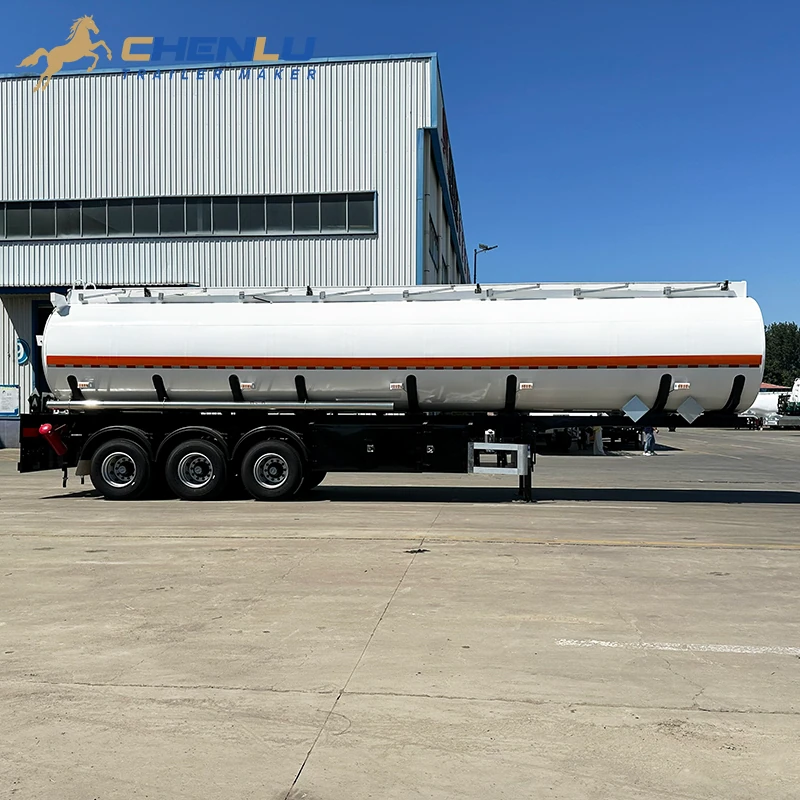

This 40 m³ three-axle fuel tanker semi trailer is built for bulk fuel transport. Its reference overall size is 11,220 × 2,500 × 3,650 mm, with three axles positioned beneath the rear of the tank.
The 40 m³ tank provides bulk storage volume for deliveries between fuel terminals, distribution depots and receiving sites. Under-deck pipework leads to capped outlets inside the protected side cabinet.
To quote this tanker, we need the fuel type and density, required tank volume, loading and discharge connections, tractor model and destination. These details determine the drawing, pipework, payload calculation and documents supplied with the trailer.
DISCHARGE CONNECTIONS
How Are the Discharge Connections Arranged on This 40 m³ Fuel Tanker Trailer?
The lower pipework runs toward a side-mounted cabinet where the capped transfer connections are grouped. The final connection layout must match the fuel, loading terminal and receiving equipment.

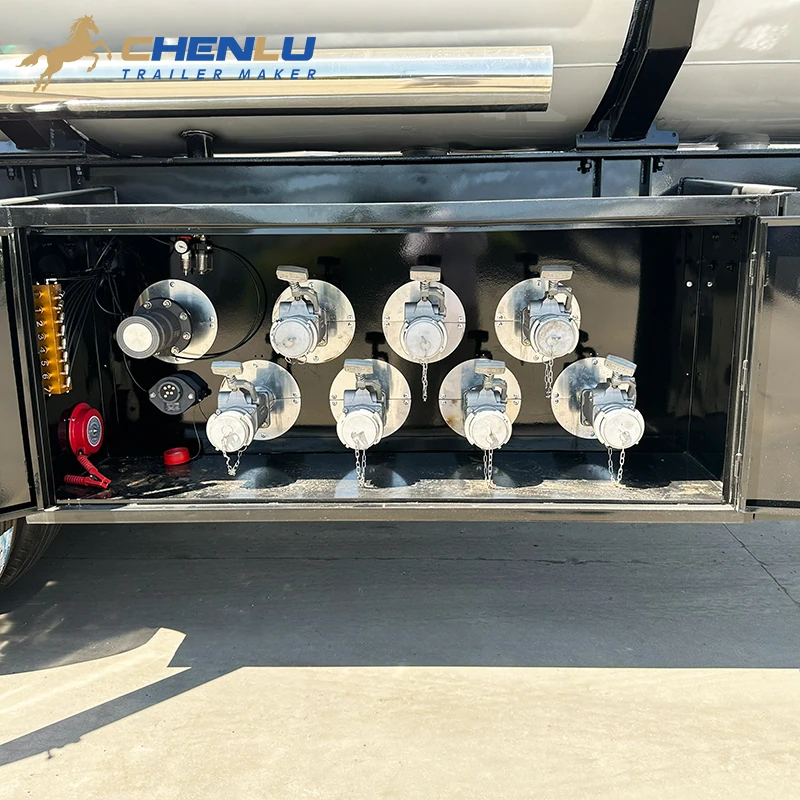

SIDE ACCESS
Protected connection cabinet
The cabinet brings the visible capped connections and nearby controls into one side-accessible area. Its doors close over the fittings when they are not in use.
Connection size, coupling type and transfer equipment cannot be selected from tank volume alone. They should be confirmed against the loading terminal and the receiving site before the pipework drawing is released.

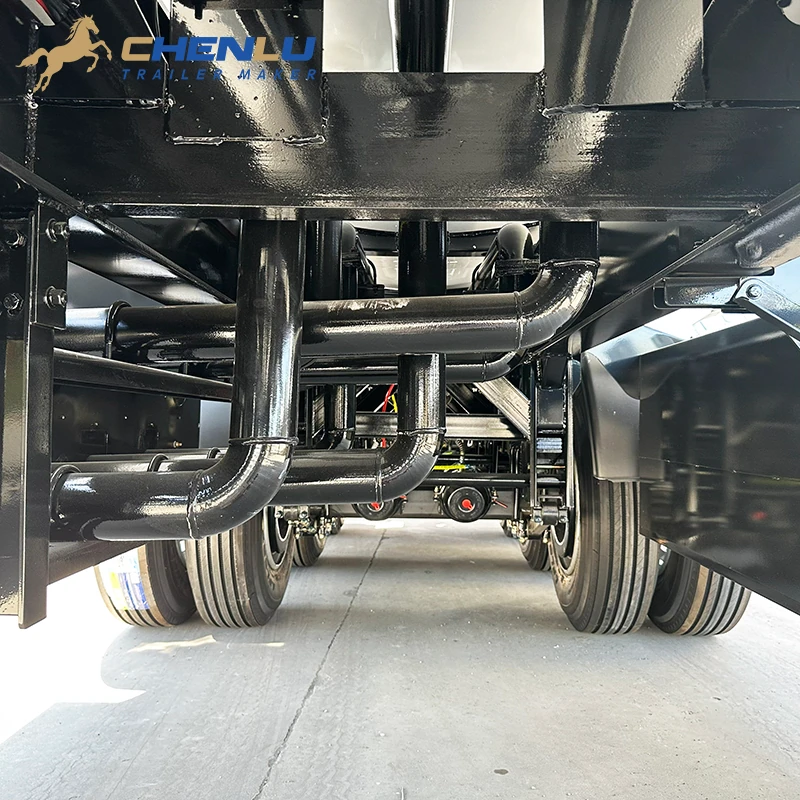

UNDER-DECK ROUTING
Pipework routed within the chassis
The underside view shows several pipes secured inside the frame below the tank and continuing toward the side connection area. Their final route, supports and valve arrangement should follow the approved pipework drawing for the specified transfer setup.

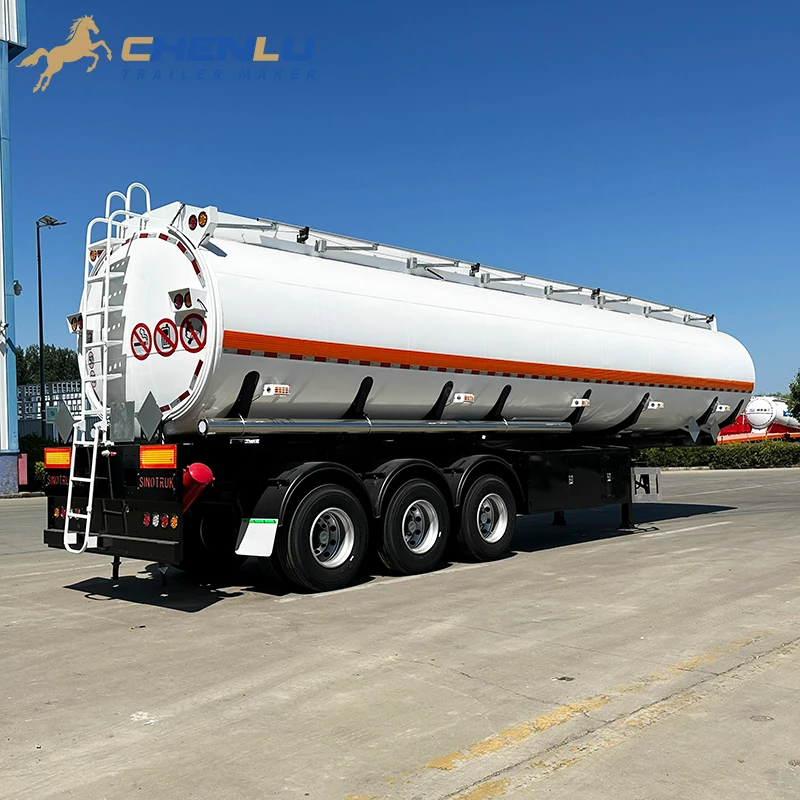

THREE-AXLE RUNNING GEAR
Why Use a 3 Axle Fuel Tanker Trailer with Mechanical Suspension?
A three-axle rear group and mechanical leaf springs give this 40 m³ fuel tanker a straightforward running-gear layout. It suits fleets that already operate and service mechanical-suspension trailers.
THREE-AXLE GROUP

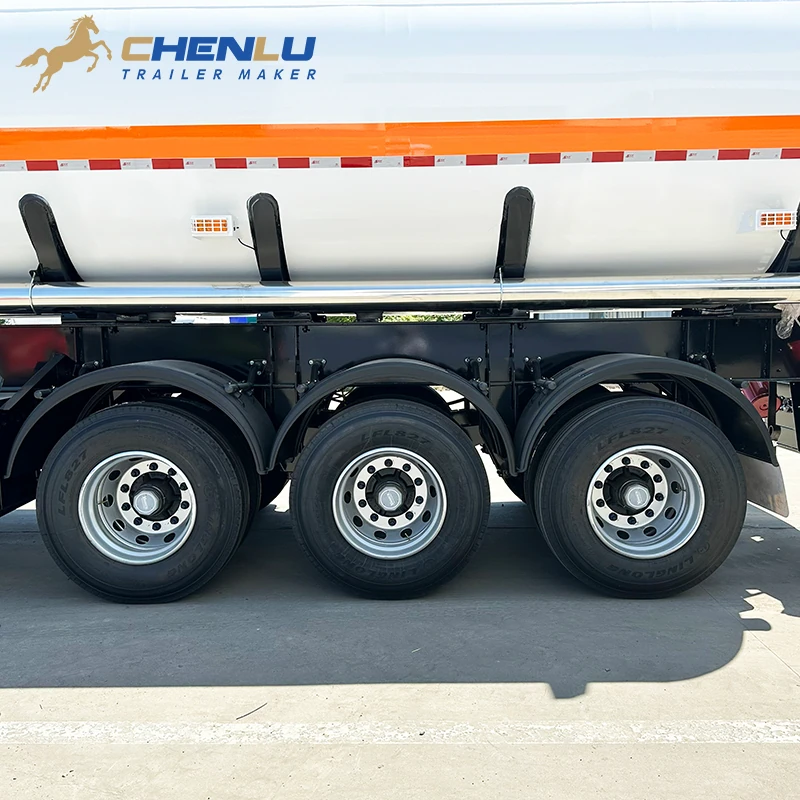

Three Axles Beneath the Rear of the Tank
The three-axle group supports the rear of the trailer. Each wheel position has its own mudguard, and the tyres and wheel hubs remain open to view from the side.
The axle group stays behind the landing gear and side equipment, keeping the running gear together at the rear of the tanker.

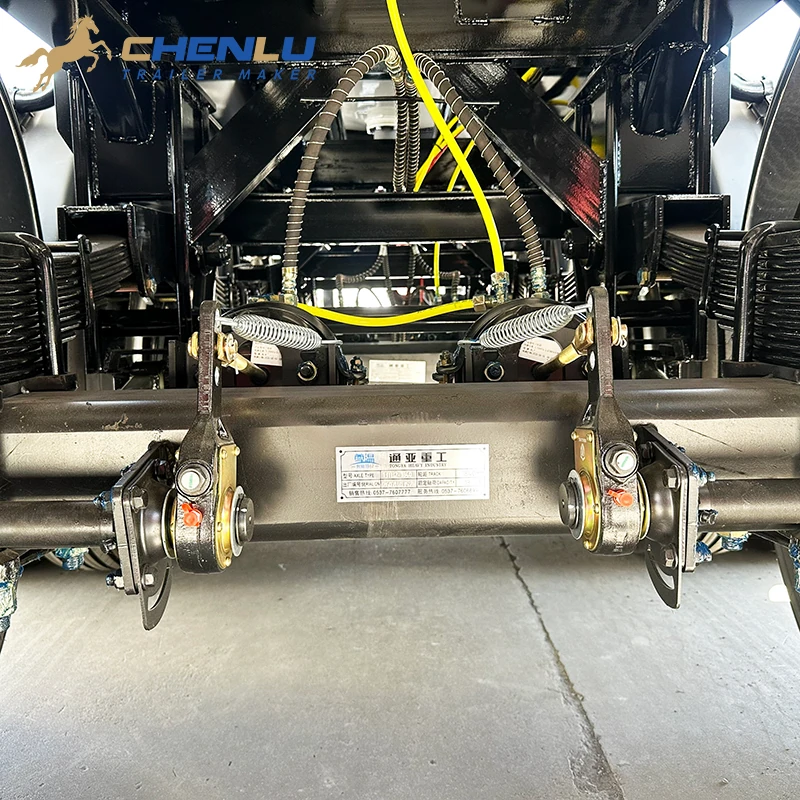

MECHANICAL SUSPENSION
Leaf Springs Keep the Running Gear Familiar
Leaf-spring packs sit above the axle beams. Brake chambers and hoses are mounted within the rear assembly, where technicians can inspect the main suspension and brake parts from below.
For a fleet that already services mechanical suspension, this avoids adding an unfamiliar suspension layout to the workshop.
EXTERIOR EQUIPMENT
What Exterior Equipment Is Fitted to This 40 m³ Fuel Tanker Trailer?
Daily checks do not stop at the tank body. This finished trailer places the rear ladder, extinguisher holder, lamps and reflective markings where they can be seen and reached from outside the tanker.
REAR ACCESS
Rear Ladder Leads to the Tank Top
The fixed ladder rises from the rear frame to the top access area. It gives the operator one clear route to the upper fittings during a walk-around or service check.
Side rails continue along the tank top, while the ladder remains separate from the discharge equipment mounted below the tank.

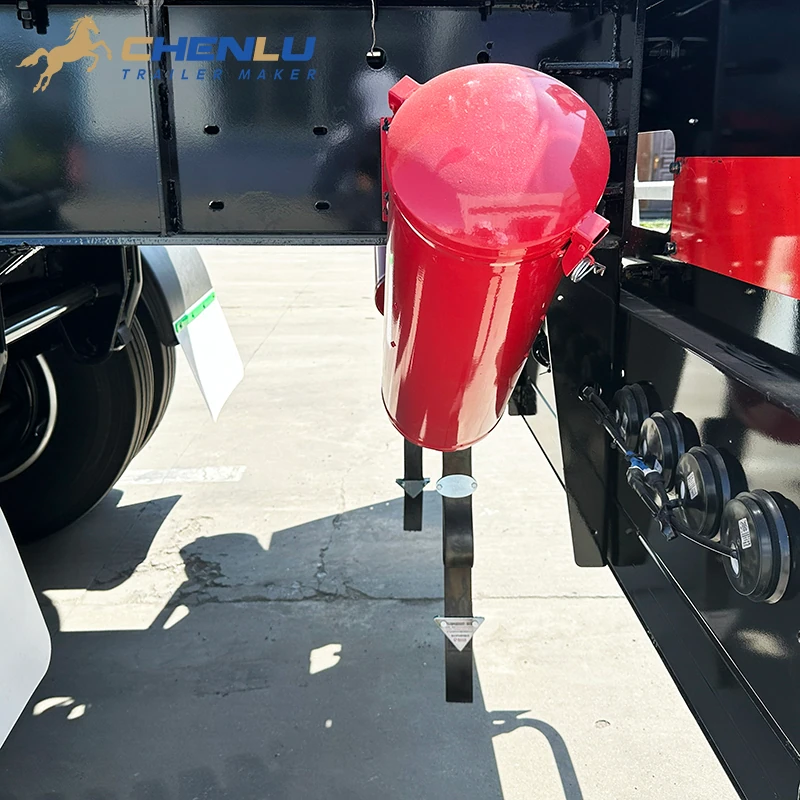

SIDE-MOUNTED HOLDER
A Dedicated Position for the Fire Extinguisher
The red cylindrical holder is fixed beside the rear running gear. Its lid and latch keep the extinguisher in a separate external position, close to ground level and away from the discharge cabinet.

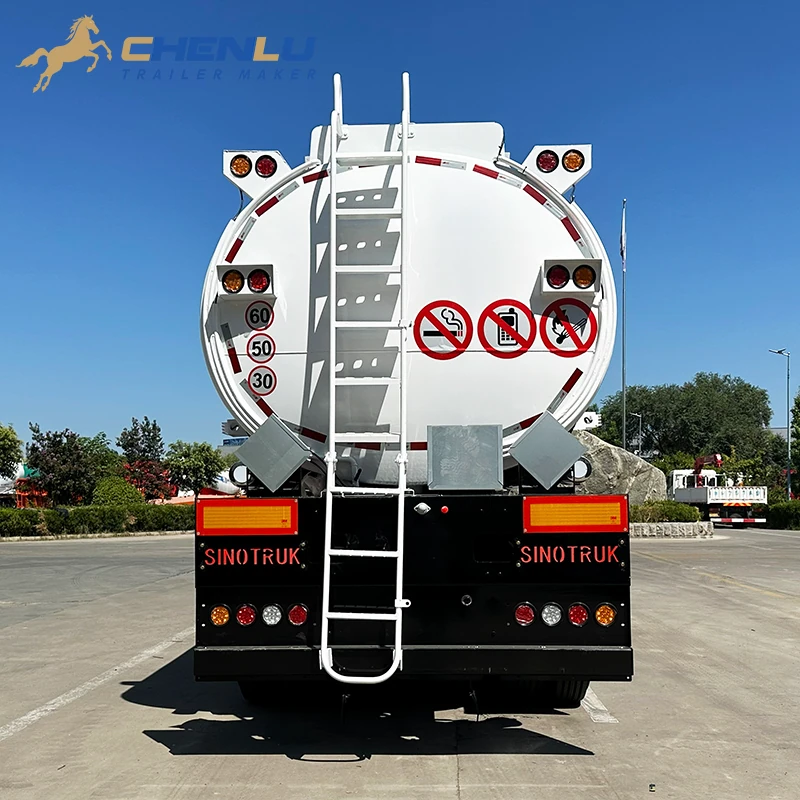

REAR VISIBILITY
Lamps and Markings Stay Open to View
The rear lamps sit on the outer frame and around the tank end. Reflective strips follow the circular rear profile, leaving the centre ladder clear between the light groups.
CAPACITY AND OVERALL SIZE
How Much Can This 40 m³ Fuel Tanker Trailer Carry?
The tank has a reference volume of 40 m³, equal to 40,000 litres. That number describes tank volume; the actual mass carried on a trip changes with the density of the fuel.
REFERENCE TANK VOLUME
40 m3
40,000 litres
This is the volume of the tank, not a fixed payload figure in tonnes.
01
Why Litres and Tonnes Are Different
Diesel and gasoline do not weigh the same per litre. The planned load therefore starts with the exact fuel and its density; 40,000 litres of tank volume is not a fixed 40-tonne payload.
02
Check the Trailer Against the Route

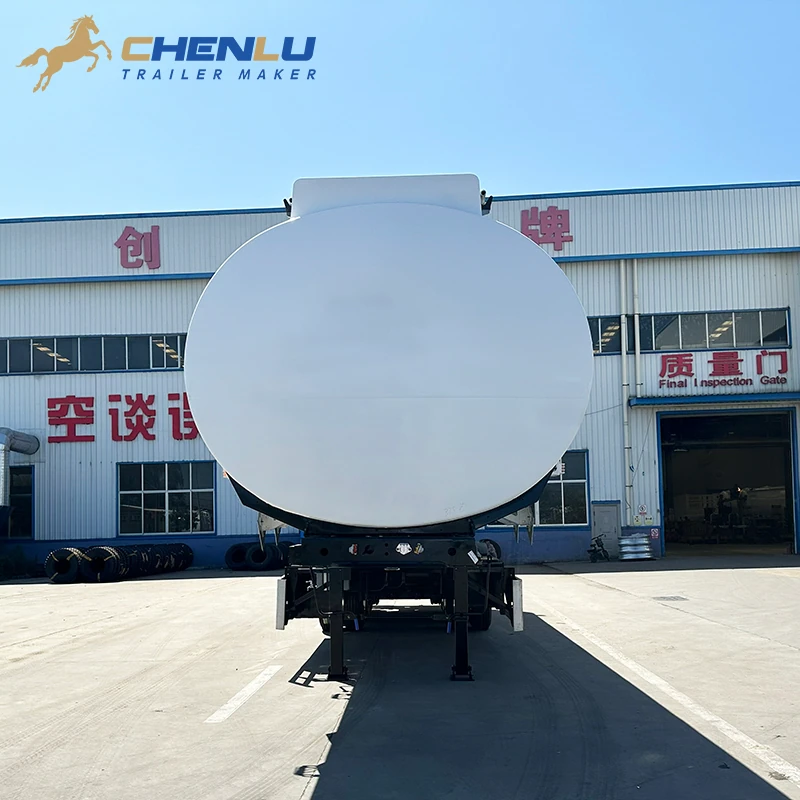

The overall length, width and height help you review loading-point access, yard space and route clearance before assigning the tanker to a delivery job.
PRODUCT VIDEO
Watch a 3 Axle Fuel Tanker Trailer Before Shipment to Uganda
This 43-second CHENLU factory video shows a finished white fuel tanker semi trailer before dispatch. The moving view makes it easier to check the tank profile, rear access and three-axle layout together.
Video reference: The video shows a white CHENLU three-axle fuel tanker from the same product line. Confirm the final tank material, capacity and fitted equipment in the order specification.

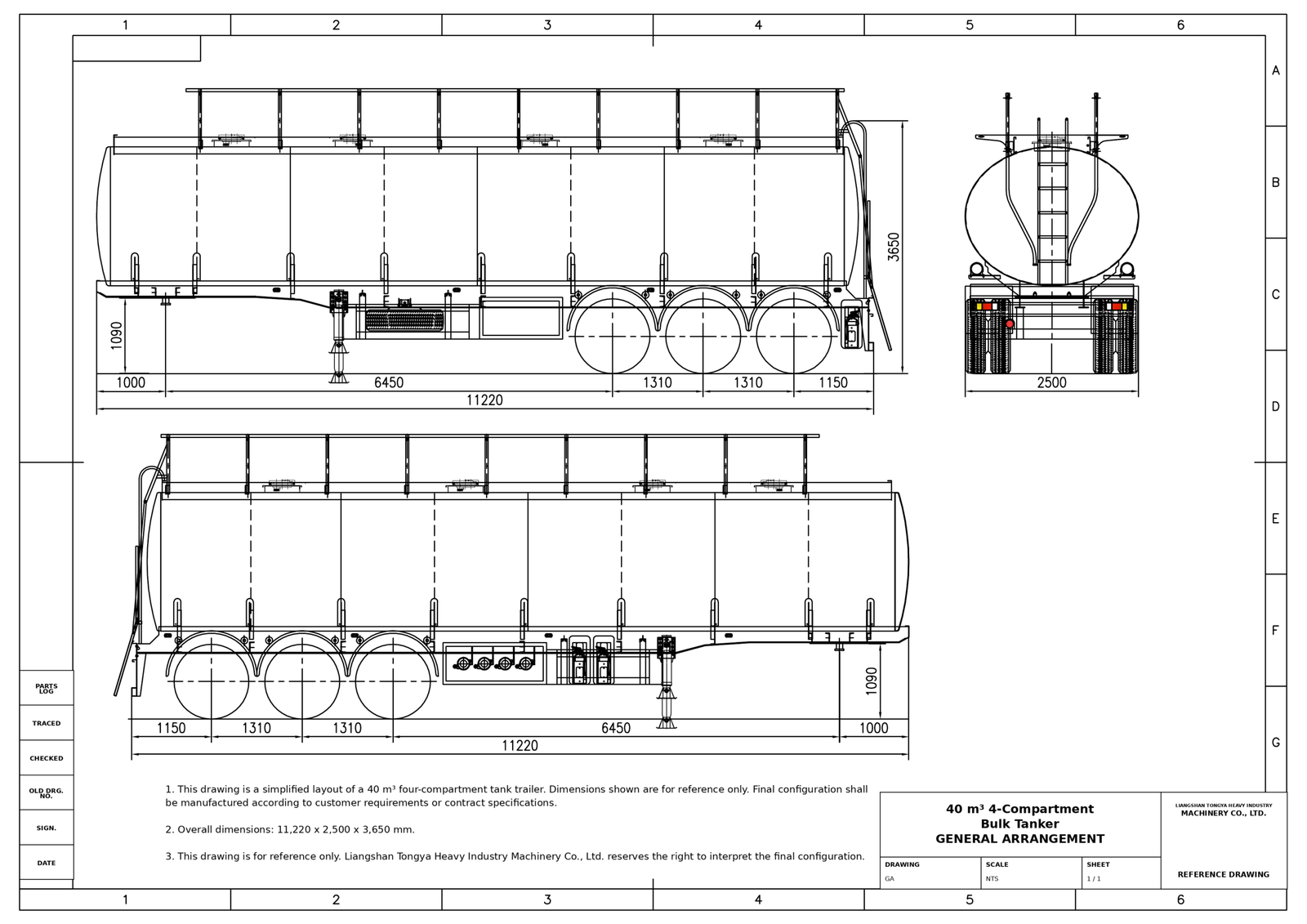

REFERENCE GENERAL ARRANGEMENT
Do These Fuel Tanker Trailer Dimensions Fit Your Route?
Use the reference dimensions to check depot gates, loading bays and route clearance before the order drawing is approved.
Check the tightest point first
Compare the reference envelope with the narrowest gate, lowest overhead clearance and most restricted part of the planned route. Send any limiting measurement before the final drawing is issued.
Optional Parts And Accessories
Semi-Trailer Axle Support Plate
American-Style Axle
Trailer Suspension Parts
Trailer Suspension Support Leg
WABCO Brake Valve
FUHUA (TUWA) Trailer Axle
German-Style Trailer Suspension
BPW Trailer Axle
Why Trust Chenlu?
Factory-Direct Manufacturing
CHENLU presents its own semi-trailer manufacturing base with modern workshops, CNC cutting, automatic welding lines and painting facilities. This supports direct communication between the buyer, engineering team and production team.
OEM/ODM Configuration Review
The published customization scope includes axle number and load configuration, suspension type, ride height, frame reinforcement, deck requirements, branding, colour and logo. The final scope should be confirmed against the cargo, tractor and destination route.
Process-Based Quality Control
The factory workflow covers material preparation, main-beam welding, frame assembly, surface treatment, painting, final assembly, inspection and testing. Quality checks should be recorded against the actual project configuration before delivery.
B2B Export and Project Support
CHENLU works with fleet owners, contractors, distributors and project buyers across logistics, construction, mining and heavy-equipment transport applications. The quotation should confirm the tractor interface, route, axle-load requirements and local permits.
Meet Chenlu and Review the Manufacturing Process
Customer visits support direct communication between buyers, engineering teams and the manufacturing department before the final configuration is confirmed.
Follow the Project from Delivery to Customer Feedback
Use approved delivery photos, project records and customer comments to present the completed communication and delivery process.
Publish the Original Customer Message with Permission
Add an approved customer comment, delivery record or project feedback here after the customer confirms the wording and image usage.
Approved delivery photo or project record.
Original customer message with permission.
Approved feedback about communication and support.
FUEL TANKER BUYER FAQ
What Should You Confirm Before Ordering a 3 Axle Fuel Tanker Trailer?
Tank volume is only the starting point. The fuel, discharge connection and tractor also affect the correct build, so the answers below separate this trailer’s confirmed details from order-specific choices.
01How many litres does the 40 m³ tank hold?
40 m³ equals 40,000 litres of reference tank volume. The actual loading quantity may be lower because the fuel’s density and the permitted loaded mass must also be checked.
02Is 40 m³ the same as a 40-tonne payload?
No. Cubic metres measure volume; tonnes measure mass. The same number of litres can produce a different cargo mass when the fuel changes, so payload cannot be set from 40 m³ alone.
03Can this tanker carry any type of fuel?
Do not assume that one tanker specification suits every fuel. Provide the exact product and density so the tank material, seals, valves and any required vapour-control equipment can be matched to the cargo.
04What are the reference dimensions of this build?
The reference overall size is 11,220 mm long, 2,500 mm wide and 3,650 mm high. Use these figures to review loading-site access, yard space and route clearance.
05How is fuel discharged from the trailer?
This build has a side-mounted valve cabinet connected to pipework beneath the tank. The required connection type, hose arrangement and need for a pump should match the receiving equipment.
06What running gear is fitted to this tanker?
The photographed trailer uses three rear axles with mechanical leaf-spring suspension. Axle rating, tyre specification, brake arrangement and component brands belong in the final order specification.
07What information is needed for an accurate quotation?
Send the fuel name and density, intended litres per trip, required discharge connection, tractor details, destination country and route conditions. These inputs show whether the 40 m³ arrangement fits the job or needs adjustment.
